Is a low-temperature incubator what you’re looking for?

Application Table

Check out some potential applications used in these two product line-ups.

Applications Optimal Temperature Range
Bacterial Research + 15 ℃ ~ + 35 ℃ / + 28 ℃ ~ + 70 ℃
Microbiology Research + 18 ℃ ~ + 35 ℃ / + 28 ℃ ~ + 50 ℃
Coliform Bacteria Testing + 35 ℃ ~ + 37 ℃
Drug Stability Testing + 5 ℃ ~ + 70 ℃
Food and Beverage Testing + 5 ℃ ~ + 70 ℃
Yeast Growth + 10 ℃ ~ + 40 ℃ / + 28 ℃ ~ + 40 ℃
BOD Around + 20 ℃
Insects / Fish Hatching + 5 ℃ ~ + 40 ℃ / + 28 ℃ ~ + 40 ℃

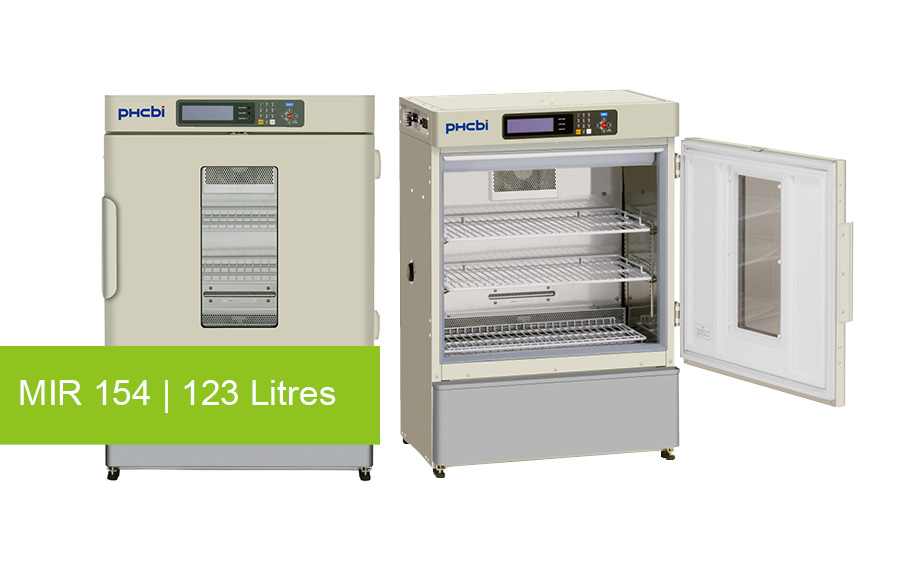

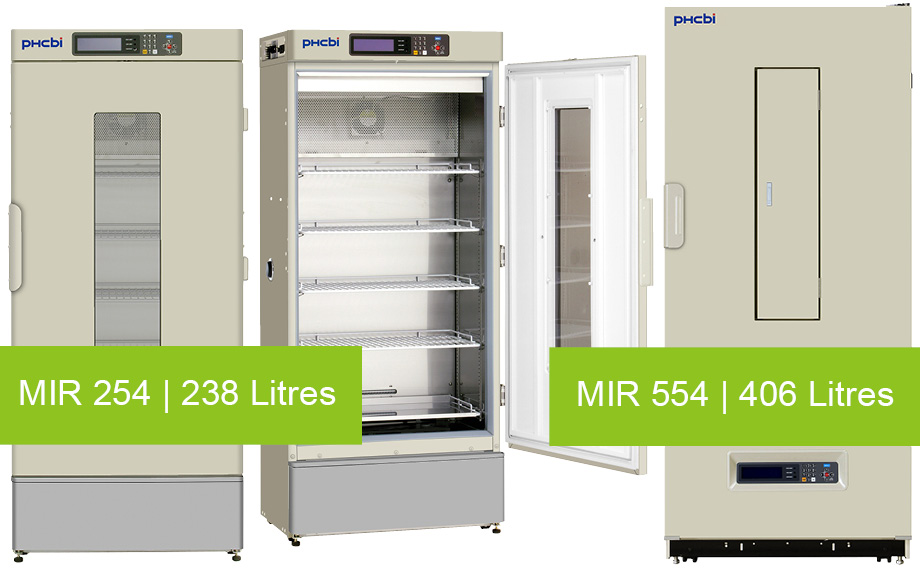

MIR Cooled Incubators


PHCbi’s refrigerated incubators provide a variety of temperatures and lighting patterns. The MIR cooled incubators combine an ambient temperature control range of -10℃ to 60℃ with an environmentally conscious design that consists of an intuitive new LCD display and programmable settings of temperature, light, and timer. With an improved and built-in user-operation for repetitive experimentation, you can expect high-precision temperature control for accurate results and stable cell production.

Programmable Operation with New LCD Display

Combining flexible Temperature, Light ON/OFF, Time control, a maximum 12-step plus constant operation or 12-step repeating operation can be programmed per your various experiment requests. The new MIR also offers the choice of timer mode, 24-hour Clock mode and Timer mode. Up to 10 programs can be stored for convenient retrieval and set-up of frequently run experiments. Individual programs can be combined using the Join function. Constant operation mode without step operation is also available.

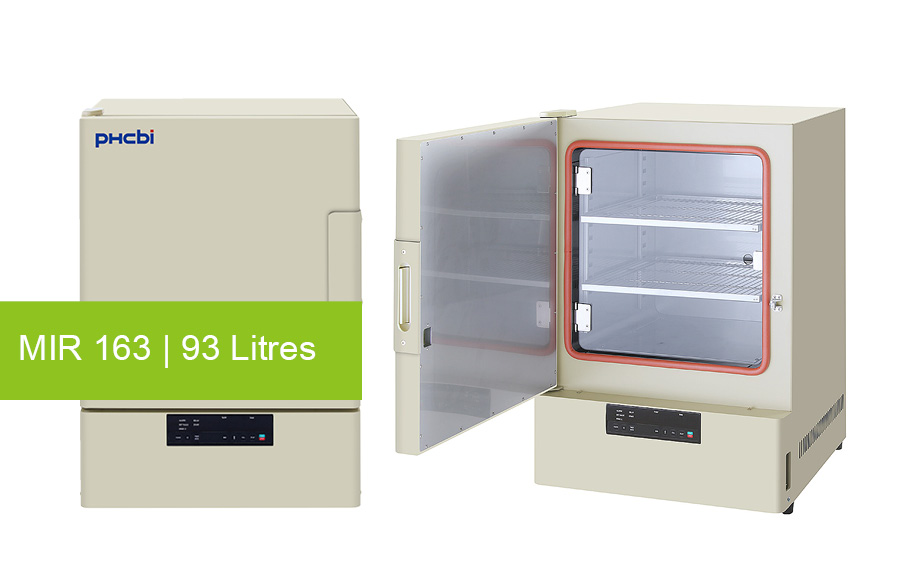

MIR Heated Incubators


Heated incubators provide a precise and stable incubation environment. The MIR Heated Incubators combines an ambient temperature control range of 5℃ to 80℃ with a user-friendly design consisting of Microprocessor PID control / Air jacket system and durable stainless steel interior cabinet.

Versatile Applications that includes biological cultures and environmental studies The heated series provides a safe and secured operation with alarms and self diagnostic functions while offering accurate and reliable temperature control while running. MIR Heated Incubators provide a precise and stable incubation environment.

Check out product brochure here Read the product specifications here Check out the general brochure here where to buy

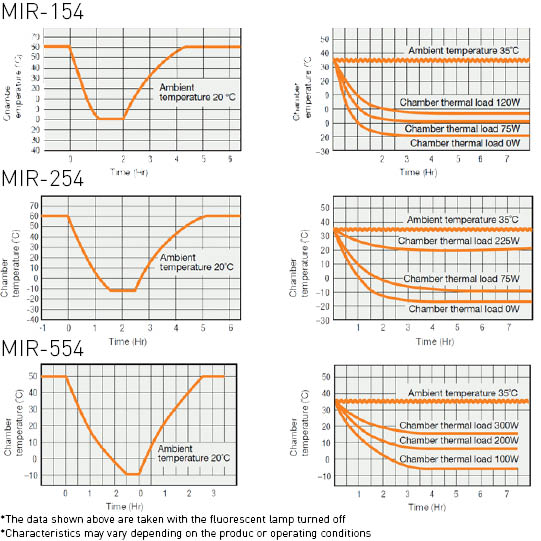

MIR Heated and Cooled Performance

Versatile Application

The MIR heated and cooled incubators are designed to offer accurate temperature control and consistent uniformity making them suitable for laboratory culturing, industrial incubation and various testing applications.

Wide Temperature Range

Multiple programming capability through wide temperature ranges. MIR Cooled incubators (-10 degrees Celsius up to 60 degrees Celsius) and MIR Heated incubators (5 degrees Celsius up to 80 degrees Celsius) with excellent chamber uniformity.

Ergonomic Cabinet Design

Improved usability with modern design focusing on form and function. The design includes a reversible door, adjustable low vibration and gentle air circulation that reduces media drying.

Model No. MIR-154 MIR-254 MIR-554 MIR-H163 MIR-H263
Category Cooled Incubator Series Heated Incubator Series
Temperature Control -10℃ to 60℃ (AT 5℃ to 35℃) Ambient Temp: 5℃ to 60℃ (AT 0℃ to 20℃)
Ambient Temp: 5℃ to 80℃ (AT 20℃ to 35℃)
Capacity (Litres) 123 238 406 93 153
External Dimensions (W x D x H) 700 X 580 X 1018 mm 700 x 580 x 1618 mm 800 x 832 x 1810 mm 580 x 595 x 820 mm 730 x 645 x 870 mm
Internal Dimensions (W x D x H) 620 x 368 x 555 mm 620 x 368 x 1088 mm 640 x 550 x 1160 mm 450 x 460 x 450 mm 600 x 510 x 500 mm
Net Weight 78 kg 108 kg 195 kg 50 kg 67 kg
Conditioning Forced Air Natural convection (Air Jacket System)
Lighting 15 W Fluorescent Light - -
Door Type Solid with Viewing Window Solid with Viewing Window with Cover Solid with Inner Glass Door
Interior Stainless Streel Interior
Adjustable Sliding Shelves - - -
Adjustable Wire Shelves
- -
- - - -

*External dimensions of main cabinet only – see dimension drawings on flyers showing handles and other external projections.
