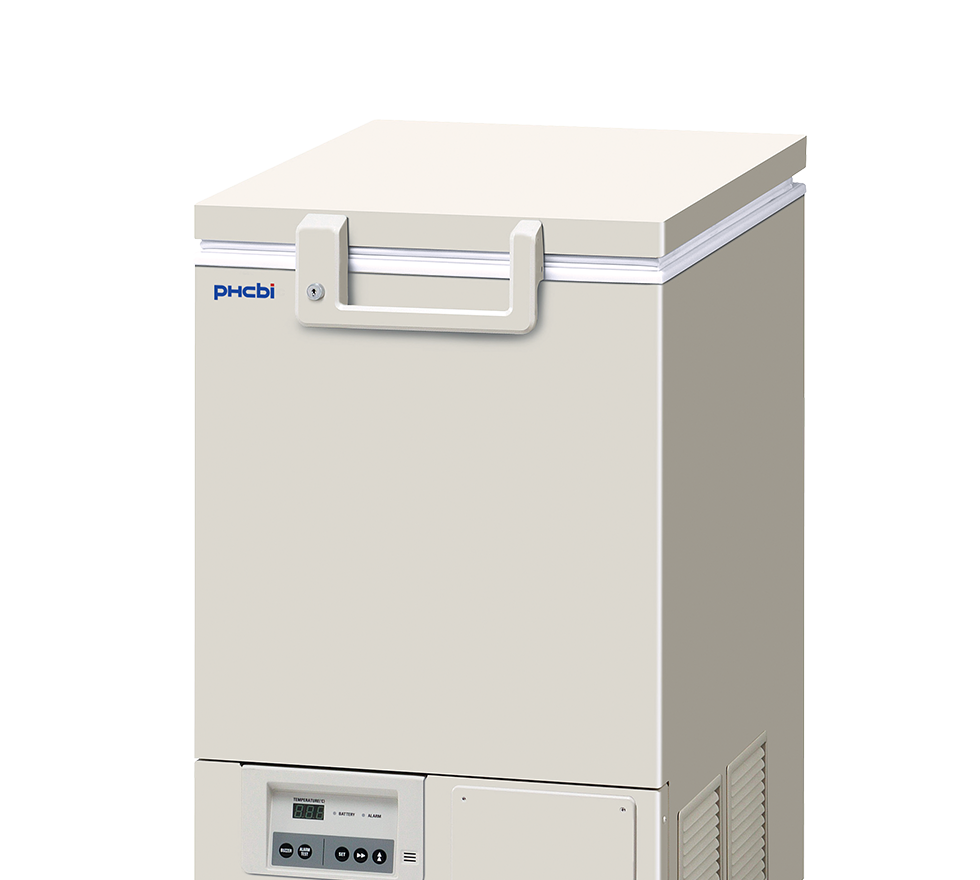

VIP Series -86C Chest Freezers

MDF-C8V1-PA

Effective capacity
3.0 cu.ft. (84 L)
Cooling Performance
-80℃

Model MDF-C8V1-PA Features

VIP® Vacuum Panel Insulation

Inside-out engineering starts with our patented VIP insulation composite which results in a highly efficient, thin-walled cabinet. Insulated inner doors improve temperature uniformity, minimize cold air loss from frequent door openings and extend warm-up times during power outages.

Greater than 99% Reliability Rate

The PHC engineered compressor powers the auto-cascade single refrigeration system. The system provides dependable cooling by balancing temperature performance and energy management. Reserve refrigeration power assures exceptional temperature recovery following door openings. VIP Series freezers have demonstrated >99% reliability with excellent performance history.

Energy Efficient

Energy efficiency in VIP Series freezers is achieved through balanced temperature performance and power management.

PHC Designed Compressors

The PHCbi VIP Series ultra-low temperature freezers are designed for safe, reliable storage or biologicals. The advanced combination of cabinet design, electronics, refrigeration and critical components are engineered for enhanced security, performance and reliability.

Microprocessor Controller and Alarms

The integrated microprocessor controller with LED display includes alarms, diagnostic and communication features with monitoring of system and compressor operating conditions.

Superior Temperature Uniformity

The robust refrigeration system, powered by PHC engineered compressors, provides dependable cooling by balancing temperature performance and energy management. Reserve refrigeration power assures exceptionally fast temperature recovery following door openings. The combination of patented VIP vacuum insulation panels with the PHC designed compressor and refrigeration system is specific to ultra-low temperature applications assuring superior uniformity (+/-5°C) throughout the cabinet to maintain the integrity of the samples.

High Capacity Storage, Minimal Cabinet Footprint

The small laboratory freezer employs a patented VIP insulation composite that maximizes space efficiency. Store up to 42 2" boxes or 30 3" boxes within an efficient 4.07 ft2 (0.38 m2) footprint. Ideal for storage of DNA, RNA, and other biological samples.

Extra Protection, Easy Access

Insulated locking lid with multi-level gasket seals firmly against the cabinet to minimize change in interior temperatures during routine openings. The lid handle features an ergonomic design that allows one-handed access.


Overview

VIP Series -86°C Chest Freezers

The PHCbi VIP ultra-low temperature freezers represent the complete combination of refrigeration, control, alarm configuration, monitoring, and accessibility for product safety at -86°C. Well-known for its reliability, energy savings, and performance, the VIP Series is ideal for material storage in biorepositories, hospitals, clinics, and medical research facilities.

The MDF-C8V1-PA compact biomedical freezer boasts a powerful VIP insulation panel that maximizes storage capacity while keeping temperatures consistently uniform. The uniquely engineered single-compressor system provides higher energy efficiency and more savings annually, all within an ergonomic and compact design.

Request a Quote


Product Photos

Specifications

EXTERNAL DIMENSIONS 21.7" x 26.2" x 37.2" (550 x 685 x 945 mm)
INTERNAL DIMENSIONS 15.9" x 19.3" x 16.7" (405 x 490 x 425 mm)
EFFECTIVE CAPACITY 3.0 cu.ft. (84 L)
INSULATION Rigid foamed-in-place and VIP vacuum insulation panels
ACCESS PORT 2: middle left back wall and right front chamber floor, Inner diameter 0.6 in (17 mm)
NET WEIGHT 148 lbs (67 kg)
COMPRESSOR (1) 400 W
EVAPORATOR Tube on sheet type
REFRIGERANT CFC free mixed refrigerant
TEMPERATURE CONTROL RANGE -60⁰C to -80⁰C (ambient temperature 30⁰C, no load)
ALARMS High temperature, low temperature, power failure
TEMPERATURE CONTROL SYSTEM Microprocessor, softkey data entry with display lockout
AREA FOOTPRINT 3.95 sq.ft. (0.37 m2)
DATA MANAGEMENT Optional with LabAlert Monitoring System
ENERGY CONSUMPTION AT 23oC AMBIENT 7.20 kWh/day
SOUND LEVEL 47 dB(A) [background noise 20 dB(A)]
STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES 42
STORAGE (RACKS) FOR 2”/51 MM FIBERBOARD BOXES 6
STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES 30
STORAGE (RACKS) FOR 3”/76 MM FIBERBOARD BOXES 6

Price

MDF-C8V1-PA Price Upon Inquiry. Please contact us.
