MLR Climatic Test Chambers

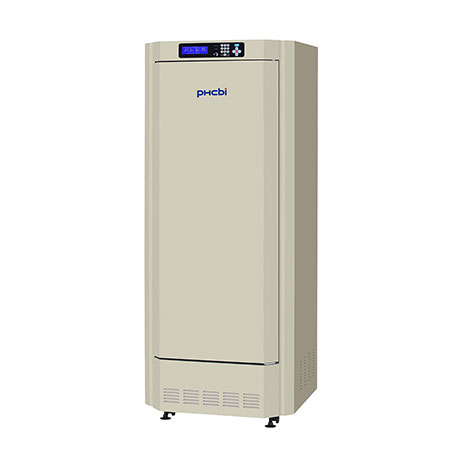

MLR-352H Climate Chamber

Effective capacity
Temperature range
5℃ to 50℃


Versatile Climate Chambers

The MLR-352H Climate Chamber has been recognized as an exceptional unit suitable for a wide range of applications. The wide variety of temperatures, humidity and lighting patterns that are essential in research, environmental studies and testing can now be accurately reproduced and controlled.

The microprocessor P.I.D. and refrigeration capacity control minimizes temperature fluctuations and thereby improves temperature control. This allows precise experiments plus energy and electricity savings.

Programming of temperature, light, and humidity can be used for small plants, environmental tests, algae, drosophila, etc. Easy calibration of temperature and humidity can be calibrated easily through the control panel. Small lightweight, high molecular membrane-type humidity sensor also boasts a high degree of accuracy and reproducibility.

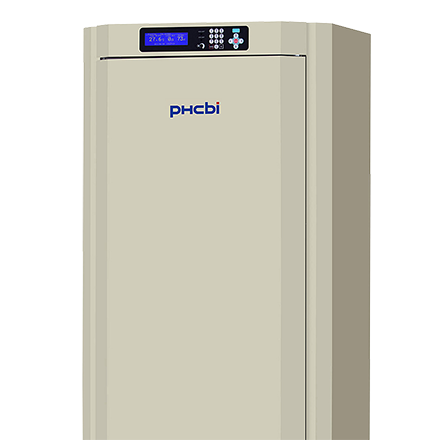

Graphic LCD panel with pop-up menu function on control panel provides visual display of operation and allows intuitive operation.

PHC Europe B.V. also offers the MLR-352, which has no humidity control.

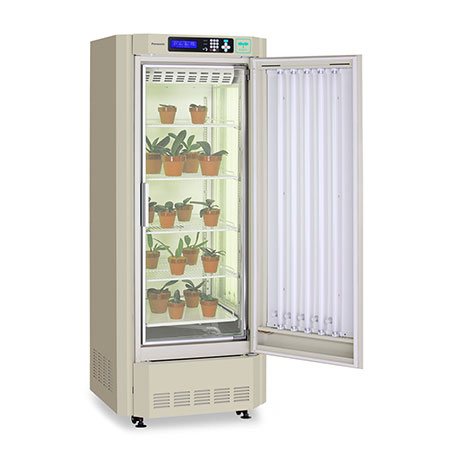

  • Culture of plant cells, tissues and organs
  • Acclimation and rearing of plants
  • Incubation and rearing of insects
  • Small and lightweight, high-molecular membrane-type humidity sensor also boasts a high degree of accuracy and reproducibility. Of the newest high-molecular membrane type, the humidity sensor accurately measures chamber humidity.
  • Operation data of approximately last 2 weeks (6-minute intervals) can be automatically recorded.


  • Graphic LCD provides easier operation
  • Programmable temperature, lighting and humidity
  • Microprocessor PID control and RefrigerationCapacity Control
  • Data logging function

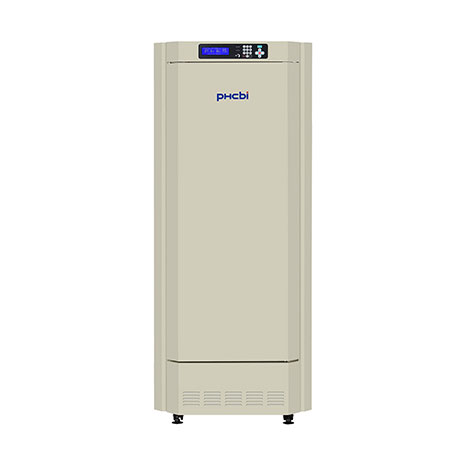

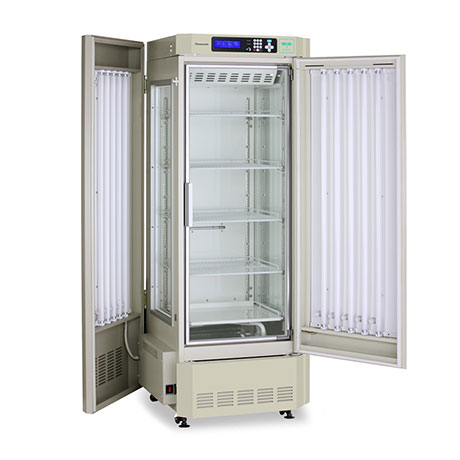

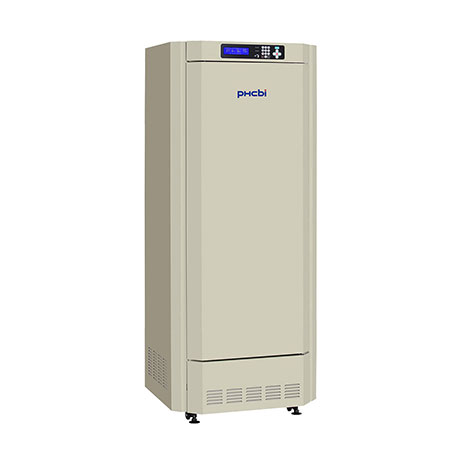

Product Photos


External Dimensions (W x D x H) 760 x 700 x 1835 mm
Internal Dimensions (W x D x H) 520 x 490 x 1135 mm
Volume 294 liters
Net Weight 235 kg
Temperature Control Range & Fluctuation 0 ~ +50 (lamp off) ±0.3 °C
+10 ~ +50 (lamp on) ±0.3 °C
Temperature Uniformity ±1 °C (lamp off)
±2.5 °C (lamp on)
Humidity Level & Fluctuation 60~90 %RH / LS:0 (15~45ºC)
55~85 %RH / Lamp On (15~45ºC)
Light Control Range Programmable 0 ~ 20000
Temperature Sensor Thermistor
Display LCD
Exterior Material Painted Steel
Interior Material SS SUS-304
Insulation Material PUF
Outer Doors 3
Outer Door Lock N
Field Reversible Door -
Inner Doors 1
Shelves 5
Shelf Dimensions (W x D x H) -
Max. Load Per Shelf 25 kg
Max. Shelf Capacity 100
Access Port 1
Access Port Position Ceiling
Access Port Diameter 40
Power Failure R
Out of Temperature Setting B-R
High Temperature B-R
Out of Humidity Setting V
Door Open V-B
Power Supply Local
Frequency Local
Noise Level 29 dB


Digital interface MTR-480-PW


MLR-352H Price Upon Inquiry. Please contact your local dealers.
