MPR Pharmaceutical Refrigerators

MPR-722R Pharmaceutical Refrigerator

Effective capacity
Temperature range
2℃ to 23℃

Pharmaceutical Vaccine Refrigerator MPR-722R Features

Airflow Assures Quick Recovery, Interior Uniformity

The MPR-722R large capacity Pharmaceutical Refrigerators (with drawers) delivers stable, reliable temperature control for clinical, pharmaceutical, biomedical storage and processing. Fast recovery following door openings assures safe storage even with frequent access and high ambient conditions and to remove heat loads generated by powered instruments. Vertical, forced air circulation with blower creates a uniform temperature at all shelf or drawer levels, top to bottom and front to back. Internal shelf or drawer clearances permit positive airflow to help restore temperature to setpoint following door openings, and safely accommodates busy, high traffic demand for access to stored contents in pharmacies, clinics and hospitals.
With a temperature range of 2°C to 23°C, the MPR-722R Pharmaceutical Refrigerator is ideally suited for many tests that require a stable, cool temperature or general cold storage.

Manufactured and distributed by PHCbi, all our Laboratory Refrigerators / Pharmacy Fridges / Vaccine Fridges / lab fridges are designed to meet the most exacting standards required of a specialist Pharmaceutical Refrigerator. Effective, reliable temperature control, quiet operation, ease of use and ergonomic design are just a few of the features you can expect as standard from a PHCbi Refrigerator.


  • Temperature Stability
  • Wide Temperature Range
  • Speedy and Powerful Refrigeration
  • Easy-to-Manage Layout
  • Large Capacity
  • Cycle Defrost
  • A filter less condenser cuts down on cleaning maintenance


  • Solid Steel Drawers
  • Standard Alarm and Safety Features
  • HFC and HFO combined (CFC-Free) Refrigerant & CFC-Free Insulation
  • Top-mounted air circulation blower
  • Cycle Defrost

Pharmaceutical Vaccine Refrigerator MPR-722R Performance Data

AT35˚C Pull-down & Pull-up Temperature


Test of permissible inside thermal load

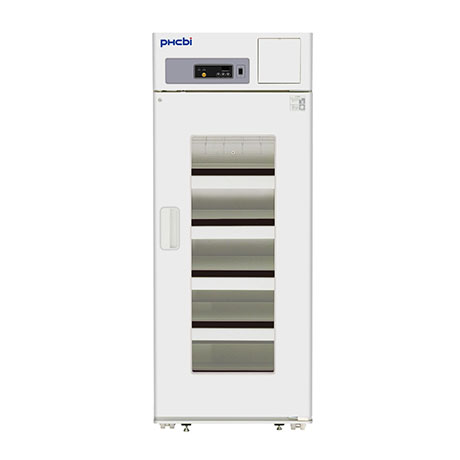

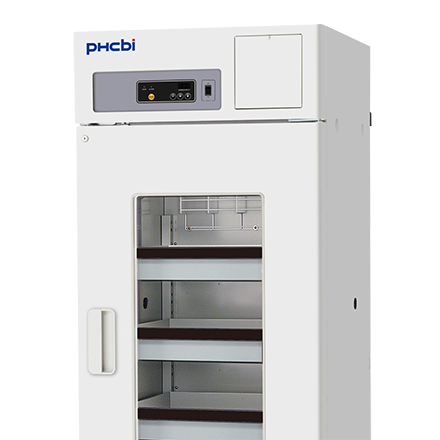

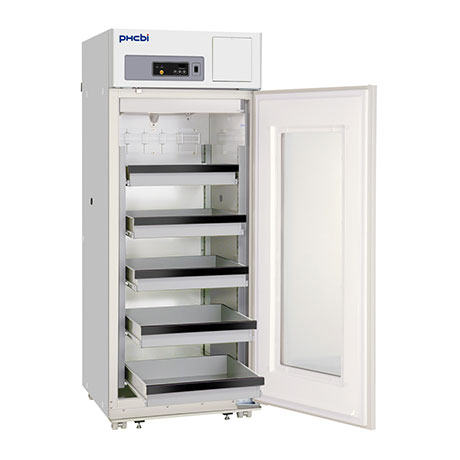

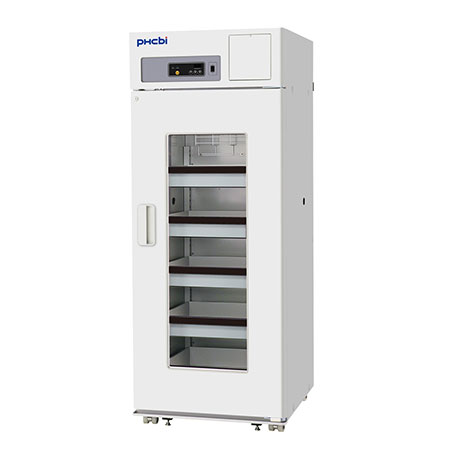

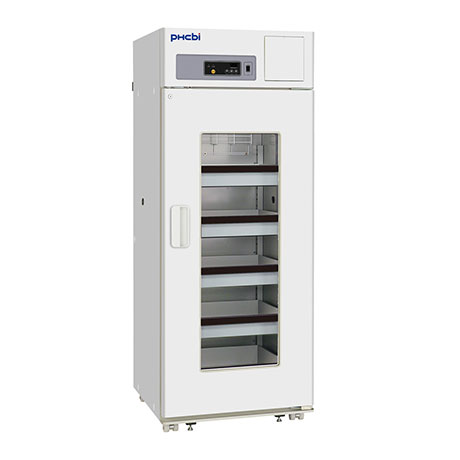

Pharmaceutical Vaccine Refrigerator MPR-722R Product Photos

Pharmaceutical Vaccine Refrigerator MPR-722R Specifications

External Dimensions (W x D x H) 770 x 830 x 1955 mm
Internal Dimensions (W x D x H) 650 x 710 x 1500 mm
Volume 671 liters
Net Weight 193 kg
Temperature Setting Range +2 to +23 °C
Temperature Control Range +2 to +14 °C (at fridge part center, AT -5 to 0ºC)
+2 to +23 °C (at fridge part center, AT 0 to 35ºC)
Controller Microprocessor with non-volatile memory (Safety Lock with keypad)
Display LED
Temperature Sensor Thermistor
Cooling Method Forced cool air circulation
Defrost Method Forced type (cycle defrost), fully automatic
Refrigerant HFC and HFO combined (CFC-Free)
Insulation Material Rigid polyurethane foamed insulation (CFC-free)
Exterior Material Painted steel
Interior Material Painted steel
Outer Doors 1 door, double pane glass, self closing
Outer Door Lock Y
Shelves N
Drawers 5 solid steel drawers (painted steel, 550 x 530 x 100 mm)
Max. Load - Per Shelf/Drawer 40 kg
Max. Load - Total 200 kg
Access Port 3
Access Port Position Left / Right / Top
Access Port Diameter 30 mm
Casters 4
Interior Light Fluorescent
Power Failure R (V-B optional) (V=Visual alarm, B=Buzzer, R=Remote alarm)
High Temperature V-B-R (V=Visual alarm, B=Buzzer, R=Remote alarm)
Low Temperature V-B-R (V=Visual alarm, B=Buzzer, R=Remote alarm)
Door Open V-B (V=Visual alarm, B=Buzzer)
Power Supply Local
Noise Level 48 dB [A]


Temperature chart recorder MTR-0621LH-PE
Chart paper RP-06-PW
Recorder housing MPR-S30-PW
Circular type recorder MTR-G04C-PE
Chart paper RP-G04-PW
Ink pen PG-R-PW
Recorder housing MPR-S7-PW
External mounting power failure alarm MPR-48B1-PW
Blackout panel MPR-72BP-PW


MPR-722R The price might vary in country. Please send the inquiry form for getting quotation.
