MDF ULT Freezers (-86°C)

MDF-594 ULT Chest Freezer

Effective capacity
Cooling Performance


Ideal for Middle-Sized Installation Space

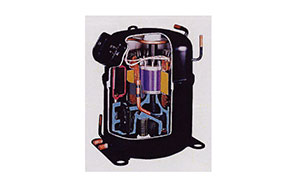

Specially designed compressor and cascade refrigeration system

Specially designed for rugged ultra-low temperature applications in a laboratory environment (HFC refrigerants only).

Micro-processor temperature control with LED digital display

Extremely accurate, easy-to-read display. The temperature inside the freezer can be set and monitored easily by means of a microprocessor temperature control with an LED digital display. The thermostat incorporates a platinum resistor (Pt. 100Ω), precision and durability.

Integrated cabinet design

High-performance refrigeration system with foamed-in-place cabinet insulation maximizes interior temperature uniformity and protects against fluctuating ambient temperatures.

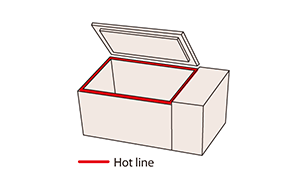

Hot line for secure sealing

Moisture condensation at the top edges of the cabinet due to differences in temperature inside and out causes frost and icing problems that may reduce heat insulation efficiency and obstruct door movements. These problems are prevented by the “hot line” by means of which hot gas from the higher temperature circuit is circulated through the problem areas.

Self-diagnostic function

The temperature sensor, filter sensor and cascade sensor monitor operation conditions continuously. Should abnormality be picked up, an error code and the current temperature will be displayed in turn.

Ring back function

The alarm buzzer can be silenced by pressing the BUZZER key on the control panel. (The remote alarm signal is not cancelled.) Should the alarm condition continue after a certain suspension, the alarm buzzer sound will resume.

Easy maintenance

Filter check lamp notifys the user of a clogged condenser filter.The condenser filter is situated at the front panel to make filter removing and cleaning easier.

Standard casters and levelling feet

Standard-equipped heavy duty casters make it easy to move a freezer when necessary. The levelling feet keep a freezer level and firm on the floor.

Steady chamber temperature

The feature of the chest type is the low cold air leakage on door openings, and can keep a steady chamber temperature. Long frozen cell line, DNA, blood, and bone marrow, by high credibility, and precise temperature control.

Built-in temperature & power failure alarms (lamp / buzzer)

In case of power failure or an irregular rise in temperature, a rechargeable battery-operated indicator lamp and alarm will be activated. A compact recording unit which automatically records the inside temperature, and a backup system with liquefied CO2 or N2 which is selfactivated when a power outage occurs are also available separately. This equipment helps insure that the contents will be protected in the event of any power failure or mechanical trouble.*

*MDF-594AT equipped with LCO2 injection device for backup and temperature recorder.

  • Low-profile design for easier lording and unloding
  • Ultra-freezing in minimal space
  • Alarm and safety devices

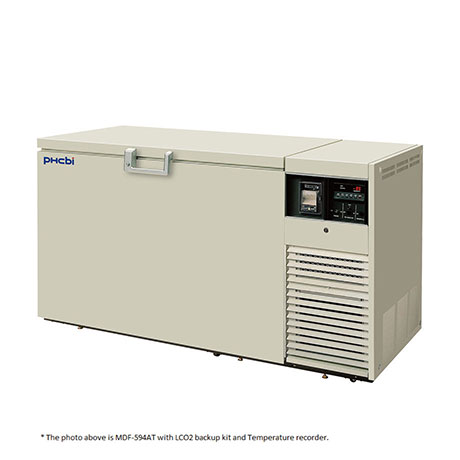

Product Photos


External Dimensions (W x D x H) 2010 x 770 x 1070 mm
Internal Dimensions (W x D x H) 1280 x 500 x 762 mm
Volume 487 litres
Net Weight MDF-594: 291 kg, MDF-594AT: 301 kg
Capacity (2” Boxes in Stainless Steel Racks) -
Capacity (3” Boxes in Stainless Steel Racks) -
Cooling Performance -86 °C
Temperature Setting Range -20 to -95 °C
Temperature Control Range -20 to -86 °C
Controller Microprocessor, non-volatile memory
Display LED
Temperature Sensor Pt-100
Refrigeration System Cascade
Compressors 1100 W x 2
Refrigerant HFC
Insulation Material PUF
Insulation Thickness -
Exterior Material Painted Steel
Interior Material Stainless Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid 3
Shelves -
Max. Load - Per Shelf -
Max. Load - Total -
Vacuum Release Port -
Access Port Y
Access Port Position Left
Access Port Diameter 40
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature -
Filter V-B
Door Open -
Power Supply Local
Frequency Local
Noise Level 50 dB [A]


Liquid N2 back-up Kit CVK-UBN2-PW
Liquid CO2 back-up Kit (Standard equipment with MDF-594AT) CVK-UB2-PW
Temperature recorder Strip type (Standard equipment with MDF-594AT) MTR-85H-PW
Storage racks with 5 drawers (Aluminum) MDF-59SC-PW (18 pcs storable in MDF-594 series)
Inventory rack for 9 pcs of 3" boxes (Stainless steel) IR-309C-PW (24 pcs storable in MDF-594 series)


MDF-594 The price might vary in country. Please send the inquiry form for getting quotation.


Catalog Download
