VIP ULT Freezers (-86°C)

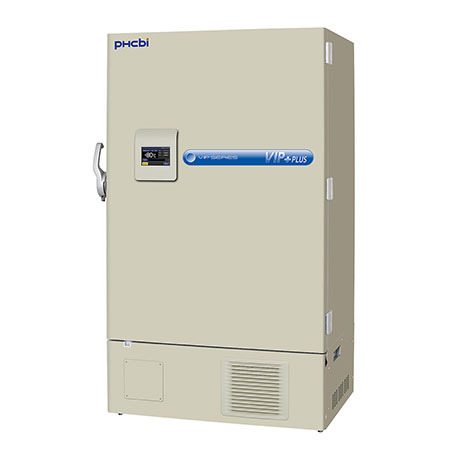

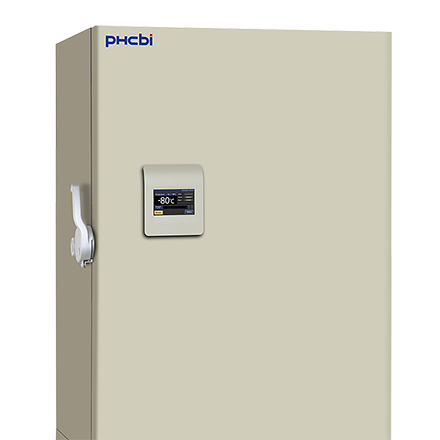

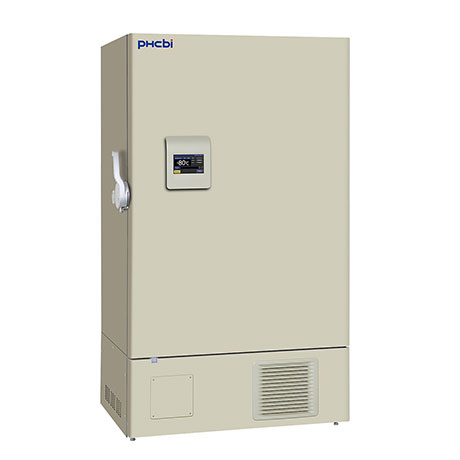

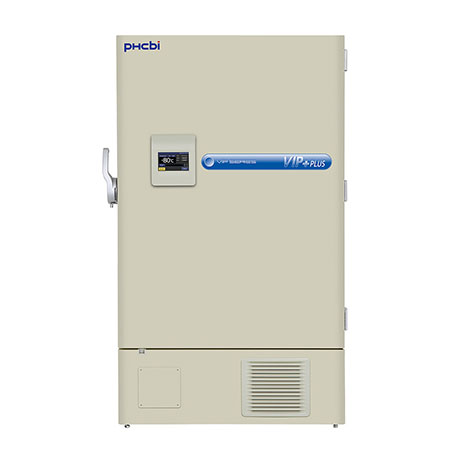

MDF-DU900V VIP ULT Freezer



Excellent reliability and uniformity within an optimal footprint

The MDF-DU900V VIP -86°C Upright Freezer provides maximum sample storage capacity within an optimum footprint combined with industry leading cooling performance and reliability for an ideal long-term preservation solution.

Maximum Sample Storage

The use of patented VIP PLUS panels within the large freezer cabinet allows a capacity of up to 672 2” boxes inside a footprint of just 1m2 for maximum storage. The freezer’s conventional depth allows for easy installation.

"Ideal for high volume and long term sample storage in biobanks and biorepositories."

Reliable Technologies

Quality of design and manufacture ensures trusted and reliable storage that maintains the integrity of precious samples. The compressors that are specifically designed for ultra-low temperature applications are employed in the proven PHCbi cascade refrigeration system ensuring the highest levels of performance and reliability.

Enhanced Use & Intelligent Security

The new EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC convenient. Important information such as freezer temperature, door opening times and alarm history is logged for monitoring in GLP applications.

PHC offers three other sizes of the VIP ULT freezers:


  • Maximum Sample Storage
  • EZLatch makes acces to samples convienent
  • Certified as a Class IIa Medical Device
  • Enhanced Use & Intelligent Security
  • Vacuum release port for improved accessibility


  • VIP PLUS Insulation maximizes storage capacity.
  • New EZlatch Easy-open doorhandle
  • Colour LCD Touch Screen
  • USB Port



Product Photos

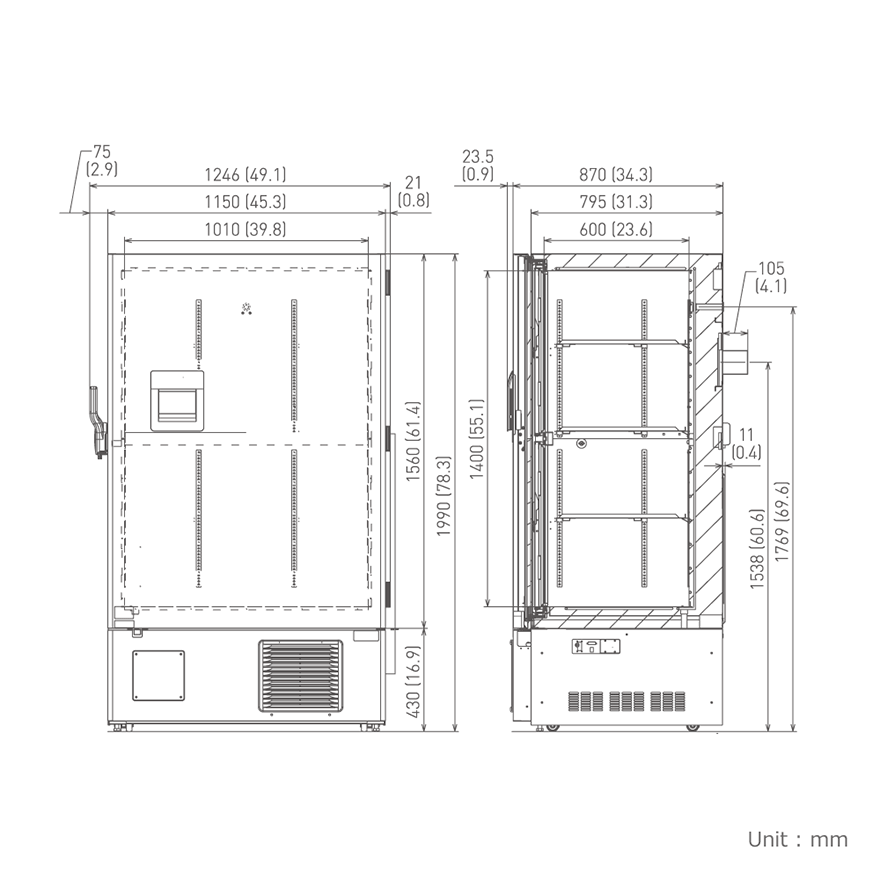

External Dimensions (W x D x H) 1150 x 870 x 1990 mm
Internal Dimensions (W x D x H) 1010 x 600 x 1400 mm
Volume 845 litres
Net Weight 372 kg
Capacity (2” Boxes in Stainless Steel Racks) 672 (2” boxes)
Capacity (3” Boxes in Stainless Steel Racks) -
Cooling Performance -86 °C
Temperature Setting Range -50 to -90 °C
Temperature Control Range -50 to -86 °C
Controller Microprocessor, non-volatile memory
Display LCD Touch Screen
Temperature Sensor Pt-1000
Refrigeration System Cascade
Compressors 2 x 1100 W
Insulation Material PUF / VIP Plus
Insulation Thickness 70 mm
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid 2 pieces (insulated)
Max. Load - Per Shelf 50 kg
Max. Load - Total 150 kg
Vacuum Release Port Y
Access Port 2
Access Port Position Back, Bottom
Access Port Diameter 17
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter V-B
Door Open V-B
Power Supply Local
Frequency Local
Noise Level 52 dB [A]


Small Inner Door Kit MDF-9ID-PW (max 2) 4) set of 2
Liquid CO2 back-up MDF-UB6-PW
Temperature recorders
- Circular type MTR-G85C-PE 5)
- Chart paper RP-85-PW
- Ink pen DF-38FP-PW
- Continuous strip type MTR-85H-PW
- Recorder housing MDF-S3085-PE
Optional communication systems
Ethernet interface (LAN) MTR-L03-PW


MDF-DU900V The price might vary in country. Please send the inquiry form for getting quotation.


Catalog Download
