(ECO) Biomedical -40°C Freezers

MDF-MU549DH -40°C ECO Plasma Freezer

Effective capacity
Temperature range
-20℃ to -40℃


-40°C biomedical ECO freezer with separate temperature controls for the 2 completely independent chambers

The MDF-MU549DH ECO Plasma Freezer provides environmental saving and flexibility while maintaining the quality of the samples during preservation. Such flexibility includes height-adjustable shelf trays, separate top and bottom chambers with independent temperature settings and separate doors that prevent cold air leakage. The Biomedical ECO Series Freezers with natural refrigerants minimise energy consumption, reduce environmental impact and save money while providing superior stability and uniformity.

The MDF-MU549DH ECO Plasma Freezer provides an ideal freezing environment for the preservation of blood plasma, vaccines, test samples, and other biological specimens.

PHCbi also offers the MDF-MU539HL ECO -30°C Biomedical freezer, which has the same capacity of 504 litres.

Energy-efficient Performance

Natural refrigerants, compressors and integrated electronics combine to lower operating costs. Freezer operation is managed by effectively balancing temperature performance and energy management.

Height-adjustable Shelf Trays

The unit features completely height-adjustable shelf trays, accommodating chamber containers of various sizes. The new plat form chassis allows user to maximize the internal space and flexibility of the freezer which fits any use during its long life-span.

MDF-MU330H flexible shelves

Double chamber allows multi-purpose storage

2 completely independent chambers each with its own temp. control make storage possible of samples with different storage temp. requirements. Moreover, it allows for defrosting each chamber separately without having to relocate samples.

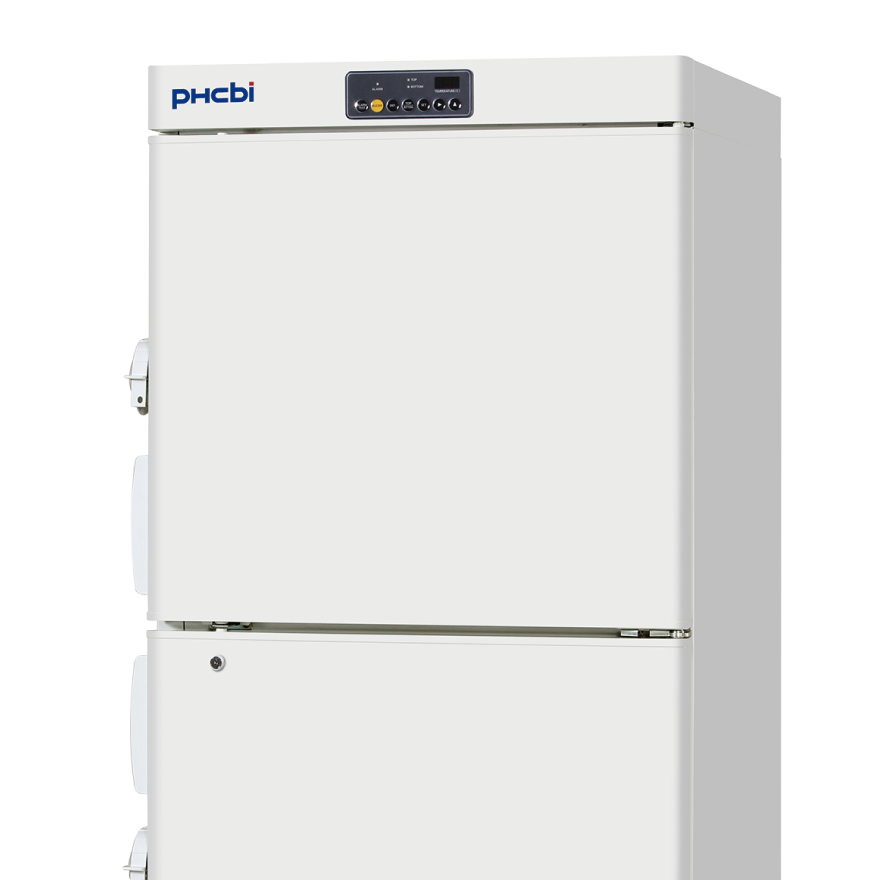

Product Photos

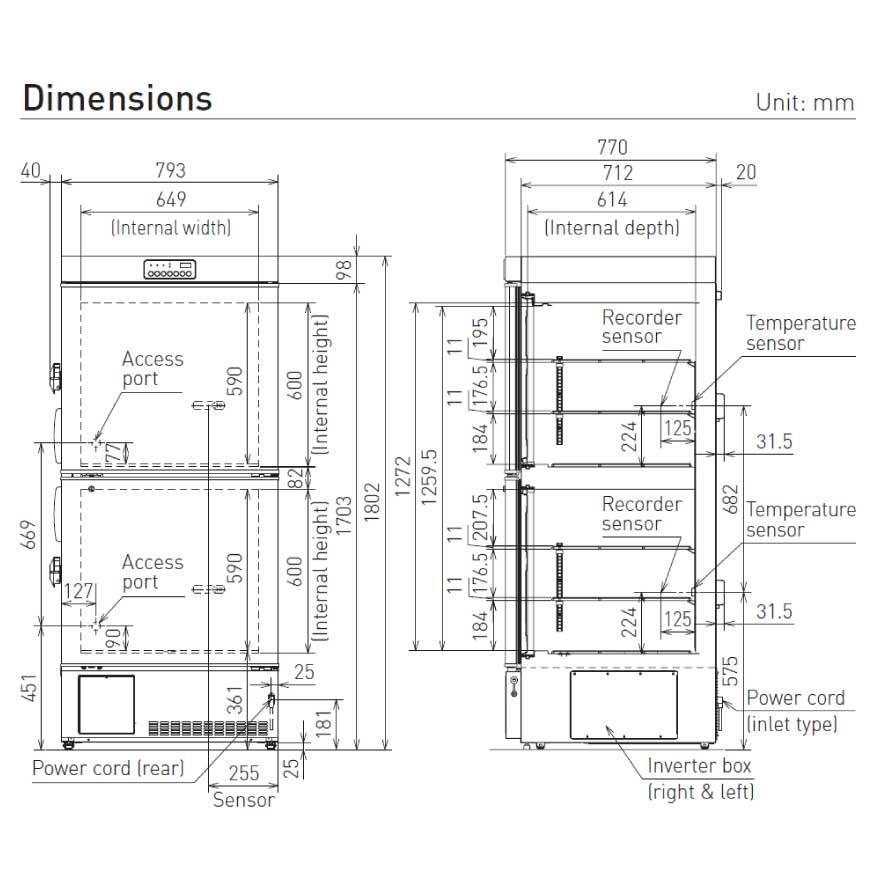

External Dimensions (W x D x H) 793 x 770 x 1802 mm
Internal Dimensions (W x D x H) 649 x 614 x 600 (per chamber) x 2 mm
Volume 479 litres
Net Weight 165 kg
Capacity (Aluminium Racks 2” Boxes) 288
Capacity (Stainless Steel Racks 2” Boxe) -
Cooling Performance -40 °C
Temperature Setting Range -45 to -18 °C
Temperature Control Range -40 to -20 °C
Controller Microprocessor, non-volatile memory
Display LED
Temperature Sensor Thermistor
Refrigeration System Direct cooling system
Compressors 400 W
Refrigerant HC
Insulation Material PUF
Insulation Thickness 70 mm
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 2
Outer Door Lock Y
Inner Doors/Lid -
Shelves 6 (Dimensions : W624 x D510 mm)
Max. Load - Per Shelf 30 kg
Max. load - Total -
Vacuum Release Port -
Access Port 2 (1 per chamber)
Access Port Position Back
Access Port Diameter 30
Casters 4 (2 leveling feet)
Power Failure V-B-R (V = Visual Alarm, B = Buzzer Alarm, R = Remote Alarm)
High Temperature V-B-R
Low Temperature V-B-R
Filter -
Door Open -
Power Supply MDF-MU549DH-PE : 220/230/240V | MDF-MU549DH-PK : 220V
Frequency MDF-MU549DH-PE : 50Hz | MDF-MU549DH-PK : 60Hz
Noise Level 42 dB [A]


Temperature recorders
- Circular type MTR-G85C-PE / MTR-G85A-PA
- Recorder housing MPR-S7-PW (for MTR-G85 series)
MPR-S30-PW (for MTR-4015LH series)
- Chart paper RP-G85-PW (for MTR-G85D series)
RP-40-PW (for MTR-4015LH series)
-Ink pen PG-R-PW
- Continuous strip type MTR-4015LH-PE / MPT-4015LH-PA
Communications interface MTR-480-PW, MTR-L03-PW
 (only for MTR-5000 user only)
Storage container MDF-05SC-PW (2 pcs/set)
 (Inner dimensions : W280 x D552 x H157 mm)


MDF-MU549DH The price might vary in country. Please send the inquiry form for getting quotation.


Catalog Download
