MPR Pharmaceutical Refrigerators with Freezer

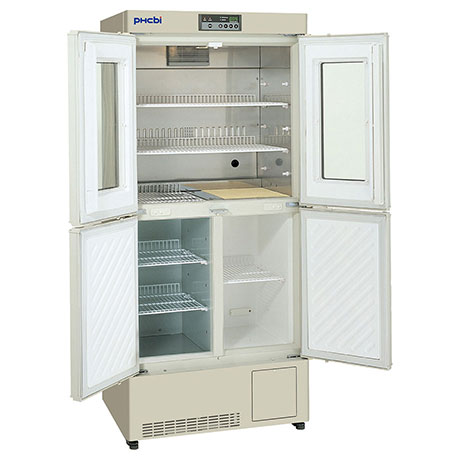

MPR-414F Pharmaceutical Refrigerator with Freezer

Effective capacity
Refrigerator 340L / Freezer 82L
Temperature range
Refrigerator 2℃ to 14℃ / Freezer -20℃ to -30℃

Features

Providing a complete storage solution; refrigerator and freezer in one unit

The MPR-414F Pharmaceutical Refrigerator with Freezer is the ideal biologic storage environment for precise control and superior temperature uniformity.

The MPR-414F combines high performance refrigeration, control and alarm/monitoring systems with energy efficient, cost-effective cabinet design. One unit with dual temperature zone needs only minimal installation space. The two door design reduces air loss during door openings. The triple or double-pane windows with heat reflection film reduces the condensation. To provide easier validation services calibration adjustment through the control panel is available. The MPR Pharmaceutical Refrigerators with Freezers have two separate specially designed compressors and offers quiet operation.

Benefits

  • Maintain required temperature range throughout the year.
  • Separate doors for refrigerator and freezer.
  • Large enough to hold year's largest vaccine inventory.
  • Safe and secured storage behind a keyed locking door.
  • Dedicated to biologics, recommended by the Centers for Disease Control.
  • Unique refrigerator defrost system prevents temperature variations during defrost cycle.
  • Secondary temperature deviation safety device prevents over temperature or under temperature condition.

Features

  • Integrated alarm functions, remote alarm contacts and monitoring.
  • Microprocessor control for accurate temperature management.
  • Mechanical convection airflow- ducts and plenums achieve uniform temperature regardless of product loading, with quick temperature recovery following door openings.
  • High and low temperature alarm includes audible and visual warning with alarm ring back.
  • Remote alarm contacts allow connection to remote alarm system.
  • Open door indicator light with 15 minute delayed audible alarm adds to safety.
  • Keyed door locks contribute to inventory security.

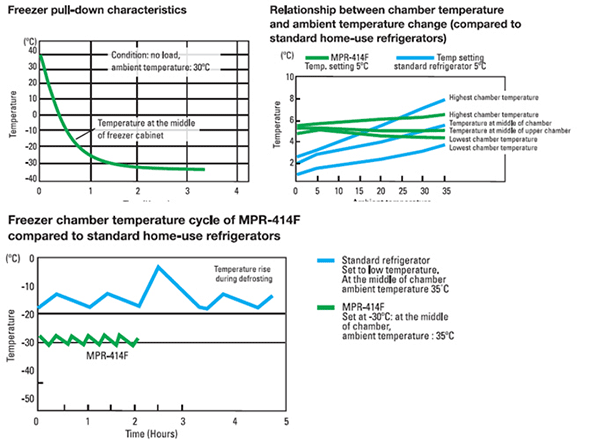

Performance

MPR-414F

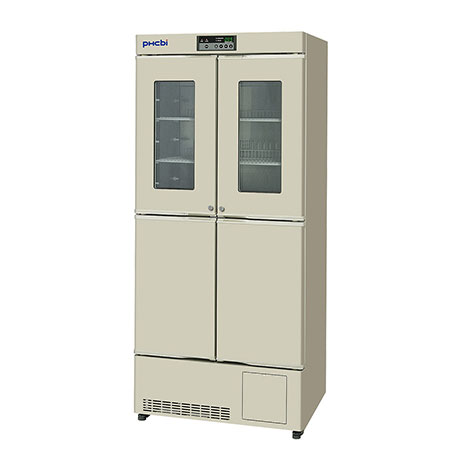

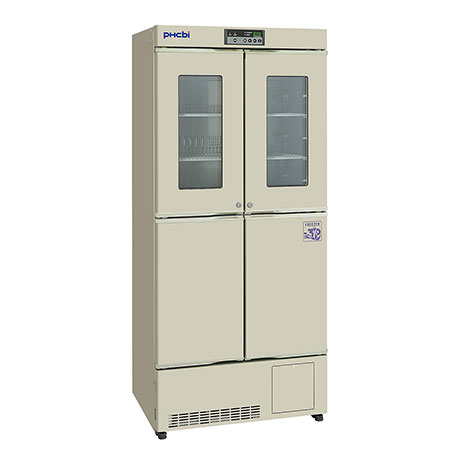

Product Photos

Specifications

External Dimensions (W x D x H) 800 x 600 x 1805 mm
Internal Dimensions (W x D x H) 720 x 495 x 1425 mm (Ref) / 317 x 440 x 576 mm (Frz)
Volume 340/82 litres (Ref/Frz)
Net Weight 126 kg
Temperature Setting Range +2 to +14 °C (Ref) / -20 to -30 °C (Frz)
Temperature Control Range +2 to +14 °C (Ref) / -20 to -30 °C (Frz)
Controller Microprocessor
Display LED
Temperature Sensor Thermistor
Cooling Method Fan forced air circulation (Ref) / Direct cooling (Frz)
Defrost Method Cyclical defrost (Ref) / Manual (Frz)
Refrigerant
Insulation Material PUF
Exterior Material Painted steel
Interior Material Styrol resin (Ref) / Painted aluminium (Frz)
Outer Doors 4, glass window (2)
Outer Door Lock Y
Shelves
Drawers
Max. Load - Per Shelf/Drawer 25 & 15 /15 (Ref/Frz) kg
Max. Load - Total 95 kg
Access Port 2
Access Port Position Left
Access Port Diameter 30
Casters 4
Interior Light Fluorescent (Ref)
Power Failure V-B-R (Optional)
High Temperature V-B-R
Low Temperature V-B-R
Door Open V-B
Power Supply Local
Noise Level 39 dB [A]

Accessories

Temperature recorders
Temperature chart recorder MTR-0621LH-PH
chart paper RP-40-PW
recorder housing MPR-S30-PW
Circular temp. chart recorder MTR-G3504C-PE
Ink pen PG-RB-PW
- Continuous strip type (-40C to +14C) MTR-4015LH-PE
RS485 interface module MTR-480-PW
Drawers for bottom left compartment MPR-41F-PW

Price

MPR-414F The price might vary in country. Please send the inquiry form for getting quotation.

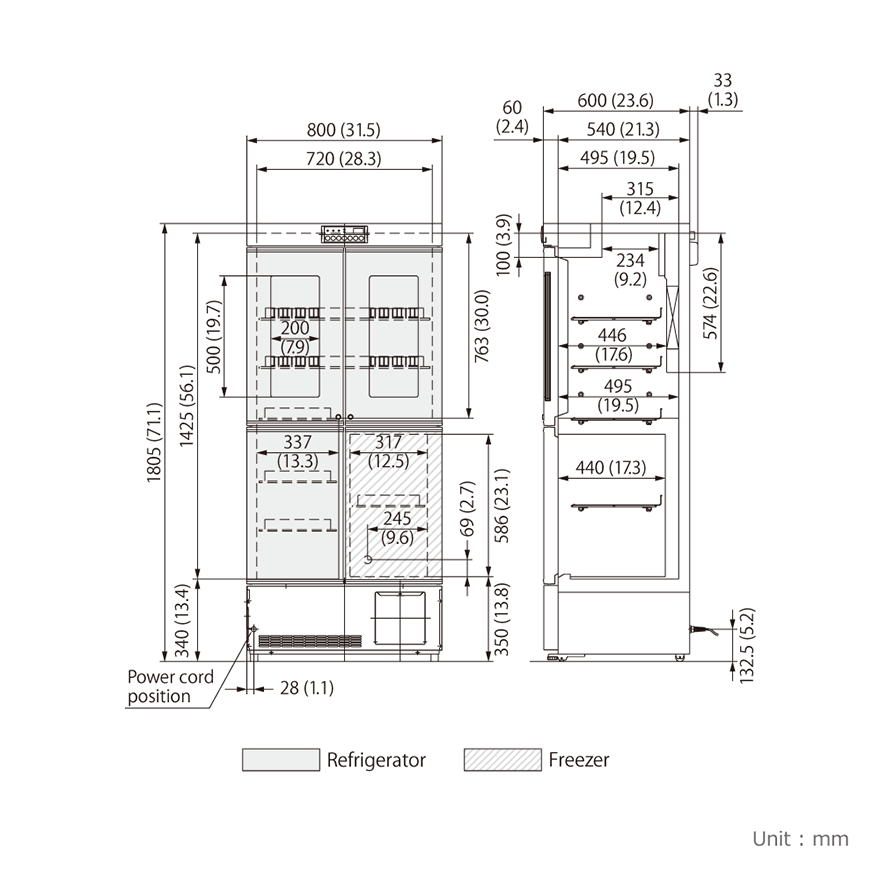

Dimensions

Catalog Download
