MPR Pharmaceutical Refrigerators with Freezer

MPR-N450FH Pharmaceutical Refrigerator with Freezer

Effective capacity
Refrigerator 326L / Freezer 136L
Temperature range
Refrigerator 2℃ to 14℃ / Freezer -20℃ to -30℃


Energy efficient performance

Natural refrigerants, compressors and integrated electronics combine to achieve facility sustainability objectives by minimizing any environmental impact and cost of electricity without compromising cooling performance, ambient tolerance and recovery speeds following door openings.

Natural Refrigerants and Inverter Technology

Naturally occuring hydrocarbon [HC] refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising performance and ambient tolerance and recovery speeds following door openings.

Superior Uniformity

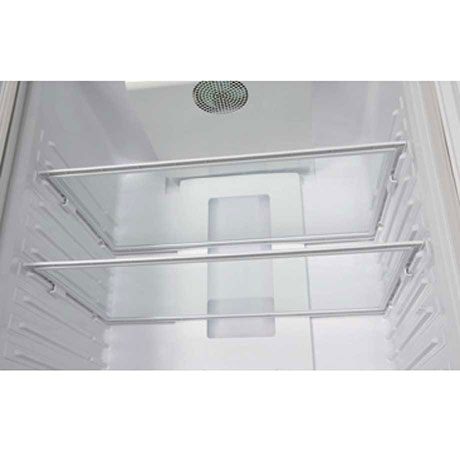

Temperatures remain stable wherever products are stored, even in a fully loaded chamber. The refrigerator is engineered to prevent inadvertent freezing of temperature sensitive vaccines. The refrigerator includes a high performance refrigeration system with a forced air, back wall plenum. This provides even, horizontal
airflow across the solid, adjustable shelves at each shelf level. A uniform freezer temperature is maintained through a cold wall refrigeration system with natural circulation.

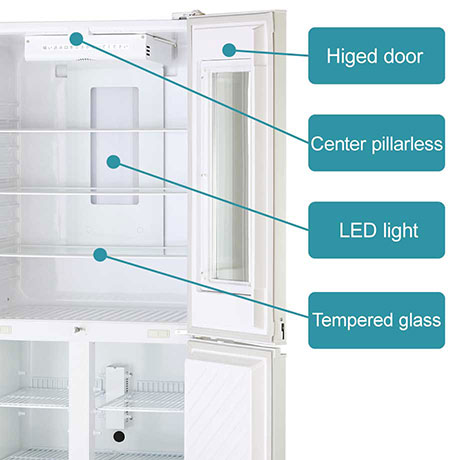

*The image below is the refrigerator part (upper part of unit).


Security Control and Monitoring

The microprocessor controller and LED display are door mounted at eye level. Control buttons allows convenient but secure user control. Refrigerator and freezer temperatures can be displayed in 0.1°C increments simultaneously or individually. Minimum/maximum temperatures are automatically displayed every 24 hours.
All alarm conditions are displayed and recorded. Data transfer is through a USB port.


Performance (AT30°C Pull-down & Pull-up Temperature)

Refrigerator (Upper part)


Freezer (Lower part)


Natural Refrigerants Vaccine Refrigerator & Freezer Famliy

  Steel Door Type MPR-N450FSH

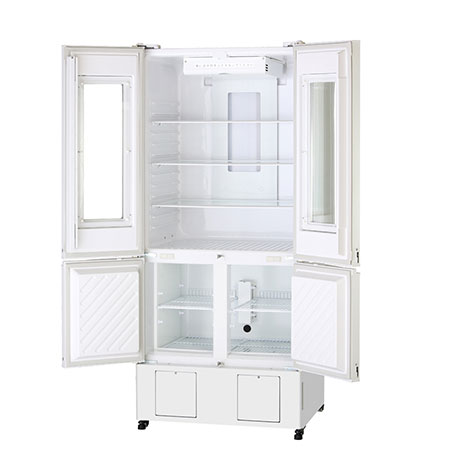

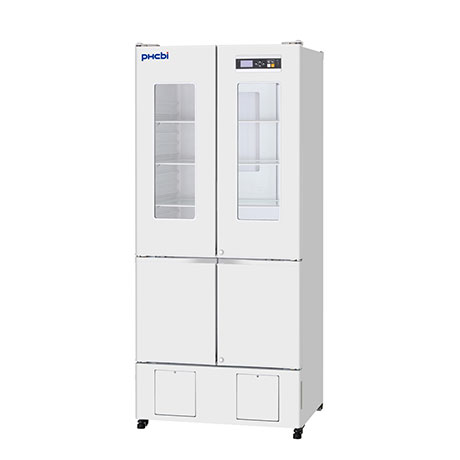

Product Photos

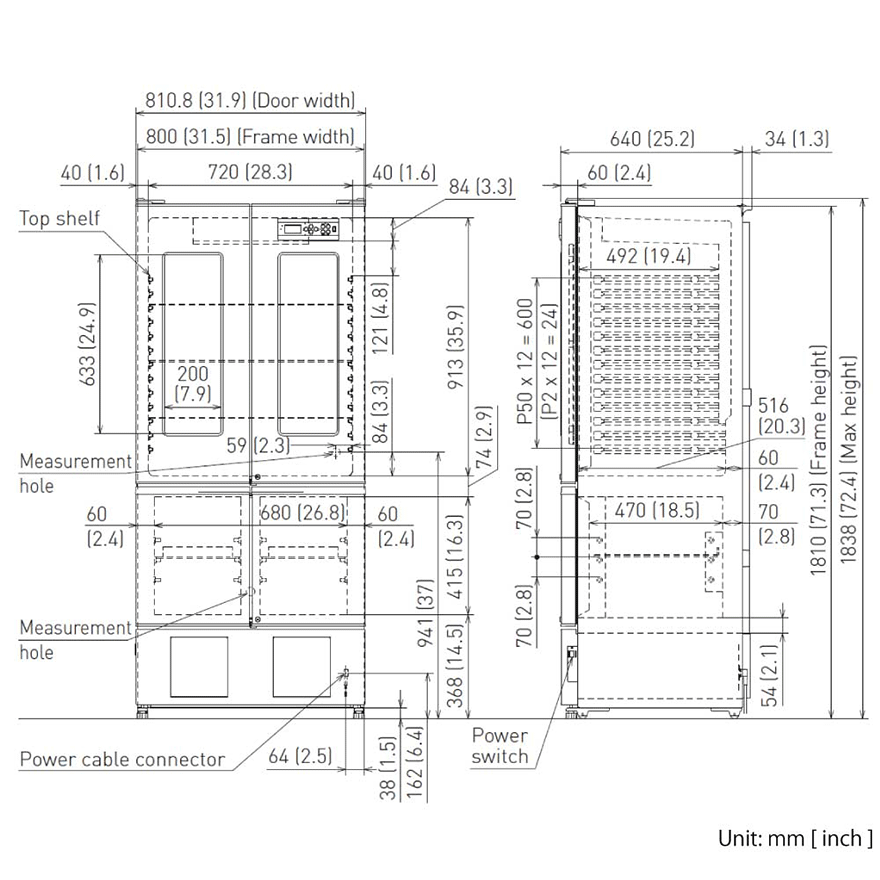

External Dimensions (W x D x H) 800 x 640 x 1810 mm
Internal Dimensions (W x D x H) 720 x 516 x 913 mm (Ref) / 680 x 470 x 415 mm (Frz)
Volume 326 / 136 litres (Ref / Frz)
Net Weight 129 kg
Temperature Setting Range +2 to +14 °C (Ref) / -20 to -30 °C (Frz)
Temperature Control Range +2 to +14 °C (Ref) / -20 to -30 °C (Frz)
Controller Microprocessor
Display White graphic OLED
Temperature Sensor Thermistor
Cooling Method Fan forced air circulation (Refrigerator) / Direct cooling (Freezer)
Defrost Method Cyclical defrost (Refrigerator) / Manual (Freezer)
Refrigerant HC refrigerant (Refrigerator / Freezer)
Insulation Material PUF
Exterior Material Painted steel
Interior Material ABS resin (Refrigerator) / Painted steel (Freezer)
Outer Doors 4, glass window (2)
Outer Door Lock Y (Refrigerator / Freezer)
Shelves Tempered glass (3) / Coated steel wires (2) (Refrigerator / Freezer)
Max. Load - Per Shelf/Drawer 25 kg (Refrigerator) /15 kg (Freezer)
Max. Load - Total
Access Port 2 (1 for Refrigerator, 1 for Freezer)
Access Port Position Back
Access Port Diameter 30 mm
Casters 4
Interior Light LED
Power Failure R (Remote alarm comes with optional power failure alarm MPR-48B2-PW)
High Temperature V-B-M-R (V= Visual Alarm, B = Buzzer Alarm, R = Remote Alarm, M = Message)
Low Temperature V-B-M-R
Door Open V-B-M
Power Supply Local
Noise Level 41 dB [A]


Temperature chart recorder (Ref) MTR-0621LH-PE/PA
Chart paper (Ref) RP-06-PW
Recorder housing (for each recorder of Ref / Frz)  MPR-S30-PW
Circular temp. chart recorder (Ref / Frz) MTR-G3504C-PE/MTR-G3504A-PA
Chart paper (Ref / Frz) RP-G3504C-PW
Ink pen (Ref / Frz) PG-RB-PW
Continuous strip type (Frz) MTR-4015LH-PE /PA
Chart paper (Frz) RP-40-PW
External mounting power failure alarm MPR-48B2-PW
Container inside freezer (Frz) MPR-45FSC-PW
Blackout panel (Ref) MPR-45BP-PW


MPR-N450FH The price might vary in country. Please send the inquiry form for getting quotation.
