TwinGuard ECO Pharmaceutical Refrigerator


Effective capacity
Temperature range
2℃ to 14℃


Our Twinguard Pharmaceutical Refrigerators with sliding doors, perfectly preserve samples, reagents, and pharmaceuticals through high-reliability temperature control and not use for storage of blood and its derivatives. Use of natural HC refrigerants combined with inverter controlled compressors, reduces power consumption by approx. 77% compared with existing models.

Ultimate Sample Protection

A single unit incorporates two independent refrigerating circuits. Should one circuit experience a problem, the other circuit will continue to maintain in-chamber temperature at SV 5°C ± 3°C. The double-safe circuits ensure preserving the crucial stored items with greater safety.

Improved Sustainability

Natural HC refrigerants, inverter controlled compressors, new Cycle Defrost system, together with enhanced sliding glass doors design, combine to improve temperature management and increase energy efficiency.

User-friendly Design

The ergonomic design provides a clear view of stored items through the large framed windows. The slim profile allows easy retrieval, and the selfclosing sliding doors makes them ideal for limited spaces.

Environmentally Friendly and Energy Saving

2 Compressors operate in an ON/OFF fashion, “deciding” for the ideal operation. Compressor A and B are controlled on ideal operating patterns, in order to minimize power consumption.

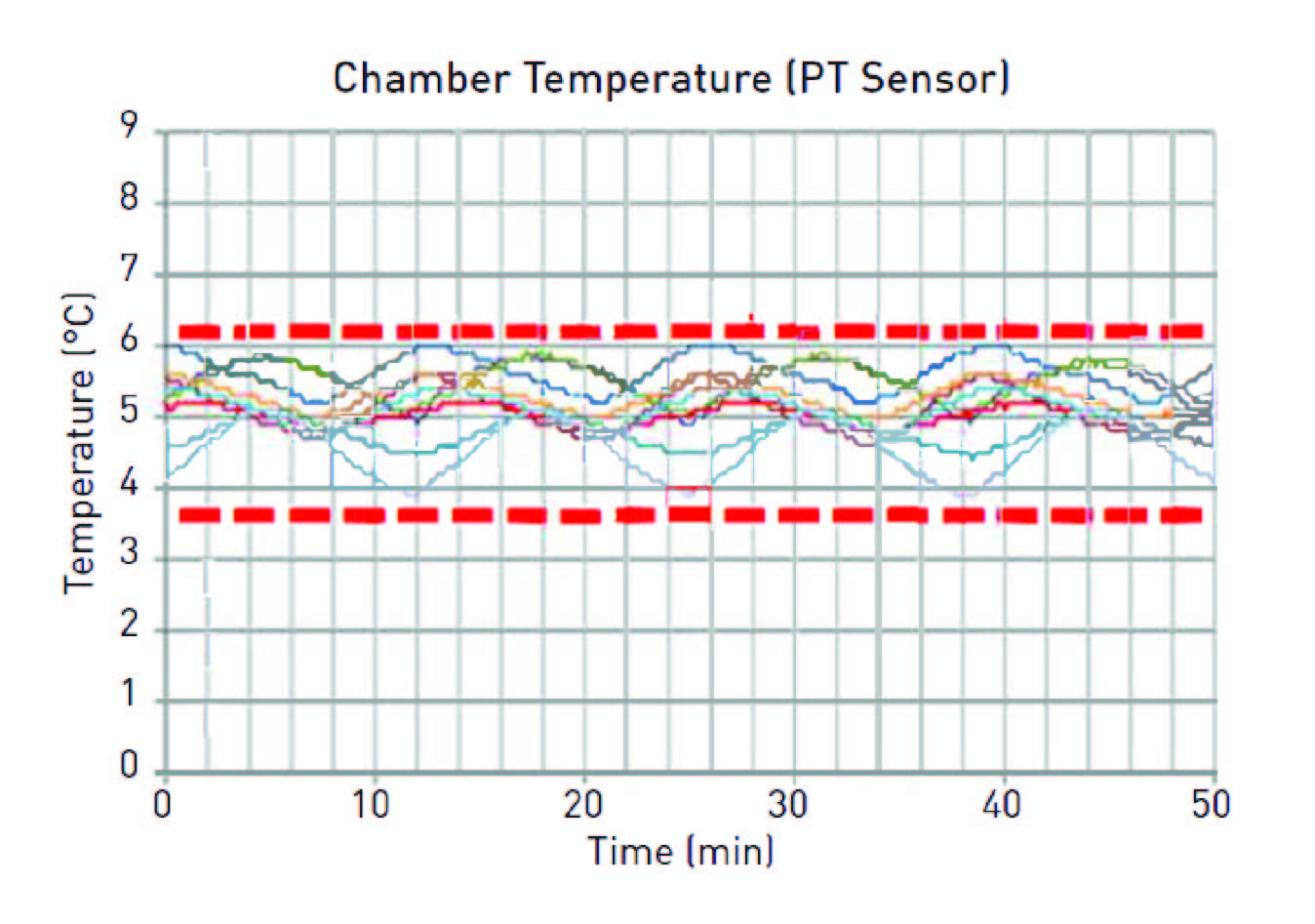

Improved temperature management

Due to the new inverter compressors, the speed can be adjusted to gradually maintain the chamber temperature and control it peak to peak: 2.1ºC

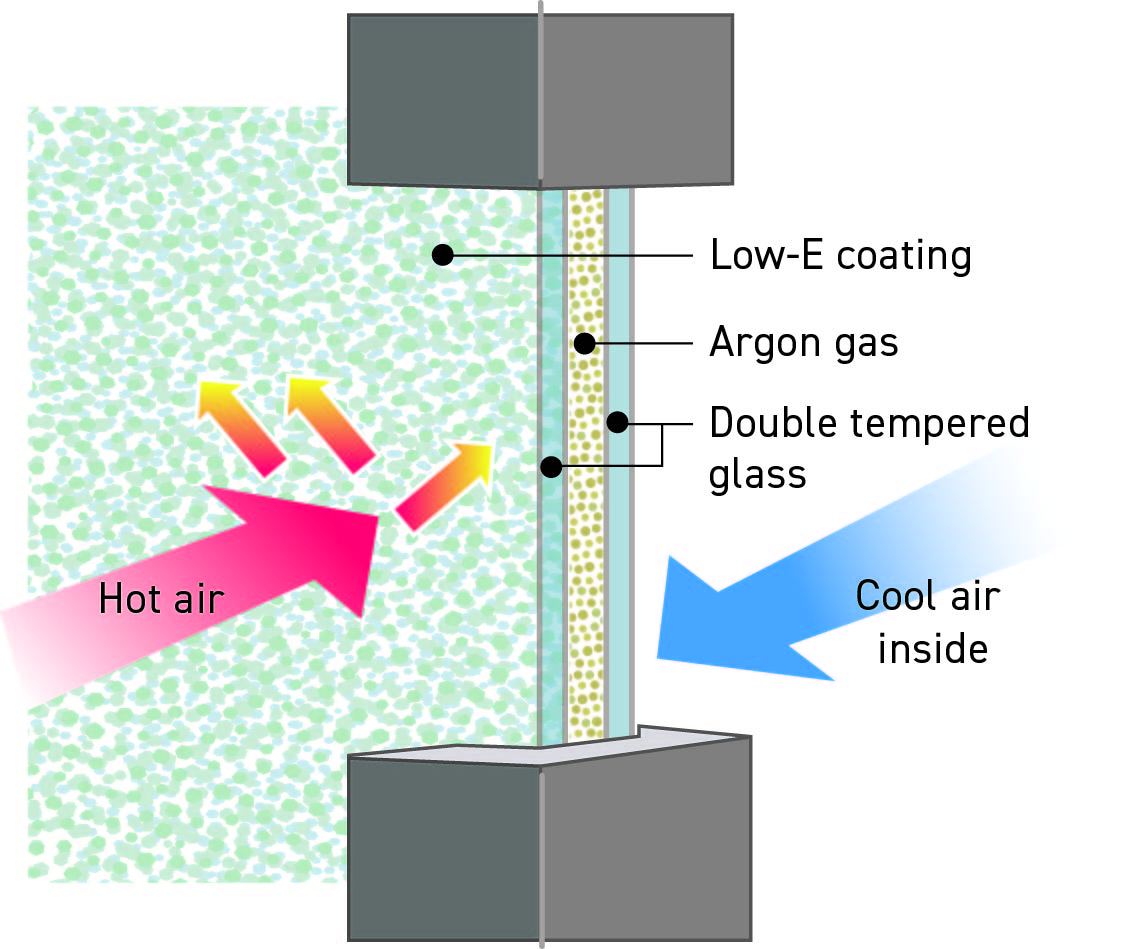

Well Insulated Chamber

The high-insulated multi-layered glass with Low-E (Low-Emissivity) coating, encapsulated with argon gas, and hot air blowing from the bottom, significantly reduces condensation on the glass doors, ensuring high temperature performance.

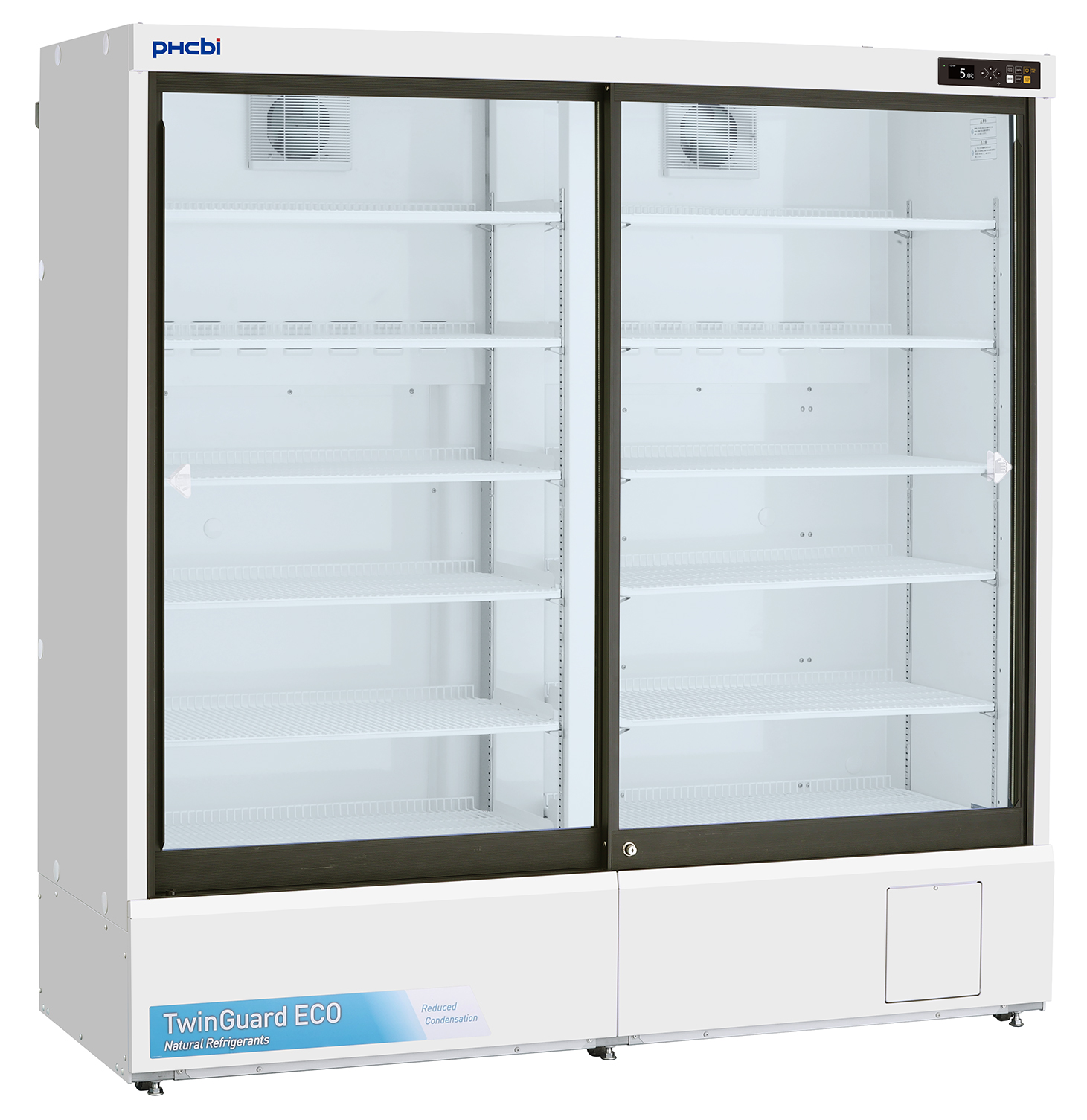

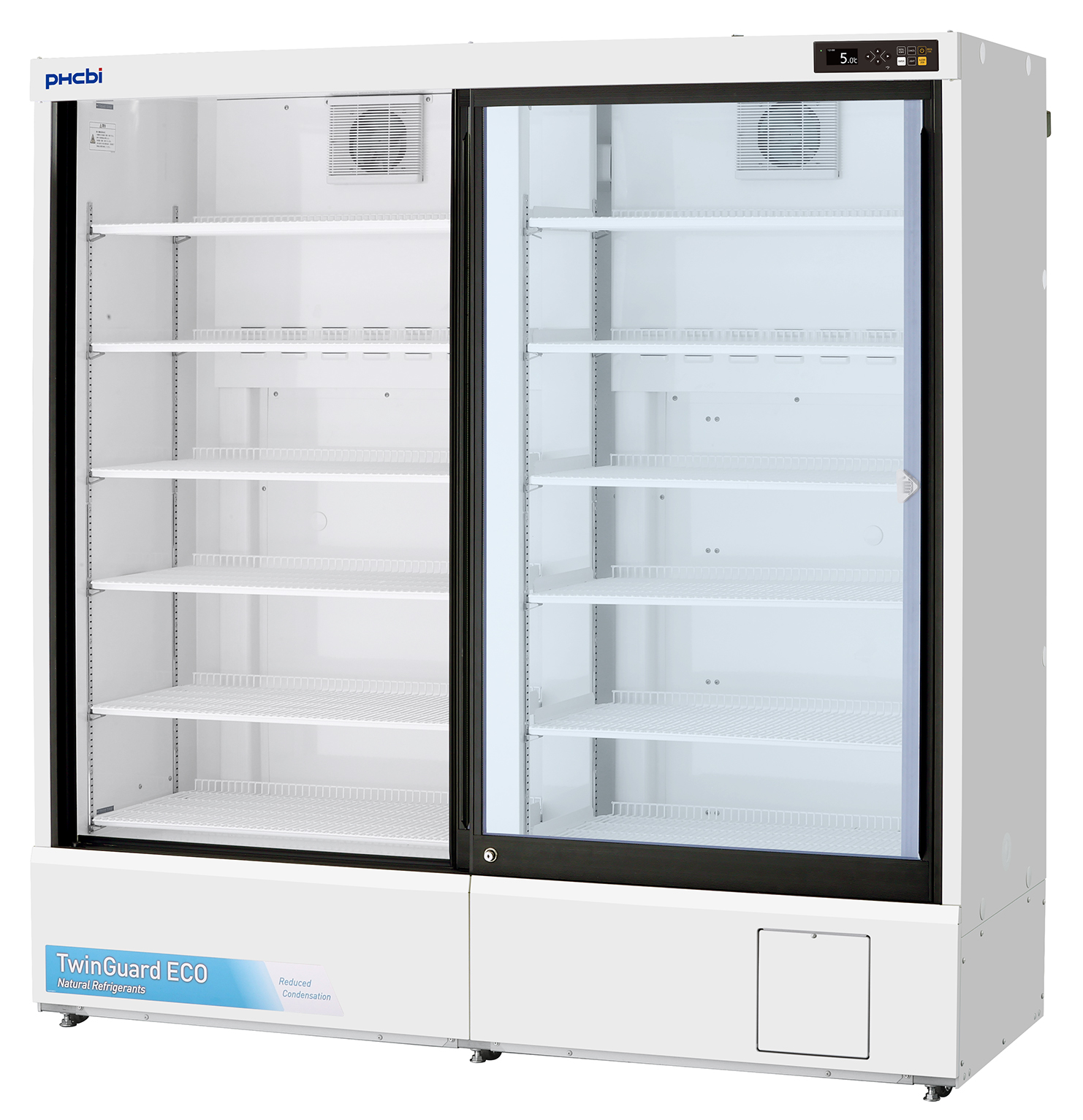

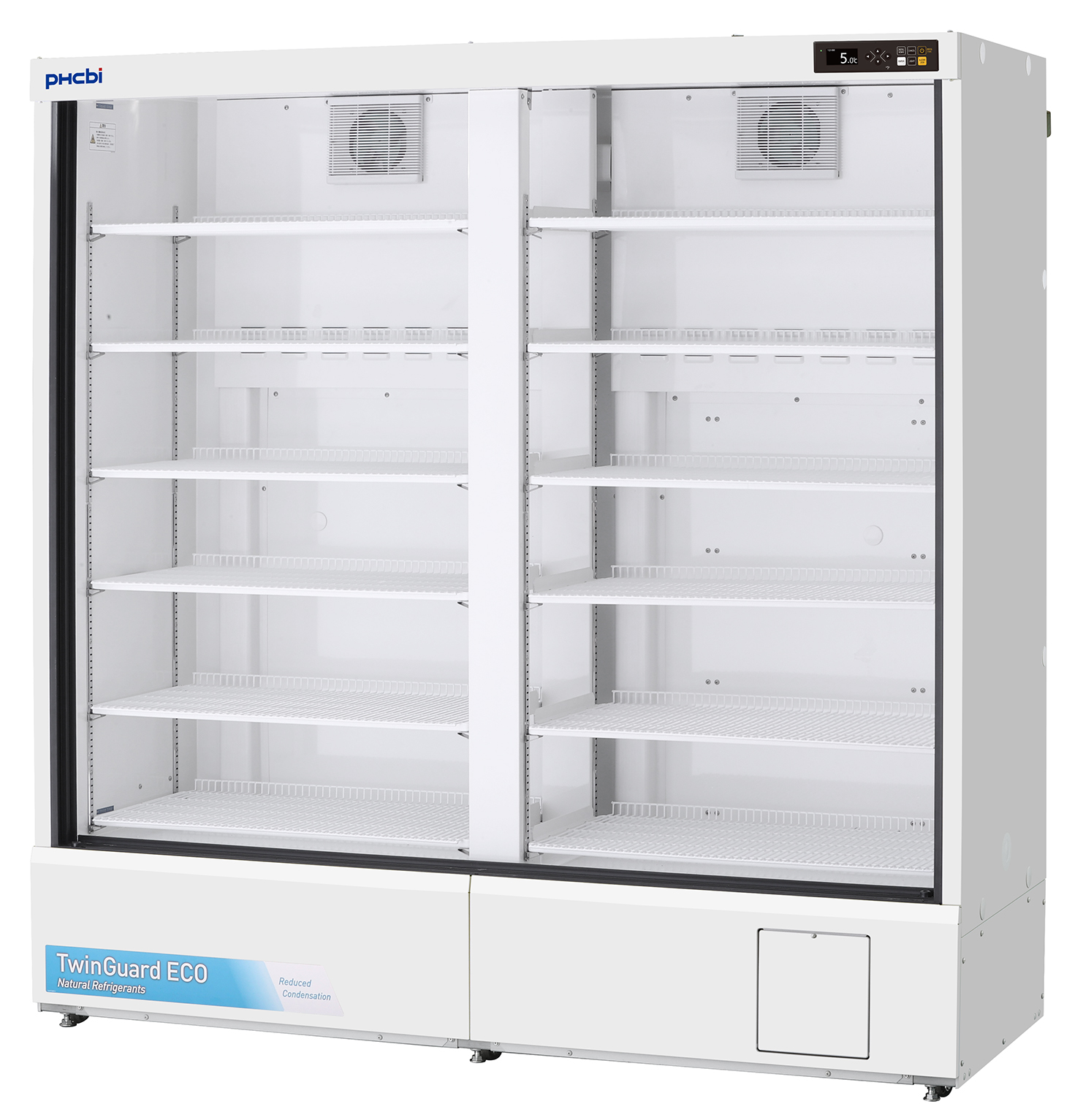

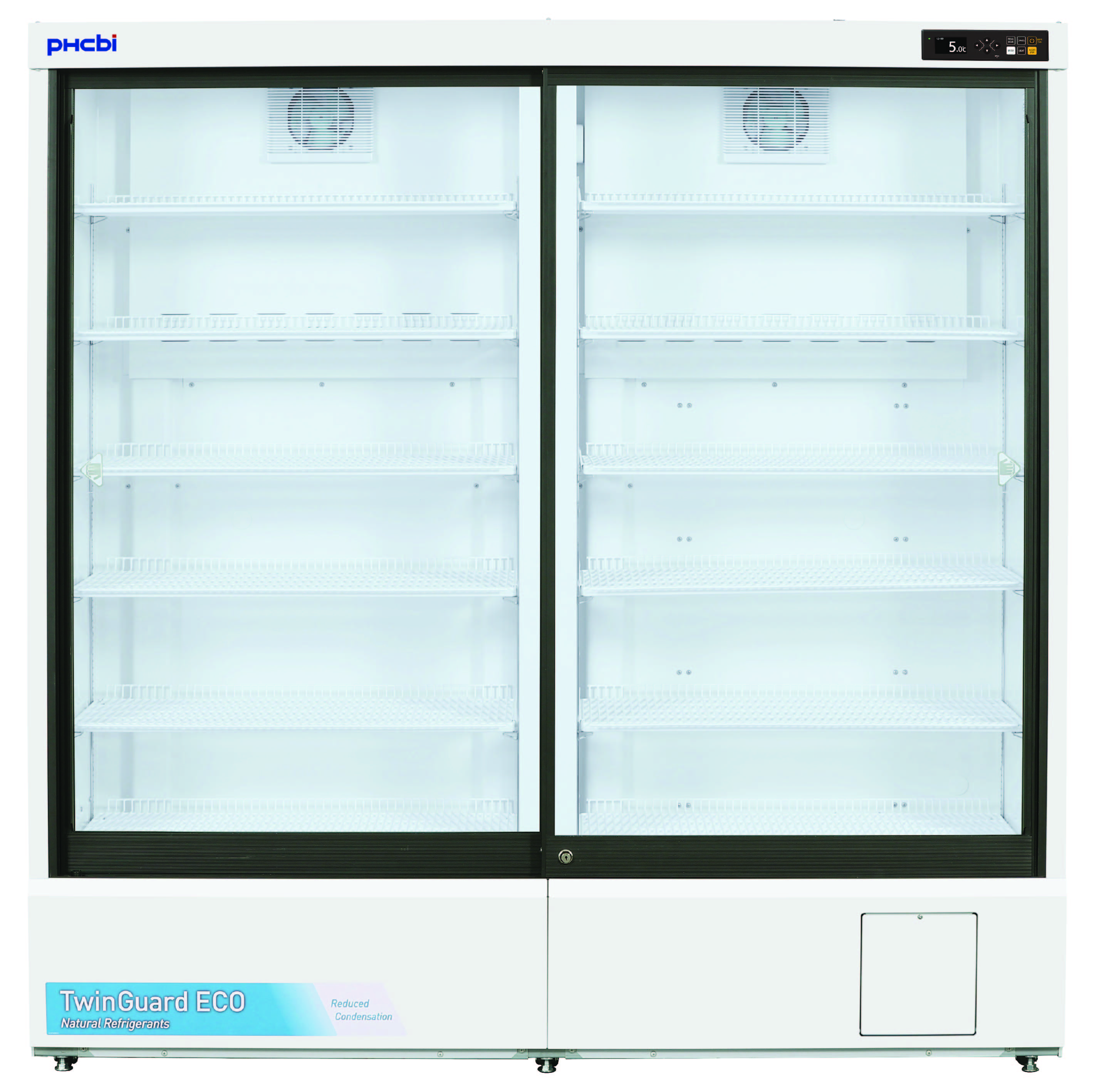

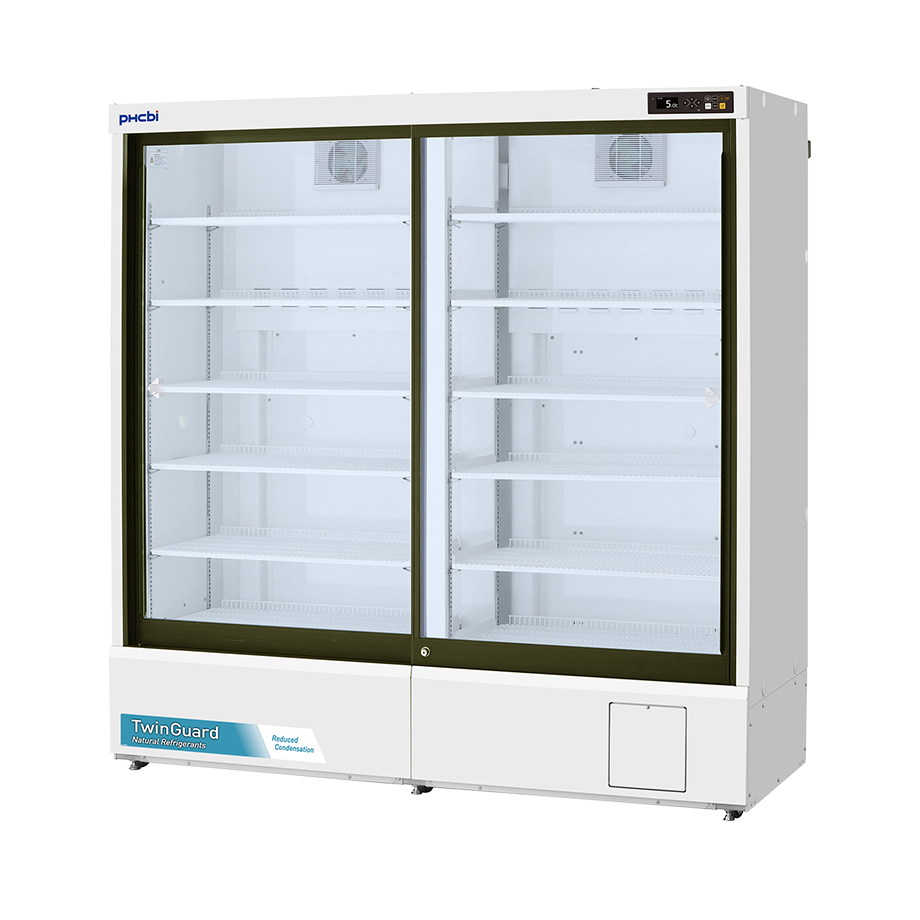

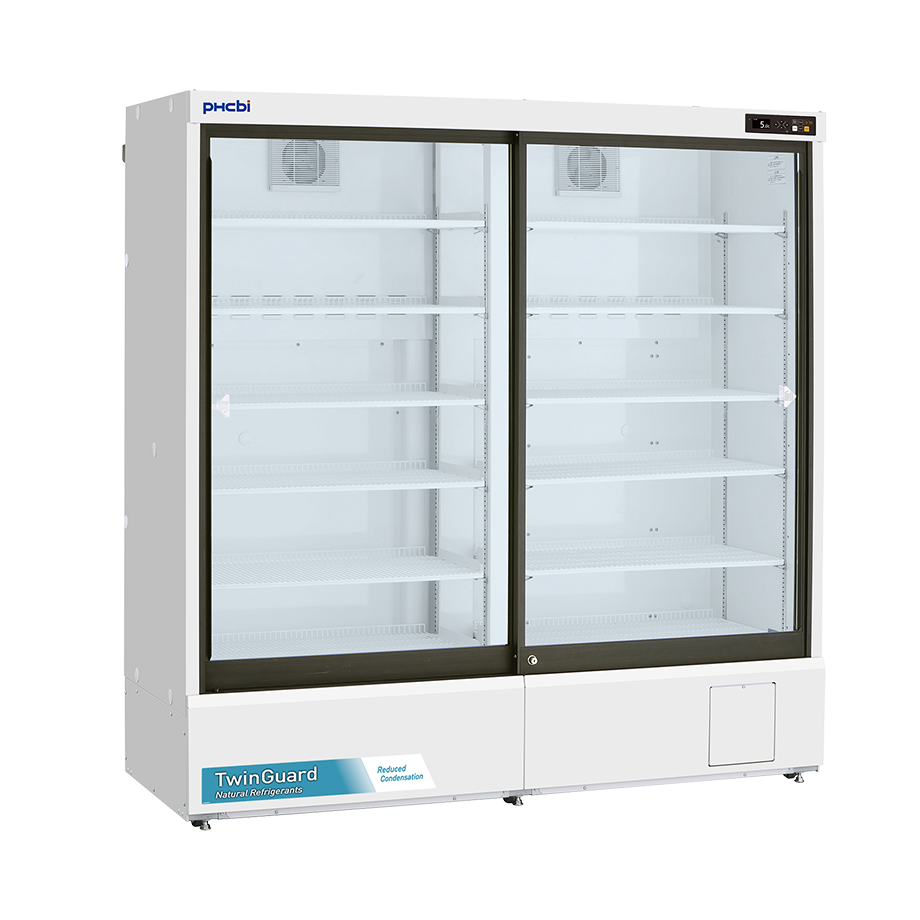

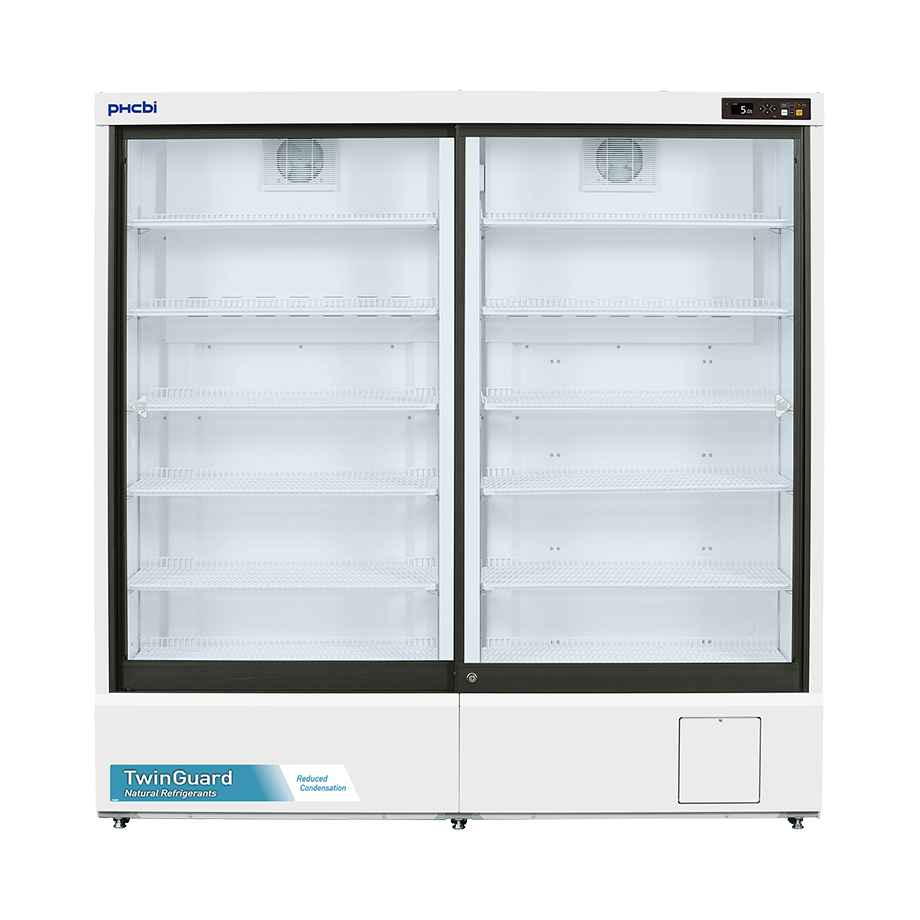

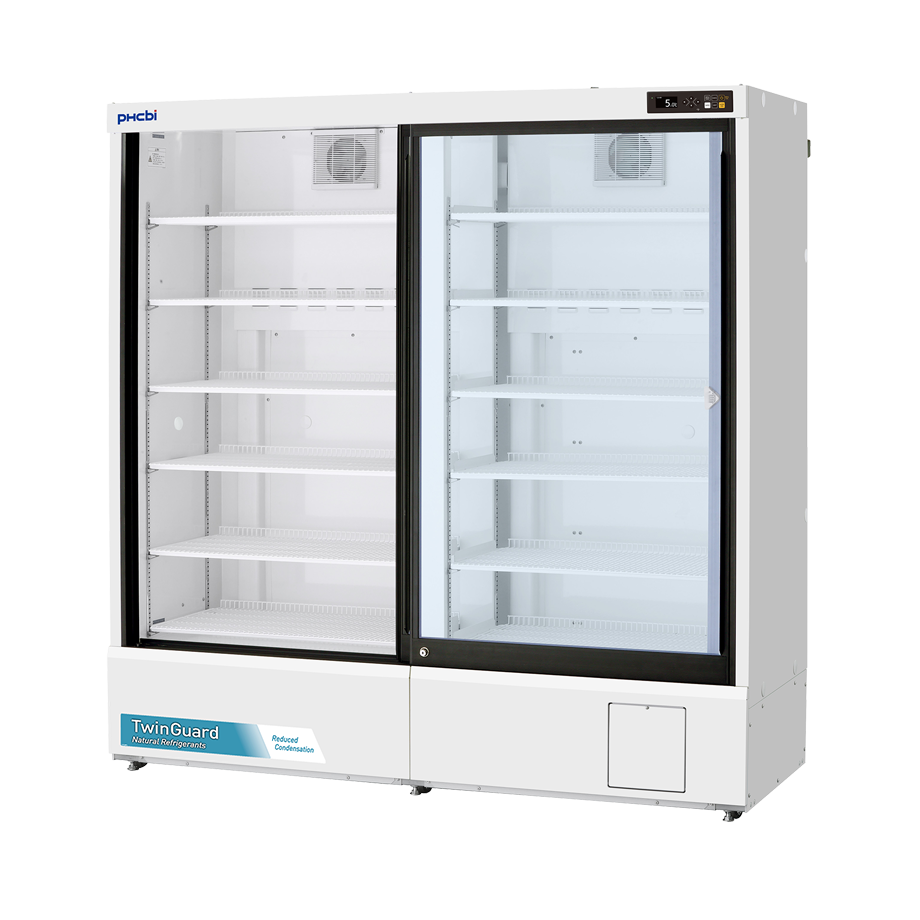

Product Photos

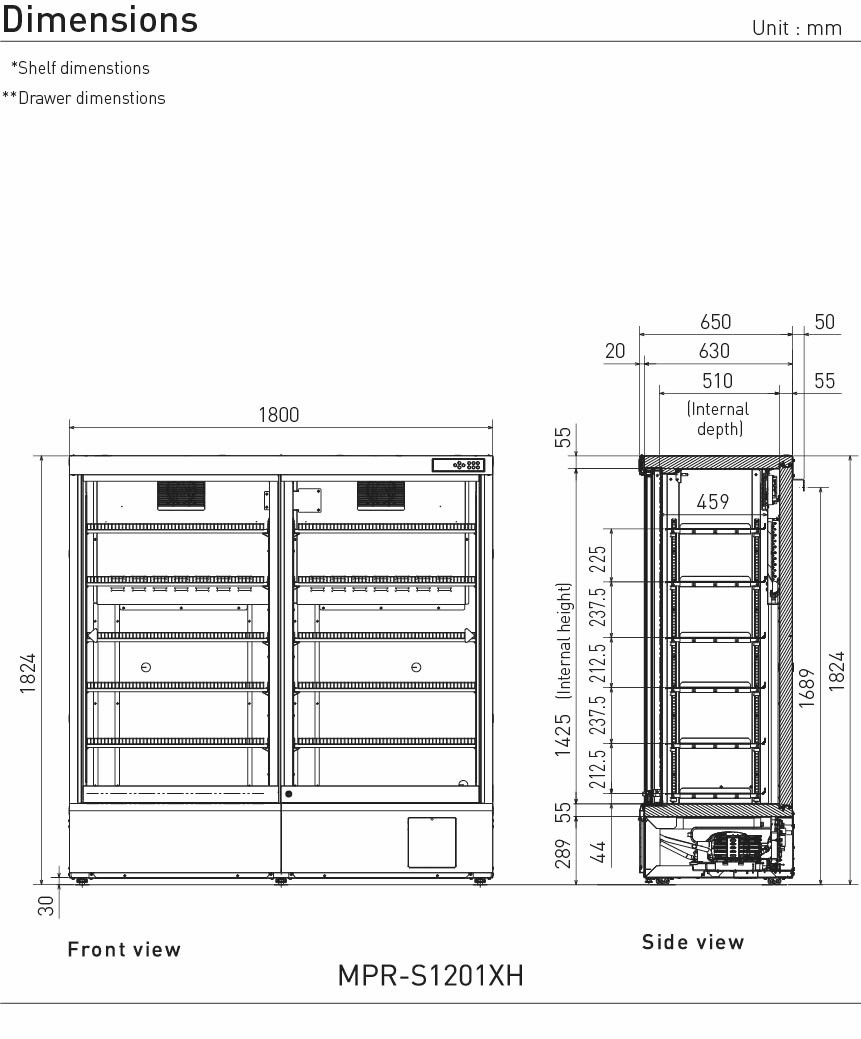

External Dimensions (W x D x H) 1800 x 650 x 1824 mm
Internal Dimensions (W x D x H) 1700 x 510 x 1425 mm
Volume 1165 litres
Net Weight 267 kg
Temperature Setting Range
Temperature Control Range +2 to +14 °C
Controller Microcomputer control system
Display OLED
Temperature Sensor Thermistor sensor
Cooling Method
Defrost Method
Refrigerant HC refrigerant
Insulation Material Rigid polyurethane foamed-in place
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors 2
Outer Door Lock Y
Shelves 12 (Hard steel wire with polyethylene coating)
Max. Load - Per Shelf/Drawer 50 kg/shelf
Max. Load - Total
Access Port 3
Access Port Position Back
Access Port Diameter 30
Casters 6
Interior Light 24 (LED)
Power Failure R 3)
High Temperature V-B-M-R
Low Temperature V-B-M-R
Door Open V-B-M
Power Supply 220 / 230 / 240 V , 220 / 230 V
Noise Level 42 dB [A]

*V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm


Name card holder
Battery kit for power failure alarm  MPR-48B2-PW
Temperature recorders
- Circular type MTR-G04C-PE - Chart paper: RP-G04-PW
- Ink pen: PG-R-PW
- Recorder mounting bracket
- Continuous strip type MTR-0621LH-PE - Chart paper: RP-06-PW
- Recorder mounting bracket MPR-S30-PW
Optional Communication Systems
Digital interface (RS232C/RS485) MTR-480-PW4)
Ethernet interface (LAN) MTR-L03-PW4)


MPR-S1201XH The price might vary in country. Please send the inquiry form for getting quotation.
