VIP ECO ULT Freezers (-86°C)


Effective Internal Volume
Cooling Performance
-86 to -40℃


FrostLess and Energy Efficiency in Ultra-Low Temperature Freezers

PHC's New MDF-DU700ZH reduces "frost" on the surface of the inner door. "Frost" that adheres to the inner door surface is suppressed. This reduces the time required for troublesome defrosting work.

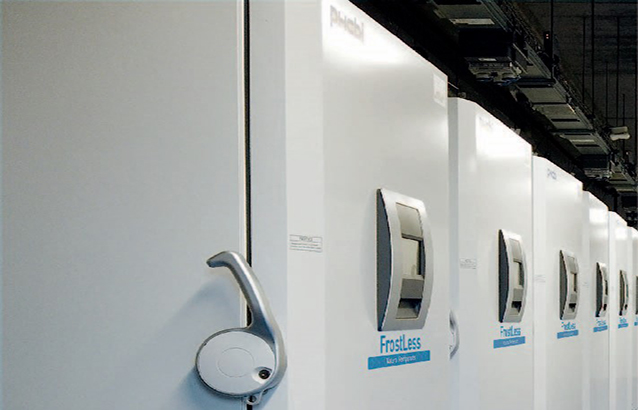

Natural refrigerants and inverter technology

MDF-DU700ZH is an ultra-low temperature freezer that also achieves high energy efficiency by using a natural refrigerant (non-Freon) and inverter control. Naturally occurring hydrocarbon (HC) refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising cooling performance, ambient tolerance, and recovery speeds following door openings.

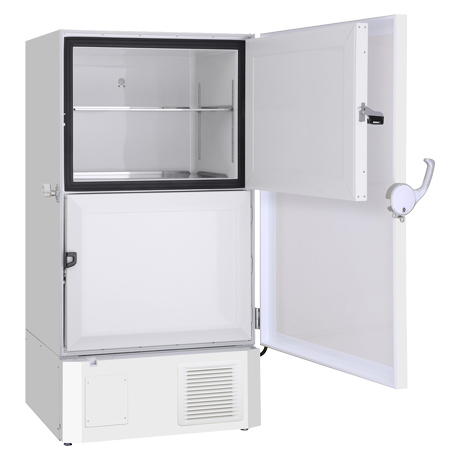

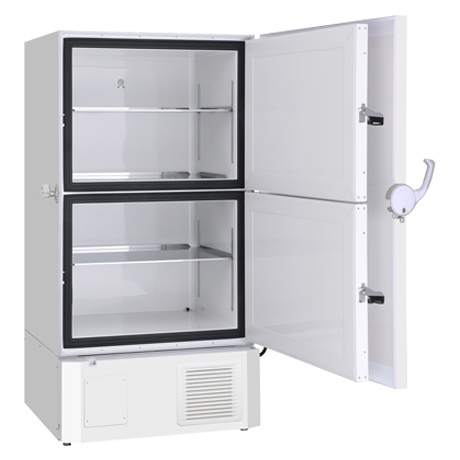

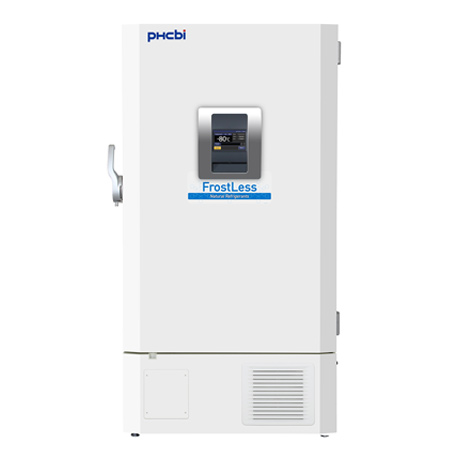

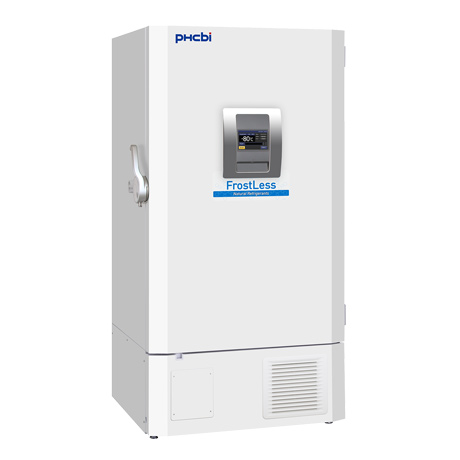

Product Photos

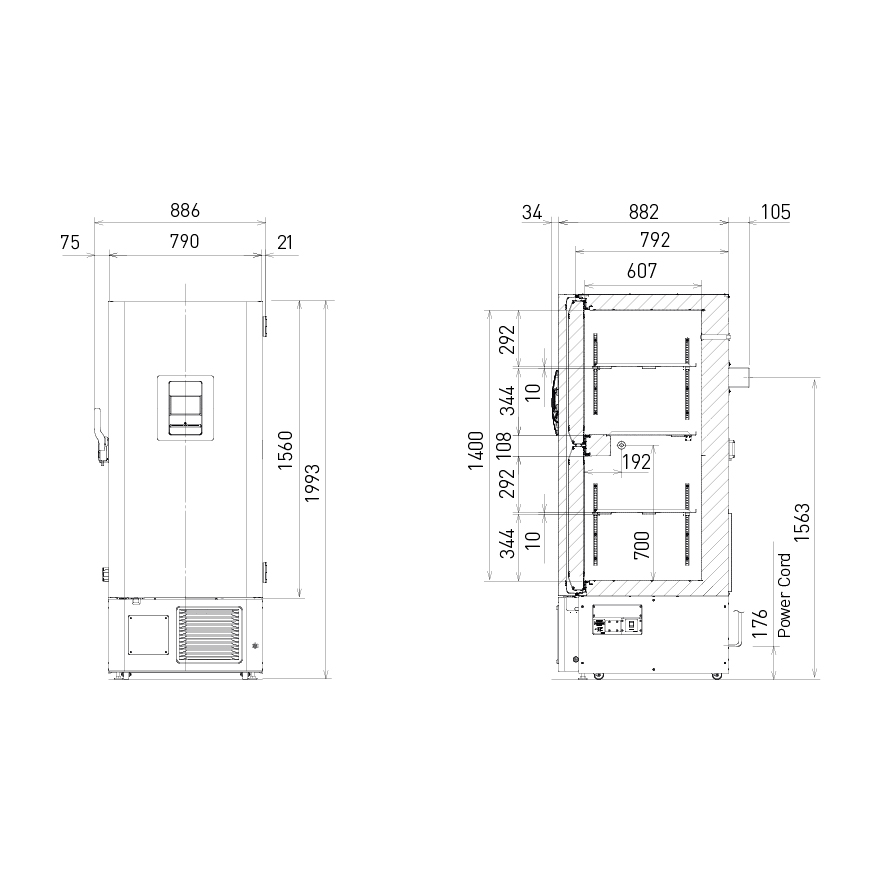

External Dimensions (W x D x H) 1030 x 882 x 1993 (mm)
Internal Dimensions (W x D x H) 870 x 607 x 1400 (mm)
Volume 725 litres
Net Weight 282 kg
Capacity (2” Boxes in Stainless Steel Racks) 528 (2”boxes)
Capacity (3” Boxes in Stainless Steel Racks) -
Cooling Performance -86 °C
Temperature Setting Range -90 to -40 °C
Temperature Control Range -86 to -40 °C
Controller Microprocessor with non-volatile memory
Display LCD Touchpanel
Temperature Sensor Platinum resistance (Pt 1,000 Ω)
Refrigeration System Cascade refrigeration system (multi-stage unit circuit: 2 circuits)
Compressors Hermetic type
Refrigerant HC
Insulation Material Rigid polyurethane foamed-in place + Vacuum insulation panel
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid 2
Shelves 3
Max. Load - Per Shelf 50 kg
Vacuum Release Port 1 (manual)
Access Port 3
Access Port Position back x1, bottom x2
Access Port Diameter 17
Casters 4 (2 leveling feet)
Power Failure B-M-R
High Temperature V-B-M-R
Low Temperature V-B-M-R
Filter V
Door Open V-B-M
Power Supply AC 220/230/240 V / AC 220/230 V
Frequency 50Hz / 60Hz
Noise Level 52dB(A)

*V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm


Liquid CO2 back-up MDF-UB7-PW
Inventory rack IR-220U, IR-224U
Temperature recorders


-Circular type MTR-G85C-PE
- Chart paper: RP-G85-PW
- Ink pen: PG-R-PW
- Continuous strip type

- Chart paper: RP-85-PW
- Ink pen: DF-38FP-PW

- Recorder housing: MDF-S3085-PW

Recorder sensor cover MTR-DU700SF-PW


MDF-DU700ZH The price might vary in country. Please send the inquiry form for getting quotation.


Catalog Download
