VIP ULT Freezers (-86°C)

MDF-C8V1 VIP ULT Freezer

Effective capacity
84L
Cooling Performance
-80℃

Features

Excellent reliability and uniformity within an optimal footprint

The MDF-C8V1 VIP Ultra Low Temperature Freezer is ideal -80°C freezing environment using VIP PLUS technology maximizes storage capacity. The newly developed single-compressor system achieves higher energy efficiency and space saving construction.

PHCbi’s most advanced insulation system VIP PLUS for Ultra Low Temperature Freezers enables reduced thickness of insulation to approximately one half compared to conventional systems. Patented revolutionary vacuum insulation cabinet construction reduces wall thickness and achieves greater storage capacity.

Use of VIP PLUS material on the front, left, and right sides enables a smaller installation space with exceptional storage capacity to foot print ratio.

PHC offers three other sizes of the VIP ULT freezers:

Benefits

  • Personal sized ult chest freezer
  • User-friendly filterless design: makes cleaning unnecessary
  • Quiet operation
  • PHCbi designed refrigeration system ensures the highest levels of performance and reliability.
  • VIP insulation maximizes storage capacity

Features

  • LED Display with Microprocessor Controls
  • Power failure alarm lamp and buzzer
  • High temperature audible and visual alarm
  • Low temperature audible and visual alarm
  • Alarm ring back function
  • New refrigeration circuit without filter

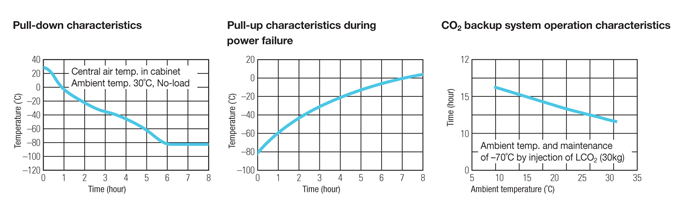

Performance

MDF-C8V1

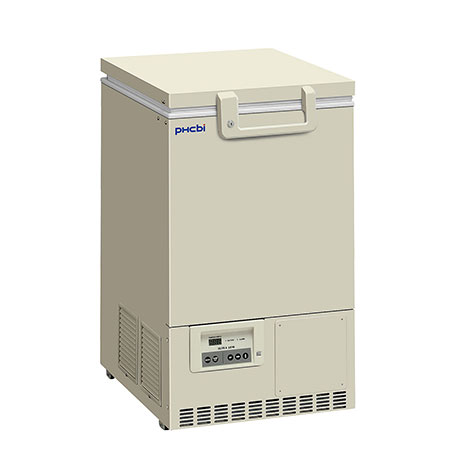

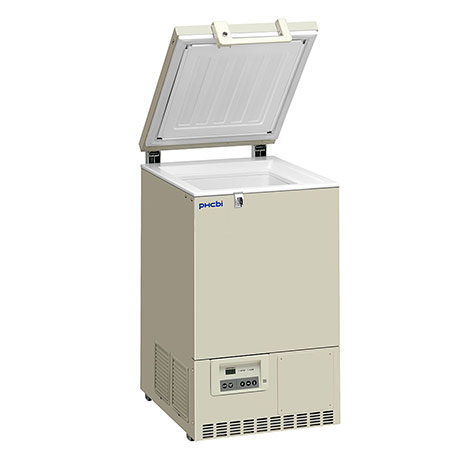

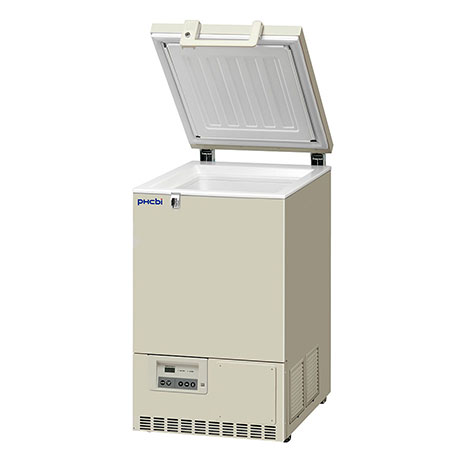

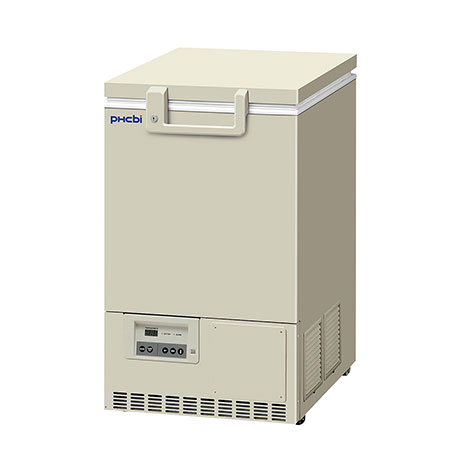

Product Photos

Specifications

External Dimensions (W x D x H) 550 x 685 x 945 mm
Internal Dimensions (W x D x H) 405 x 490 x 425 mm
Volume 84 litres
Net Weight 67 kg
Capacity (2” Boxes in Stainless Steel Racks) 42 (2” boxes)
Capacity (3” Boxes in Stainless Steel Racks) -
Cooling Performance -80 °C
Temperature Setting Range -55 to -90 °C
Temperature Control Range -60 to -80 °C
Controller Microprocessor, non-volatile memory
Display LED
Temperature Sensor Pt-1000
Refrigeration System Auto-cascade
Compressors 400 W
Refrigerant
Insulation Material PUF / VIP Plus
Insulation Thickness 70 mm
Exterior Material Painted Steel
Interior Material Stainless Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid 1 (Styrofoam)
Shelves
Max. Load - Per Shelf -
Max. Load - Total -
Vacuum Release Port -
Access Port 2
Access Port Position Back/Bottom
Access Port Diameter 17
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter Filterless design
Door Open V-B
Power Supply Local
Frequency Local
Noise Level 47 dB [A]

Accessories

Small inner door kit MDF-7ID (Max 2)
Temperature recorders
-Circular type MTR-G85
-Continuous strip type MTR-85H
-Recorder housing (if required) MDF-S3085
RS485 interface module MTR-480
Liquid N2 Back-up CVK-UB4

Price

MDF-C8V1 Price Upon Inquiry. Please contact your local dealers.

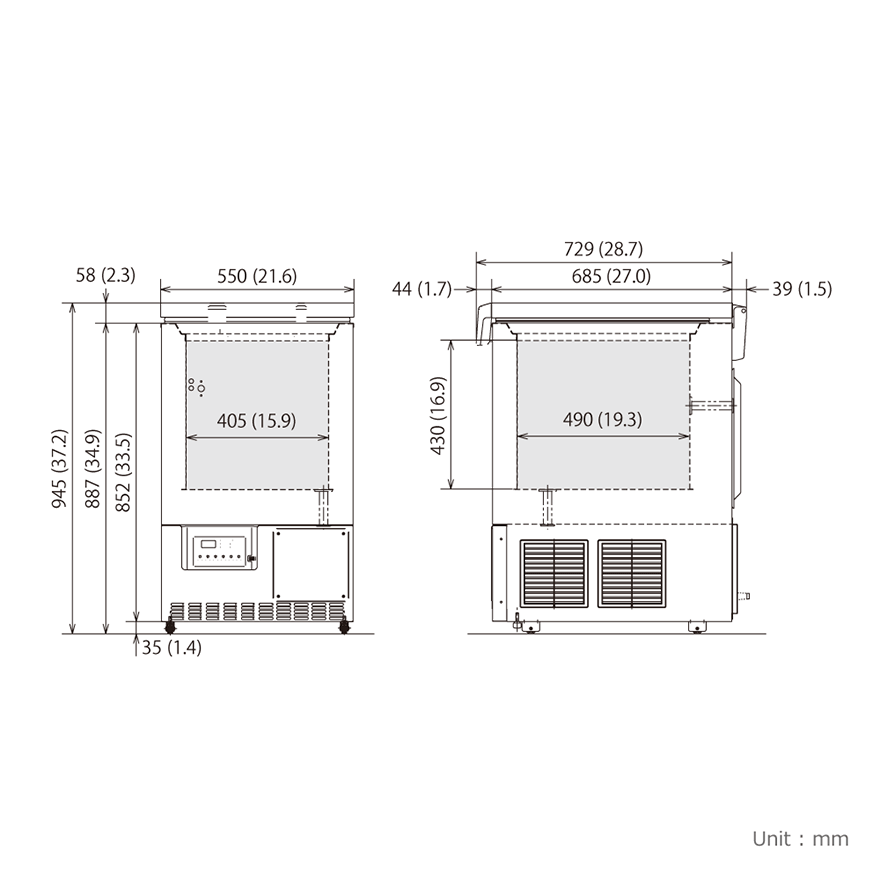

Dimensions

Catalog Download

Options
