(ECO) Biomedical -30°C Freezers

MDF-MU539HL Biomedical -30°C Freezer

Effective capacity
Temperature range
-20℃ to -30℃


Stable -30°C environment with extensive storage possibilities of MDF-MU539HL Laboratory freezer

PHCbi medical freezers are equipped with various specifications that enable flexibility and maintain the quality of the samples during preservation such as height-adjustable shelf trays and sealed doors that suppress the leak of cold air. Users can choose the model that meets their specific needs.

The MDF-MU539HL ECO freezer provides effective storage of life-saving vaccines and samples for diagnosis. They can also be used for storage of enzymes for genetic research, as well as culture media, reagents and samples for testing. BHCbi Biomedical freezers are also ideal for industrial aging and temperature tests. As a storage environment, with excellent safety and other easy-to-use features, these freezers offer unsurpassed reliability and functionality.

PHCbi also offers the MDF-MU539 standard Biomedical freezer, which has the same capacity of 504 litres.

Energy-efficient Performance

Natural refrigerants, compressors and integrated electronics combine to lower operating costs by up to 28%*. Freezer operation is managed by effectively balancing temperature performance and energy management.
* Compared to conventional models.
Power source: 220V/230V/240V 50Hz, Ambient temperature 30°C

Height-adjustable Shelf Trays

Both units feature fully height-adjustable shelf trays, accommodating chamber containers of various sizes. Model MDF-MU339HL features a shelf width of just 447 mm, and Model MDF-MU539HL’s shelf width is 624 mm.
MDF-MU330H flexible shelves
*The photo is MDF-MU539H

New platform

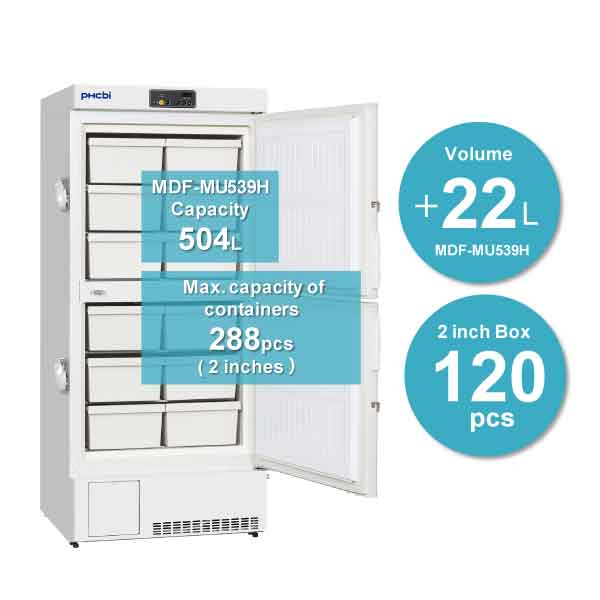

The new chassis plat form of MDF-MU539HL realizes the increased the storage volume for +22 liters (equivalent to +120 pcs 2 inch boxes) compared to the conventional ECO model MDF-MU500H.
*Baskets are Optional

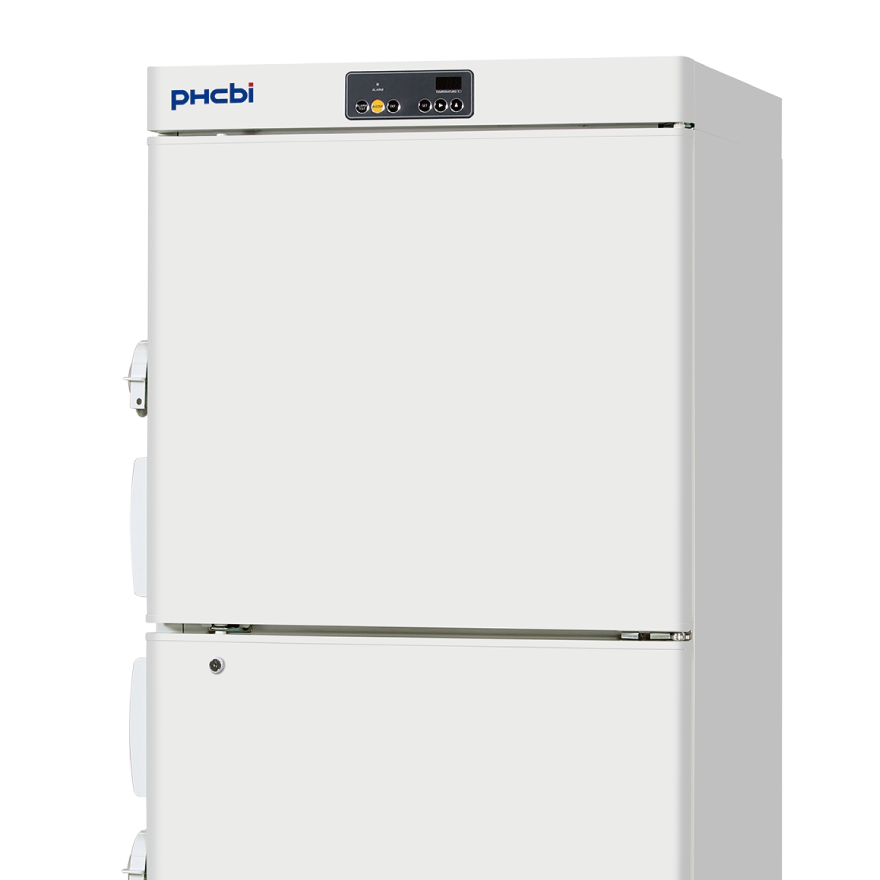

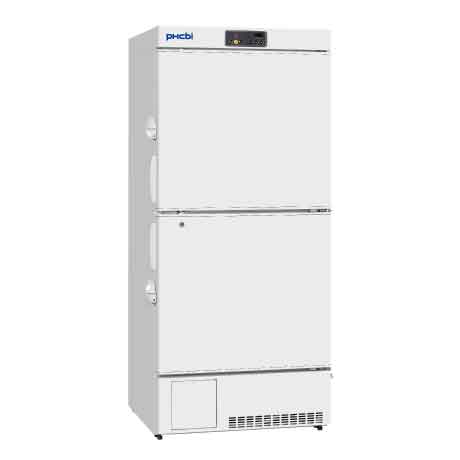

Product Photos

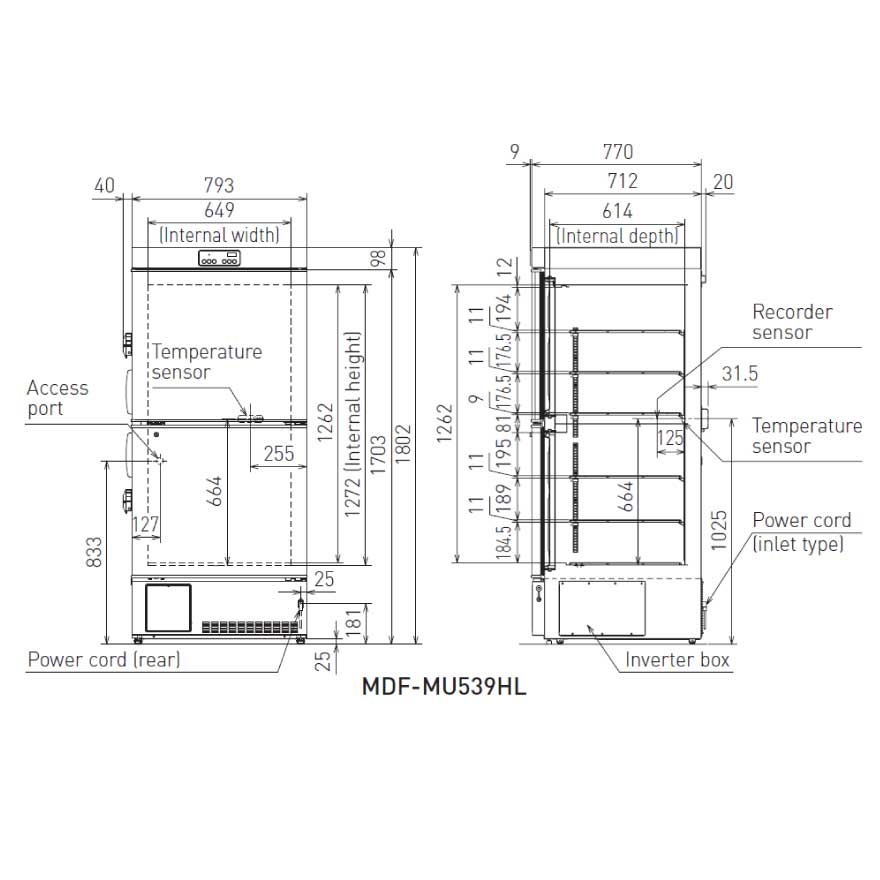

External Dimensions (W x D x H) 793 x 770 x 1802 mm
Internal Dimensions (W x D x H) 649 x 614 x 1262 mm
Volume 504 litres
Net Weight 144 kg
Capacity (Aluminium Racks 2” Boxes) 288
Capacity (Stainless Steel Racks 2” Boxe) -
Cooling Performance -30 °C
Temperature Setting Range -18 to -35 °C
Temperature Control Range -20 to -30 °C
Controller Microprocessor, non-volatile memory
Display LED
Temperature Sensor Thermistor
Refrigeration System Direct cooling system
Compressors 400 W
Refrigerant HC
Insulation Material PUF
Insulation Thickness 70 mm
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 2
Outer Door Lock Y
Inner Doors/Lid -
Shelves 6 (Dimensions : W624 x D510 mm)
Max. Load - Per Shelf 30 kg
Max. load - Total -
Vacuum Release Port -
Access Port 1
Access Port Position Back
Access Port Diameter 30
Casters 4 (2 leveling feet)
Power Failure V-B-R (V = Visual Alarm, B = Buzzer Alarm, R = Remote Alarm)
High Temperature V-B-R
Low Temperature V-B-R
Filter -
Door Open -
Power Supply MDF-MU539HL-PE : 220/230/240V | MDF-MU539HL-PA : 115V
Frequency MDF-MU539HL-PE : 50Hz | MDF-MU539HL-PA : 60Hz
Noise Level 42 dB [A]


Temperature recorders
- Circular type MTR-G85C-PE / MTR-G85A-PA
- Recorder housing MPR-S7-PW (for MTR-G85 series)
MPR-S30-PW (for MTR-4015LH series)
- Chart paper RP-G85-PW (for MTR-G85D series)
RP-40-PW (for MTR-4015LH series)
-Ink pen PG-R-PW
- Continuous strip type MTR-4015LH-PE / MPT-4015LH-PA
Communications interface MTR-480-PW, MTR-L03-PW
 (only for MTR-5000 user only)
Storage container MDF-05SC-PW (2 pcs/set)
Inner dimensions : W280 x D552 x H157 mm


MDF-MU539HL The price might vary in country. Please send the inquiry form for getting quotation.


Catalog Download
