Biomedical -30°C Freezers

MDF-U5312 Biomedical -30°C Freezer

Effective capacity
Temperature range
-20℃ to -30℃


Same level of reliability with even better performance and efficiency

The PHCbi MDF-U5312 Biomedical Freezer offers outstanding reliability and performance required in a wide variety of storage and research applications.

The freezer provides effective storage of life-saving vaccines and samples for diagnosis. They can also be used for storage of enzymes for genetic research, as well as culture media, reagents and samples for testing. BHCbi Biomedical freezers are also ideal for industrial aging and temperature tests. As a storage environment, with excellent safety and other easy-to-use features, these freezers offer unsurpassed reliability and functionality.

PHCbi also offers the MDF-MU539 Biomedical -30°C Freezer, which has a capacity of 504 litres.


  • Equipped with separate doors that suppress the leakage of cold air during opening and closing of the doors, and manual defrosting that helps avoid temperature impact on the samples. PHCbi MDF-U5312 maintains the quality of the samples during preservation.
  • Large-capacity, economical and space-saving model
  • Enhanced operation by various function and chassis structure


  • Large-capacity but economical and space-saving
  • Door latch with provision for a padlock for extra protection of samples
  • Direct cooling through freezer circuits under each shelf for greater uniformity
  • Universal keyed lock for added security
  • Equipped with convenient storage drawers as standard
  • Temperature recorder (optional)
  • Front-mounted display/control panel located at convenient height for easy access
  • Insulated door with gasket for sample protection and uniformity
  • Door frame ‘Hot-line’ and gasket design prevents ice build-up and reduces maintenance.
  • Security functions that help protect valuable samples with a temperature control capability that inhibits the change in temperature inside the chamber, and an alarm/security function that prevents errors, the unit maintains the quality of the preserved samples.
  • Four casters and two adjustable levelling feet for easy installation

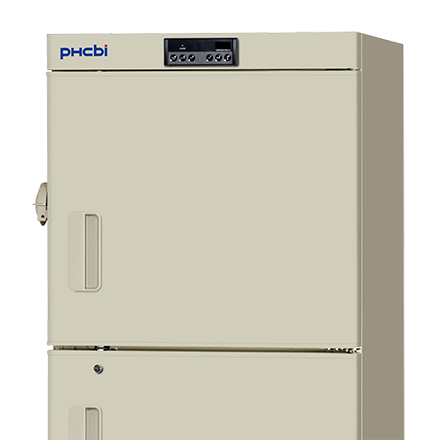

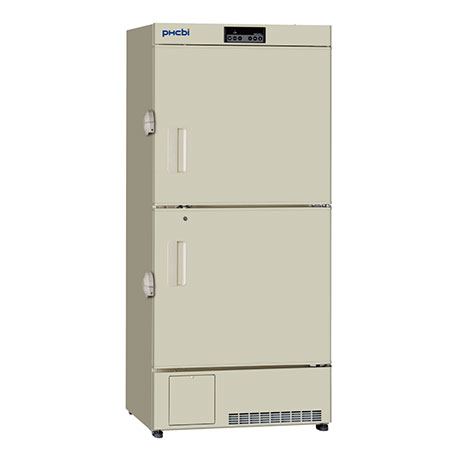

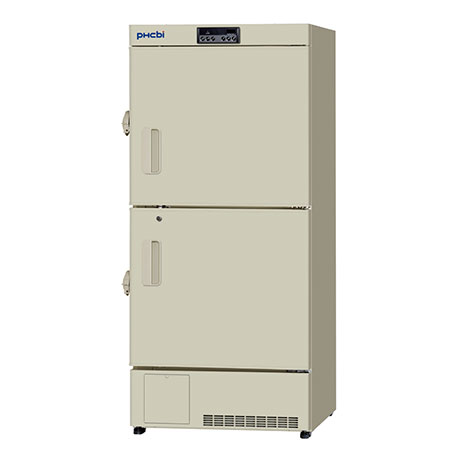

Product Photos

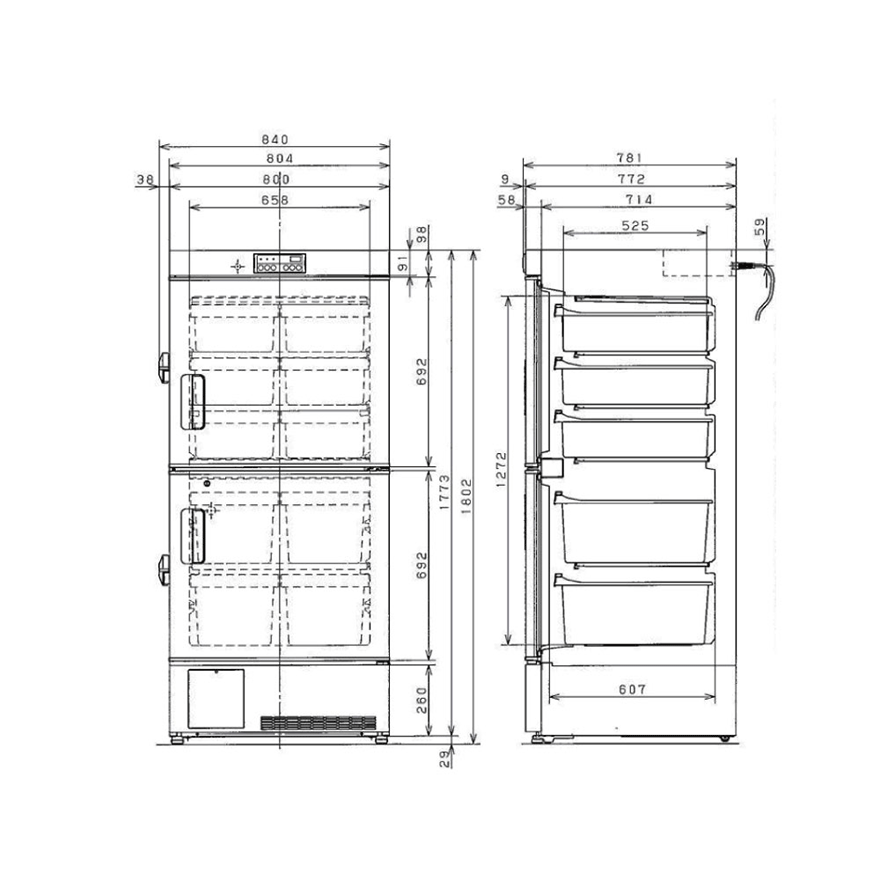

External Dimensions (W x D x H) 804 x 772 x 1802 mm
Internal Dimensions (W x D x H) 658 x 607 x 1272 mm
Volume 482 litres
Net Weight 132 kg
Capacity (Aluminium Racks 2” Boxes) -
Capacity (Stainless Steel Racks 2” Boxe) -
Cooling Performance -30 °C
Temperature Setting Range -18 to -35 °C
Temperature Control Range -20 to -30 °C
Controller Microcomputer control system
Display LED
Temperature Sensor Thermistor
Refrigeration System Direct cooling system
Compressors 450 W
Refrigerant HFC
Insulation Material PUF
Insulation Thickness -
Exterior Material Painted Steel
Interior Material Styrol resin
Outer Doors/Lid 2
Outer Door Lock Y
Inner Doors/Lid -
Shelves Storage containers (small x 6, large x 4)
Max. Load - Per Shelf -
Max. load - Total -
Vacuum Release Port -
Access Port 1
Access Port Position Back
Access Port Diameter 30
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter -
Door Open -
Power Supply Local
Frequency Local
Noise Level 40 dB [A]


Temperature recorders
- Circular type MTR-G85C-PE, MTR-G85A-PA
- Recorder housing MPR-S7-PW (for MTR-G85 series), MPR-S30-PW (for MTR-4015LH-PE)
- Chart paper RP-G85-PW (for MTR-G85 series), RP-40-PW (for MTR-4015LH-PE)
-Ink pen PG-R-PW(for MTR-G85 series)
- Continuous strip type MTR-4015LH-PE
- Communications interface MTR-480-PW, MTR-L03-PW (for Data acquisition system MTR-5000 user only)


MDF-U5312 Price Upon Inquiry. Please contact your local dealers.


Catalog Download
