Biomedical -40°C Plasma Freezers

MDF-U5412H Biomedical ECO -40°C Plasma Freezer

Effective capacity
Temperature range
-20℃ to -30℃


Cost-saving and environmentally friendly fresh frozen plasma storage

The MDF-U5412H Biomedical ECO Plasma Freezer provides an ideal freezing environment for the preservation of blood plasma, vaccines, test samples, and other biological specimens.

The Biomedical ECO Series Freezers with natural refrigerants minimise energy consumption, reduce environmental impact and save money while providing superior stability and uniformity. A comprehensive alarm system and Class IIa Medical Device Certification ensure this freezer provides unsurpassed reliability and sample security.

Reliable and efficient storage for plasma


  • More efficient cooling due to a high latent heat of evaporation.
  • Greater energy efficiency.
  • Up to 28% reduction in power consumption and running costs.
  • Exceptionally low global warming potential.
  • Better for the environment.


  • 300ml Fresh frozen plasma bag x 280 pieces.
  • Double outer doors.

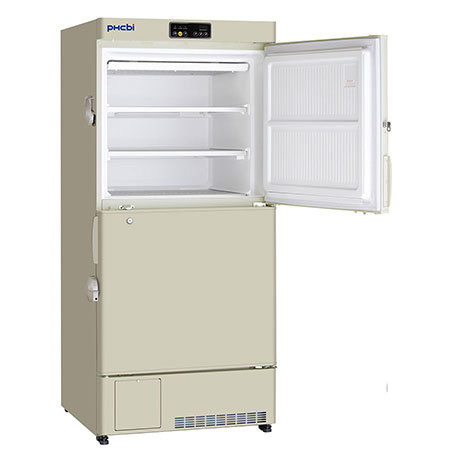

  • Full-height storage containers on each shelf.
  • Cooling tubes under every shelf.
  • Direct cooling system for uniform temperature control.
  • Manual defrost ensures a stable environment with no large temperature peaks.
  • A comprehensive visual and audible alarm system with remote alarm contacts ensures users are aware of any abnormalities and can take appropriate actions.
  • Self-diagnostic system.

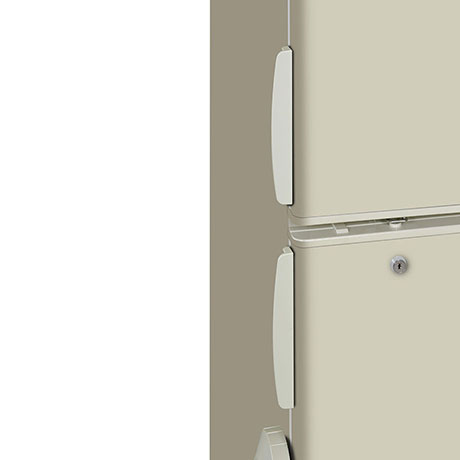

  • Standard door lock allows a padlock to be fitted for extra security.
  • An access port allows external temperature monitoring with the use of a probe, or an optional temperature chart recorder can be added.

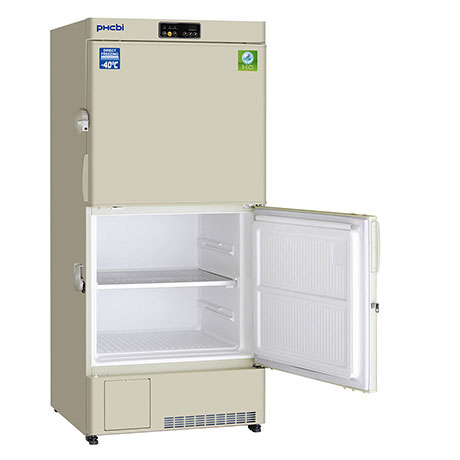

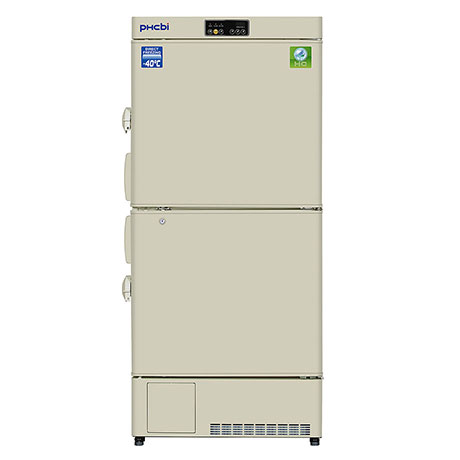

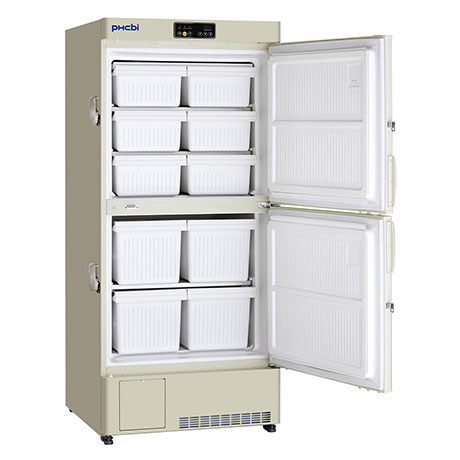

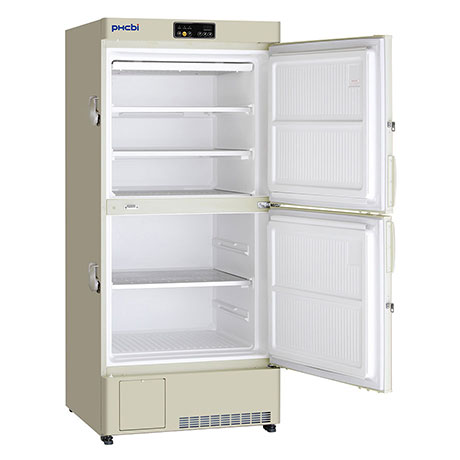

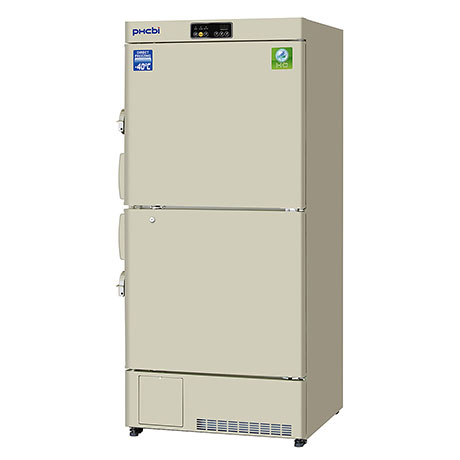

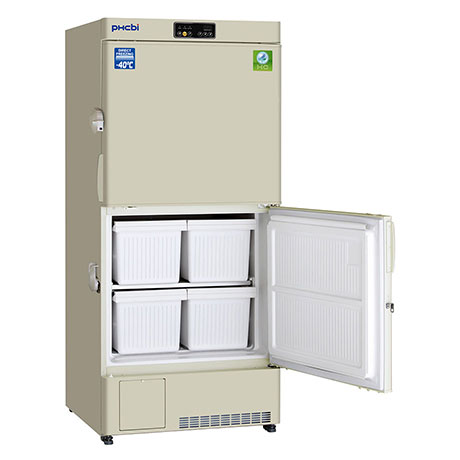

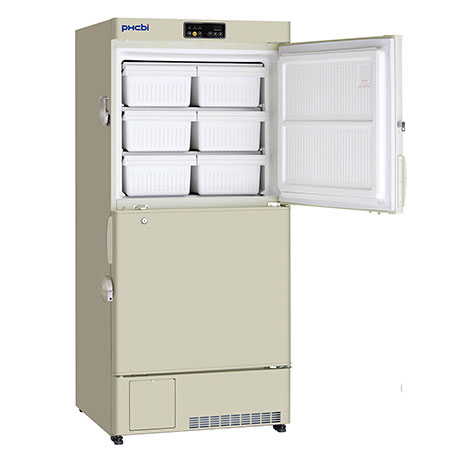

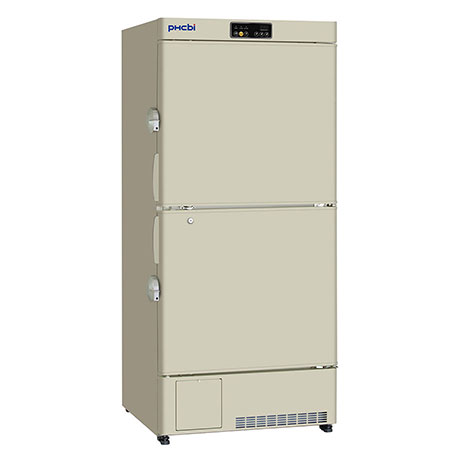

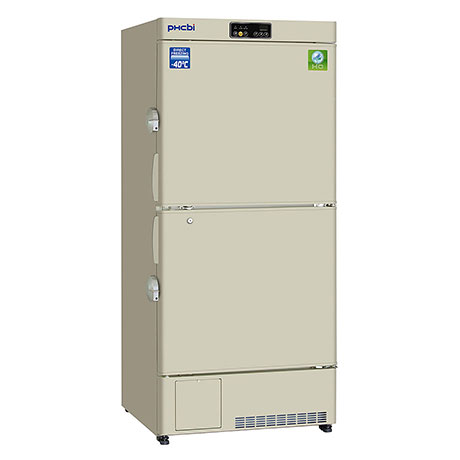

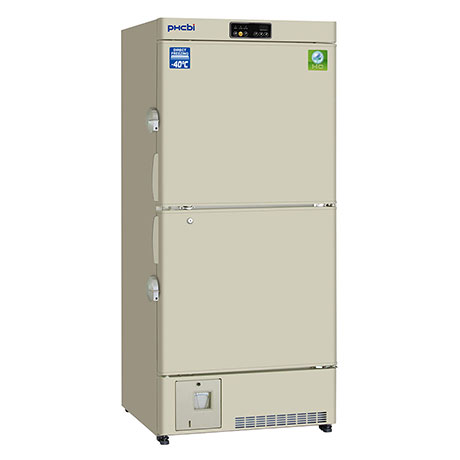

Product Photos

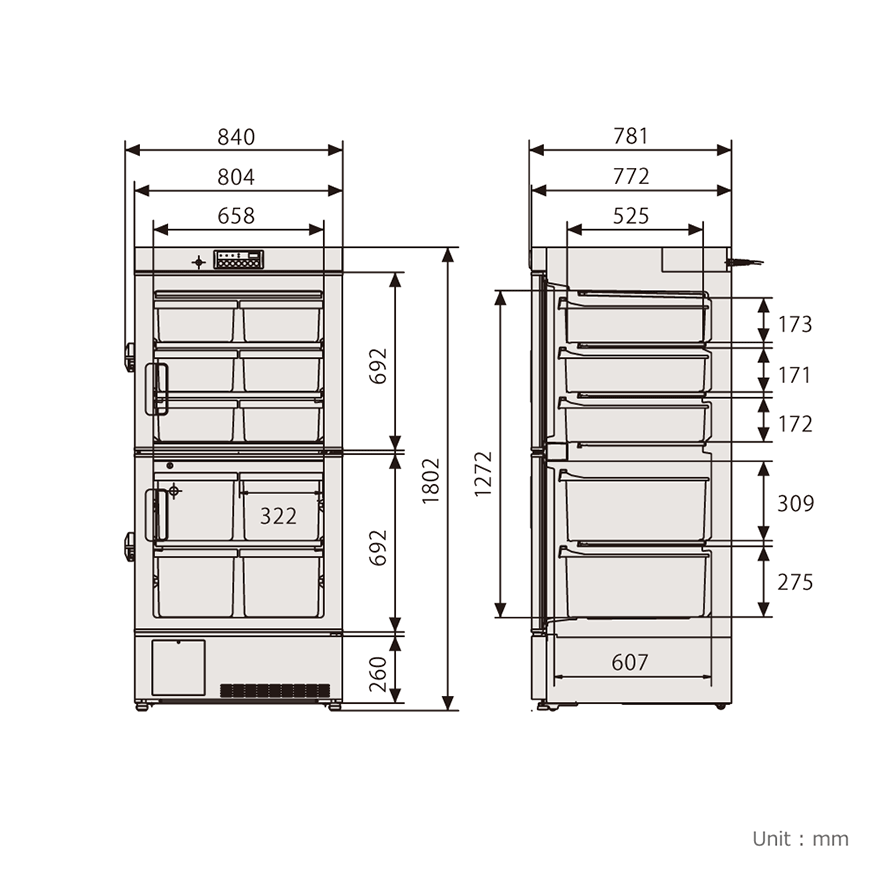

External Dimensions (W x D x H) 804 x 772 x 1802 mm
Internal Dimensions (W x D x H) 658 x 607 x 1272 mm
Volume 482 litres
Net Weight 132 kg
Capacity (Aluminium Racks 2” Boxes) 280 (300ml) FFP packs
Capacity (Stainless Steel Racks 2” Boxe) -
Cooling Performance -40 °C
Temperature Setting Range -40 °C -18 to -45 °C
Temperature Control Range -20 to -40 °C

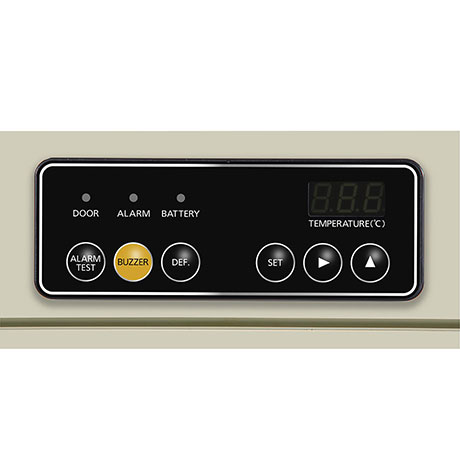

Controller Microprocessor, non-volatile memory
Display LED
Temperature Sensor Thermistor
Refrigeration System Direct
Compressors 450 W
Insulation Material PUF
Insulation Thickness 70 mm
Exterior Material Painted Steel
Interior Material Styrol resin
Outer Doors/Lid 2
Outer Door Lock Y
Inner Doors/Lid -
Max. Load - Per Shelf 30 kg
Max. load - Total 100 kg
Vacuum Release Port -
Access Port 1
Access Port Position Back
Access Port Diameter 30
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter -
Door Open V-B
Power Supply Local
Frequency Local
Noise Level 42 dB [A]


Temperature recorders
- Circular type (recorder housing) MTR-G85C-PE
- Chart paper RP-40-PW
- Ink pen PG-R-PW
- Recorder housing MPR-S30-PW
- Continuous strip type MTR-4015LH-PE
RS485 Interface Module MTR-480
