PHCbi

MPR Sliding Door Pharmaceutical Refrigerators

MPR-1014R Pharmaceutical Refrigerator

Effective capacity
1029L
Temperature range
2℃ to 14℃

Features

Uniform storage temperature for the most demanding applications

The +4°C MPR-1014R Pharmaceutical Refrigerator offers a complete and integrated solution for the growing requirements for strict and exact storage temperatures for pharmaceuticals, medicines, and temperature sensitive biologicals at (2-14°C). The slim design and optional sliding shelves allows for an ergonomic easy-reach retrieval of your product.

Manufactured and distributed by PHCbi, all our Laboratory Refrigerators / Pharmacy Fridges / Vaccine Fridges / lab fridges are designed to meet the most exacting standards required of a specialist laboratory Refrigerator. Effective, reliable temperature control, quiet operation, ease of use and ergonomic design are just a few of the features you can expect as standard from a PHCbi Refrigerator.

Environmentally-friendly

CFC-Free

PHCbi refrigerators feature commercially available CFC-free, HFC refrigerants and CFC-free insulation.

RoHS Compliant

On July 1, 2006, the RoHS legislation (EU Directive 2002/95/EU) came into effect. RoHS is the restriction of hazardous substances to reduce the amount of pollution to the environment. Toxic substances in electrical equipment such as lead, cadmium, mercury, chromium 6+, pbb and PBDE, which can do serious harm to the environment, have been banned. The MPR Series refrigerators are compliant with these regulations.

PHC also offers seven other sizes of the same type Laboratory Refrigerator:

Benefits

  • Superior cooling performance.
  • Energy efficient.
  • PHCbi refrigerators feature commercially available CFC-free, HFC. refrigerants and CFC-free insulation.
  • RoHS Compliant.
  • Uniform Storage Unaffected by Ambient Temperature.
  • Effective Temperature Control.
  • Space Saving Design.

Features

  • Sliding Racks
  • Alarm and safety devices
  • High Efficiency Cooling Compressor
  • Microprocessor temperature control
  • Fan-forced air circulation
  • Cycle Defrost System
  • Digital Temperature Display
  • Door Open Alarm
  • Abnormal Temperature Alarm and Safety Devices

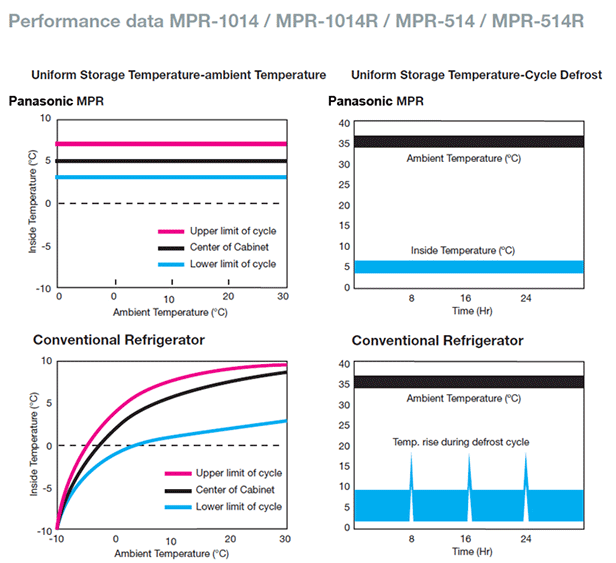

Performance

MPR-1014R

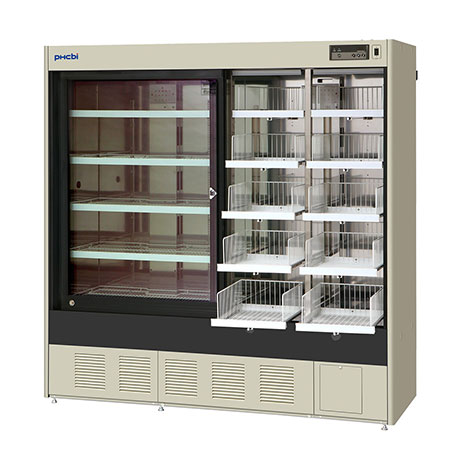

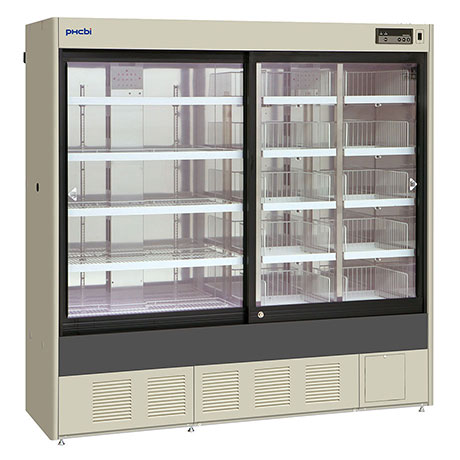

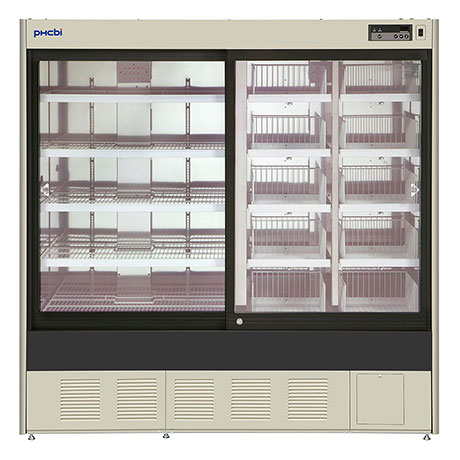

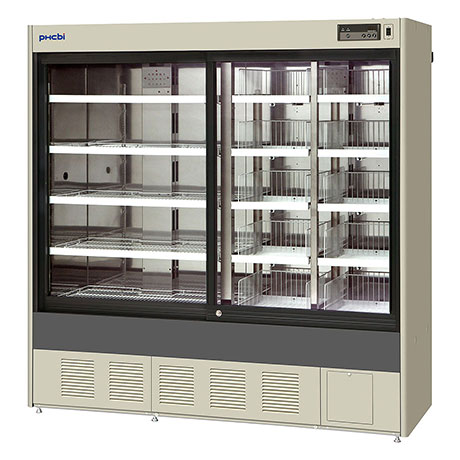

Product Photos

Specifications

External Dimensions (W x D x H) 1800 x 600 x 1790 mm
Internal Dimensions (W x D x H) 1700 x 465 x 1300 mm
Volume 1029 litres
Net Weight 258 kg
Temperature Setting Range +2 to +14 °C
Temperature Control Range +2 to +14 °C
Controller Microprocessor
Display LED
Temperature Sensor Thermistor
Cooling Method Forced cool air circulation
Defrost Method Forced type, fully automatic
Refrigerant
Insulation Material PUF
Exterior Material Painted steel
Interior Material Stainless steel
Outer Doors 2 sliding doors
Outer Door Lock Y
Shelves
Drawers
Max. Load - Per Shelf/Drawer 50 + 20 kg
Max. Load - Total 450 kg
Access Port 1
Access Port Position Left
Access Port Diameter 30
Casters 4
Interior Light Fluorescent
Power Failure V-B-R (Optional)
High Temperature V-B-R
Low Temperature V-B-R
Door Open V-B
Power Supply Local
Noise Level 42 dB [A]

Accessories

Temperature recorders
Temperature chart recorder MTR-0621LH-PH
chart paper RP-G04-PW
recorder housing MPR-S7-PW
Circular temp. chart recorder MTR-G04-PW
Ink pen PG-R-PW
External mounting power failure alarm MPR-48B-PW (V-B)
RS485 interface module MTR-480-PW

Price

MPR-1014R The price might vary in country. Please send the inquiry form for getting quotation.

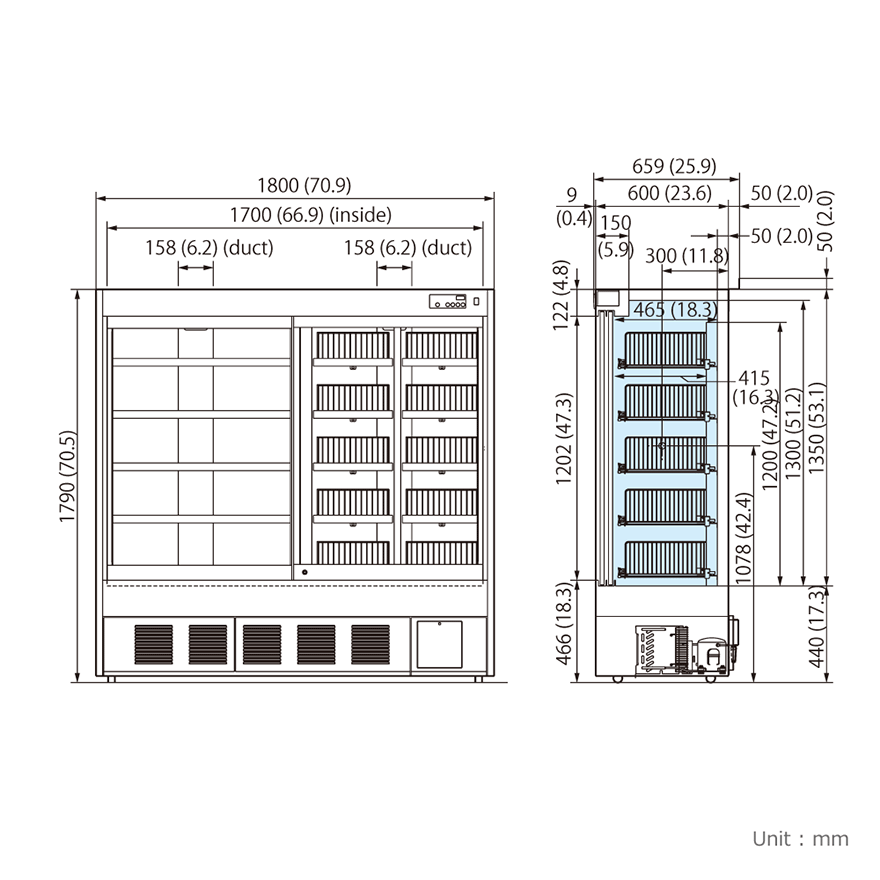

Dimensions

Catalog Download

  • Pharmaceutical Refrigerators Catalog

    Download
  • General Catalog (All PHCbi Products Line-up)

    Download
  • User Manual Download Page

    Go to Download page
  • How to keep Quality of cold of your vaccine, drug or medicine?

    Download
  • Why the Quality of cold matters for Vaccine storage & delivery?

    Download
  • What makes pharmaceutical refrigerators different from consumer refrigerators?

    Download

Options
