MPR Sliding Door Pharmaceutical Refrigerators

MPR-514 Sliding Door Pharmaceutical Refrigerator

Effective capacity
489L
Temperature range
2℃ to 14℃

Features

Uniform storage temperature for the most demanding applications

The +4°C MPR-514 Pharmaceutical Refrigerator offers a complete and integrated solution for the most demanding requirements for storage temperatures of pharmaceuticals, medicines, vaccines, and other temperature sensitive applications (2-14°C)). The slim design and optional sliding shelves allows for an ergonomic easy-reach retrieval of your product.

Manufactured and distributed by PHCbi, all our Laboratory Refrigerators / Pharmacy Fridges / Vaccine Fridges / lab fridges are designed to meet the most exacting standards required of a specialist laboratory Refrigerator. Effective, reliable temperature control, quiet operation, ease of use and ergonomic design are just a few of the features you can expect as standard from a PHCbi Refrigerator.

CFC-Free

PHCbi refrigerators feature commercially available CFC-free, HFC refrigerants and CFC-free insulation.

RoHS Compliant

On July 1, 2006, the RoHS legislation (EU Directive 2002/95/EU) came into effect. RoHS is the restriction of hazardous substances to reduce the amount of pollution to the environment. Toxic substances in electrical equipment such as lead, cadmium, mercury, chromium 6+, pbb and PBDE, which can do serious harm to the environment, have been banned. The MPR Pharmaceutical Refrigerators are compliant with these regulations.

PHC also offers seven other sizes of the same type Laboratory Refrigerator:

Benefits

  • Sliding Door
  • Temperature Stability
  • Wide Temperature Range
  • Speedy and Powerful Refrigeration
  • A filterless condenser cuts down on cleaning maintenance
  • Superior cooling performance
  • RoHS Compliant

Features

  • Alarm and safety devices
  • High Efficiency Cooling Compressor
  • Microprocessor temperature control
  • Fan-forced air circulation
  • Cycle Defrost System

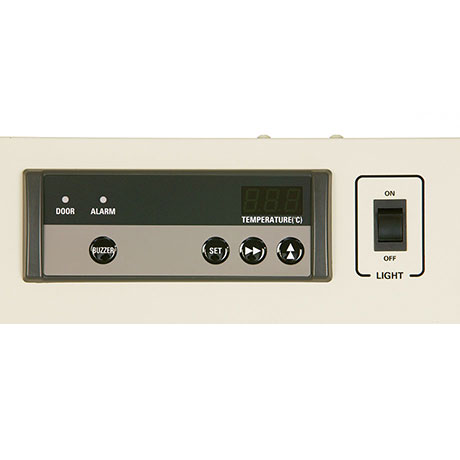

  • Digital Temperature Display
  • Door Open Alarm
  • Abnormal Temperature Alarm and Safety Devices

Performance

MPR-514

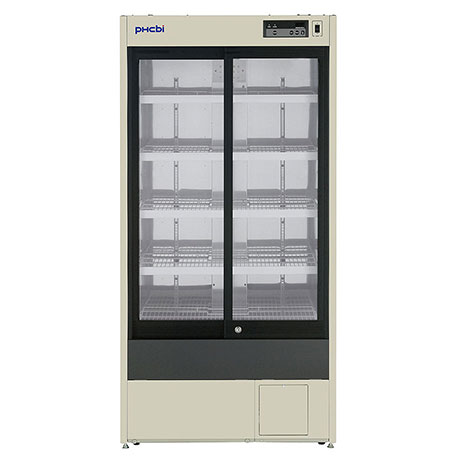

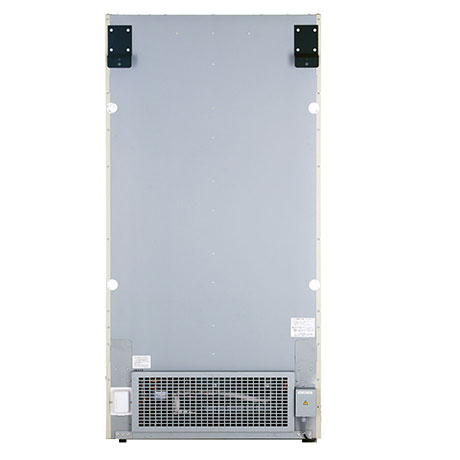

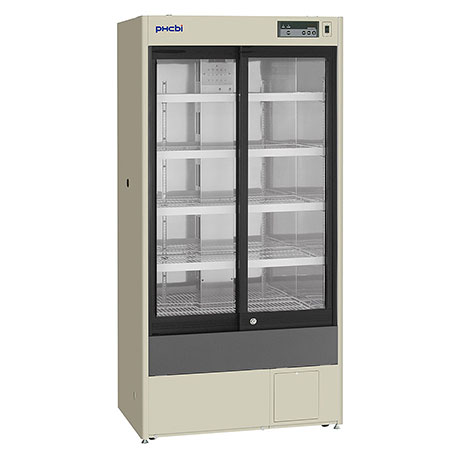

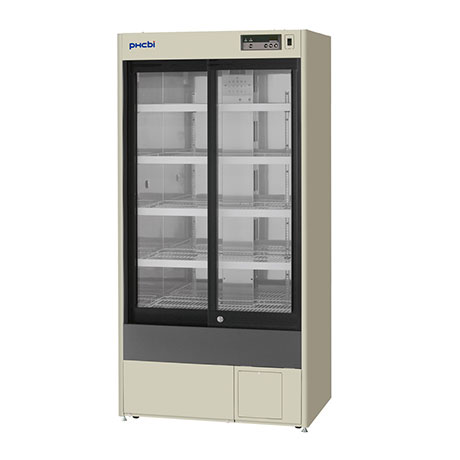

Product Photos

Specifications

External Dimensions (W x D x H) 900 x 600 x 1790 mm
Internal Dimensions (W x D x H) 800 x 465 x 1300 mm
Volume 489 litres
Net Weight 141 kg
Temperature Setting Range +2 to +14 °C
Temperature Control Range +2 to +14 °C
Controller Microprocessor
Display LED
Temperature Sensor Thermistor
Cooling Method Forced cool air circulation
Defrost Method Forced type, fully automatic
Refrigerant
Insulation Material PUF
Exterior Material Painted steel
Interior Material Stainless steel
Outer Doors 2 sliding doors
Outer Door Lock Y
Shelves
Drawers
Max. Load - Per Shelf/Drawer 50 kg
Max. Load - Total 250 kg
Access Port 1
Access Port Position Left
Access Port Diameter 30
Casters 4
Interior Light Fluorescent
Power Failure V-B-R (Optional)
High Temperature V-B-R
Low Temperature V-B-R
Door Open V-B
Power Supply Local
Noise Level 42 dB [A]

Accessories

Temperature recorders
Temperature chart recorder MTR-0621LH-PH
chart paper RP-G04-PW
recorder housing MPR-S7-PW
Circular temp. chart recorder MTR-G04-PW
Ink pen PG-R-PW
External mounting power failure alarm MPR-48B-PW (V-B)
RS485 interface module MTR-480-PW

Price

MPR-514 The price might vary in country. Please send the inquiry form for getting quotation.

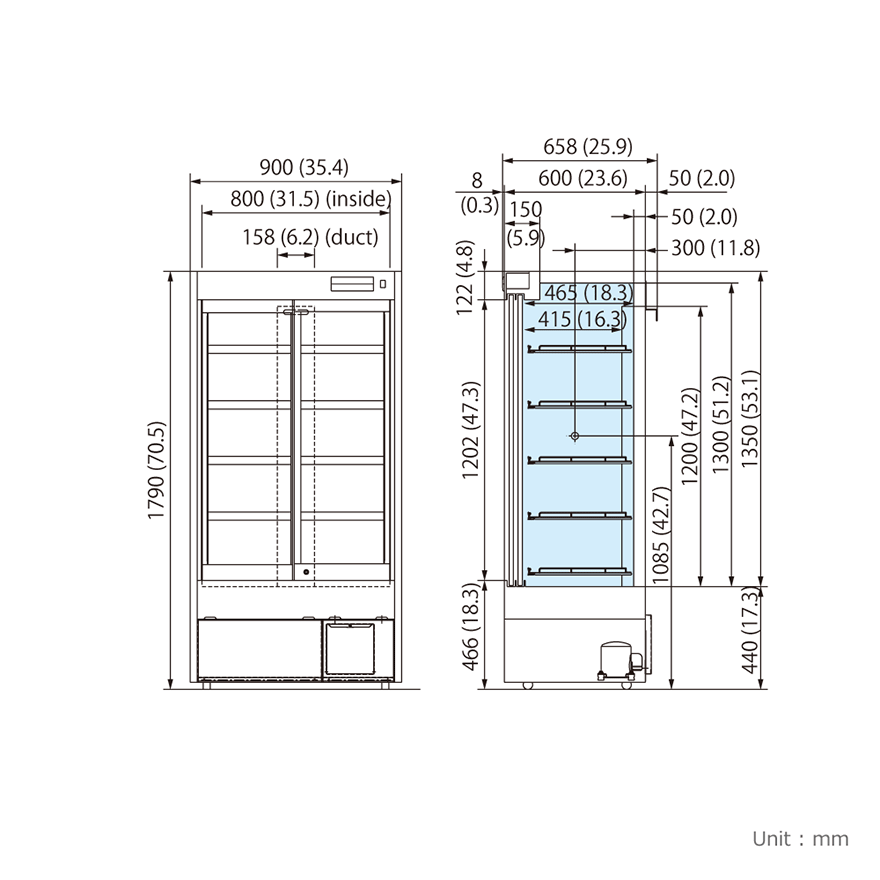

Dimensions
