VIP ECO ULT Freezers (-86°C)


Effective capacity

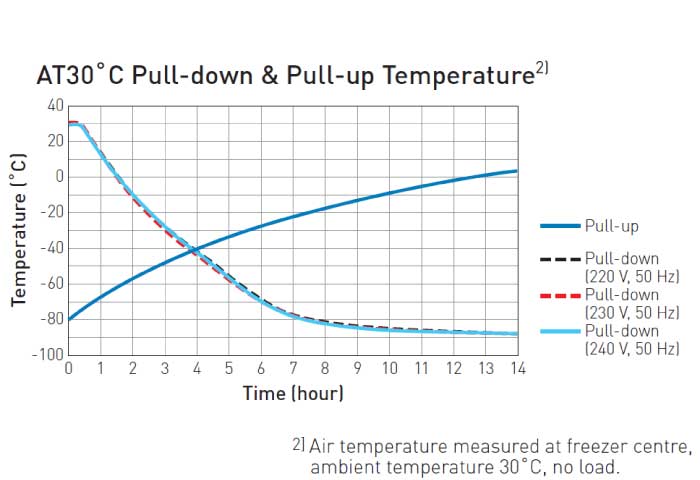

Cooling Performance


Cost-saving and environmentally friendly sample storage within an optimal footprint

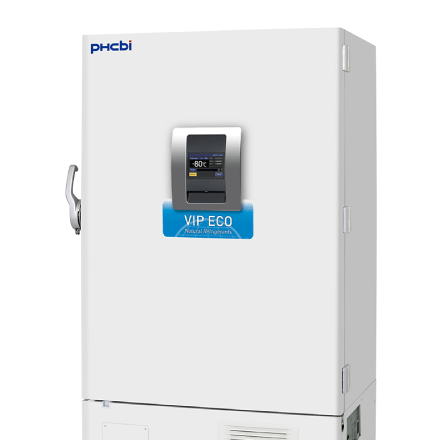

Both VIP ECO models MDF-DU901VHL, MDF-DU901VHA are large volume high performance -86°C upright freezers ideal for use in biorepositories or facilities where bulk storage of sensitive biological is managed. Natural refrigerants minimise its energy consumption to reduce environmental impact. VIP ECOs allow a footprint of just 1m2 for maximum storage.

Efficient Refrigeration & Environmentally Friendly

Natural hydrocarbon refrigerants provide more efficient cooling due to their high latent heat of evaporation. As well as improved performance this leads to reduced power consumption and energy costs. Ideal for laboratories looking to reduce their carbon footprint and environmental impact to comply with sustainability policies.

Inverter Technology & Uniform Sample Storage

The MDF-DU901VH VIP ECO ULT Freezer contains Inverter Compressors that maximise cooling performance under different conditions, and contribute to reducing the energy consumption of the freezer. While conventional freezers use single speed compressors which cycle on and off, the MDF-DU901VH VIP ECO ULT Freezer contains inverter compressors that can run at different speeds to maximise cooling performance under different conditions. Combined with hydrocarbon refrigerants, these compressors ensure the most efficient energy use and reduced heat output.

Inverter compressors provide optimum stability, while quality of design ensures reliability. Ideal for samples that are sensitive to temperature fluctuations.

Intelligent Interface & Easy Data Monitoring

The EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC simple and convenient. Important information such as freezer temperature, door opening times and alarm history is logged for monitoring in GLP applications.

Efficient & Flexible Sample Storage

The combination of VIP PLUS vacuum insulation and an enhanced cabinet design with insulated outer door, ensures optimum temperature uniformity, while the reduced wall thickness maximizes storage capacity. Multiple shelf configurations allow a variety of storage options. Organize your samples by transferring your current inventory racks.


  • Our most energy efficient 845 liters -86°C freezer - 8.6 kWh/day (under certain condition)
  • Less heat generation means saving on airconditioning
  • Reduce carbon footprint
  • VIP PLUS insulation
  • Flexible shelf layout
  • Intelligent Interface
  • Innovative Cabinet Design
  • Class IIa Medical Device (only for EU countries)


  • Natural Refrigerants
  • EZlatch
  • LCD Touch screen
  • USB port
  • Inverter Compressors
  • 845 Litre
  • 616 2" Boxes

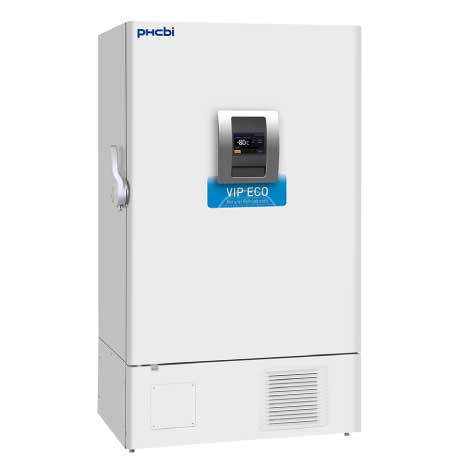

Product Photos

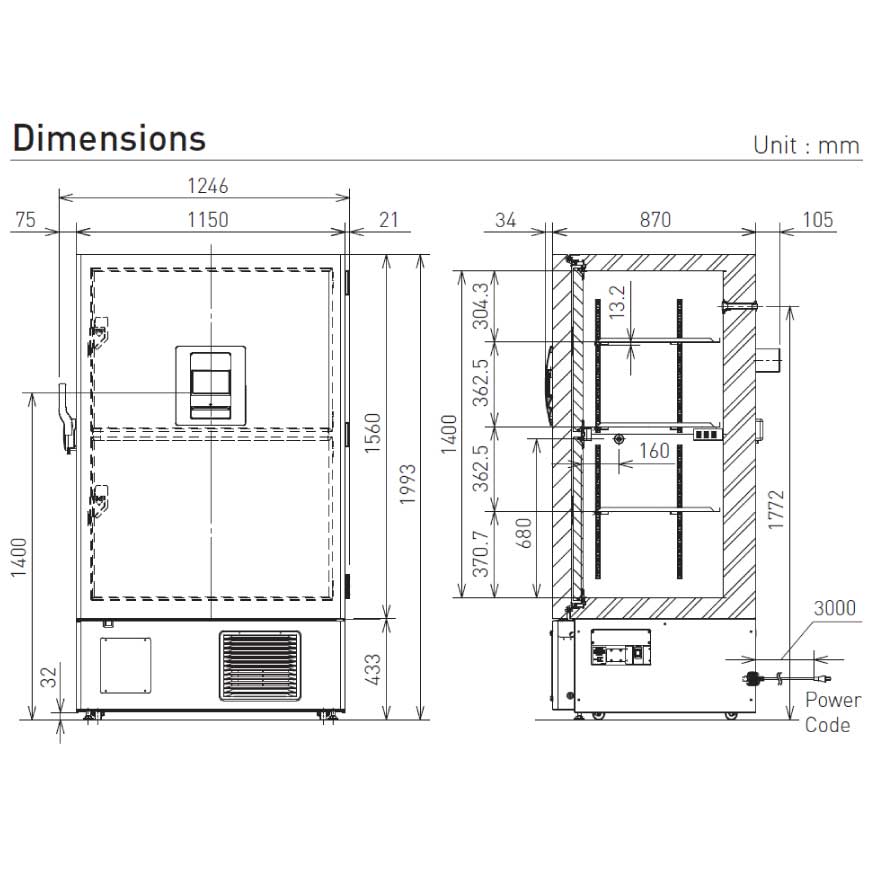

External Dimensions (W x D x H) 1150 x 870 x 1993mm
Internal Dimensions (W x D x H) 1010 x 600 x 1400 mm
Volume 845 litres
Net Weight 328 kg
Capacity (2” Boxes in Stainless Steel Racks) 616 (2” boxes)
Capacity (3” Boxes in Stainless Steel Racks)
Cooling Performance -86 °C
Temperature Setting Range -50 to -90 °C
Temperature Control Range -50 to -86 °C
Controller Microprocessor, non-volatile memory
Display LCD Touch Screen
Temperature Sensor Pt-1000
Refrigeration System Cascade
Compressors 2 x 1000 W
Refrigerant HC
Insulation Material PUF / VIP Plus
Insulation Thickness 70 mm
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid 2 [insulated]
Shelves 3 [stainless steel]
Max. Load - Per Shelf 50 kg
Max. Load - Total
Vacuum Release Port Y
Access Port 2
Access Port Position back x 1, bottom x 2
Access Port Diameter 17
Casters 4 (2 leveling feet)
Power Failure V-B-R (V=Visual Alarm, B=Buzzer Alarm, R=Remote Alarm)
High Temperature V-B-R
Low Temperature V-B-R
Filter V
Door Open V-B
Power Supply MDF-DU901VHL-PE (220/230/240V) | MDF-DU901VHA-PA (115V)
Frequency MDF-DU901VHL-PE (50Hz) | MDF-DU901VHA-PA (160Hz)
Noise Level 52 dB [A]


Small Inner Door Kit set of 2 MDF-9ID-PW [max installation : 2](*1)
Inventory Rack IR-224U-PW, IR-220U-PW
Liquid CO2 back-up MDF-UB7-PW
Temp. recorder (Circular type) MTR-G85C-PE, MTR-G85A-PA (*2)
- Chart paper for circular type recorder RP-G85-PW
- Ink pen for circular type recorder
Temp. recorder (Continuous strip type) MTR-85H-PW (*2)
- Chart paper for strip type recorder
- Ink pen for strip type recorder
- Recorder housing for strip type recorder

*1: Installation of small inner door kit may effect usable storage capacity.
*2: Requires sensor cover MTR-DU700SF-PW.


MDF-DU901VHL | DU901VHA The price might vary in country. Please send the inquiry form for getting quotation.


Catalog Download
