Request a Quote
Request a quote of this product
Product Series Name

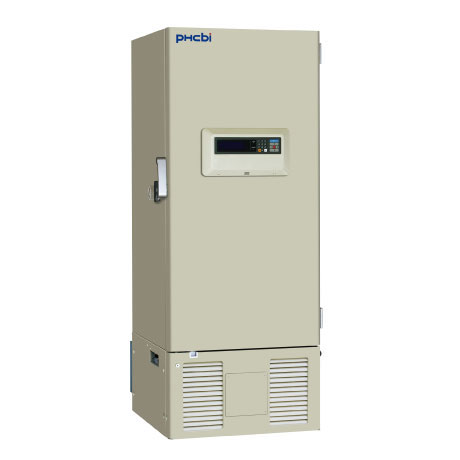

TwinGuard ULT Freezers (-86°C)
Model
MDF-U500VX
External Dimensions (W x D x H)
770 x 870 x 1990 mm
Internal Dimensions (W x D x H)
630 x 600 x 1380 mm
Volume
519 litres
Net Weight
320 kg
Capacity (2” Boxes in Stainless Steel Racks)
352 (2” boxes)
Capacity (3” Boxes in Stainless Steel Racks)
224 (2” boxes)
Cooling Performance
-86 °C
Temperature Setting Range
-50 to -90 °C
Temperature Control Range
-50 to -86 °C
Controller
Microprocessor, non-volatile memory
Display
LCD digital display with numerical keys
Temperature Sensor
Pt-1000
Refrigeration System
Independent Dual-Cooling
Compressors
2 x 1100 W
Refrigerant
HFC
Insulation Material
PUF / VIP Plus
Insulation Thickness
-
Exterior Material
Painted Steel
Interior Material
Painted Steel
Outer Doors/Lid
1
Outer Door Lock
Y
Inner Doors/Lid
2
Shelves
3
Max. Load - Per Shelf
50 kg
Max. Load - Total
-
Vacuum Release Port
1 (manual)
Access Port
3
Access Port Position
back x 1, bottom x 2
Access Port Diameter
17
Casters
4 (2 leveling feet)
Power Failure
V-B-R
High Temperature
V-B-R
Low Temperature
V-B-R
Filter
N/A (filter-less)
Door Open
V-B
Power Supply
Local
Frequency
Local
Noise Level
53 dB [A]
