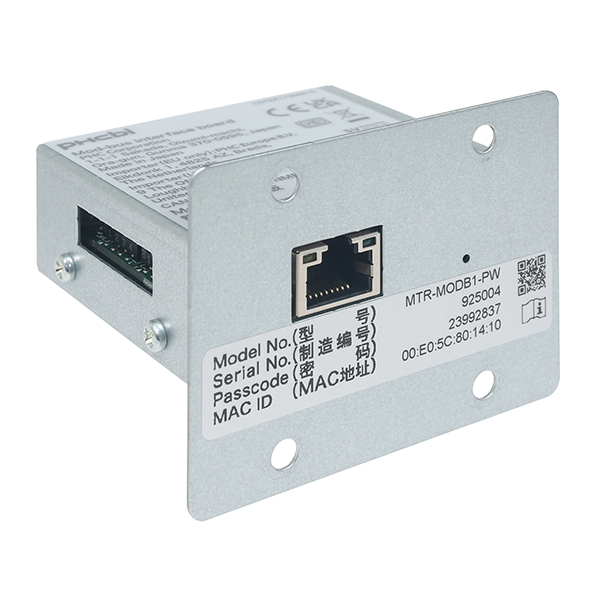

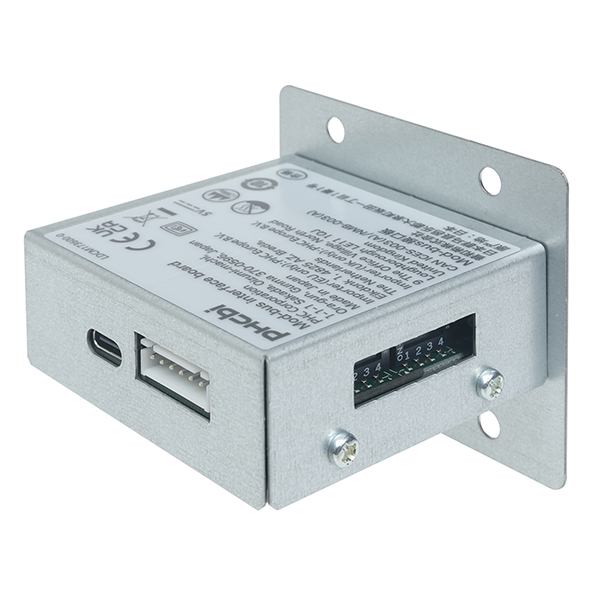

| Product name | interface board |
| Model number | MTR-MODB1-PW |

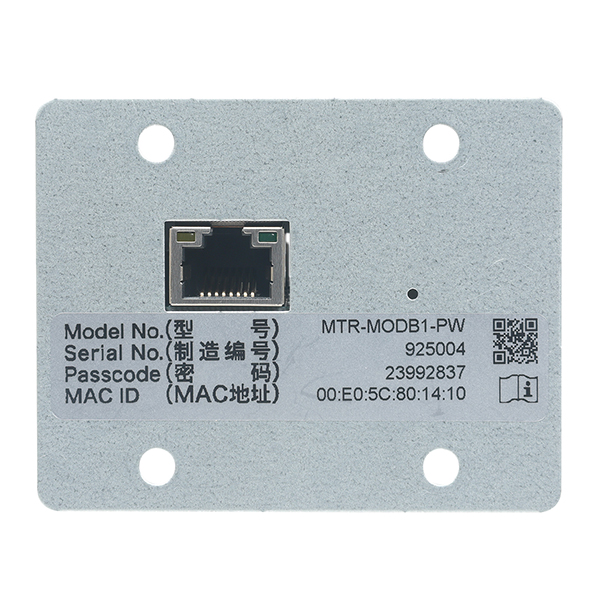

| Ethernet port | RJ45x1 |
| Standard | 10Base-T/100Base-TX |
| Protocol | Modbus*2/TCP |
| Port number | 502(Fixed Modbus) |
| Outer dimension | W74mm x D62.2mm x H58mm |
| Weight | 0.14 kg |
| Power source | DC 5 V (supplied from the connected device) |
| Display | Green LEDx1 (Lit: Normal Operation) |
| Yellow LEDx1 (Blinking: Ethernet Communication) |
| Operation button | Reset buttonx1 |

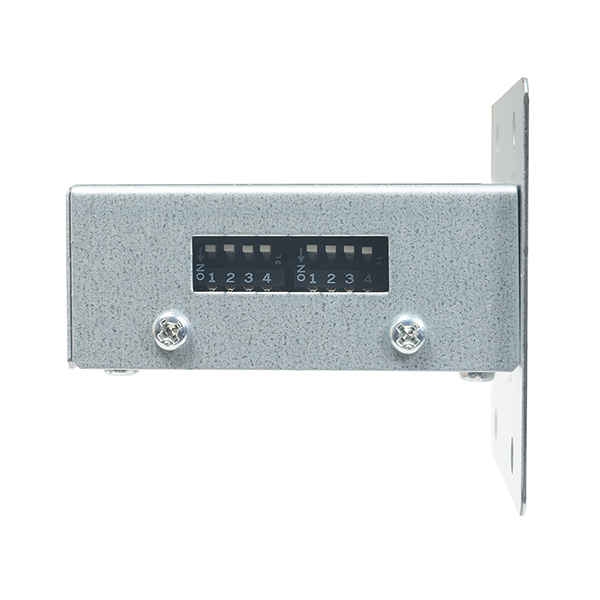

Operation Switch
(for service use only) | DIP Switch (4-pole)x2 |
| Communication items | Refer to the register address map document. |

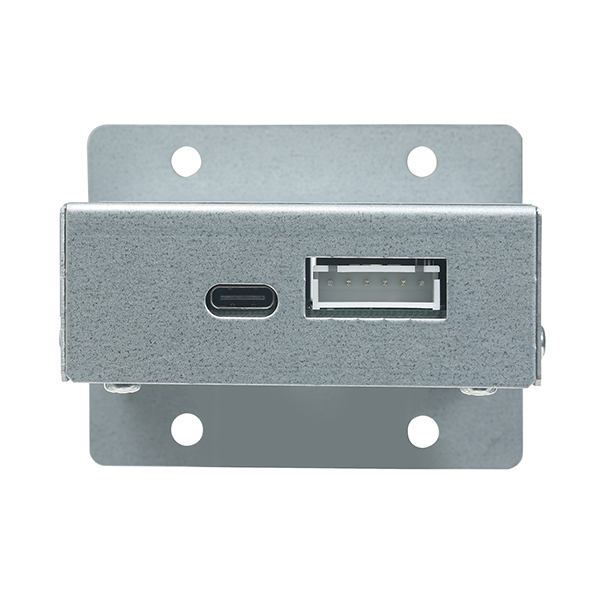

| USB Port (for service use only) | Type-Cx1 |
| Accessories | Screws(4) |
| Environmental conditions | Ambient temperature: -5 ℃ to 65 ℃, humidity: 80% R.H. or less*1 |
- When using this product, install it correctly on one of the PHC equipments included in the "List of Compatible Equipments"
and use under the environmental conditions recommended for the connected equipment. - Modbus is a registered trademark of Schneider Electric USA Inc.
Supported Equipment
For communication specifications of each equipment, please refer to the register address map.
| Model Categories | Models | DIP SWITCH
Setting No. | DIP SWITCH
Bit Setting (1–6) |
|---|
| Ultra-Low Temperature Freezer | MDF-DU503VH/703VH series | 29 | 011101 |
| MDF-DU503VXH/703VXH series | 29 | 011101 |
| MDF-DU302VX/502VX/702VX series | 5 | 000101 |
| MDF-DU502VH/702VH series | 6 | 000110 |
| MDF-DU500ZH/700ZH series | 32 | 100000 |
| MDF-DU901VH series | 6 | 000110 |
| MDF-DU300H | 4 | 000100 |
| MDF-U33V/54V/74V series | 1 | 000001 |
| MDF-DC102VH/202VH series | 31 | 011111 |
| MDF-DC500VX/700VX series | 3 | 000011 |
| MDF-C2156 series | 2 | 000010 |
| Biomedical Freezer | MDF-MU339H/539H series | 25 | 011001 |
| MDF-MU549DH | 24 | 011000 |
| MDF-U5412N | 0 | 000000 |
| Pharmaceutical Refrigerator | MPR-S1201XH series | 34 | 100010 |
| MPR-715F | 12 | 001100 |
| MPR-N250FH series | 30 | 011110 |
| MPR-N450FH/N650FH series | 13 | 001101 |
| MPR-S150H/S300H/S500H series | 28 | 011100 |
| MPR-722/1412 series*1 | 11 | 001011 |
| MPR-N200H series | 28 | 011100 |
| Blood Bank Refrigerator | MBR-305G series | 14 | 001110 |
| MBR-705G series | 14 | 001110 |
| MBR-1405G series | 14 | 001110 |
| Cooled Incubator | MIR-154/254/554 series*2 | 9 | 001001 |
| MIR-154S/254S series*1 | 10 | 001010 |
| Versatile Environmental Test Chamber | MLR-352 | 7 | 000111 |
| MLR-352H | 8 | 001000 |
| CO2 Incubator | MCO-170AIC/230AIC series | 18 | 010010 |
| MCO-50AIC | 26 | 011010 |
| MCO-170AC | 21 | 010101 |
| MCO-170AICD series | 20 | 010100 |
| MCO-171AICD series | 33 | 100001 |
| MCO-80IC series | 17 | 010001 |
| MCO-5AC series | 15 | 001111 |
| MCO-18AC series | 15 | 001111 |
| MCO-20AIC series | 15 | 001111 |
| MCO-233AICX series | 36 | 100100 |
| O2/CO2 Incubator | MCO-50M | 27 | 011011 |
| MCO-170M | 19 | 010011 |
| MCO-5M | 16 | 010000 |
| Biological Safety Cabinet | MHE-S1300 series | 22 | 010110 |
| MHE-S901/1301 series | 23 | 010111 |
- *1 - separately sold battery mounting box (MPR-48B1) is required to install the communication interface product.
- *2- separately sold harness (MTR-HRNS) is required to install the communication interface product.
