Blood Bank Refrigerators

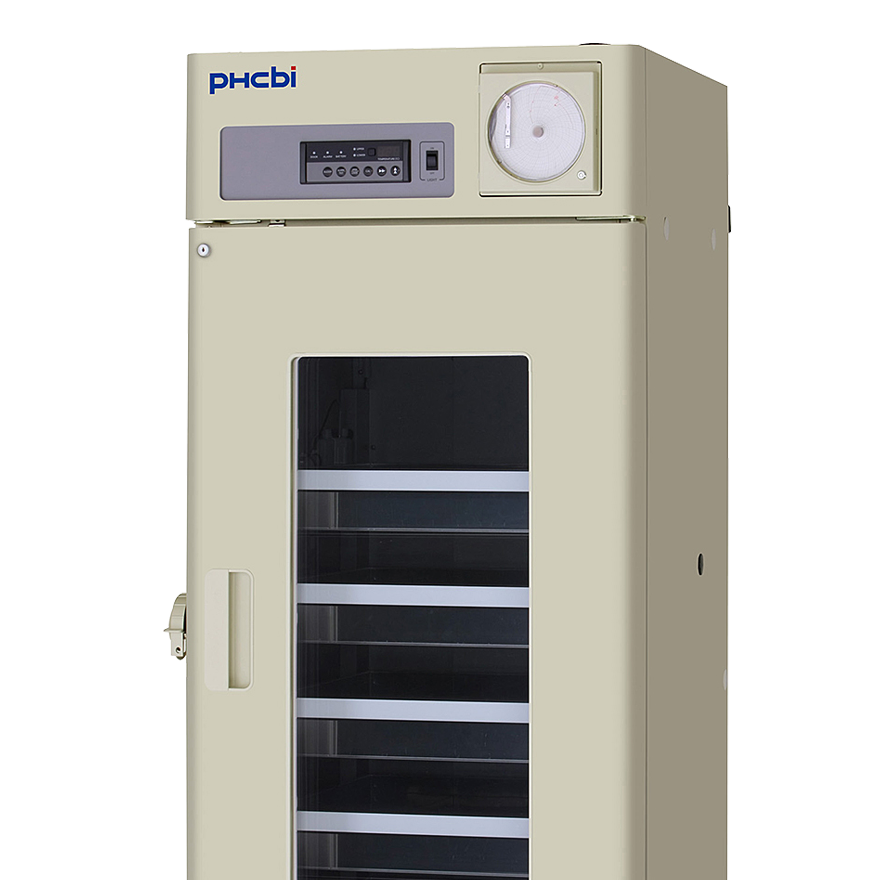

MBR-705GR-PE Blood Bank Refrigerator

Effective capacity
622L
Temperature
4℃ ±15℃

Features

Robust design for safest storage of whole blood

The MBR-705GR-PE Blood Bank Refrigerator is designed to conform to AABB criteria stable and reliable temperature control utilizing PHCbi original technology A special highly efficient compressor designed and developed by PHCbi provides rapid cooling and quiet performance for each model. Ideally suited for whole blood storage with stable and reliable temperature control for various inventory loads.

MBR Blood Bank Refrigerators are designed to conform to AABB criteria with a highly efficient compressor that provides superior temperature recovery, rapid cooling and quiet performance for each model. Designed with all the features for blood product preservation such as superior uniformity, microprocessor control, and large flexible storage capacity. Whatever your preservation needs are, PHCbi provides the right equipment to meet your exact needs.

PHC Europe B.V. also offers three other sizes of the same type MBR Blood Bank Refrigerator:

Benefits

  • Stable Temperature Control
  • Forced Air Circulation for Enhanced Temperature Stability
  • User Friendly Design
  • Environmental Friendly
  • The Ideal +4°C Environment for Safe & Reliable Storage of Whole Blood

Features

  • Roll-out drawers
  • Plexiglas inner doors
  • Single Door
  • Temperature Monitoring Features
  • Two thermistor sensors
  • MBR series are designed to minimize cold air loss even with frequent door openings.
  • Audible and flashing LED visual alarms
  • Built-in temperature recorder, standard.
  • Unified remote monitoring system for Panasonic Biomedical products (optional)
  • Panasonic Data Acquisition Software MTR-2000
  • Analogue module required.

Performance

Performance

Product Photos

Specifications

External Dimensions (W x D x H) 770 x 830 x 1955 mm
Internal Dimensions (W x D x H) 650 x 697 x 1500 mm
Volume 617 litres
Net Weight 213 kg
Capacity 360 bags (450ml)
Temperature Setting Range 4 °C +/-1 °C (AT 35°C)
Controller Microprocessor
Display LED
Temperature Recorder MTR-G04 (Included)
Temperature Sensor 2 bottles with thermistor sensor
Exterior Material Painted steel
Interior Material Painted steel
Outer Doors 1, Double layer glass window
Outer Door Lock Y
Inner Doors 3, Acrylic
Shelves 4, stainless steel roll-out drawers
Max. Load - Per Shelf/Drawer 40 kg
Max. Load - Total 240 kg
Access Port 3
Access Port Position Left/right/tpp
Access Port Diameter 30
Casters 4
Interior Light Fluorescent
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Door Open V-B
Power Supply 230V 50Hz Single phase
Noise Level 45 dB [A]

Accessories

RS485 interface module MTR-480-PW
Temperature chart recorder included
chart paper RP-G04-PW
Ink pen PG-R-PW
