PHC Corporation

iP-TEC®

Dish Covers & Planks

Suitable for three sizes

Features

Using Medical Silicone Rubber without cytotoxic effect

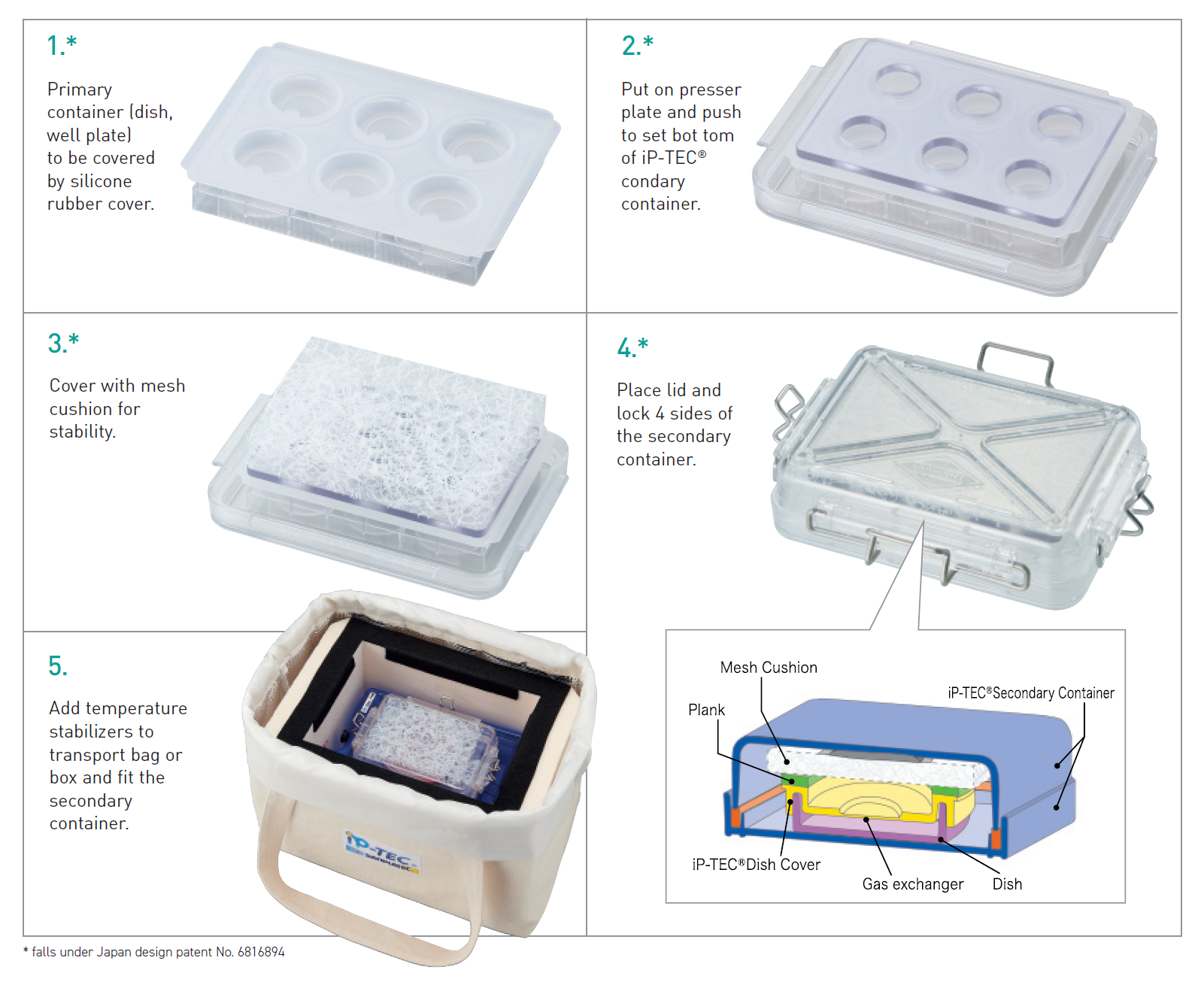

No need for the use of adhesive with the iP-TEC® covers. Simply put the cover over the cell culture plate, put the plank on top and clip to seal. This much easier process minimizes the risk of touching and contaminating the culture medium.

Liquid seal, optimal CO2 gas penetration

The silicone covers consist of two parts:

  • A thin layer which falls into the wells or dish to allow CO2 exchange
  • A thicker layer to smoothly cover the full plate or dish and provide the liquid seal

Easy Live Cell Transportation

The cover falls into each individual well for optimum seal and minimizing the need for culture medium at the same time. This results in less costs and less stress for the cells during transportation.

Request a Quote

Product Photos

Specfications

iP-TEC® Dish Cover
Code
Name
Quantity
IPT-28505 Suitable for Ø35 10 pcs
IPT-28507 Suitable for Ø60 10 pcs
IPT-28509 Suitable for Ø90 10 pcs
iP-TEC® Plank for Dish Cover
Code
Name
Quantity
IPT-28510 Suitable for Ø35 1 pcs
IPT-28512 Suitable for Ø60 1 pcs
IPT-28514 Suitable for Ø90 1 pcs
iP-TEC® Secondary Container
Code
Name
Quantity
IPT-28516 Secondary Container 1 pcs
Barrier pouch and liquid absorbent sheet.
Code
Name
Quantity
IPT-28628 Barrier Pouch (B4 Type) 20 pcs
IPT-28630 Liquid Absorbent Sheets 20 pcs
  • Pressure-resistant and hermetically-sealed pouch (secondary container) enabling the safe transport of clinical specimen and test specimen
  • Even in temperature range of 40 ºC ~ +55 ºC with inner pressure of 95kPa, the contents will not leak (tested and proven in a third-party institution in Japan)
  • With the newly-developed check-valve method, a high level of pressure resistance performance has been achieved (patent obtained). With this method which is not dependent on costly adhesives, low cost and price reduction can be attained simultaneously
  • Barrier pouch B4 can fit 1 iP-TEC container
iP-TEC® Secondary Container private mesh cushion
Code
Name
Quantity
IPT-28530 Thickness 20 mm 1 pcs
IPT-28531 Thickness 30 mm  1 pcs
  • Used to stabilize contents of secondary container
  • Material/elastomer
  • Can be re-used after washing and autoclaving
  • 6, 12 & 24 well plates: 20mm cushion, 96 well plate: 30mm cushion
  • for dishes: 30mm cushion

Downloads
