MPR Pharmaceutical Refrigerators

MPR-1412-PE Pharmaceutical Refrigerator

Effective capacity
1364L
Temperature range
2℃ to 23℃

Features

Uniform storage temperature for the most demanding applications

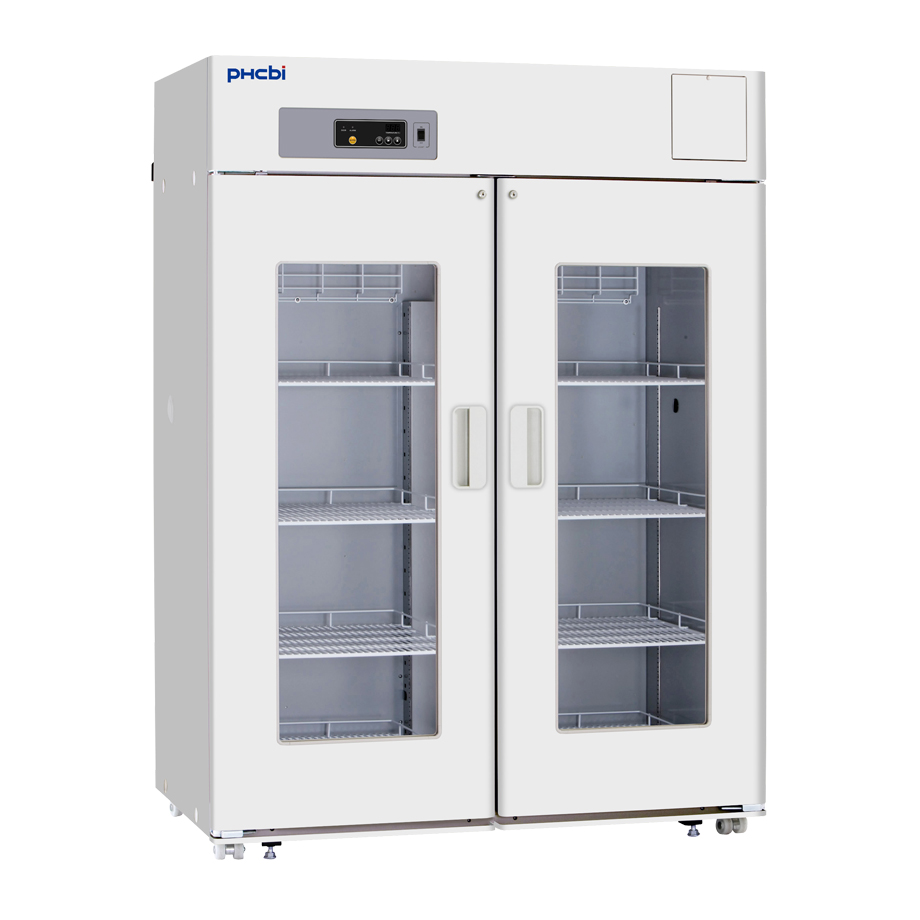

MPR-1412-PE Pharmaceutical Refrigerator

The MPR-1412-PE is a large capacity pharmaceutical refrigerator designed for stable and reliable storage under exacting laboratory requirements. With an effective capacity of 1364 litres and a temperature range of 2°C to 23°C, it is ideal for clinical research, pharmaceutical storage, industrial use and chromatography applications.

Request a Quote
MPR-1412-PE Pharmaceutical Refrigerator
MPR-1412-PE Pharmaceutical Refrigerator

Uniform storage temperature

The MPR-1412-PE provides a stable temperature environment for demanding laboratory applications. Forced cooled air circulation and large fans support even temperature distribution throughout the chamber, helping protect pharmaceuticals, vaccines and biological materials.

Wide temperature range

With a temperature setting range of 2°C to 23°C, the MPR-1412-PE is suitable for many applications requiring stable cool storage, including chromatography, pharmaceutical storage and general laboratory refrigeration.

Large capacity and flexible layout

The large 1364 litre effective capacity and adjustable shelves provide flexible storage for high-volume laboratory requirements. The unit includes eight polyethylene-coated wire shelves, each with a maximum load of 50 kg.

Key benefits

Temperature stability

Reliable temperature control supports safe storage of sensitive pharmaceutical and laboratory materials.

Large capacity

1364 litres of effective capacity for laboratories with high-volume storage needs.

Easy-to-manage layout

Adjustable shelving and wide access support efficient organisation and daily workflow.

Enhanced safety and monitoring

The refrigerator includes alarm and safety features for high temperature, low temperature, door opening and abnormal temperature distribution. Remote alarm contacts help users respond quickly to abnormal conditions.

Request a Quote



Benefits

  • Temperature Stability
  • Wide Temperature Range
  • Speedy and Powerful Refrigeration
  • Easy-to-Manage Layout
  • Large Capacity
  • Cycle Defrost
  • A filter less condenser cuts down on cleaning maintenance

Features

  • Standard Alarm and Safety Features
  • New control panel that can display the temperature in 0.1°C
  • F-Gas compliant refrigerants

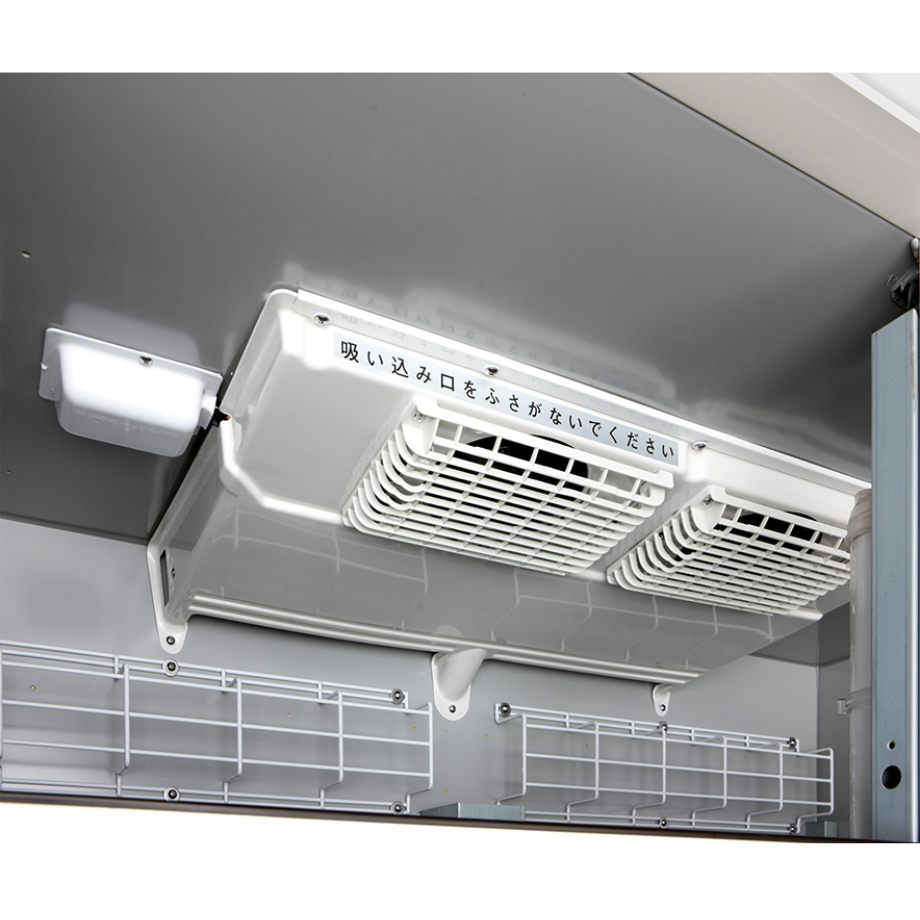

  • Large fans for even temperature distribution
  • Pull-out drawers (for R models only)
  • Cycle Defrost

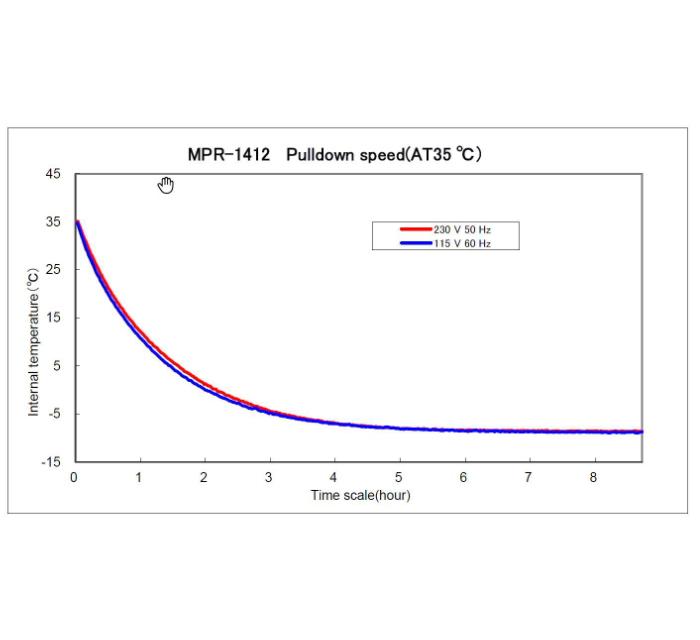

Performance

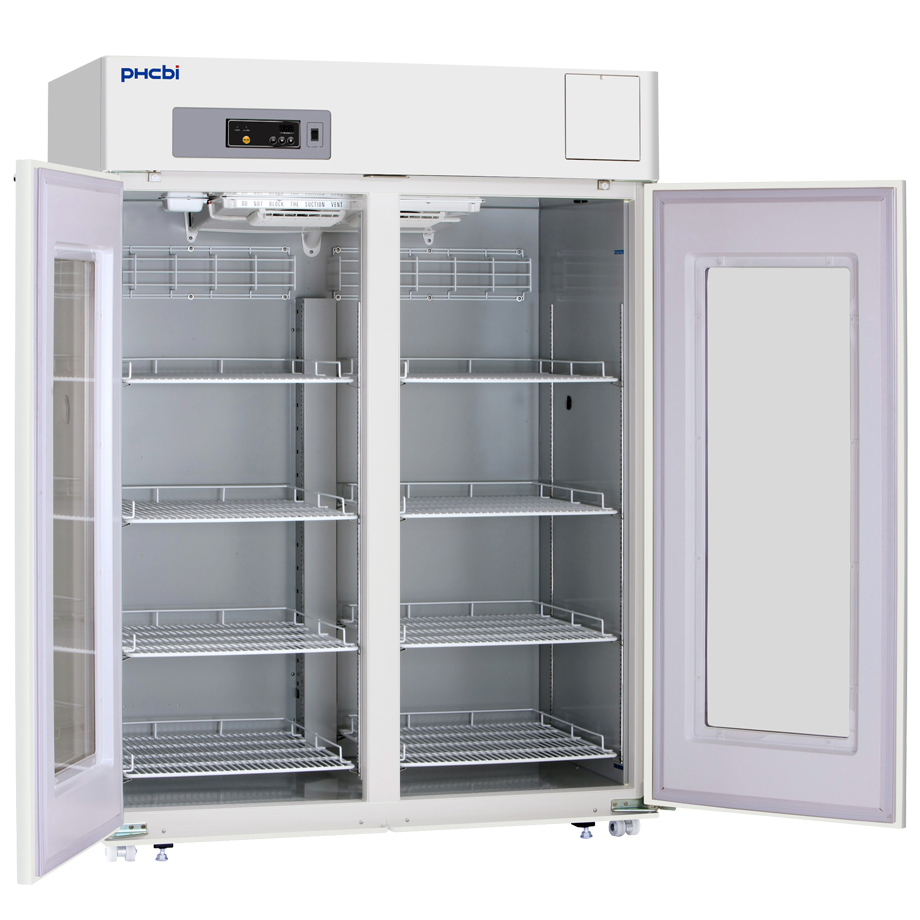

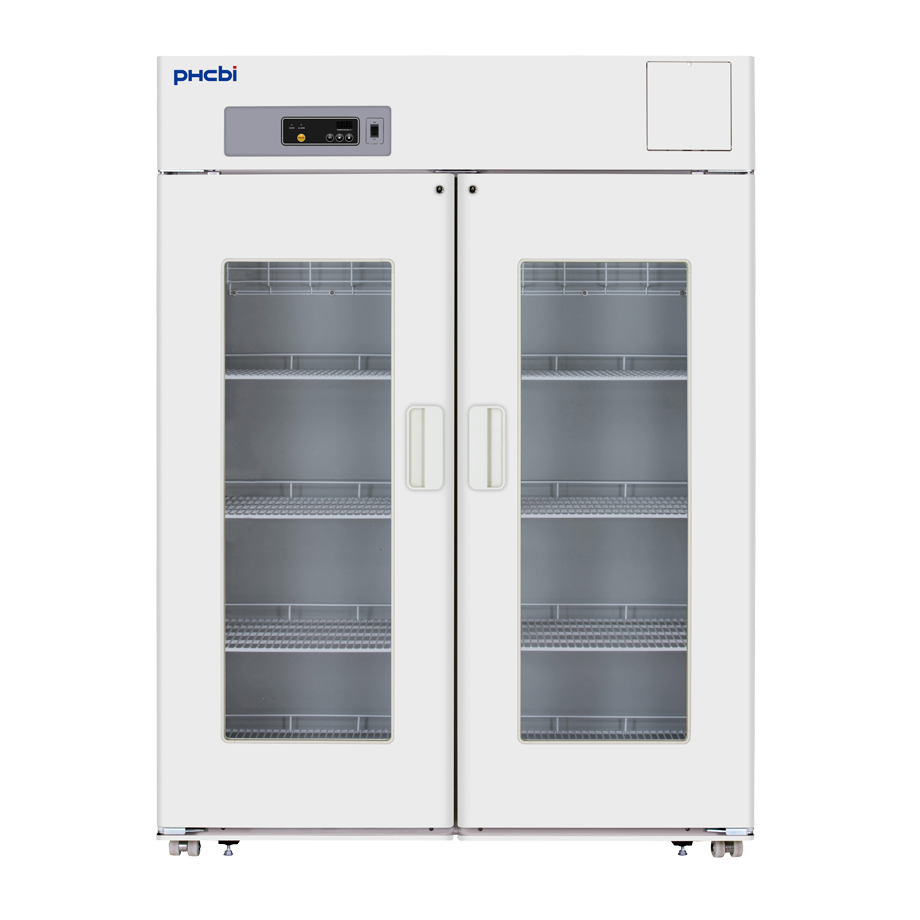

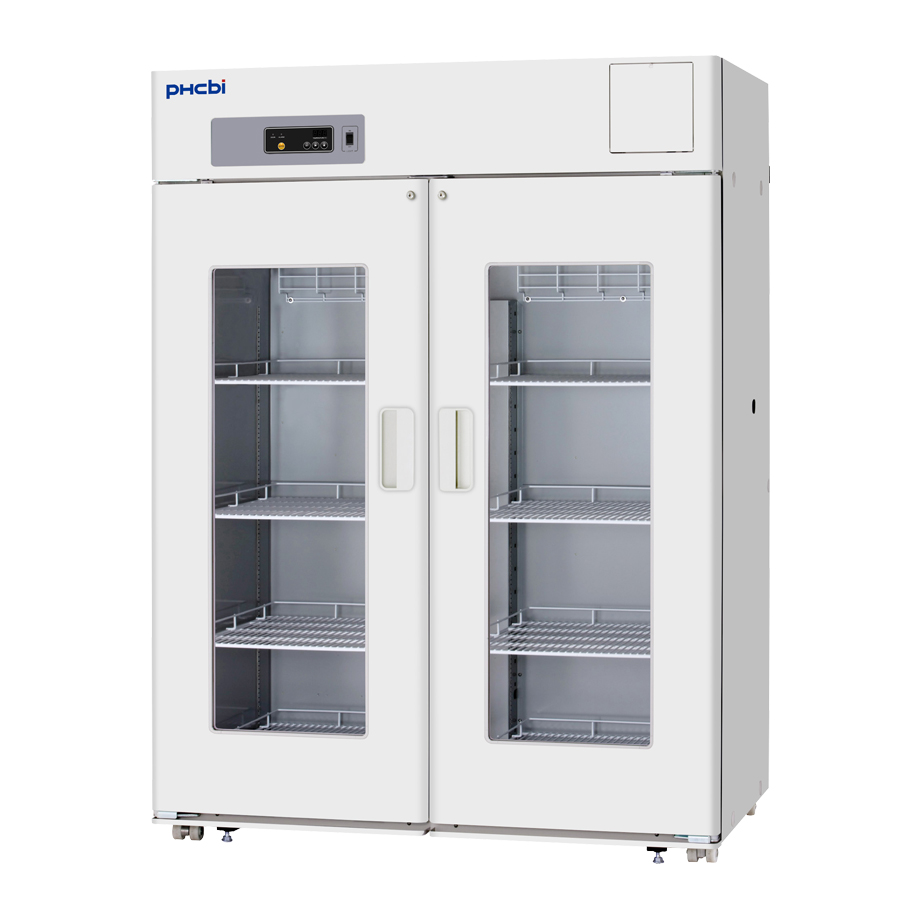

Product Photos

Specifications

External Dimensions (W x D x H) 1440 x 830 x 1950 mm
Internal Dimensions (W x D x H) 1320 x 710 x 1500 mm
Volume 1364 litres
Net Weight 248 kg
Temperature Setting Range +2 to +23 °C
Temperature Control Range +2 to +23 °C
Controller Microprocessor
Display LED
Temperature Sensor Thermistor
Cooling Method Forced cooled air circulation
Defrost Method Forced type (cycle defrost), fully automatic
Refrigerant R-1234yf
Insulation Material PUF
Exterior Material Painted steel
Interior Material Painted steel
Outer Doors 2 doors, double pane glass, self closing
Outer Door Lock Y
Shelves 8 wire shelves, polyethylene-coated
Drawers -
Max. Load - Per Shelf/Drawer 50 kg
Max. Load - Total 320 kg
Access Port 3
Access Port Position Left/right/top
Access Port Diameter 30
Casters 4
Interior Light LED
Power Failure V-B-R (Optional)
High Temperature V-B-R
Low Temperature V-B-R
Door Open V-B
Abnormal Temperature Distribution V-B-R
Power Supply 230V 50Hz single phase
Noise Level 48 dB [A]

Accessories

Temperature chart recorder MTR-0621LH-PH
chart paper RP-06-PW
recorder housing MPR-S30-PW
Circular type MTR-G04C-PE
chart paper RP-G04-PW
Ink pen PG-R-PW
recorder housing MPR-S7-PW
External mounting power failure alarm MPR-48B1-PW (V-B)
Door window blanking plate MPR-72BP-PW (1 x)

Communication Interface

Modbus MTR-MODB1-PW
Analog MTR-420MA-PW

  • *1seperately sold battery mounting box (MPR-48B1) is required to install the communication interface product.

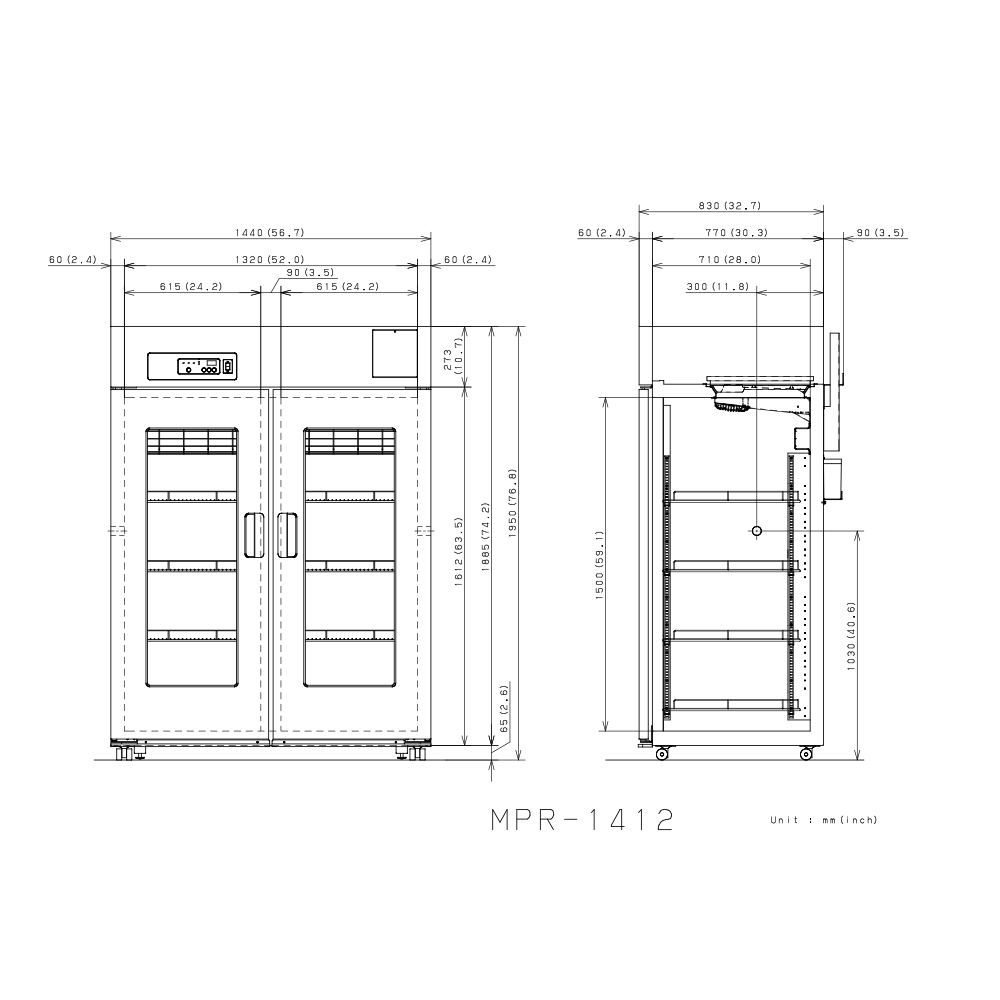

  • Dimensions
