MPR Pharmaceutical Refrigerators

MPR-722R-PE Pharmaceutical Refrigerator

Effective capacity
671L
Temperature range
2℃ to 23℃

Features

Uniform storage temperature for the most demanding applications

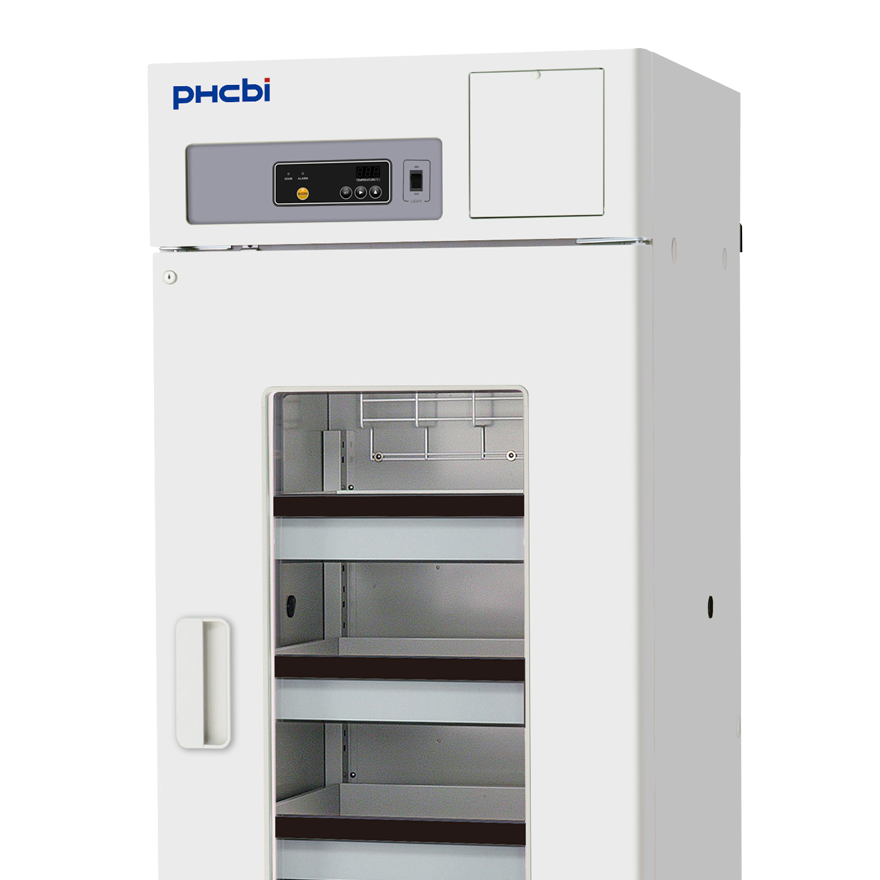

MPR-722R-PE Pharmaceutical Refrigerator

The MPR-722R-PE Pharmaceutical Refrigerator is a large capacity pharmacy refrigerator designed for stable and reliable storage under exacting laboratory requirements. With a temperature range of 2°C to 23°C, pull-out drawers and precise temperature control, it is ideal for clinical research, pharmaceutical storage and industrial laboratory applications.

Request a Quote
MPR-722R-PE Pharmaceutical Refrigerator
MPR-722R-PE Pharmaceutical Refrigerator

Uniform storage temperature

The MPR-722R-PE provides a stable temperature environment for demanding applications. Forced cool air circulation supports even temperature distribution throughout the chamber, helping to protect pharmaceuticals, vaccines and biological materials.

Pull-out drawer layout

The R model includes five coated steel pull-out drawers, making it easy to organise stored materials and access items efficiently. This layout supports laboratories that require structured storage and frequent sample handling.

Reliable operation and easy maintenance

A filterless condenser reduces cleaning maintenance, while the LED display and microprocessor controller make operation straightforward. The glass door includes protective film to help prevent shattering in the event of accidental impact.

Key benefits

Temperature stability

Stable and reliable temperature control for pharmaceutical and laboratory storage.

Large capacity

671 litres of effective storage capacity for high-volume laboratory requirements.

Easy-to-manage layout

Pull-out drawers improve organisation, access and daily workflow efficiency.

Enhanced safety and monitoring

The refrigerator includes standard alarm and safety features, including alerts for power failure, high temperature, low temperature and door opening. Remote alarm contacts help users respond quickly to abnormal conditions.

Request a Quote



Benefits

  • Temperature Stability
  • Wide Temperature Range
  • Speedy and Powerful Refrigeration
  • Easy-to-Manage Layout
  • Large Capacity
  • Cycle Defrost
  • A filter less condenser cuts down on cleaning maintenance

Features

  • Standard Alarm and Safety Features
  • New control panel that can display the temperature in 0.1°C
  • F-Gas compliant refrigerants
  • Large fans for even temperature distribution
  • Pull-out drawers (for R models only)
  • Cycle Defrost

Performance

Product Photos

Specifications

External Dimensions (W x D x H) 770 x 920 x 1955 mm
Internal Dimensions (W x D x H) 650 x 710 x 1500 mm
Volume 671 litres
Net Weight 193 kg
Temperature Setting Range +2 to +23 °C
Temperature Control Range +2 to +23 °C
Controller Microprocessor
Display LED
Temperature Sensor Thermistor
Cooling Method Forced cool air circulation
Defrost Method Forced type (cycle defrost), fully automatic
Refrigerant R1234yf
Insulation Material PUF
Exterior Material Painted steel
Interior Material Painted steel
Outer Doors 1 door, double pane glass, self closing
Outer Door Lock Y
Shelves -
Drawers 5 coated steel drawers
Max. Load - Per Shelf/Drawer 40 kg
Max. Load - Total 200 kg
Access Port 3
Access Port Position Left/right/top
Access Port Diameter 30
Casters 4
Interior Light LED
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Door Open V-B
Power Supply 230V 50Hz single phase
Noise Level 48 dB [A]
  • Caution: PHBci guarantees the product under certain warranty conditions.
  • PHBci in no way shall be responsible for any loss of content or damage to content.
  • Appearance and specifications are subject to change without notice.
  • *1) Exterior dimensions of main cabinet only - see dimension drawings showing handles and other external projections.

Accessories

Temperature chart recorder MTR-0621LH-PE
chart paper
RP-06-PW
recorder housing
MPR-S30-PW
Circular type
MTR-G04C-PE
chart paper RP-G04-PW
Ink pen PG-R-PW
Recorder housing MPR-S7-PW
External mounting power failure alarm MPR-48B1-PW(V-B)
Door window blanking plate MPR-72BP-PW (1 x)

Communication Interface

Modbus MTR-MODB1-PW
Analog MTR-420MA-PW

  • *1seperately sold battery mounting box (MPR-48B1) is required to install the communication interface product.
