MPR Sliding Door Pharmaceutical Refrigerators

MPR-S150H-PE Pharmaceutical Refrigerator

Effective capacity
165L
Temperature range
2℃ to 14℃

Features

Uniform storage temperature for a broad range of applications

The MPR-S150H Pharmaceutical Refrigerators offer a complete solution for the most demanding requirements for storage of pharmaceuticals, medicines, vaccines, and other temperature-sensitive applications.

Manufactured and distributed by PHCbi, all our Laboratory Refrigerators / Pharmacy Fridges / Vaccine Fridges / lab fridges are designed to meet the most exacting standards required of a specialist Pharmaceutical Refrigerator. Effective, reliable temperature control, quiet operation, ease of use and ergonomic design are just a few of the features you can expect as standard from a PHCbi Refrigerator.

Environmentally Friendly Storage Solution

Naturally occurring hydrocarbon [HC] refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising performance.

User-friendly Design

The ergonomic design provides a clear view of stored items through the large framed windows. The slim profile allows easy retrieval, and the selfclosing sliding doors makes them ideal for limited spaces.

Stable Temperatures

Inverter compressors provide optimum stability, while quality of design ensures reliability. Ideal for samples that are sensitive to temperature fluctuations. HC refigerant consumes about 64% less energy than conventional models.

Safe & Secure storage

Adjustable audible and visual alarms are standard, along with integrated system diagnostics and predictive performance. The password-protected control panel provides security and minimises risk of accidental changes. If desired alarm and operating history can be uploaded through the USB port.

Well-isolated chamber

Double glass separated by an extra wide 12 mm gap contains argon gas to protect sample from exterior heat. Combined with air blowing up from the chamber bottom, the unit completely safeguards samples and maximise energy efficiency.

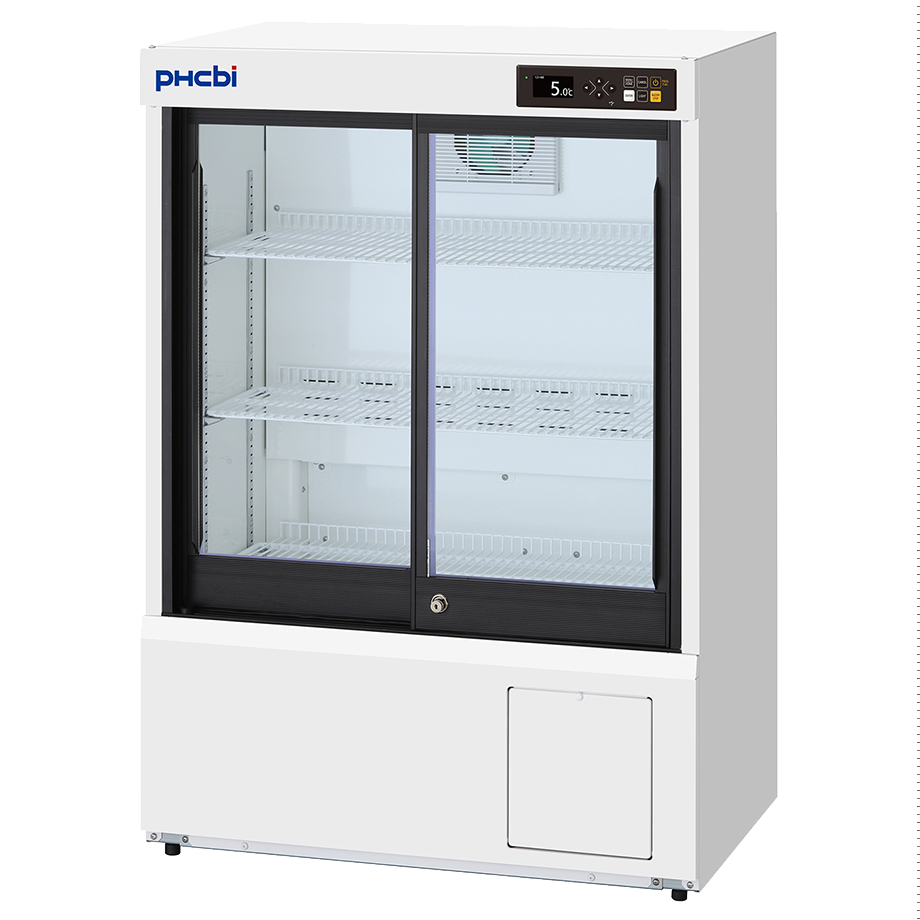

Product Photos

Specifications

External Dimensions (W x D x H) 800 x 500 x 1120
Internal Dimensions (W x D x H) 720 x 360 x 725
Volume 165 liters
Net Weight 73 kg
Temperature Setting Range +2 to +14 °C
Temperature Control Range +2 to +14 °C
Controller Microprocessor with non-volatile memory
Display Digital (White graphic OLED), 1°C (increment of 0.1)
Temperature Sensor Thermistor
Cooling Method Forced air circulation
Defrost Method Cyclical defrost + forced defrost
Refrigerant HC refrigerant
Insulation Material PUF
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors 2 (Highly insulated double glass door with tempered glass)
Outer Door Lock Y
Shelves 3 wire shelves, coated steel
Drawers
Max. Load - Per Shelf/Drawer 20 kg
Max. Load - Total
Access Port 1
Access Port Position Back
Access Port Diameter 30 mm
Casters 4 [2 levelling feet]
Interior Light LED
Power Failure R 3
High Temperature V-B-M-R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Low Temperature V-B-M-R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Door Open V-B-M-R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power Supply 220/230/240/50Hz
Noise Level 38dB
