PHC Europe, a Member of PHC Group PRESERVATION MPR Pharmaceutical Refrigerators MPR Sliding Door Pharmaceutical Refrigerators MPR-S300H-PE

MPR Sliding Door Pharmaceutical Refrigerators

MPR-S300H-PE Pharmaceutical Refrigerator

Effective capacity
345L
Temperature range
2℃ to 14℃

Features

Uniform storage temperature for a broad range of applications

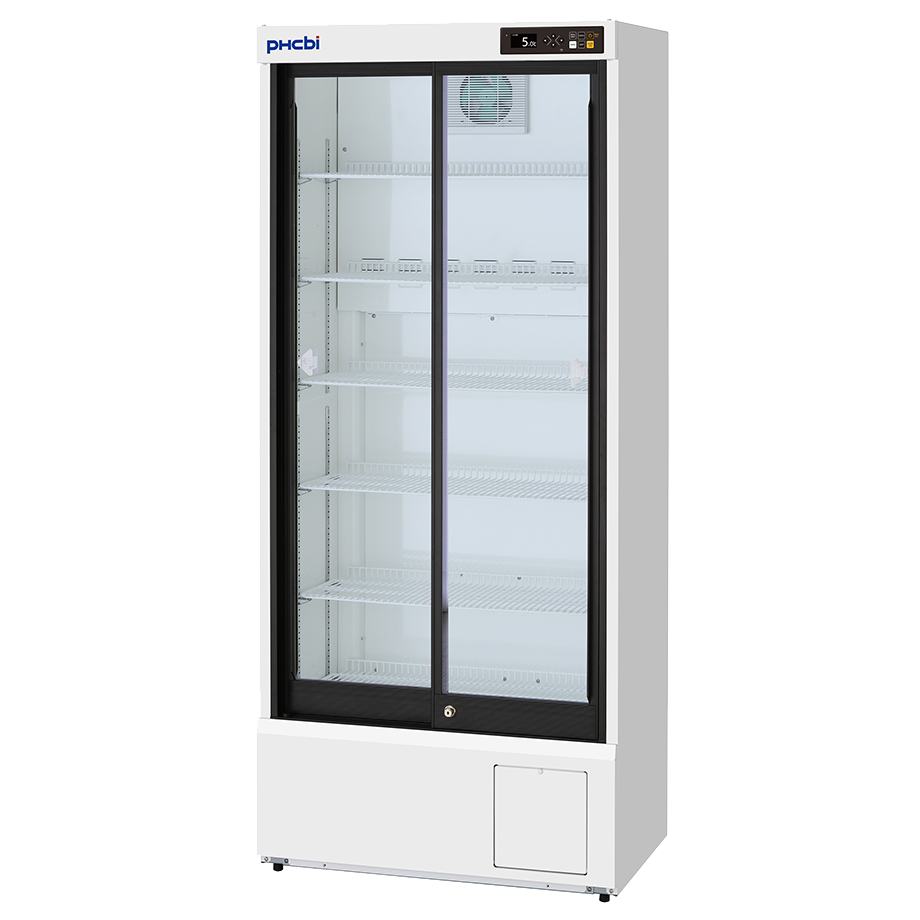

MPR-S300H-PE Sliding Door Pharmaceutical Refrigerator

The MPR-S300H-PE Sliding Door Pharmaceutical Refrigerator offers uniform storage temperatures for pharmaceuticals, medicines, vaccines and other temperature-sensitive applications. With a 345 litre capacity, sliding doors and excellent visibility, it is designed for reliable storage in demanding laboratory environments.

›Request a Quote
MPR-S300H-PE Sliding Door Pharmaceutical Refrigerator
MPR-S300H-PE Sliding Door Pharmaceutical Refrigerator

Environmentally friendly storage solution

Naturally occurring hydrocarbon refrigerants have minimal effect on the environment and comply with environmental legislation for climate control. Combined with inverter technology, they provide efficient cooling without compromising performance.

OLED control panel

The OLED panel offers clear visibility and intuitive operation. It displays detailed temperatures in 0.1°C increments, alarm conditions and minimum and maximum temperatures for every 12 or 24 hours.

User-friendly sliding door design

The ergonomic sliding door design provides a clear view of stored items through large framed windows. The slim profile allows easy retrieval, while the self-closing sliding doors make the unit ideal for limited spaces.

Key benefits

Stable temperatures

Inverter compressor technology provides optimum stability for temperature-sensitive samples.

Safe & secure storage

Audible and visual alarms, diagnostics and password protection help safeguard stored materials.

Well-insulated chamber

Double glass with argon gas and bottom airflow protect samples and maximise energy efficiency.

›Request a Quote



Product Photos

Specifications

External Dimensions (W x D x H) 800 x 500 x 1820
Internal Dimensions (W x D x H) 720 x 360 x 1425
Volume 345
Net Weight 105
Temperature Setting Range +2 to +14 °C
Temperature Control Range +2 to +14 °C
Controller Microprocessor with non-volatile memory
Display Digital (White graphic OLED), 1°C (increment of 0.1)
Temperature Sensor Thermistor
Cooling Method Forced air circulation
Defrost Method Cyclical defrost + forced defrost
Refrigerant HC refrigerant
Insulation Material PUF
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors 2 (Highly insulated double glass door with tempered glass)
Outer Door Lock Y
Shelves 6 wire shelves, Coated steel
Drawers -
Max. Load - Per Shelf/Drawer 20 kg
Max. Load - Total -
Access Port 1
Access Port Position Back
Access Port Diameter 30 mm
Casters 4 [2 levelling feet]
Interior Light LED
Power Failure R 3
High Temperature V-B-M-R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Low Temperature V-B-M-R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Door Open V-B-M-R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power Supply 220/230/240/50Hz
Noise Level 38 dB

Communication Interface

Modbus MTR-MODB1-PW
Analog MTR-420MA-PW
