Cost-saving and environmentally friendly sample storage within an optimal footprint
The MDF-DU502VH VIP ECO -86°C ultra low temperature freezer provides maximum sample storage capacity within an optimum footprint combined with natural refrigerants to minimise energy consumption, reduce environmental impact and save money.
Efficient Refrigeration
Naturally occurring hydrocarbon (HC) refrigerants provide more efficient cooling due to their high latent heat of evaporation. As well as improved performance this leads to reduced power consumption and energy costs.
Inverter Technology
The MDF-DU502VH VIP ECO ULT Freezer contains Inverter Compressors that maximise cooling performance under different conditions, and contribute to reducing the energy consumption of the freezer.
Intelligent Interface
The EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC simple and convenient.
Environmentally Friendly
Ideal for laboratories looking to reduce their carbon footprint and environmental impact to comply with sustainability policies.
Uniform Sample Storage
Inverter compressors provide optimum stability, while quality of design ensures reliability. Ideal for samples that are sensitive to temperature fluctuations.
Easy Data Monitoring
Important information such as freezer temperature, door opening times and alarm history is logged for monitoring in GLP applications.
Inverter Compressors
While conventional freezers use single speed compressors which cycle on and off, the MDF-DU502VH VIP ECO ULT Freezer contains inverter compressors that can run at different speeds to maximise cooling performance under different conditions. Combined with hydrocarbon refrigerants, these compressors ensure the most efficient energy use and reduced heat output.
Efficient & Flexible Sample Storage
The combination of VIP PLUS vacuum insulation and an enhanced cabinet design with insulated outer door, ensures optimum temperature uniformity, while the reduced wall thickness maximizes storage capacity. Multiple shelf configurations allow a variety of storage options. Organize your samples byźtransferring your current inventory racks.
Innovative Cabinet Design
The enhanced cabinet design with chamfered edges reduces footprint for use in multi freezer laboratories.
PHC Europe B.V. also offers the MDF-DU702VH-PE (former KM-DU73Y1E) VIP ECO ULT Freezer, which has a capacity of 728 litres.
PHCbi’s Hybrid water cooled technology on VIP ultra low temperature and cryogenic freezers improves the compressor efficiency. The power consumption of a Hybrid ULT can be reduced by typically 10~12% compared to the equivalent air-cooled model.
Cryo Glove
Combining the Cryo glove 400 with our ULT freezer is an essential practice that prioritizes safety, sample integrity, precision, and adherence to industry standards. It's a small investment that yields significant benefits for both you and your research or laboratory work.
Request a Quote
Benefits
- Less heat generation means saving on airconditioning
- Reduce carbon footprint
- No high GWP refrigerants
- Class IIa Medical Device
Features
- Natural Refrigerants
- High Efficiency Insulation with VIP PLUS Technology
- Automatic Compressor Cycling
- Improved Recovery Times
- 528 Litre
- 384 2" Boxes

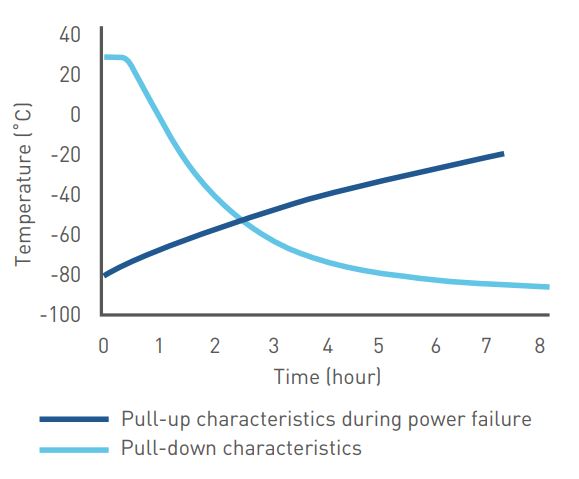

Performance
