PHC Europe, a Member of PHC Group Incubation IncuSafe CO2 Incubators MCO-173AICUV-PE

CO2 Incubators

MCO-173AICUV-PE

Effective capacity
165 litres
CO2 control range & fluctuation
0 to 20, ±0.15

Features

MCO-173AICUV-PE CO₂ Incubator

The PHCbi MCO-173AICUV-PE CO₂ incubator is designed to optimize cell culture outcomes and reproducibility with precise CO₂ concentration control. With a 165 litre chamber, this premium incubator is ideal for research, clinical and commercial laboratory environments.

Combined with advanced contamination control technologies such as inCu-saFe copper-enriched stainless steel and SafeCell UV-LED decontamination, the incubator supports reliable and reproducible cell culture conditions.

› Request a Quote
PHCbi MCO-173AICUV-PE CO2 Incubator
MCO-173AICUV-PE CO₂ incubator

Precise & regulated environment

The Direct Heat and Air Jacket System provides accurate, uniform and highly responsive chamber temperature control. The Dual IR CO₂ sensor delivers rapid gas recovery without overshoot, even after multiple door openings.

This stable environment supports sensitive cell cultures and ensures reliable, repeatable results.

Continuous contamination prevention

The inCu-saFe copper-enriched stainless steel interior provides natural antimicrobial properties, while the integrated SafeCell UV-LED lamp continuously decontaminates circulating air and water in the humidifying pan.

This active background protection reduces contamination risk without affecting cultured cells.

Efficient workflows

Designed for busy laboratories, the MCO-173AICUV-PE enables efficient operation with minimal downtime. Stable conditions and rapid recovery times allow uninterrupted experiments and consistent results.

Key benefits

Optimised cell growth

Outstanding chamber stability ensures reliable cell culture outcomes and reproducibility.

Reduced contamination risk

SafeCell UV-LED and inCu-saFe interior provide continuous protection during operation.

Scalable capacity

165 litre chamber supports applications from R&D to clinical and production environments.

Easy to use & data ready

A new 7 inch color LCD touch panel allows intuitive operation, even when wearing gloves. Data logging and transfer via USB enable easy monitoring and documentation for laboratory processes.

The interior features rounded corners and integrated shelf supports for quick and easy cleaning.

› Request a Quote

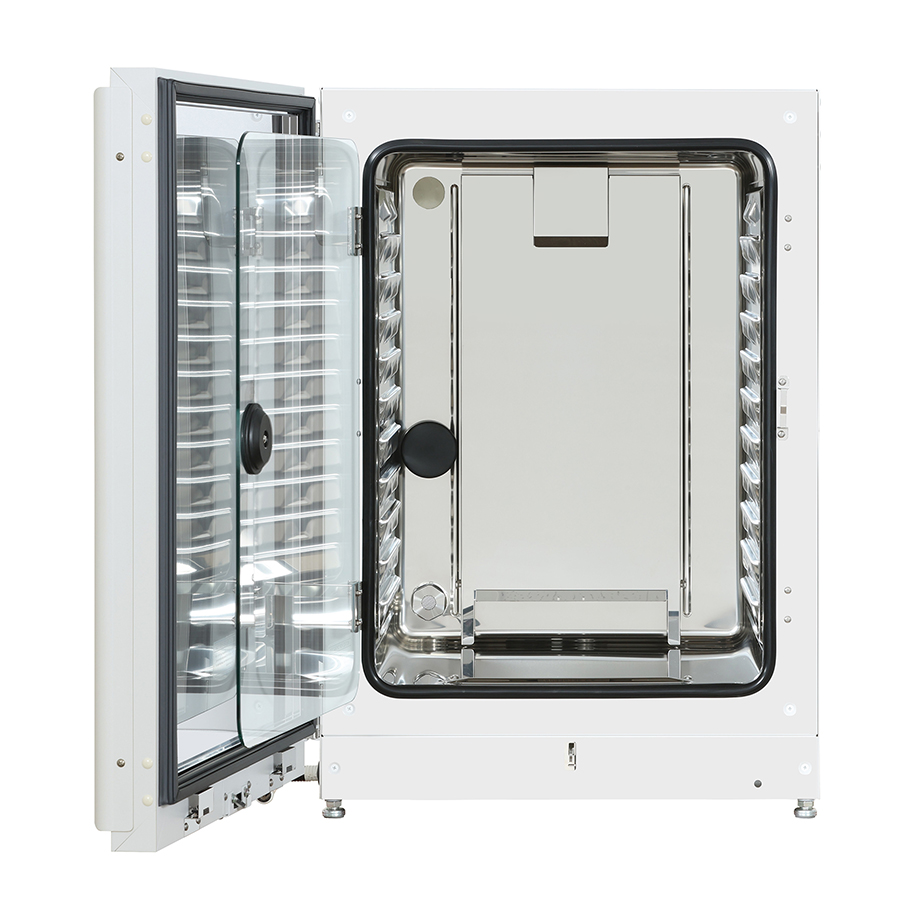

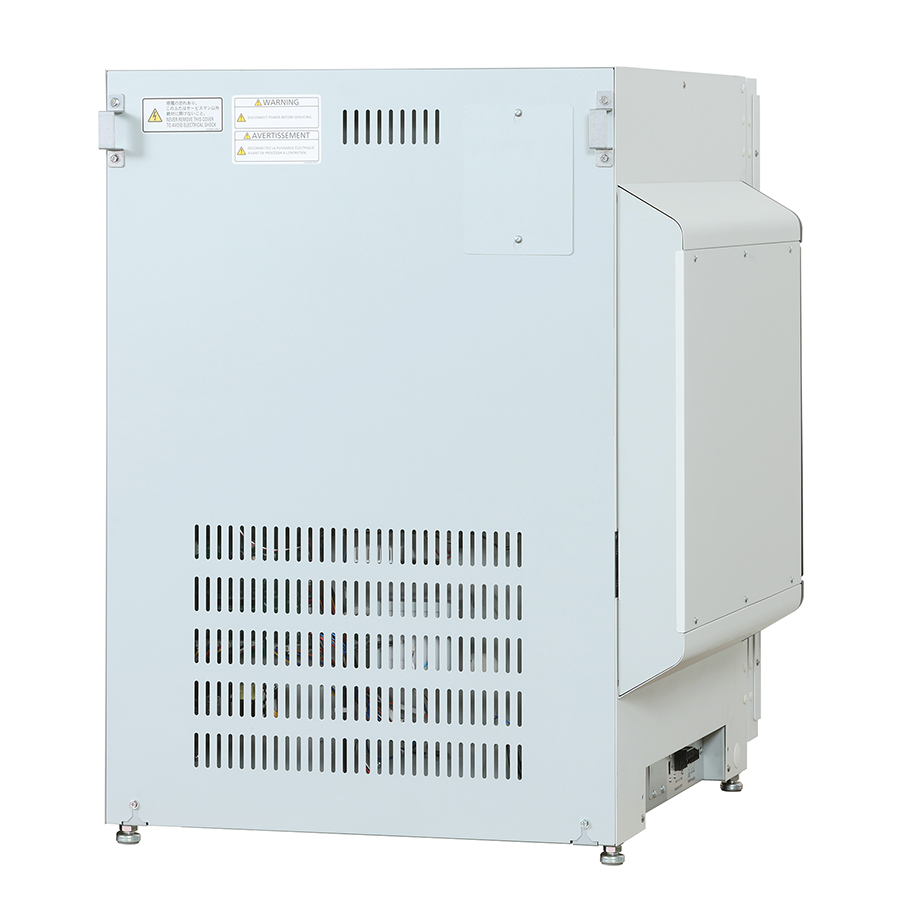

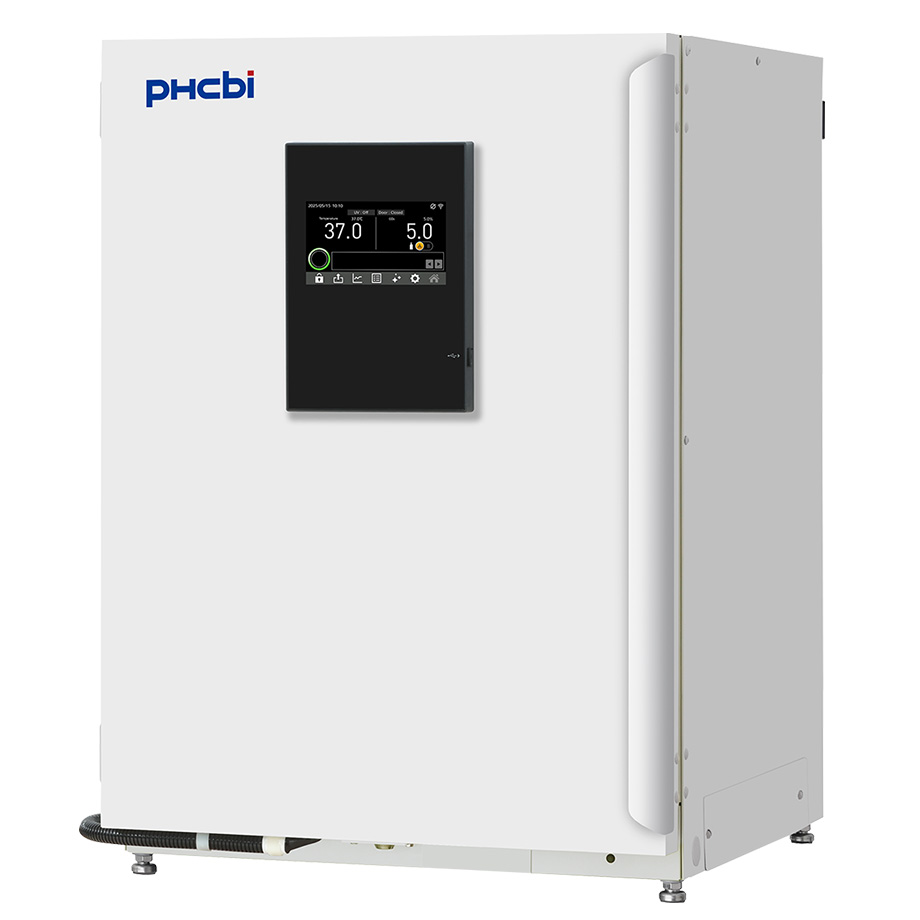

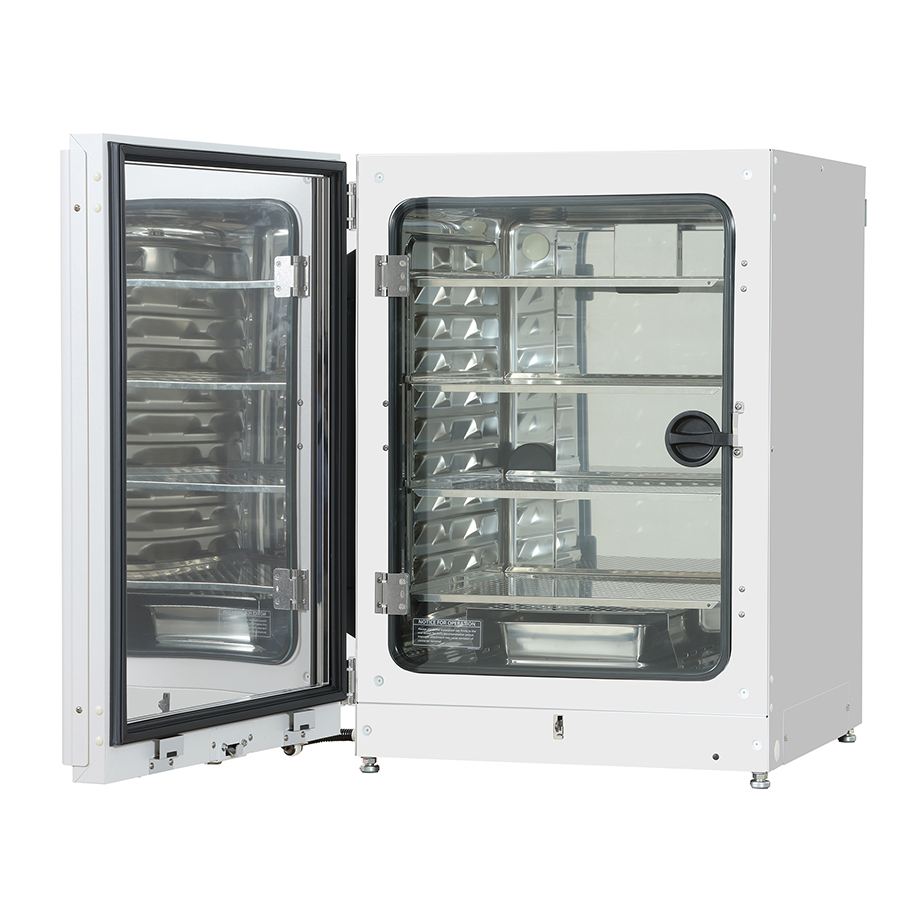

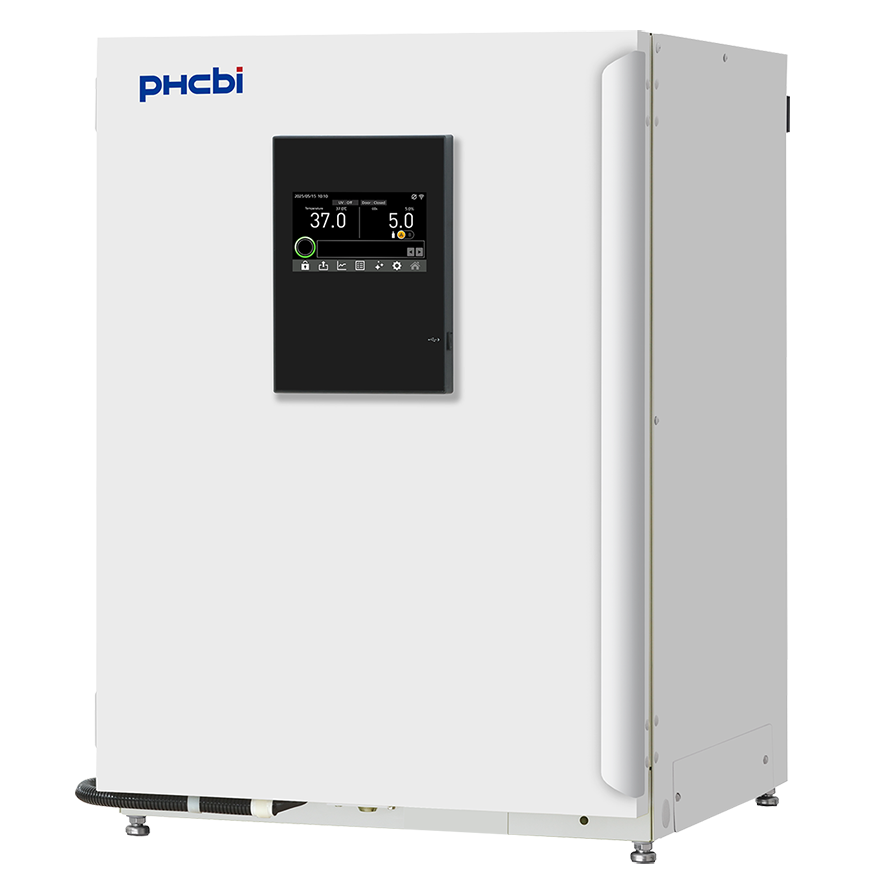

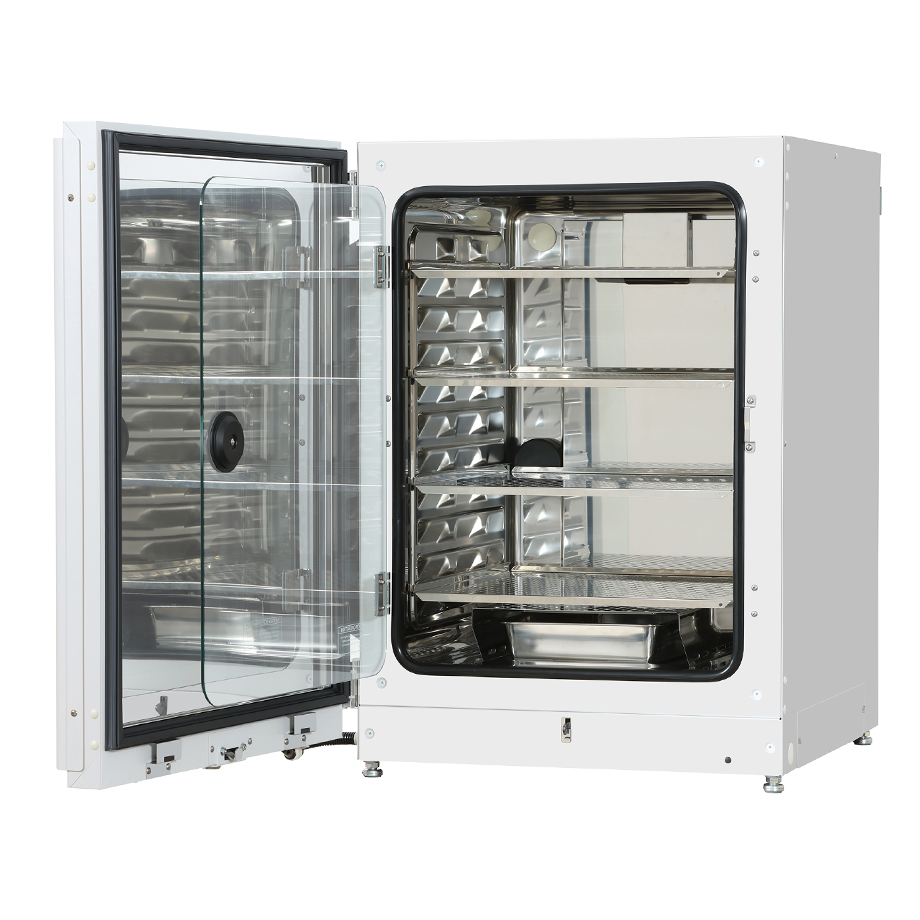

Product Photos

Specfications

Technical Specifications

MCO-173AICUV-PE

Specification Unit MCO-173AICUV-PE
External Dimensions (W x D x H)2) mm 620 x 730 x 905
Internal Dimensions (W x D x H) mm 490 x 523 x 665
Volume liters 165
Net Weight kg 69
Performance
Temperature Control Range & Fluctuation °C AT +5 ~ +50, ±0.1
Temperature Uniformity3) °C ±0.25
CO2 Control Range & Fluctuation % 0 ~ 20, ±0.15
Humidity Level & Fluctuation %RH 95, ±5
H2O2 Decontamination Optional
Control
Temperature Sensor Thermistor
CO2 Sensor Dual IR
Display LCD Touch Screen
Construction
Exterior Material Painted Steel (rear cover not painted)
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Expandable styrene-acrylonitrile beads
Heating Method Direct Heat & Air Jacket System
Outer Door qty 1
Electric door lock with password Standard
Field Reversible Door Included
Inner Door qty 1 gas tight - made of tempered glass
Shelves qty 4 x Stainless Steel Copper-enriched Alloy
Shelf Dimensions (W x D x H) mm 470 x 450 x 12
Max. Load per Shelf kg 7
Max. Shelf Capacity qty 10
Access Port qty 1
Access Port Position Rear
Access Port Diameter Ø mm 30
Alarms
Power Failure V-B-R
Out of Temperature Setting V-B-R
High Temperature V-B-R
Out of CO2 Setting V-B-R
Door open V-B
Electrical and Noise Level
Power Supply V 230
Frequency Hz 50
Noise Level4) dB 25
Options
SafeCell UV-LED® System Standard
H2O2 Decontamination Board MCO-170HB-PE
H2O2 Vapor Generator MCO-50HP-PW5)
H2O2 Reagent, pack of 6 bottles MCO-20H2O2-PE
CO2 Gas Pressure Regulator MCO-010R-PW
Automatic CO2 Cylinder Changeover System MCO-21GC-PW
Semi-automatic one point Gas Calibration Kit MCO-SG-PW
InCu-saFe® Shelf MCO-170ST-PW
InCu-saFe® Half Tray System MCO-25ST-PW
Double Stacking Bracket* MCO-170PS-PW
Stacking Plate* MCO-170SB-PW
Roller Base MCO-170RB-PW
Optional communication systems
Analogue interface (4-20mA)6) Standard
Mod-bus interface board MTR-MODB1-PW
OPC-UA interface board MTR-OPC1-PW

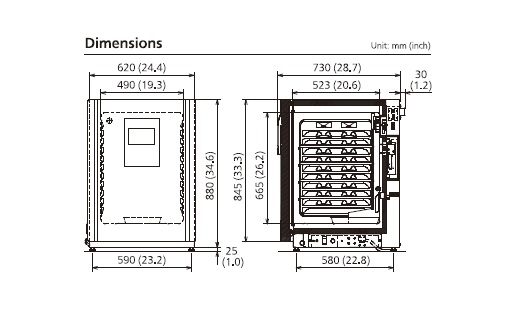

Dimensions
