PHC Europe, a Member of PHC Group Incubation IncuSafe CO2 Incubators MCO-173AICUVH-PE

CO2 Incubators

MCO-173AICUVH-PE

Effective capacity
164 litres
CO2 control range & fluctuation
0 to 20, ±0.15

Features

MCO-173AICUVH-PE IncuSafe CO₂ Incubator

The MCO-173AICUVH-PE IncuSafe CO₂ Incubator combines advanced contamination control, precise environmental regulation and outstanding usability for optimal cell culture performance. With InCu-saFe copper-enriched stainless steel, SafeCell UV-LED technology and rapid decontamination functionality, this incubator is ideal for demanding laboratory environments.

› Request a Quote
PHCbi MCO-233AICUVH-PE CO2 Incubator
MCO-173AICUVH-PE IncuSafe CO₂ Incubator

Precise and stable environment

The Direct Heat and Air Jacket System provides accurate, uniform and highly responsive chamber temperature control. Combined with the Dual IR CO₂ sensor, the incubator ensures fast recovery after door openings without overshoot.

This stable environment supports reliable cell culture growth and highly reproducible results.

Advanced contamination control

The copper-enriched InCu-saFe stainless steel interior combines the germicidal properties of copper with the durability of stainless steel. Together with the SafeCell UV-LED lamp, contamination risks are significantly reduced.

The SafeCell UV-LED system continuously decontaminates circulating air and water in the humidifying pan without affecting cultured cells.

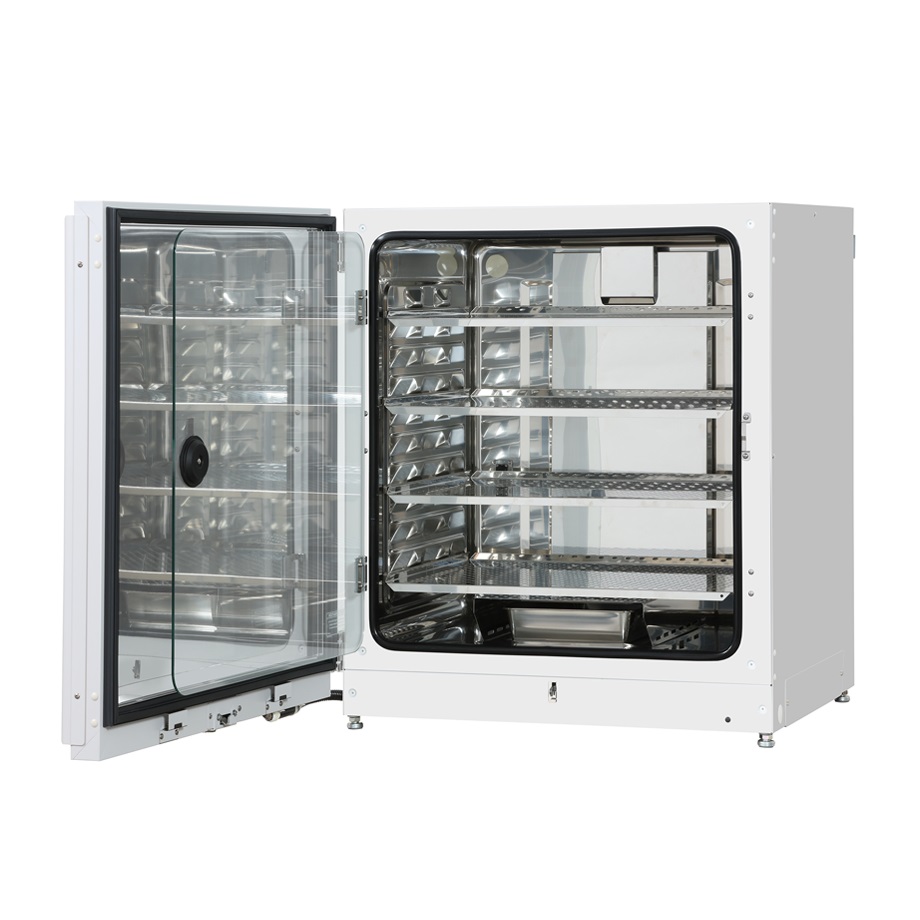

PHCbi MCO-233AICUVH-PE interior with InCu-saFe technology
InCu-saFe chamber and SafeCell UV-LED contamination protection

Rapid decontamination cycle

The integrated high-speed decontamination system uses vaporised hydrogen peroxide and UV-LED light to safely decontaminate the chamber in less than three hours.

This process achieves a minimal 6-log reduction of common contaminants while reducing downtime and supporting laboratory productivity.

Key benefits

Outstanding contamination control

SafeCell UV-LED technology and InCu-saFe copper-enriched stainless steel help maintain sterile culture conditions.

Reliable reproducibility

Stable temperature and CO₂ control support consistent and reproducible cell culture results.

Efficient workflows

Rapid decontamination and user-friendly operation help reduce downtime and improve laboratory efficiency.

User-friendly operation

A full colour LCD touchscreen allows intuitive operation, even while wearing gloves. Logged data can easily be transferred via USB for monitoring and record keeping.

Cleanroom compatible

The MCO-173AICUVH-PE is designed for use in cleanroom environments and supports demanding laboratory applications requiring contamination control and environmental stability.

› Request a Quote



Product Photos

Specfications

Specification Unit MCO-173AICUVH-PE
Dimensions
External dimensions (W x D x H) 1) mm 620 x 730 x 905
Internal dimensions (W x D x H) mm 490 x 523 x 665
Volume litres 165
Net weight (approx) kg 79
Performance
Temperature control range °C Ambient temperature plus 5°C to max. 50°C 2)
(ambient temperature: 5°C to 35°C)
Temperature uniformity 3) °C ±0.25
CO₂ control range & fluctuation 3) - No RH 0 to 20, ±0.15
Humidity level & fluctuation %RH 95, ±5
Control
Temperature sensor - PID control method
CO₂ sensor - PID control method
Display - WVGA full color LCD touchpanel
Construction
Exterior material - Painted steel
Interior material - Stainless steel copper-enriched alloy
Insulation material - Expandable polyacrylonitrile/styrene beads
Heating method - DHA method (heater jacket + air jacket)
Sterilisation method - H2O2 internal decontamination
Outer door qty 1, Field-reversible
Electric door lock with password - Standard
Inner door qty 1 (Tempered glass)
Shelves - 4 x Stainless steel copper-enriched alloy
Shelf dimensions (W x D x H) mm 470 x 450 x 12
Max. load per shelf kg 7
Access port qty 1
Access port position - back, top left
Access port diameter Ø mm 30
Alarms
Power failure - V-B-R
Temperature deviation - V-B-R
High temperature - V-B-R
CO₂ deviation - V-B-R
Door open - V-B
Electrical and noise level
Power supply V 220 - 240
Frequency Hz 50/60
Noise level 4) dB 25 (A scale)
Options
Tray (same as standard accessory) - MCO-170ST-PW
Half Tray - MCO-25ST-PW
CO₂ gas automatic switch - MCO-21GCP-PW
Gas Pressure Regulator - MCO-010R-PW
H2O2 generator - MCO-50HP-PW
H2O2 decontamination reagent - MCO-20H2O2-PW
Roller Base - MCO-170RB-PW
Double-stacking Plate - MCO-170SB-PW/MCO230SB-PW
Double-stacking Bracket 5) - MCO-170PS-PW
Optional communication systems
Mod-bus interface board - MTR-MODB1-PW
Interface Board; for RS-232C / RS-485 - MTR-480-PW
Interface Board (4-20mA) - Standard

Notes

  • 1) Exterior dimensions of main cabinet only, excluding handle and other external projections.
  • 2) When set temperature is 37°C, ambient temperature must be 32°C or lower. Regardless of ambient temperature, the maximum of temperature control range is always 50°C.
  • 3) Ambient temperature 23°C, setting 37°C, CO₂ 5%, no load.
  • 4) Nominal value.
  • 5) If stacking two incubators, make sure the double-stacking dedicated securing hardware and spacer are used.
