Cryogenic ULT freezers (-150°C)

MDF-C2156VAN-PE Cryogenic ULT Freezers

Effective capacity
231L
Cooling Performance
-150℃

Features

The most uniform storage temperatures for cryopreservation solutions

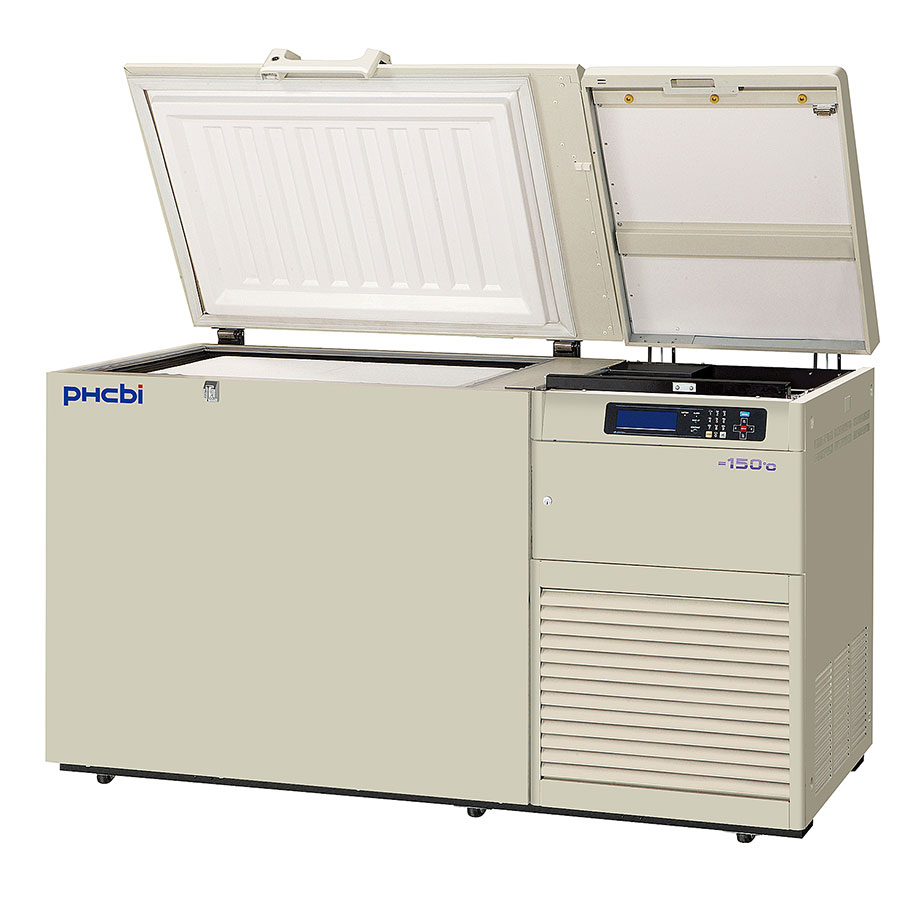

The Cryogenic MDF-C2156VAN-PE Ultra Low Temperature Freezer is Ideally suited for cryogenic and long-term storage in laboratories and no loger uses harmfull CFC's to achieve a ultra low temperature of -150ºC. The Cryogenic MDF-C2156VAN-PE is a mechanical cryogenic freezer.

VIP PLUS technology maximizes storage capacity over conventionally insulated models. Whatever your preservation needs are, PHCbi provides the right equipment to meet your exact requirements. PHCbi preservation systems employ advanced technology to insure a high precision temperature environment.

Environmentally friendly

The Cryogenic MDF-C2156VAN utilises binary mixed non-HCFC refrigerants. The new Vacuum Insulation Panels and double door gaskets reduce the power consumption.

Compared to liquid nitrogen systems, Cryogenic MDF-C2156VAN offers the following advantages:
  • Lower running cost
  • Easy maintenance
  • No occurrence of contamination

Benefits

  • Safe and Convenient Usability.
  • Specially designed cascade refrigeration system.
  • Standard LN2 backup
  • Low operational costs.
  • Convenient Control with LCD panel.
  • LN2 Cost Savings.
  • No liquid supply problems.
  • No danger of sudden liquid eruptions.
  • Compressors are specifically designed for refrigeration systems that achieve ultra-low temperatures
  • VIP PLUS insulation maximizes storage capacity

Features

  • Recheargeable battery
  • Panasonic patented VIP Plus Vacuum Insulation
  • Three levels of cabinet security
  • High performance, quiet-running PHCbi-designed refrigeration
  • No CFC's in the by PHCbi developed special mixed Refrigerant
  • Enhanced reliability of long-term preservation
  • Advanced controlling features
  • LED digital display and flat key data entry for accurate temperature setting, confirmation and operation
  • Inner cabinet maintains temperature safely below the -130°C
  • Ultra-low temperature created by a high-efficiency oil separator
  • Special foamed-in-place polyurethane insulation material for maximum cabinet protection
  • Microprocessor-controlled filter-clogged check function
  • High temperature warning equipment
  • Power failure alarm lamp and buzzer
  • Remote alarm contact
  • Optional liquid nitrogen and CO2 back-up system

Performance

Performance

Product Photos

Specifications

External Dimensions (W x D x H) 1730 x 765 x 1010 mm
Internal Dimensions (W x D x H) 760 x 495 x 615 mm
Volume 231 litres
Net Weight 318 kg
Capacity (Aluminium Racks 2” Boxes) -
Capacity (Stainless Steel Racks 2” Boxe) -
Cooling Performance -150 °C
Temperature Setting Range -125 ~ -152 °C
Temperature Control Range -130 ~ -150 °C
Controller Microprocessor, non-volatile memory
Display LED
Temperature Sensor Pt-1000
Refrigeration System Cascade with auto-cascade low-stage
Compressors 1100 W
Refrigerant HFC
Insulation Material PUF / VIP Plus
Insulation Thickness 135 mm
Exterior Material Painted steel
Interior Material Aluminium
Outer Doors/Lid -
Outer Door Lock Y
Inner Doors/Lid 2
Shelves -
Max. Load - Per Shelf -
Max. Load - Total 207 kg
Vacuum Release Port -
Access Port 1
Access Port Position left
Access Port Diameter 40
Casters 6 (3 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter V-B
Door Open V-B
Power Supply 230 V
Frequency 50 Hz
Noise Level 51 dB [A]

Accessories

Continuous strip type MTR-155H
Recorder housing(if required) MDF-S30150
RS485 interface module MTR-480
Liquid N2 Back-up Supplied as standard

Dimensions

Downloads
