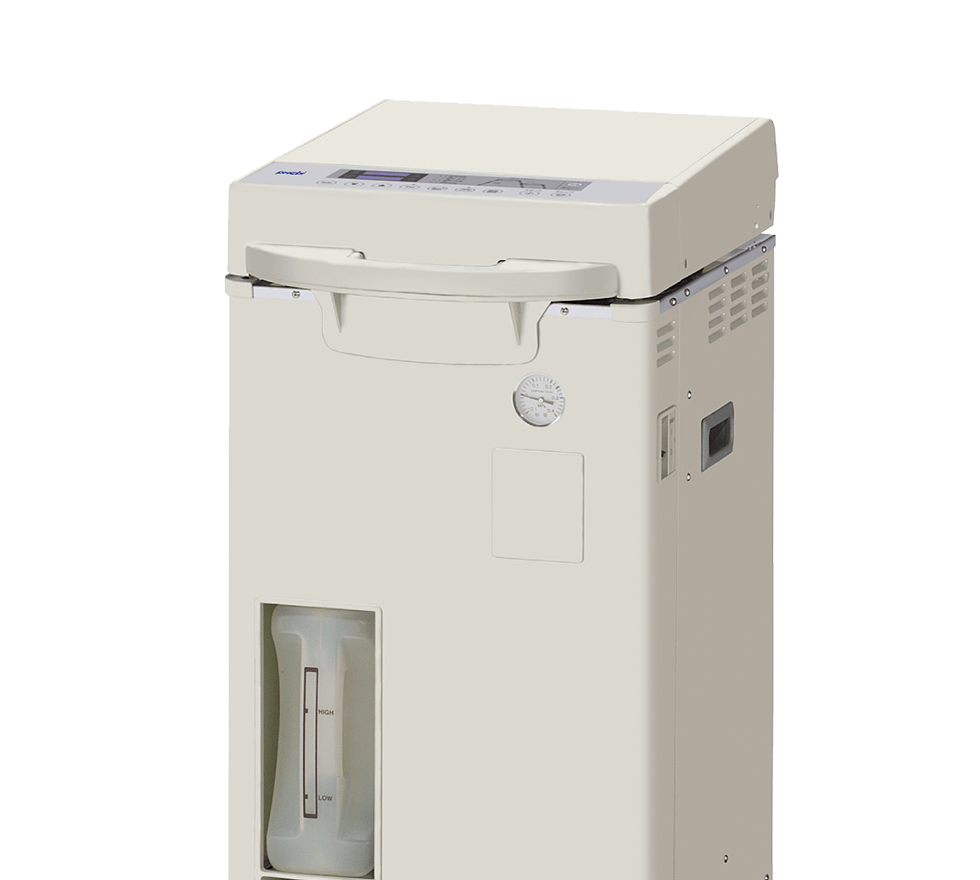

MLS Series 1.8 cu.ft. Compact Top-Loading Autoclave

MLS-3751L-PA

Effective capacity
1.77 cu.ft. (50 L)

Model MLS-3751L-PA Features

Ergonomic Design - Portable and Freestanding

Compact top-loading autoclave design allows for flexible placement, while the large chamber offers capacity of up to 8-12 flasks (1L).

Programmable Functions

These autoclave sterilizers allow maximum flexibility for the sterilization of laboratory equipment and media. Select from 12 preset programs or configure your own based on individual facility needs.

Microprocessor Control

State-of-the-art microprocessor delivers precise temperature control (115°C-135°C) with one-touch operation. It also notifies user of each step of the sterilization process via prerecorded voice messages.

Compact Design

This compact top-loading autoclave maximizes the use of available floor space, while still providing ample capacity for storage within the 14.6" chamber. The large chamber offers greater capacity with a storing example load of 8-12 1,000 ml flasks.

Processor Voice Notification

This autoclave sterilizer includes voice notification of the system process. Each step of the process is notified via a prerecorded voice message, allowing the end user to hear the process as it is happening.

Optional Process Printer

Optional built-in process printer for bath documentation available. The printer prints out the process run results of temperature, pressure, vs. time. Each printout is date and time stamped.

Swing-Up Lid

The swing-up lid opens the chamber for 100% access. It eliminates side space requirements.

Double Interlocking Structure

To ensure the safe operation of the high temperature, high-pressure steam autoclave, the chamber and the open/close level are controlled by a double interlock system. This system is dependent on temperature and pressure sensors, which ensure safety levels before opening the autoclave.

Overview

Energy Star Certified Vaccine Refrigerator

An autoclave sterilizer is essential to good laboratory practice, particularly in biotechnology, pharmaceutical and clinical laboratories. Of all sterilization methods, high pressure steam (autoclave) is the most widely used because of its efficacy, speed and reliability. The PHCbi MLS Series portable top-loading autoclave provides a safe, reliable high-pressure steam sterilizing environment within a self-contained unit that is easy to use. These reliable, energy saving autoclaves are ideal for a wide range of applications.

The MLS-3751L-PA high pressure steam autoclave provides an ergonomic design - portable and freestanding, completely programmable with process voice notification.

Request a Quote


Product Photos

Specifications

EFFECTIVE CAPACITY 1.77 cu.ft. (50 L)
CHAMBER DIMENSIONS 14.6" x 16.3" (370 x 415 mm)
EXTERNAL DIMENSIONS 18.8" x 24.9" x 29.4" (478 x 632 x 748 mm)
CHAMBER MATERIAL SUS304 (Austenitic stainless steel)
STERILIZATION TEMPERATURE RANGE 115ºC - 135ºC
CULTURE MEDIUM MELTING TEMPERATURE RANGE 60ºC - 114ºC
KEEP WARM TEMPERATURE RANGE 60°C to 114°C
TEMPERATURE DISPLAY Microprocessor LED
PRESSURE GAUGE RANGE 0.1 - 0.4 MPa
MAX TEMPERATURE 135°C
STERILIZATION TIMER RANGE 1 min. - 5 hrs; Melting: 1 min - 5 hrs; Heat-rentention: 72 hrs fixed; Timer (1 week - Desgination: Year, month, day hour, and minute)
PROGRAM TIMER 1 min to 5 hours/keep warm - 72 hours
STERILIZATION TIMER 1 minute to 5 hours
MELTING TIMER RANGE 1 minute to 5 hours
CASTERS 4
EXHAUST TANK 2 liter polyethylene tank
NET WEIGHT 134 lbs (61 kg)
CALIBRATION Electronic
ELECTRICAL REQUIREMENTS 115 V, 20 Amp breaker, Requires a NEMA L5-20R Receptacle (Locking Type)
ENERGY CONSUMPTION 1.9 kW (120 V only), 2 kW
ACCESSORIES Recorder (Optional)
