VIP ECO Chest Freezers (-86°C)


84 liter
Cooling Performance
-86 to -40 °C


Our MDF-DC102VH-PE VIP ECO Chest Freezer provide maximum sample storage capacity within an optimum footprint combined with industry leading cooling performance and reliability for an ideal long-term preservation solution.

Optimum Sample Storage

The use of patented VIP PLUS panels within the freezer cabinet provides a reduced wall thickness for maximum interior volume. This technology allows the MDF-DC102VH-PE to require a small installation space with a great storage capacity.

Efficient Refrigeration

Naturally occurring hydrocarbon (HC) refrigerants provide more efficient cooling due to their high latent heat of evaporation. As well as improved performence this leads to lower GWP.

Ease a Use & Intelligent Security

The OLED panel has good visibility and intuitive operation. The USB port and data log functions simplifies temperature data and events management.

Specially developed single-compressor system

The unique auto-cascade system uses a single compressor for efficient cooling, enabling an extremely small footprint. The highly efficient refrigeration system provides uniform and stable ultra-low temperatures up to -85ºC.

Filterless Design

The unique cooling circuit makes the inconvenient customer maintenance procedure of filter cleaning unnecessary.

Minimal Footprint

PHCbi VIP ECO ULT freezers provide up to 30% more storage capacity than a conventionally insulated freezer without increasing the footprint. The MDF-DC102VH-PE feature VIP PLUS vacuum panels for increased energy efficiency and cooling performance..

PHC Europe B.V. also offers the MDF-DC202VH-PE which has a capacity of 180 liters.

Cryo Glove

Combining the Cryo glove 400 with our ULT freezer is an essential practice that prioritizes safety, sample integrity, precision, and adherence to industry standards. It's a small investment that yields significant benefits for both you and your research or laboratory work.

Contact us

Personal Storage

Ideal for reliable storage of small volume clinical trial samples and temperature control testing as well as for a wide variety of other biological applications.

Uniform Sample Storage

The uniform and stable temperatures provided are ideal for storage of DNA, RNA and other important biological samples.

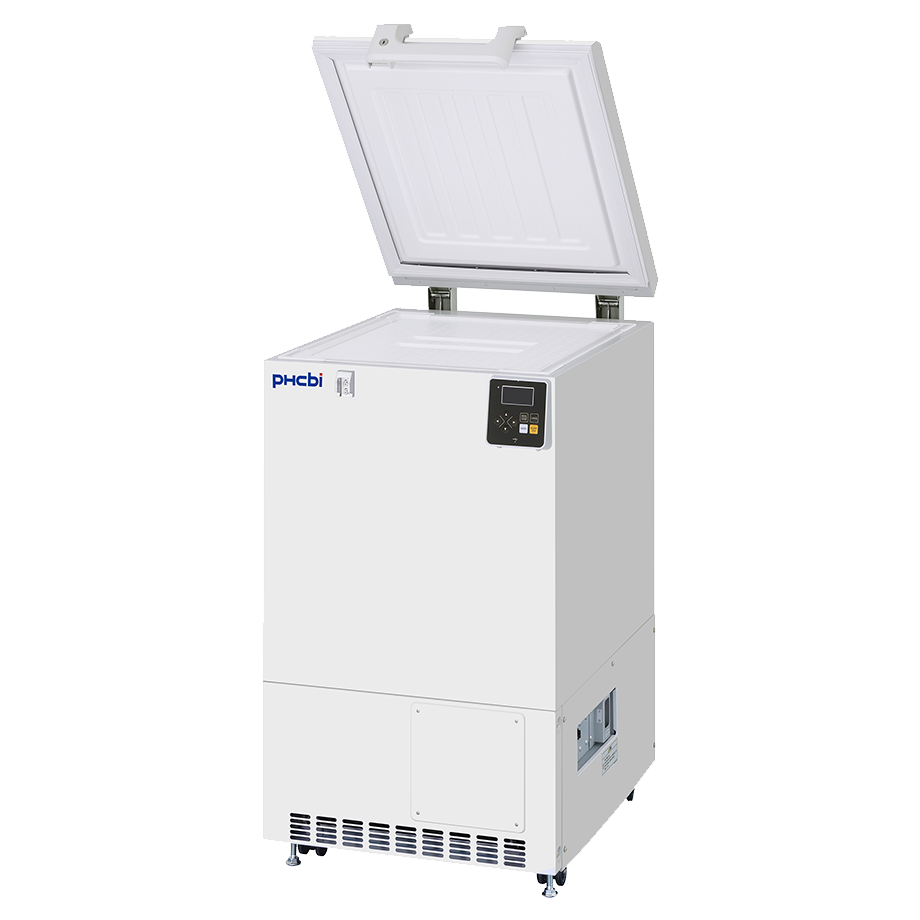

Product Photos


External Dimensions (W x D x H) 558 x 688 x 993 mm
Internal Dimensions (W x D x H) 405 x 490 x 426 mm
Volume 84 liter
Net Weight 85 kg
Capacity (Aluminium Racks 2” Boxes) 42
Cooling Performance -86ºC
Temperature Setting Range -40ºC to -90ºC
Temperature Control Range -40ºC to -86ºC
Controller Microcomputer control system
Display LCD Digital Display
Temperature Sensor Pt1000
Compressors 550 W
Refrigerant HC mixed refrigerant
Refrigerant weight 80 g
Refrigerant GWP 5
Total Refrigerant weight (CO₂ equivalent) 0.0004 t
Insulation Material PUF / VIP Plus
Insulation Thickness 76.5 mm
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 1
Outer Door Lock Yes
Inner Doors/Lid 1 (Styrofoam)
Access Port 2
Access Port Position Back/Bottom
Access Port Diameter 17 mm
Casters 4 (2 leveling feet
Data logging/USB Yes
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter Filterless design
Power Supply 220/230/240 V
Frequency 50 Hz
Noise Level 52 dB(A)


Liquid CO2 back-up MDF-UB8-PW
Temperature recorders
- Circular type MTR-G85C-PE
- Chart paper RP-85-PW
- Ink pen PG-R-PW
- Continuous strip type MTR-85H-PW
- Chart paper RP-85-PW
- Ink pen DF-38FP-PW
- Recorder housing MDF-S3085-PW
