VIP ECO ULT Freezers (-86°C)


Effective capacity

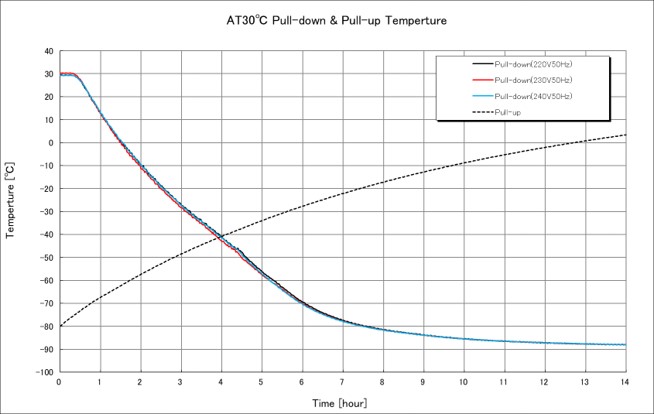

Cooling Performance


Cost-saving and environmentally friendly sample storage within an optimal footprint

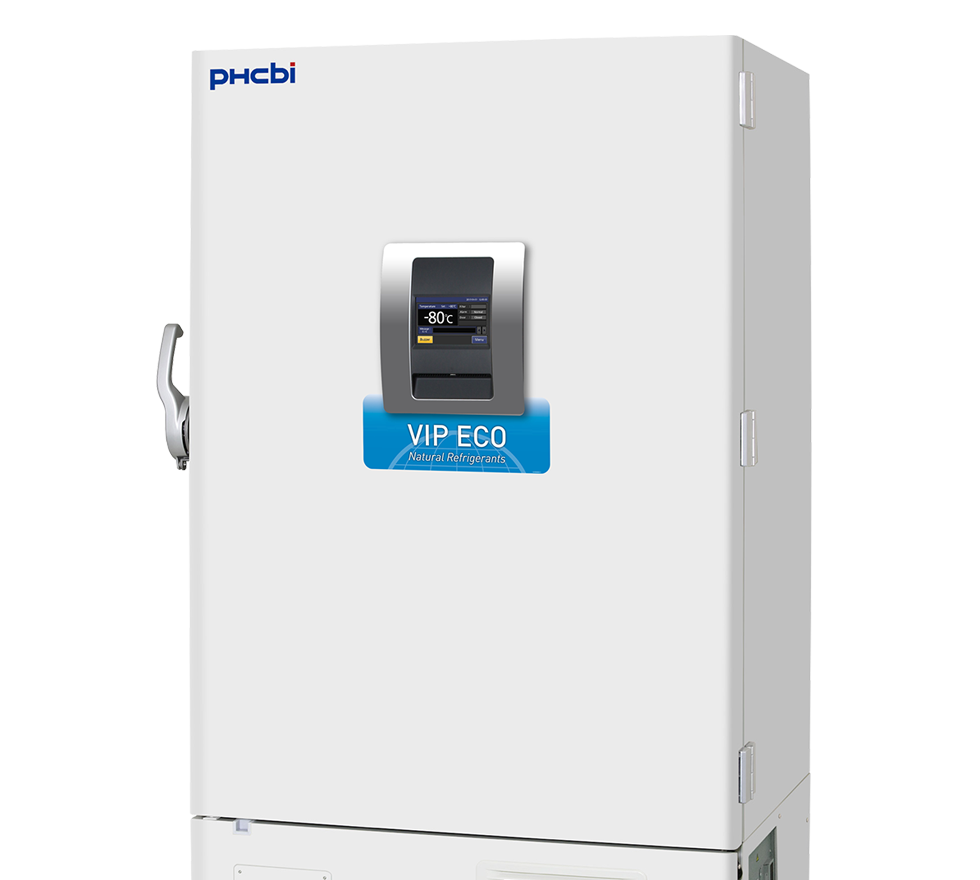

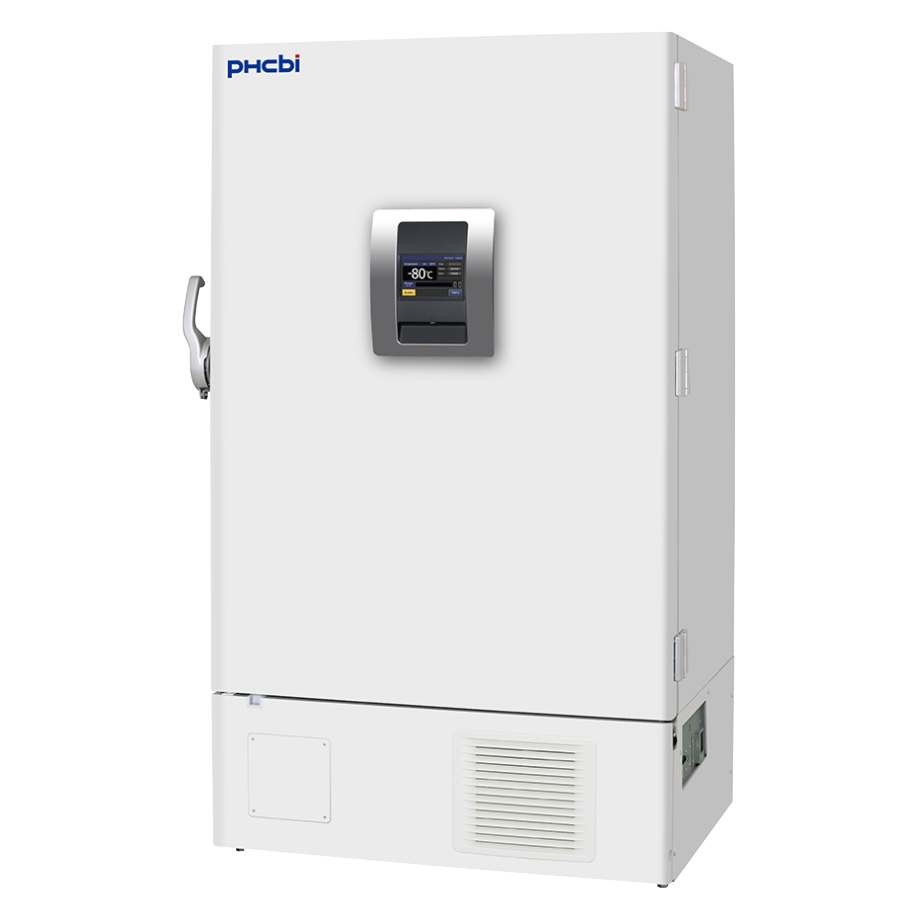

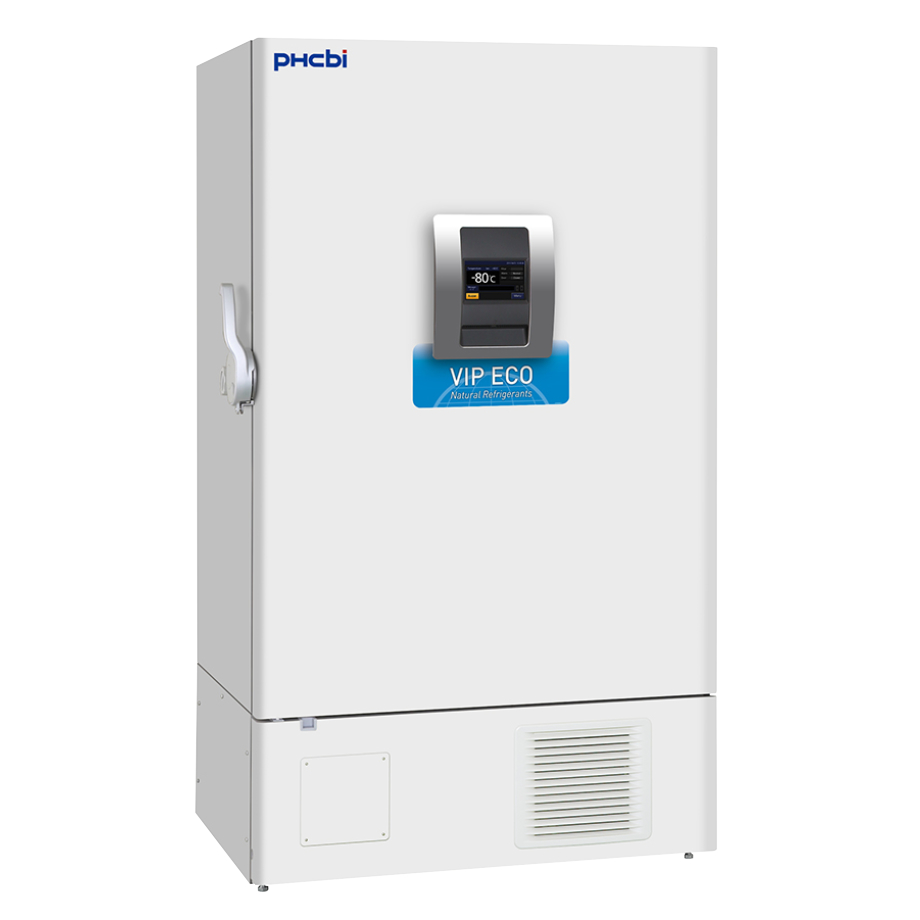

The MDF-DU901VHL-PE VIP ECO -86°C ultra low temperature freezer provides maximum sample storage capacity within an optimum footprint combined with natural refrigerants to minimise energy consumption, reduce environmental impact and save money.

Efficient Refrigeration

Naturally occurring hydrocarbon (HC) refrigerants provide more efficient cooling due to their high latent heat of evaporation. As well as improved performance this leads to reduced power consumption and energy costs.

Inverter Technology

The MDF-DU901VHL-PE VIP ECO ULT Freezer contains Inverter Compressors that maximise cooling performance under different conditions, and contribute to reducing the energy consumption of the freezer.

Intelligent Interface

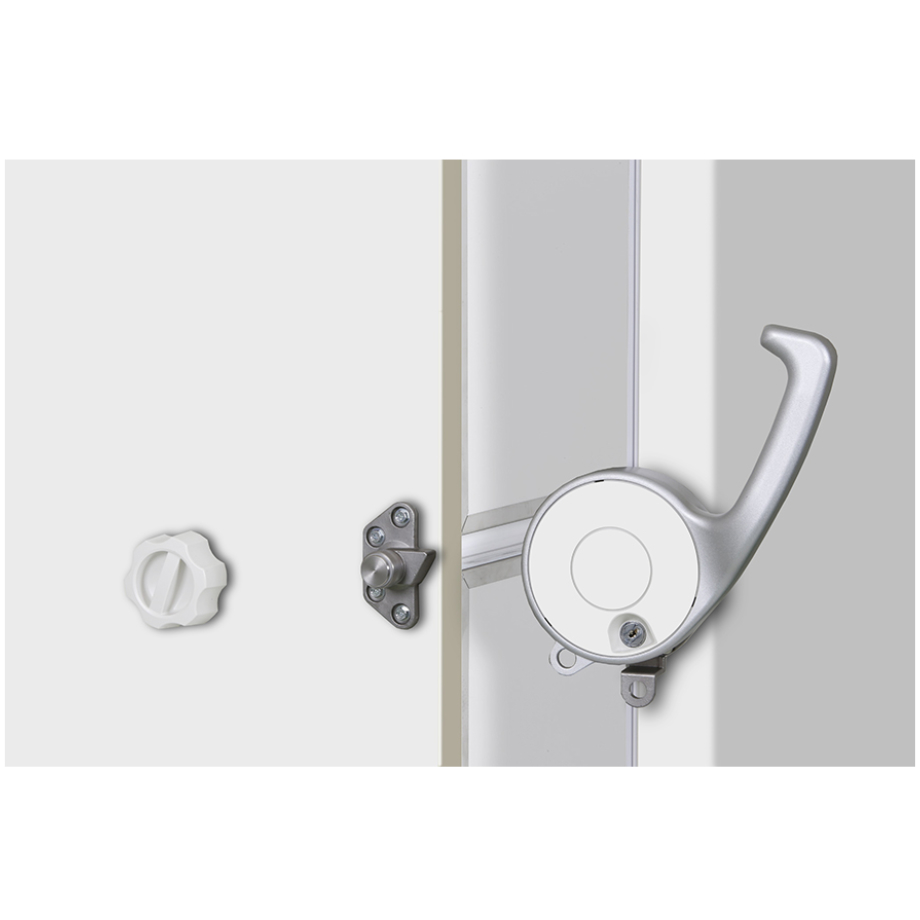

The EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC simple and convenient.

Environmentally Friendly

Ideal for laboratories looking to reduce their carbon footprint and environmental impact to comply with sustainability policies.

Uniform Sample Storage

Inverter compressors provide optimum stability, while quality of design ensures reliability. Ideal for samples that are sensitive to temperature fluctuations.

Easy Data Monitoring

Important information such as freezer temperature, door opening times and alarm history is logged for monitoring in GLP applications.

Inverter Compressors

While conventional freezers use single speed compressors which cycle on and off, the MDF-DU901VHL-PE VIP ECO ULT Freezer contains inverter compressors that can run at different speeds to maximise cooling performance under different conditions. Combined with hydrocarbon refrigerants, these compressors ensure the most efficient energy use and reduced heat output.

Efficient Sample Storage

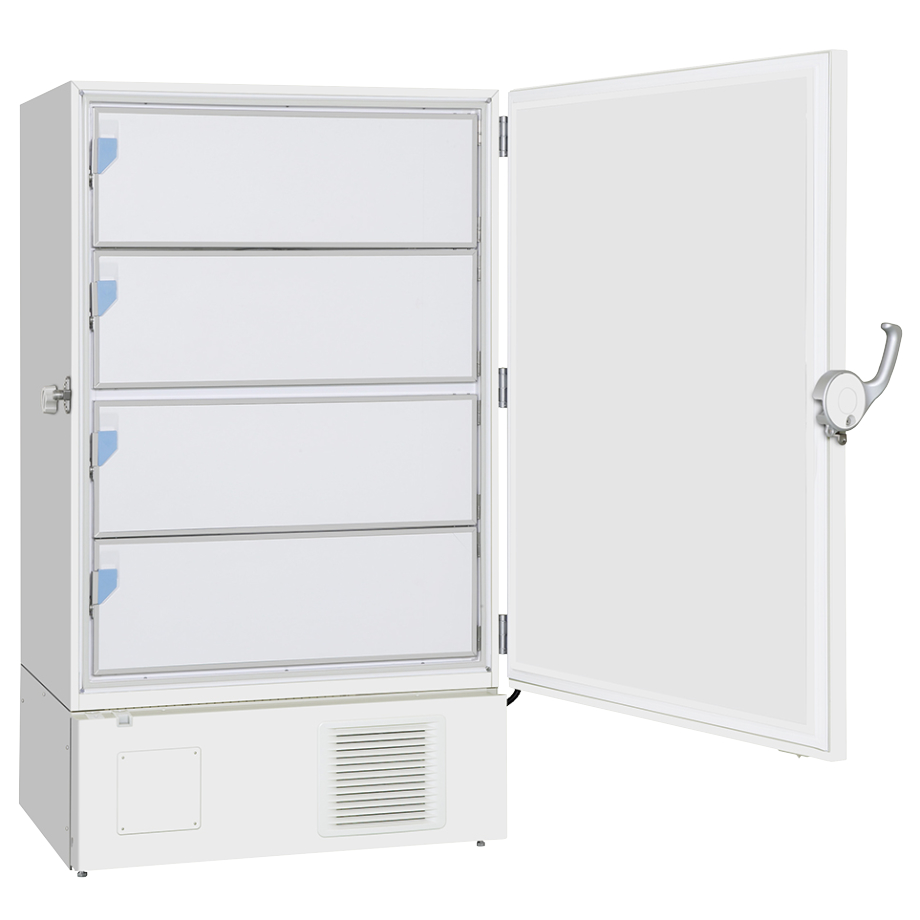

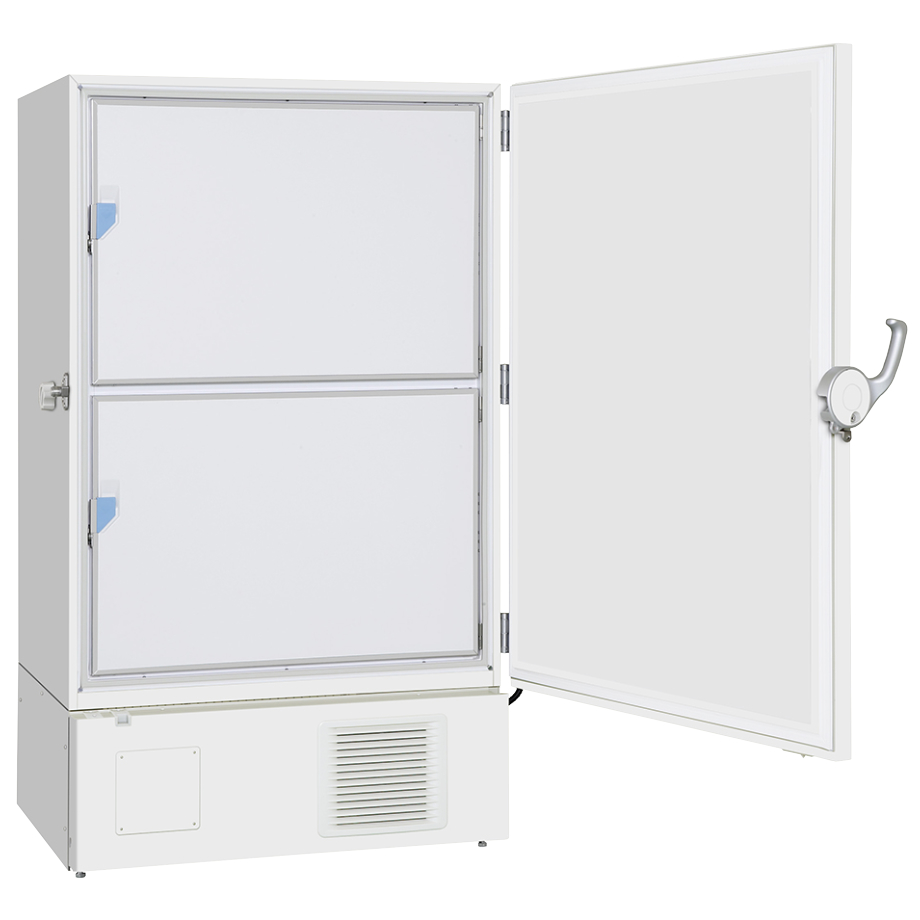

The combination of VIP PLUS vacuum insulation and an enhanced cabinet design with two insulated inner doors, ensures optimum temperature uniformity, while the reduced wall thickness maximizes storage capacity.

PHC Europe B.V. also offers the MDF-DU502VH-PE which has a capacity of 528 litres and the MDF-DU702VH-PE which has a capacity of 728 litres.

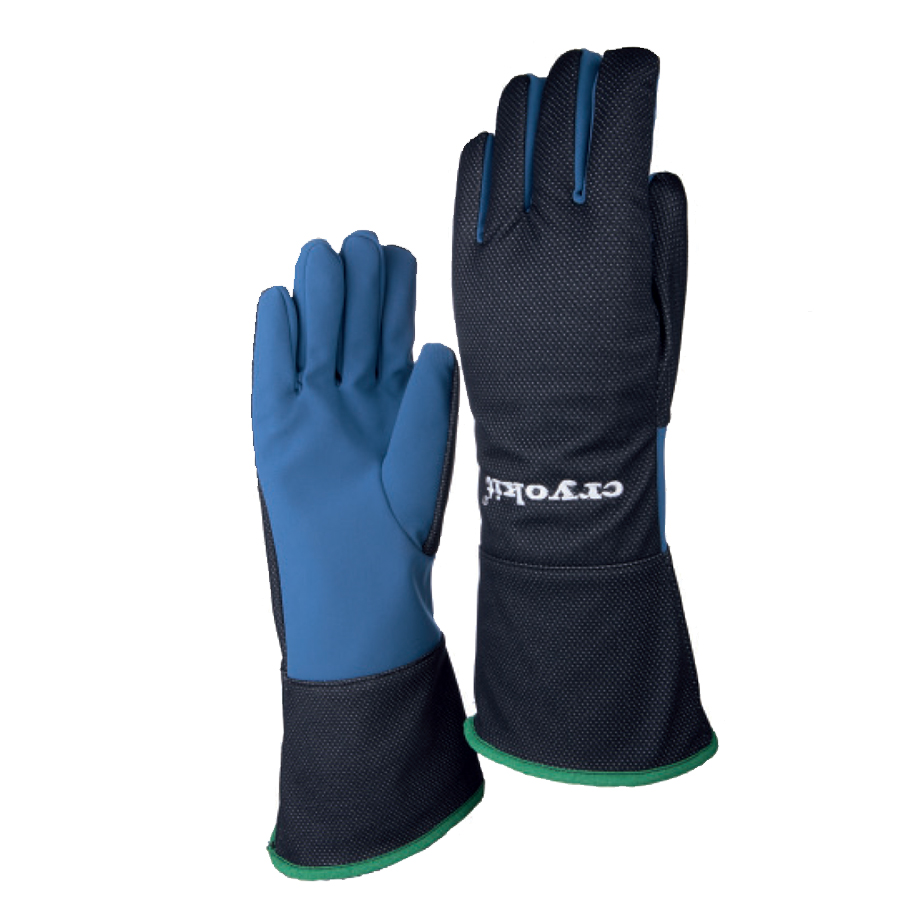

Cryo Glove

Combining the Cryo glove 400 with our ULT freezer is an essential practice that prioritizes safety, sample integrity, precision, and adherence to industry standards. It's a small investment that yields significant benefits for both you and your research or laboratory work.

Request a Quote


  • Less heat generation means saving on airconditioning
  • Reduce carbon footprint
  • No high GWP refrigerants
  • Our most energy efficient 845 litre -86°C freezer - 8.7 kWh
  • Optimum stability and reliability
  • High Capacity sample storage
  • Improved Recovery Times


  • Natural Refrigerants
  • Inverter compressors
  • 845 litre
  • 672 2" Boxes

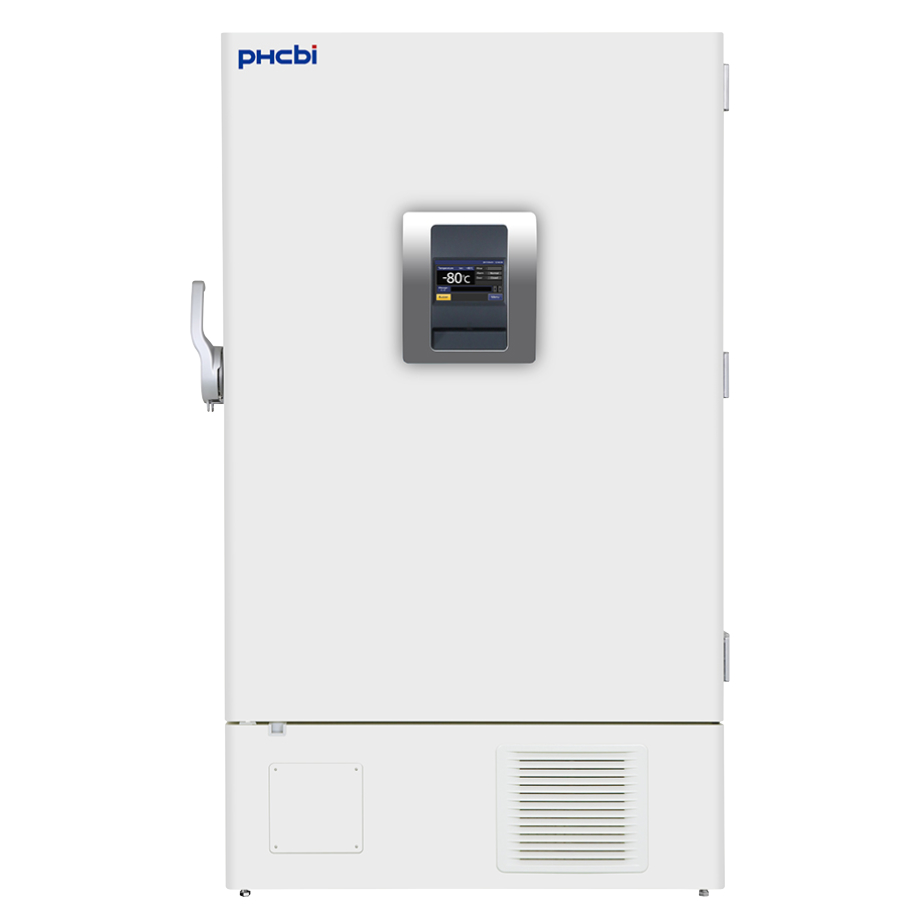

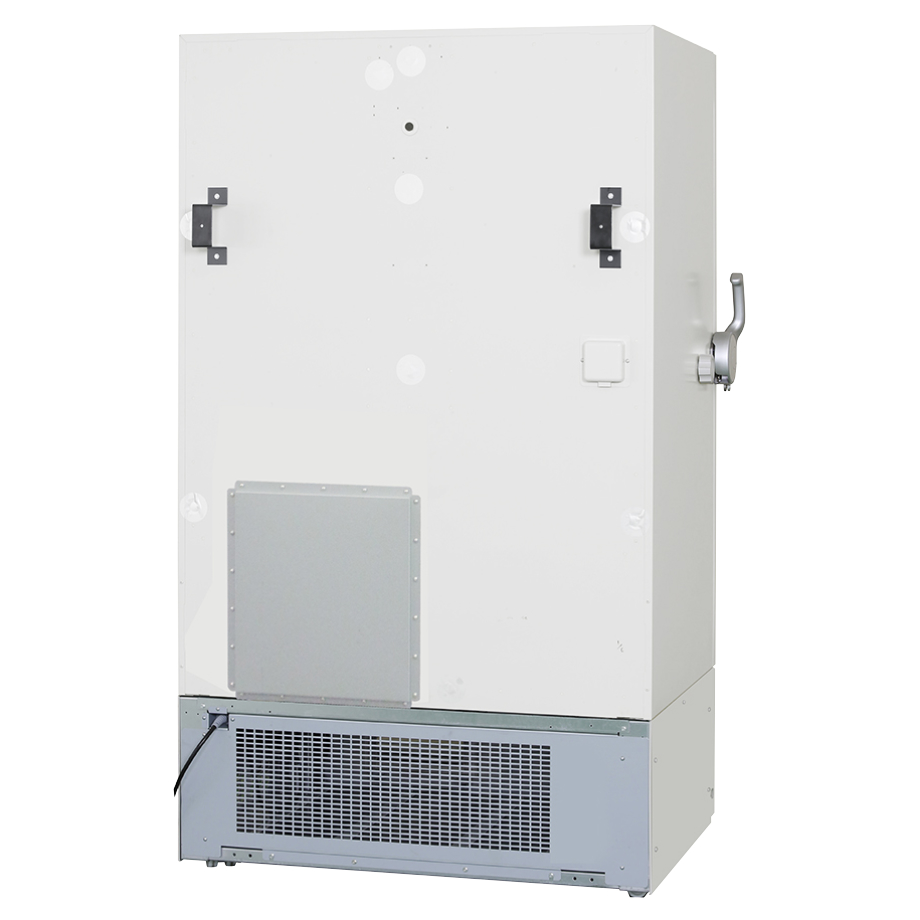

Product Photos

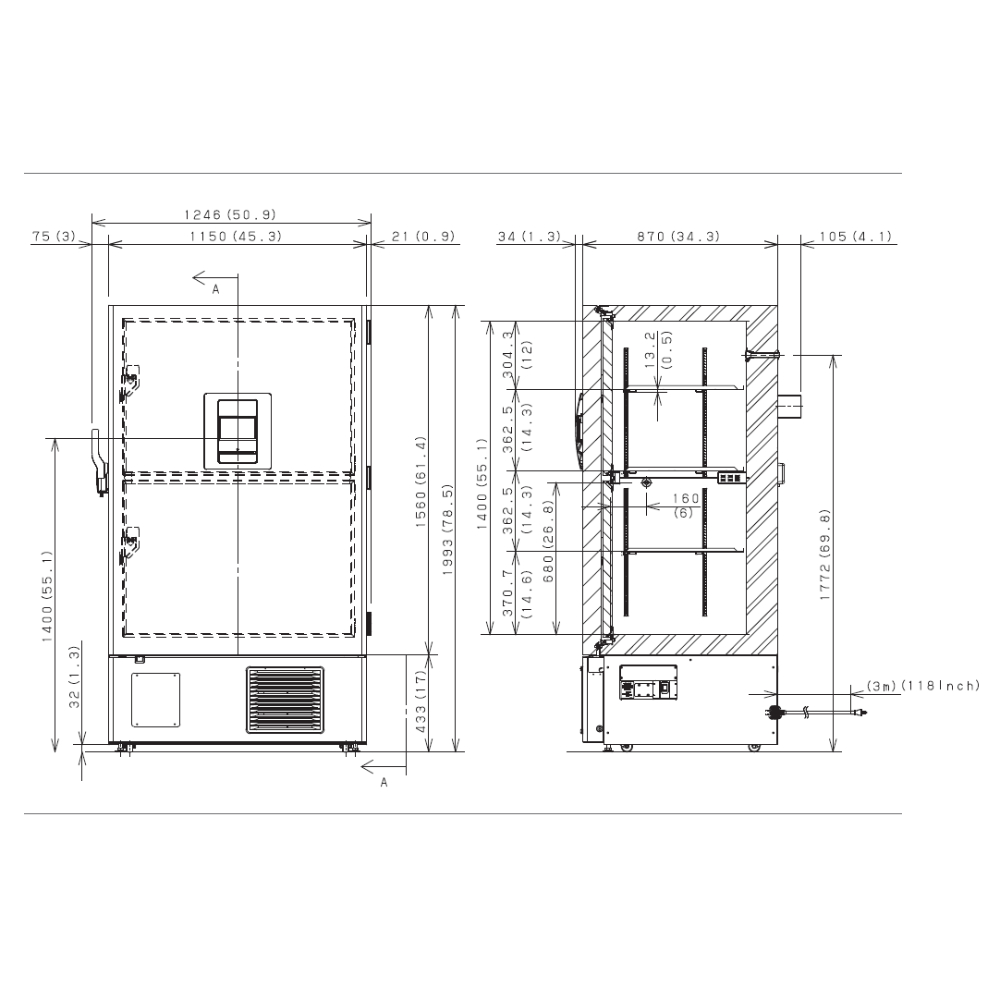

External Dimensions (W x D x H) 1150 x 870 x 1993 mm
Internal Dimensions (W x D x H) 1010 x 600 x 1400 mm
Volume 845 litres
Net Weight 328 kg
Capacity (Aluminium Racks 2” Boxes) 672 (2” boxes)
Capacity (Stainless Steel Racks 2” Boxe) -
Cooling Performance -86 °C
Temperature Setting Range -50 to -90 °C
Temperature Control Range -50 to -86 °C
Controller Microprocessor, non-volatile memory
Display LCD Touch Screen
Temperature Sensor Pt-1000
Refrigeration System Cascade
Compressors 2 x 1000 W
Refrigerant HC
Insulation Material PUF / VIP Plus
Insulation Thickness 70 mm
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid 2 pieces (insulated)

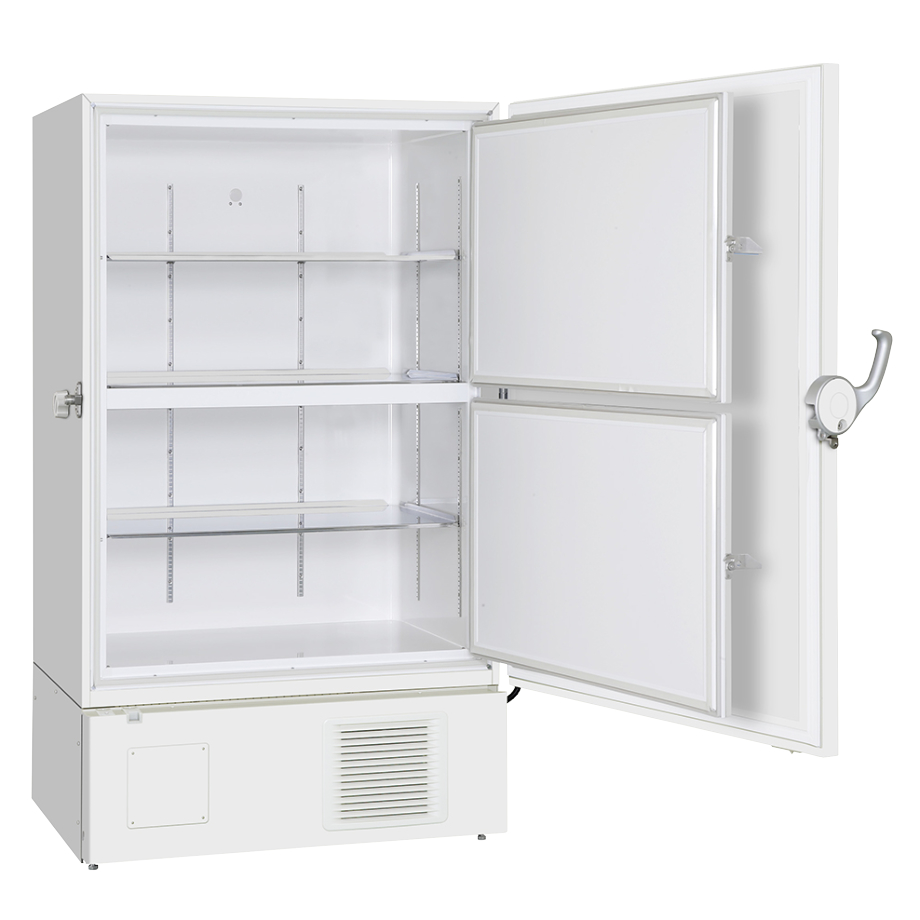

Shelves 3
Max. Load - Per Shelf 50 kg
Max. Load - Total 150 kg
Vacuum Release Port Y
Access Port 2
Access Port Position Back, Bottom
Access Port Diameter 17
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter V
Door Open V-B
Power Supply 230 V
Frequency 50 Hz
Noise Level 52 dB [A]


Small Inner Door Kit MDF-9ID-PW (max 2) set of 2

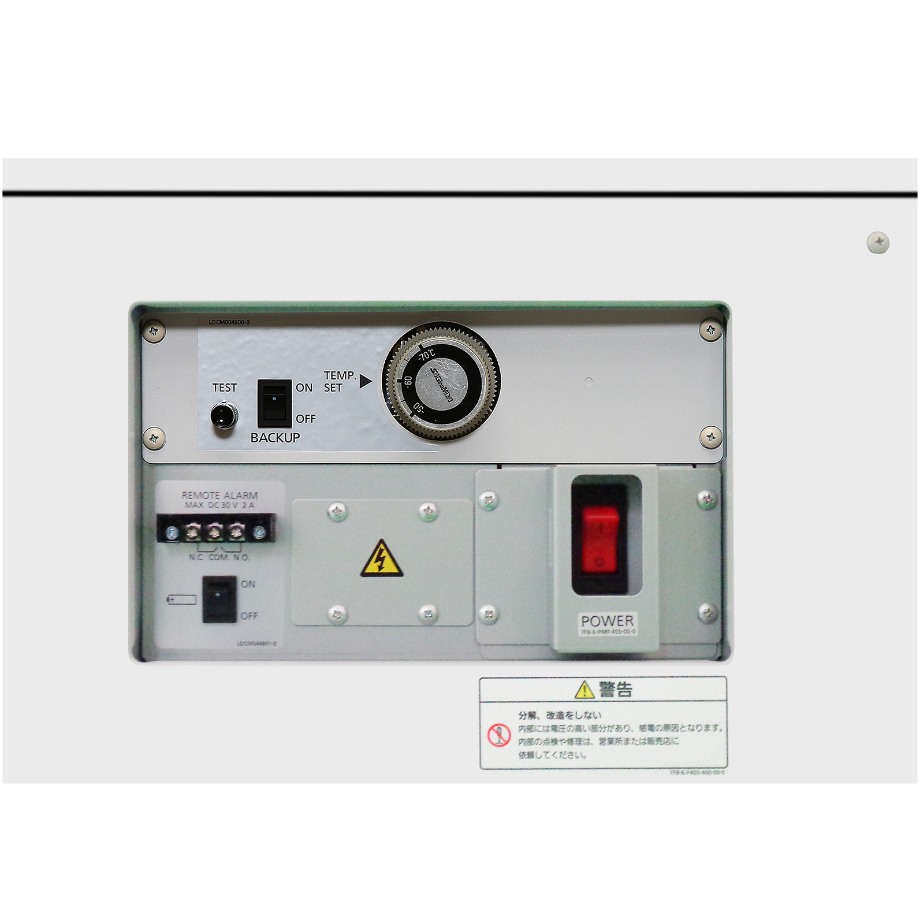

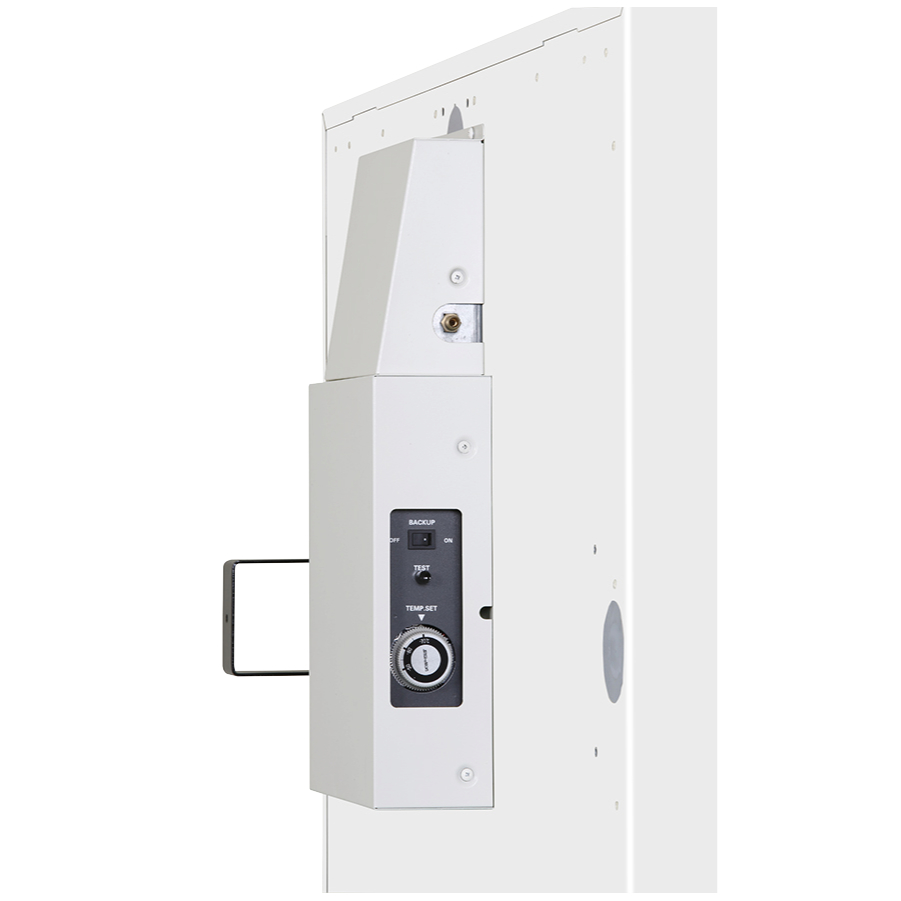

Liquid CO2 back-up MDF-UB7-PW
Temperature recorders
- Circular type MTR-G85C-PE
- Chart paper RP-G85-PW
- Ink pen PG-R-PW
- Continuous strip type MTR-85H-PW
- Chart paper RP-85-PW
- Ink pen DF-38FP-PW
- Recorder housing MDF-S3085-PE
