PHC Corporation of North America, a Member of PHC Group Incubators CO2 Incubators, Active Humidification MCO-173AICUVHX-PA

Cell-IQ™ Series Active Humidification CO2 Incubator with UV-LED and H202 Decontamination

MCO-173AICUVHX-PA

Effective Capacity
5.8 cu.ft. (165 L)
Humidification Range
80-90% (±1% R.H.) | 91% or greater (±5% R.H.)

MCO-173AICUVHX-PA Features

Ultimate Sample Protection

Precision incubation depends on stable CO2, temperature, and humidity control. Routine door openings can disrupt humidity and introduce variability in cell culture conditions. This incubator integrates passive and active humidification systems to maintain tightly regulated humidity and minimize edge effect variability. It supports high throughput screening, low volume samples, and organoid culture. With SafeCell UV LED technology and an H2O2 decontamination system, it delivers faster humidity recovery while maintaining active decontamination performance compared to previous models.


Ready to Reduce the Time it Takes to Reach Humidity Setpoint by 50%?
Our latest model reaches humidity setpoint in about half the time of the predecessor model — dropping from 16 minutes to just 8. The hybrid-active humidification system uses an active steam generator to rapidly restore humidity from 80 - 90%, then transitions to passive humidification above 91% for stable, uniform conditions. This dual approach helps protect sensitive cultures from edge effects, condensation, and well‑to‑well variability, even during frequent door openings.

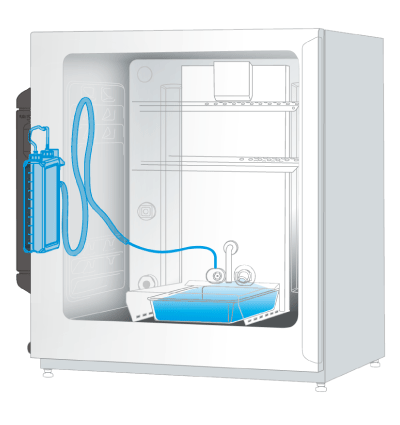

How the Hybrid‑Active Humidification System Works
This model introduces a major advancement in humidity control:
a dual‑mode humidification system that pairs the conventional humidification tray with a newly added active humidification system.

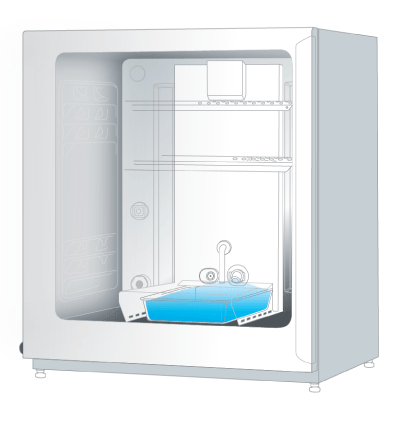

Conventional Passive Humidification System
Natural evaporation using a water pan provides basic humidity control.
New

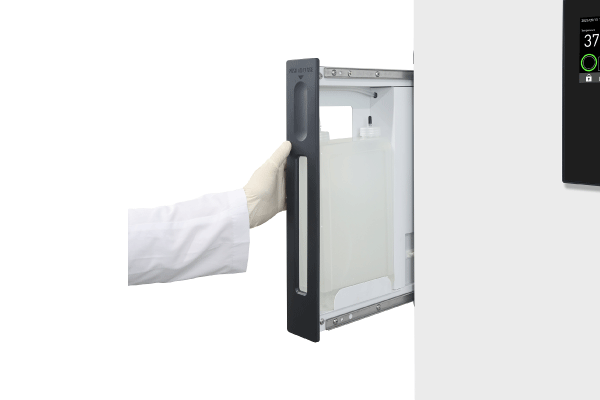

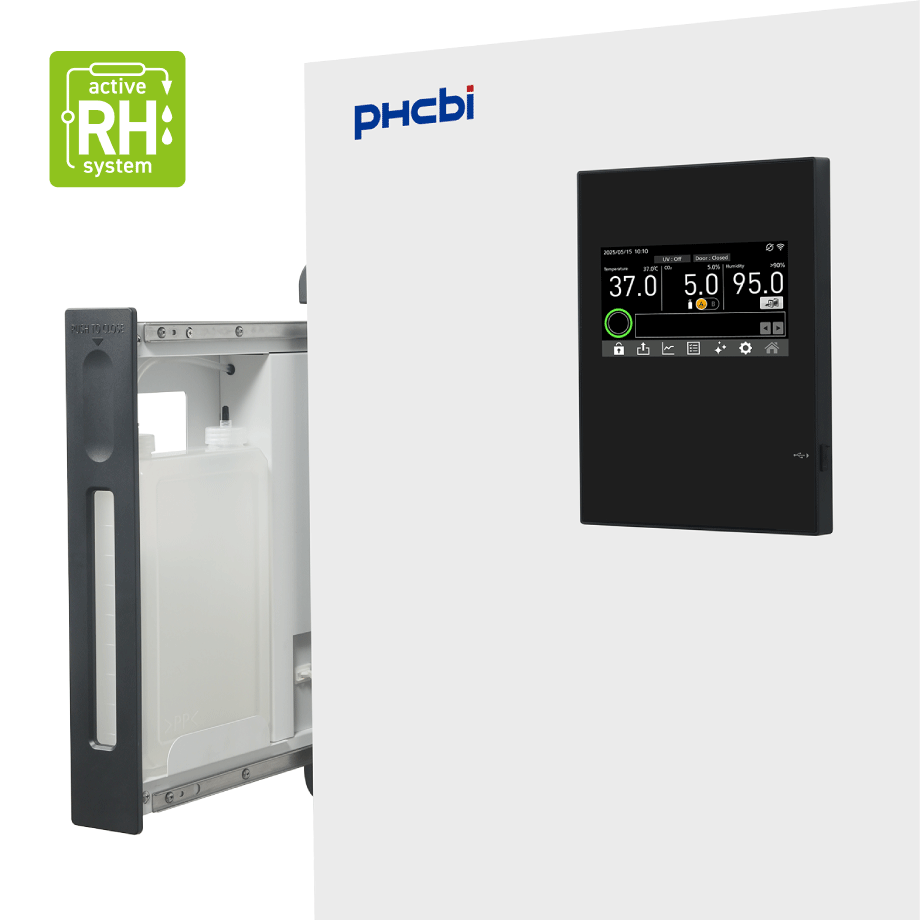

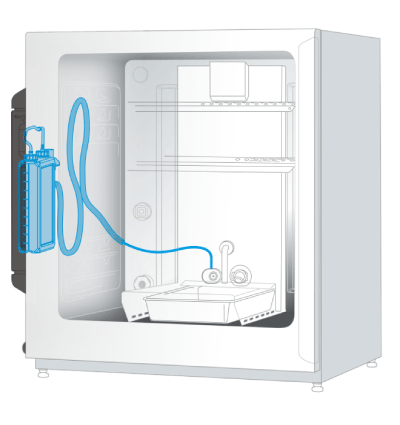

Active Humidification System
Heat‑based evaporation actively controls humidity to a stable 80–90% RH.
OR
Dual-Mode Humidification System
Active + passive humidification achieves 95% ± 5% RH for in‑vivo‑like conditions.

Minimize Contamination with Cell-IQ Features
A multi‑layered contamination‑control system protects your cultures from environmental and biological risks.

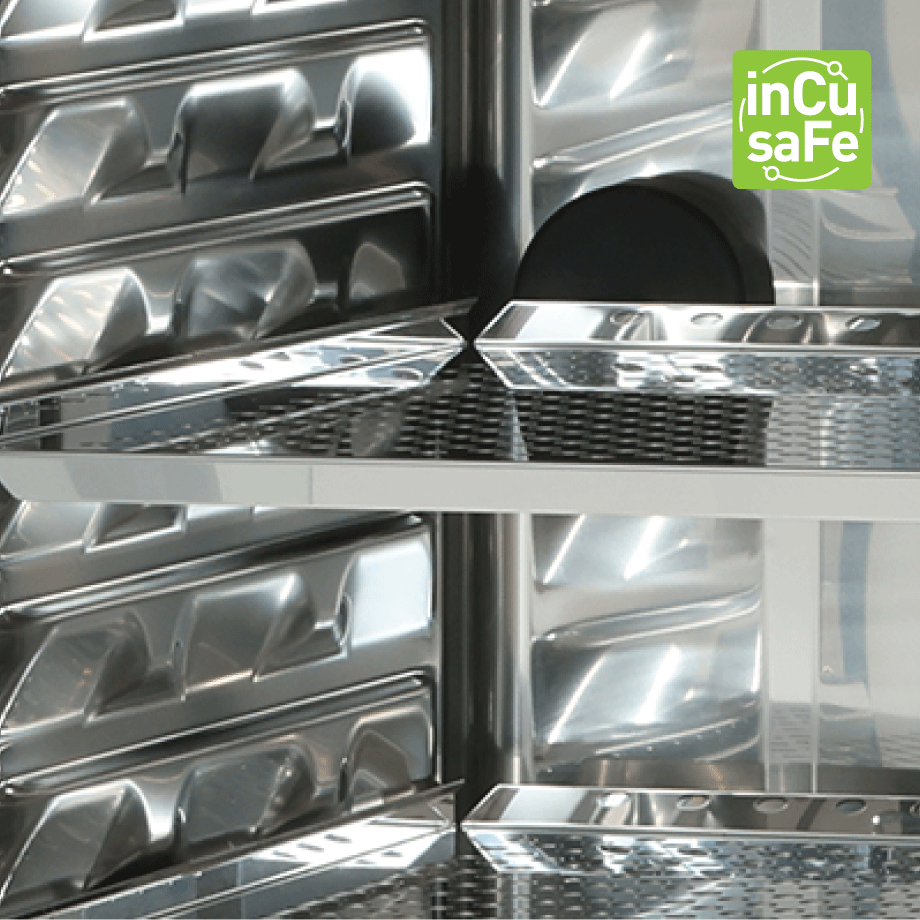

InCuSafe Interior
Copper‑enriched stainless steel inhibits microbial growth on interior surfaces, supports a cleaner chamber environment.
SafeCell UV-LED
Ozone‑free UV‑LED irradiation reduces airborne contaminants without affecting cell viability.
H2O2 Decontamination
A validated hydrogen‑peroxide cycle sterilizes the chamber quickly between workflows.

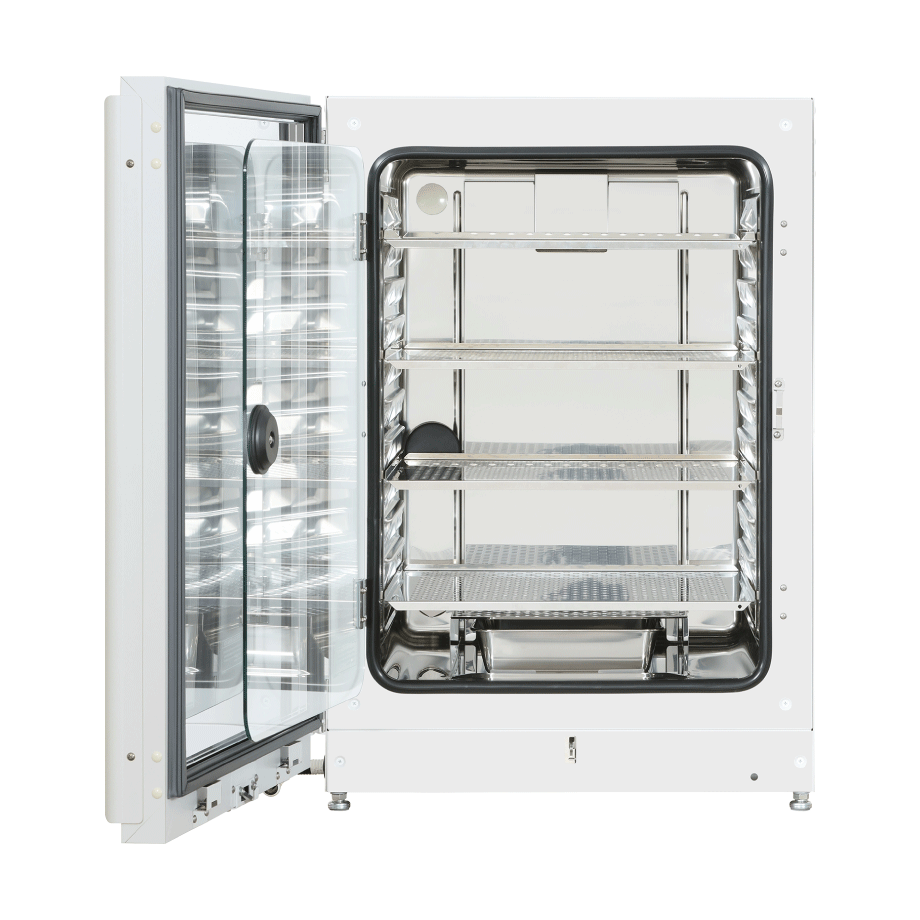

Integrated Shelving
Integrated, molded shelf channels with curved corners allow for easy cleaning and help reduce sources of contamination.


Intelligent Interface

A modern interface designed for clarity and confidence. The MCO-173AICUVX-PA incubator makes monitoring and control simple with a clean design and intuitive tools.

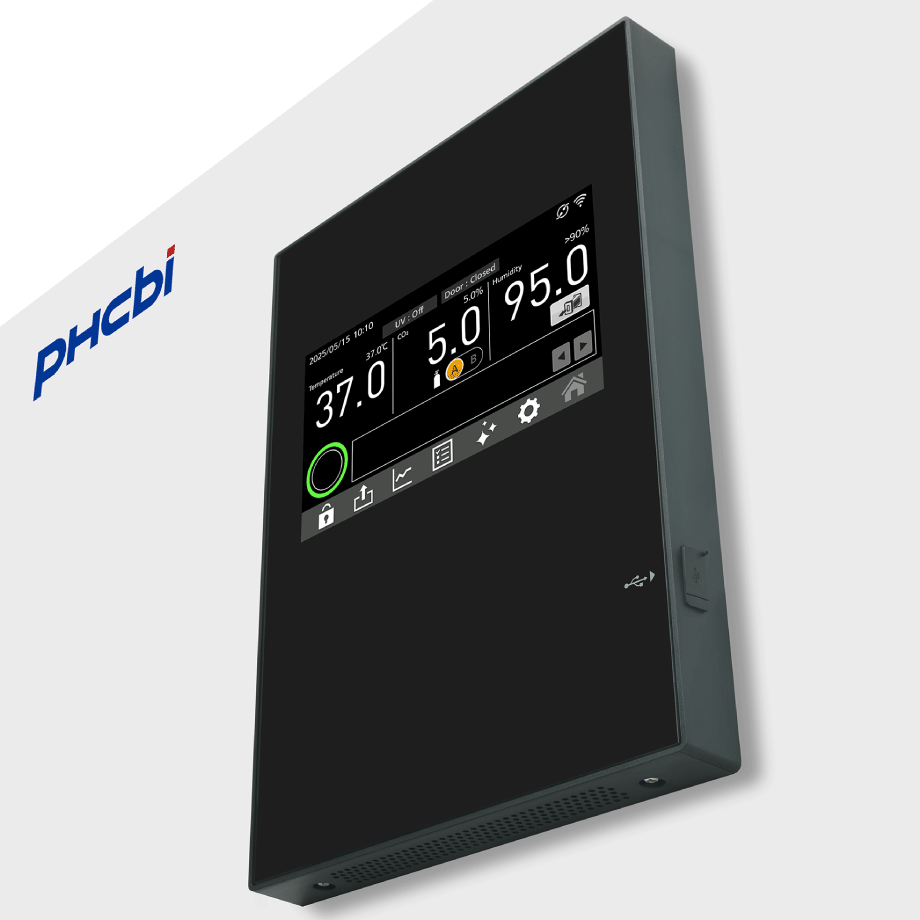

Large 7-inch touchscreen
Sleek black panel, 44% larger for improved visibility and ease of use.

Door activity overlay
Temperature graph shows door openings, helping users quickly spot the cause of fluctuations.

Instant support
Built-in, easy-to-scan QR codes provide immediate access to alarm responses and manuals.

Guided self-service tools
Designed to enable quick issue resolution with service support available when needed.

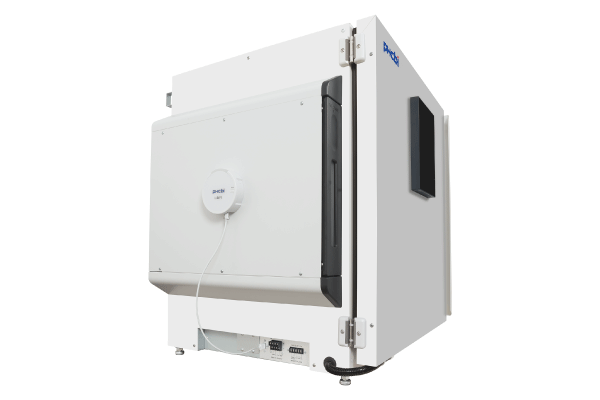

Integrated Lab Monitoring with LabSVIFT®

LabSVIFT is a cloud-based service built to simplify equipment monitoring and performance tracking. It provides 24/7 monitoring*, real‑time alerts, and centralized records compliant with FDA 21 CFR Part 11**. The built‑in health check feature evaluates equipment performance and flags irregularities with recommended corrective actions. Whether you’re reviewing routine performance data or checking its status from your phone, LabSVIFT helps ensure your incubator is secure and operating at peak performance.


* 24/7 real time monitoring applies only under optimal network and server conditions
** Audit trail feature meets requirements for 21 CFR Part 11 compliance


Videos



Overview

Next Generation Active Humidification CO2 Incubator with H2O2 Decontamination

The MCO‑173AICUVHX‑PA delivers a tightly controlled, contamination‑resistant environment designed to support today’s most sensitive and demanding cell culture workflows. With hybrid‑active humidification, multi‑layer contamination control, and an intuitive interface, it brings consistency and confidence to every experiment.


Product Photos

Specifications

EXTERIOR DIMENSIONS 27.5" W x 28.7" D x 35.6" H (700 x 730 x 905 mm)
INTERIOR DIMENSIONS 19.3" W x 20.6" D x 26.2" H (490 x 523 x 665 mm)
INTERIOR VOLUME 5.8 cu.ft. (165 L)
INTERIOR SURFACES InCu-saFe stainless steel with copper enriched alloy
OUTER DOOR Painted steel
SHELVES 18.5" W × 17.7" D × 0.5" H | 470 × 450 × 12 mm | Maximum load: 15 lbs (7 kg)/tray
ACCESS PORT 1: Rear Upper (1.2" [30 mm] diameter)
HEATING METHOD Direct Heat and Air Jacket System
UV LAMP LED-based; Included (MCO-LUVS-PA)
NET WEIGHT 174 lbs (79 kg)
TEMPERATURE CONTROL RANGE Ambient temperature +5ºC to 50ºC
TEMPERATURE UNIFORMITY ±0.25ºC
CO2 CONTROL RANGE 0% to 20%
CO2 CONTROLLER Microprocessor
CO2 SENSOR TYPE Dual Beam Infrared Sensor
TEMPERATURE SENSOR Thermistor
DATA OUTPUT USB 4-20 mA Analog Output (CO2, Temperature, and RH)
DATA ACQUISITION Standard 4-20 mA Module; Data Export via USB
CONTAMINATION CONTROLS InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light, Hydrogen peroxide (H2O2) vapor system
DISPLAY Color LCD touchscreen readible in 0.1 increments
HUMIDIFYING SYSTEM Hybrid on-demand stream generation with humidifying pan*
*Depending on humidity setting

Price

MCO-173AICUVHX-PA Price Upon Inquiry. Please contact your local dealers.

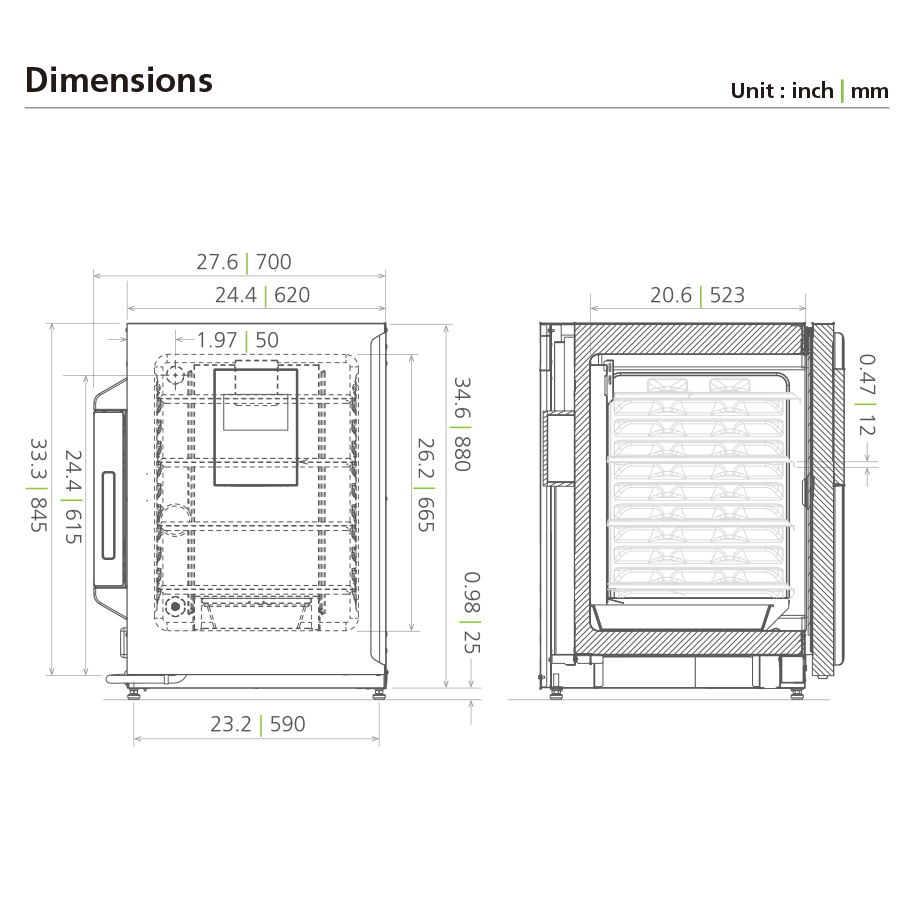

Dimensions
