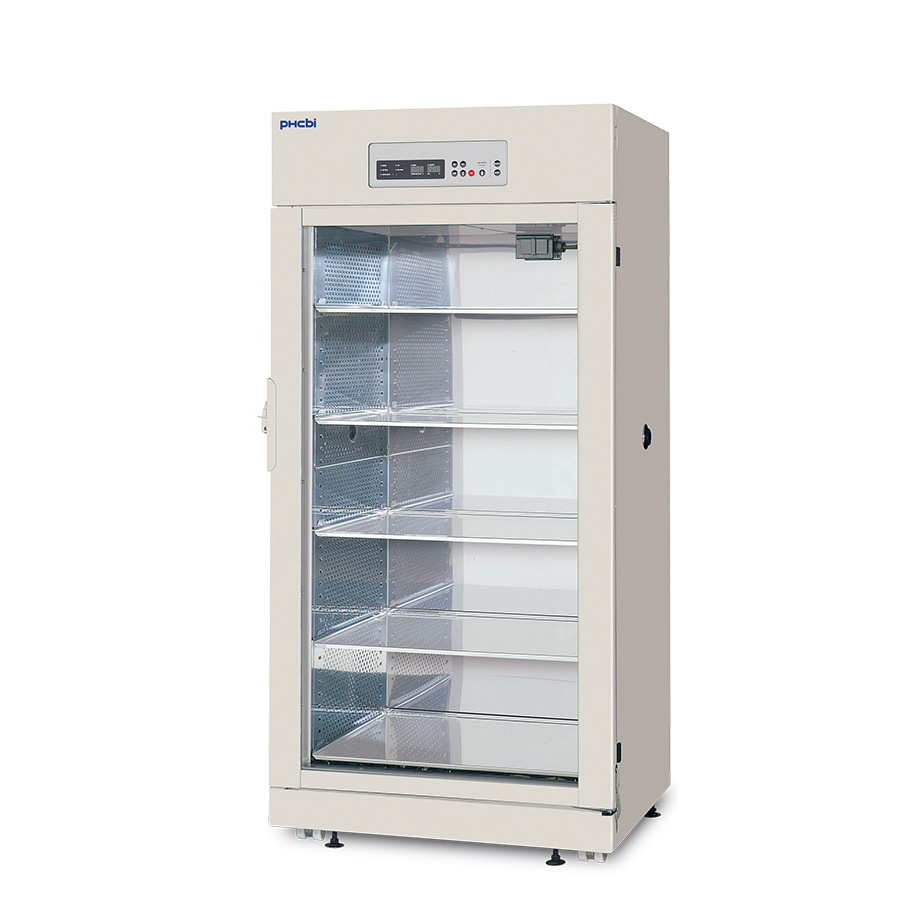

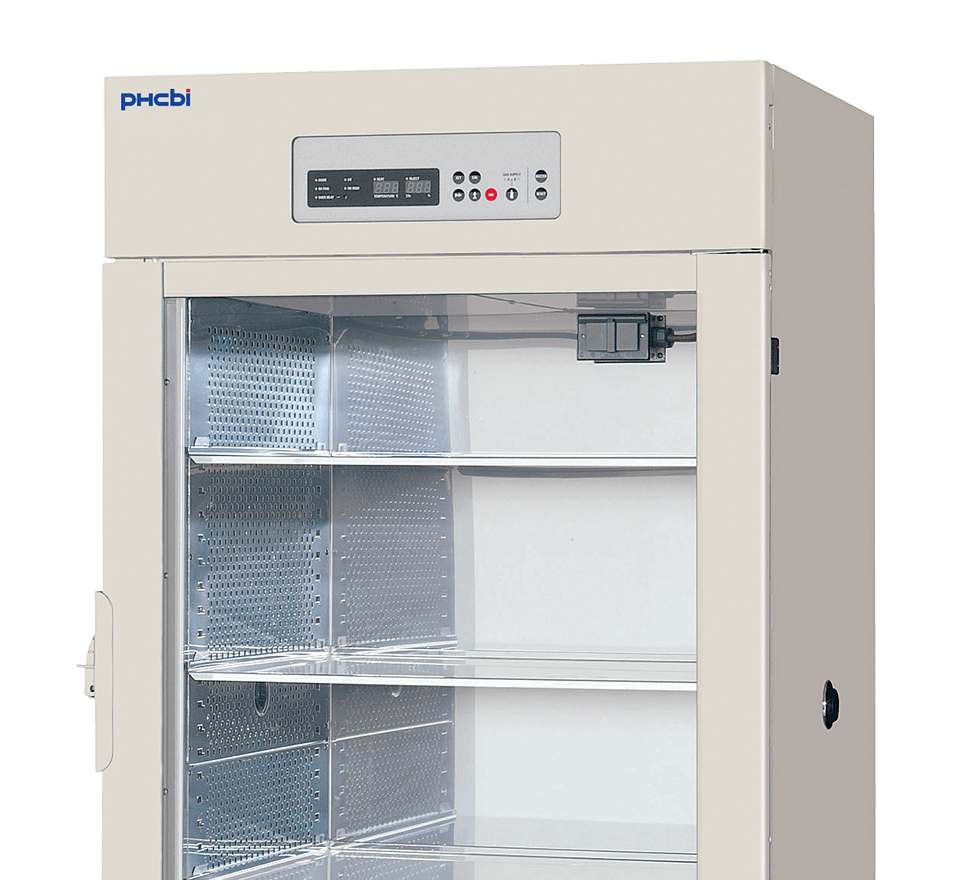

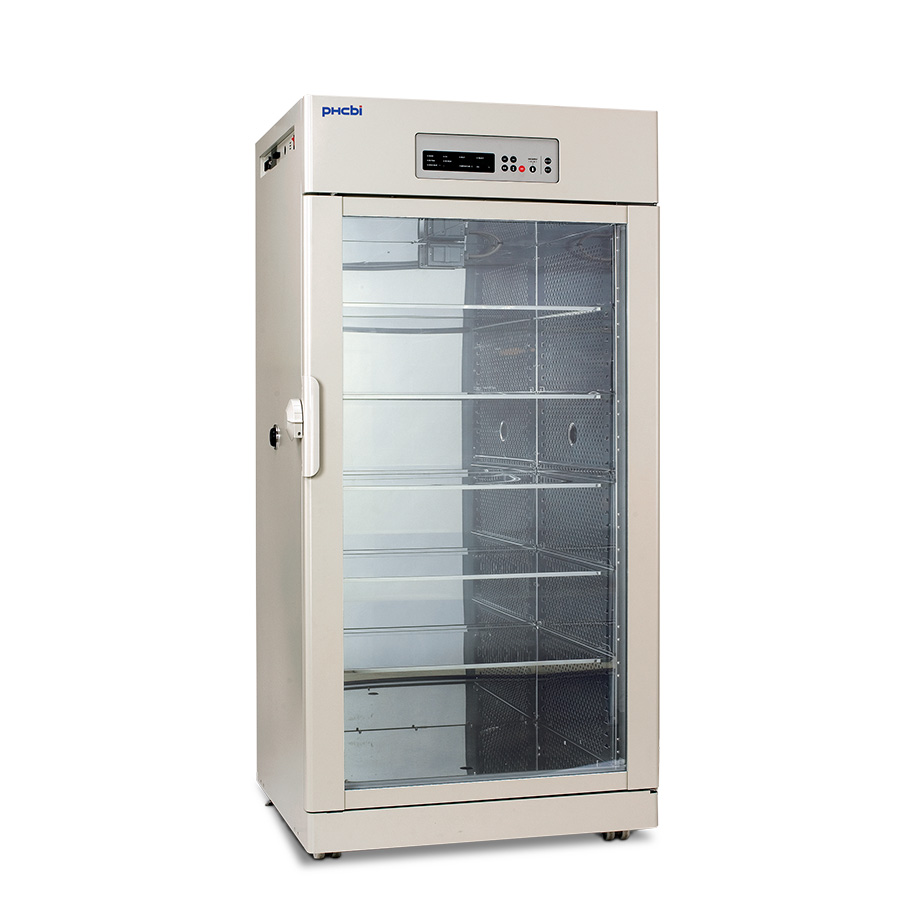

CytoGrow ReachIn 30.1 cu.ft. CO2 Incubator

MCO-80ICL-PA

Effective capacity
30.1 cu.ft. (851 L)
Temperature range
+5℃ above ambient to +50℃

MCO-80ICL-PA Features

Cell Production Incubator Capabilities

A crucial piece of laboratory equipment, the PHCbi brand cell production incubator is designed to ensure highly accurate, reproducible environment. Our cell culture incubator provides a contamination-free environment for cell production. This heated CO2 incubator ensures optimal cell growth through precise control of temperature and CO2.

IR Sensor for Optimal CO2 Control

Superior CO2 control and fast recovery, without overshoot, following door openings are achieved by the IR sensor and PID microprocessor controller. Gas system design minimizes CO2 consumption.

Background Contamination Control with InCu-saFe®

The MCO-80ICL-PA large capacity reach in CO2 incubator is designed with standard, passive contamination control throughout the chamber interior. The PHCbi inCu-saFe combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel. InCu-saFe prevents corrosion and discoloration of the incubator interior.

Optional SafeCell™ UV Protection

Located safely below the interior base, the optional patented SafeCell UV lamp provides an added layer of contamination control. It eliminates contaminants introduced during door openings as they pass over the humidity reservoir surface. Pathogens introduced during door openings are ultimately removed.

Horizontal Laminar Airflow

The cross shelf, horizontal laminar airflow system promotes optimum temperature uniformity and quick recovery after door openings. Side plenum walls are perforated for positive, even airflow. The horizontal airflow allows for full use of solid shelves providing maximum culturing capacity.

Integrated Microprocessor Control

This CytoGrow ReachIn CO2 incubator functions are controlled and monitored by a fully integrated microprocessor controller with independent LED displays for CO2 and temperature. Two levels of elevated humidity can be selected. All functions are programmable through the control panel. Independent LED displays for CO2 and temperature are standard.

The softkey eight button menu enables intuitive programming. LED indicators monitor incubator functions. Remote alarm contacts are provided standard.

Humidity Control

Humidity mode allows for normal RH of 80% or greater or elevated RH of 90% or greater. Humidity reservoir heaters are strategically located to reduce corrosion and scaling. They are not susceptible to corrosion and scaling from water as competitive systems are.

Large Capacity Reach In Incubator

The MCO-80ICL-PA space-saving CO2 incubator is ideal for culturing large volumes of biological samples, performing microbiological studies and working with large volume cell apparatus.

Videos



Overview

CytoGrow ReachIn Incubators

The PHCbi large capacity CytoGrow ReachIn CO2 incubator has the capacity and flexibility to grow with your culturing needs while providing a precise and repeatable temperature, humidity and CO2 environment. The MCO-80ICL-PA space-saving incubator is designed to reduce laboratory footprint while maximizing storage space and is ideal for culturing large volumes of biological samples and performing short-term studies. It includes PHC's exclusive incubator technologies, such as inCu-saFe interiors, ultraviolet decontamination (optional), infrared (IR) CO2 sensor with PID control, and exceptionally low CO2 gas consumption.

Request a Quote


Product Photos

Specifications

EXTERIOR DIMENSIONS 38.6" W x 37.2" D x 80.3" H (986 x 945 x 2040 mm)*
INTERIOR DIMENSIONS 31.7" W x 27.3" D x 60.0" H (806 x 693 x 1524 mm)
INTERIOR VOLUME 30.1 cu.ft. (851 L)
OUTER DOOR Double paned glass door with heater and outer door latch
SHELVES 30.6" x 25.9" (776 x 659 mm)
ACCESS PORT 2: Right and left sides (1.6" (40 mm) diameter)
INSULATION Rigid polyurethane foamed-in-place
UV LAMP Optional
NET WEIGHT 606 lbs (275 kg)
TEMPERATURE CONTROL RANGE Ambient temperature +5ºC to +50ºC
TEMPERATURE UNIFORMITY ±0.50ºC (ambient temperature: 25ºC, setting: 37ºC, CO2: 5 %, no load)
MAXIMUM POWER CONSUMPTION Max 1752 W
CO2 CONTROL RANGE 0% to 20%
CO2 CONTROLLER PID Controller
CO2 GAS PRESSURE 0.1 MPaG (inject):, 15 psiG)
CO2 VARIATION ±0.15% (ambient temperature: 25ºC, setting: 37ºC, CO2: 5%; no load)
CO2 SENSOR TYPE Infrared Sensor
DECONTAMINATION METHODS Optional SafeCell UV light
DISPLAY Digital softkey
HUMIDIFYING SYSTEM Normal mode over 80 (high mode over 90)
INTERIOR SURFACES inCu-saFe stainless steel with copper enriched alloy
*Exterior dimensions of cabinet excluding handle, rear stand-off brackets and other external projections. Consult sales rep for doorway entry instructions, less than 37.2".

Price

MCO-80ICL-PA Price Upon Inquiry. Please contact us.

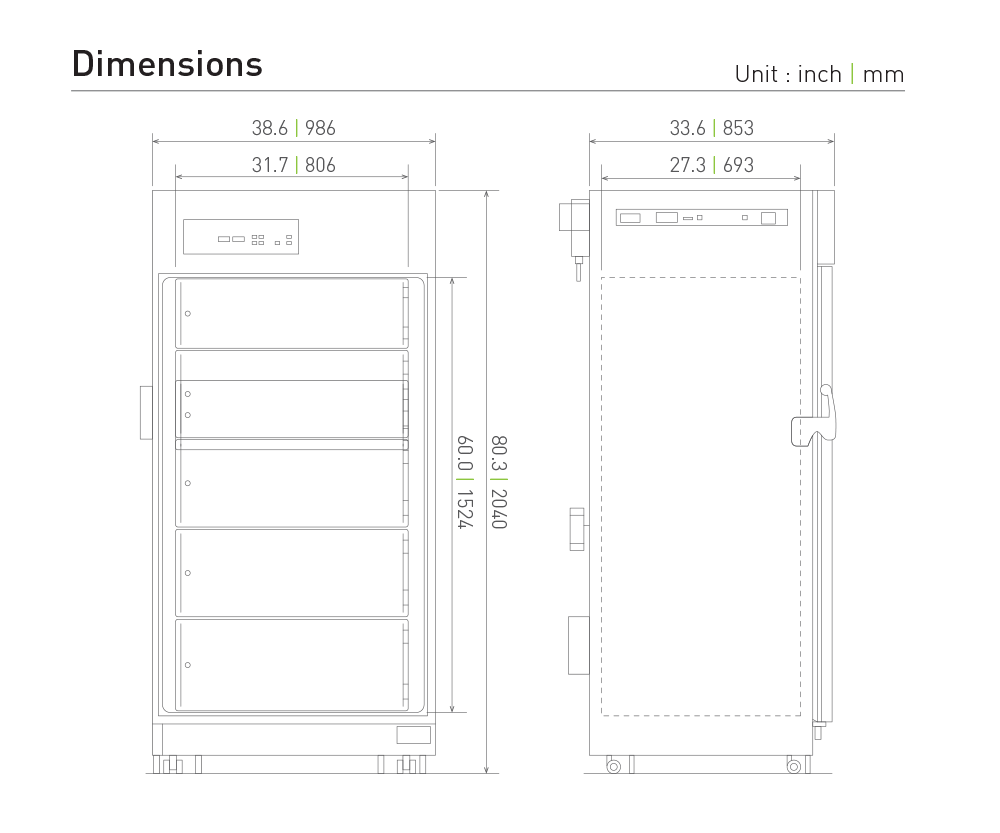

Dimensions
