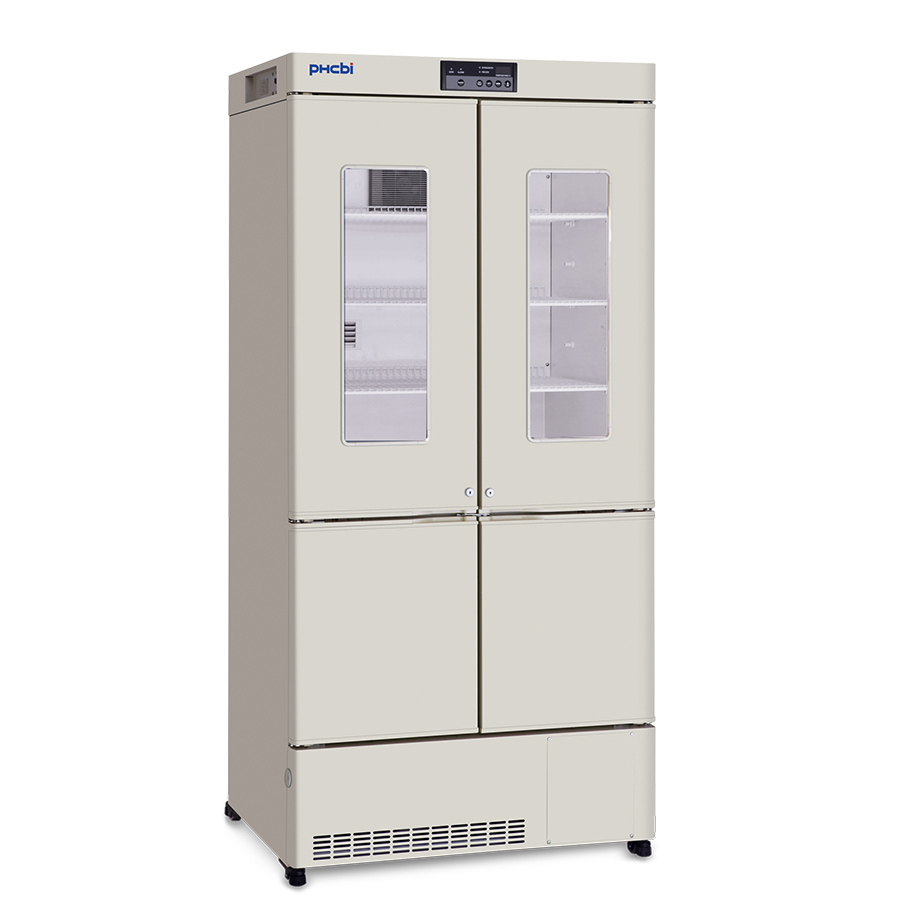

14.7 cu.ft. Ref and 6.2 cu.ft. Frzr Pharmaceutical Fridge with Freezer

MPR-715F-PA

Effective capacity
14.7 cu.ft. (415 L) | Freezer 6.2 cu.ft. (176 L)
Temperature range
Refrigerator 2℃ to 14℃ | Freezer -20℃ to -30℃

Model MPR-715F-PA Features

Superior Temperature Uniformity

Fan-forced air circulation in the refrigerator allows for precise temperature uniformity. Efficient temperature recovery properties restore internal temperature to setpoint quickly following routine door openings.

Sample Security Design

Refrigerator evaporator operates above freezing temperatures, therefore reducing the need for defrost and avoiding product exposure to freezing temperatures. This lab fridge freezer is ideal for preservation of enzymes, biological samples and vaccine storage.

Microprocessor Controls

Comprehensive setpoint, alarm, monitoring and diagnostic functions are based on PHC built microprocessor controller with digital display of all critical functions.

Lab Fridge Freezer with Separate Refrigeration Systems

Separate refrigeration systems and compressors allow differential control of individual refrigerator and freezer compartments. The freezer system maintains temperatures as low as -30°C.

Validated Storage

PHCbi pharma fridge with freezer is designed to assure stored product safety to meet regulatory guidelines for vaccines and biologicals.

Temperature Controls and Sensors

Accurate temperature sensors and controllers inside the refrigerator maintain a set temperature between 2°C and 8°C. Alarms and temperature monitoring allow for quick notification of adverse operating conditions.

Cycle Defrost System

The unique cycle defrost (refrigerator only) initiates only as required and maintains internal temperature uniformity without fluctuations.

Overview

Pharmaceutical Fridge with Freezer

With the growing emphasis on proper storage of laboratory and pharmaceutical materials, the PHCbi MPR-715F-PA lab fridge freezer combines high performance refrigeration control and monitoring systems with energy efficient and cost-effective cabinet design. Separate refrigeration systems and compressors allow you to maintain proper temperature uniformity while saving space for even the smallest of facilities.

The MPR-715F-PA pharma fridge with freezer provides alarms, temperature monitoring and efficient temperature recovery properties.

Request a Quote


Product Photos

Specifications

EXTERNAL DIMENSIONS 35.4" x 28.1"x 75.2" (900 x 715 x 1910 mm)
INTERNAL DIMENSIONS Refrigerator 31.9" x 24.2" x 35.2" (810 x 615 x 894 mm) | Freezer 30.3" x 21.7" x 16.6" (770 x 552 x 422 mm)
EFFECTIVE CAPACITY Refrigerator 14.7 cu.ft. (415 L) | Freezer 6.2 cu.ft. (176 L)
INSULATION CFC free, rigid polyurethane foamed-in-place
SHELVES Refrigerator, 3 shelves (allowable load 55 lbs./ shelf) | Freezer, 2 shelves (allowable load 33 lbs./shelf)
ACCESS PORT 2: Back side (1.2" (30 mm) diameter)
COMPRESSOR Hermetic reciprocating type (refrigerator output: 150W) (freezer output: 200W)
EVAPORATOR Fin and tube type (refrigerator), tube on sheet type (freezer)
REFRIGERANT R-134a
TEMPERATURE CONTROL RANGE 2ºC~+14ºC (refrigerator); -35ºC~-15ºC (freezer)
ALARMS High temperature, low temperature, 0°C (refrigerator only), door, power failure (with MPR-48B installed)
NET WEIGHT 357 lbs (162 kg)
TEMPERATURE CONTROL SYSTEM Microprocessor Control System
AREA FOOTPRINT 9.10 sq.ft (0.85 m2)
DATA MANAGEMENT Optional with LabAlert Monitoring System
SOUND LEVEL 43 dB(A) (50Hz/60Hz)

Price

MPR-715F-PA Price Upon Inquiry. Please contact us.

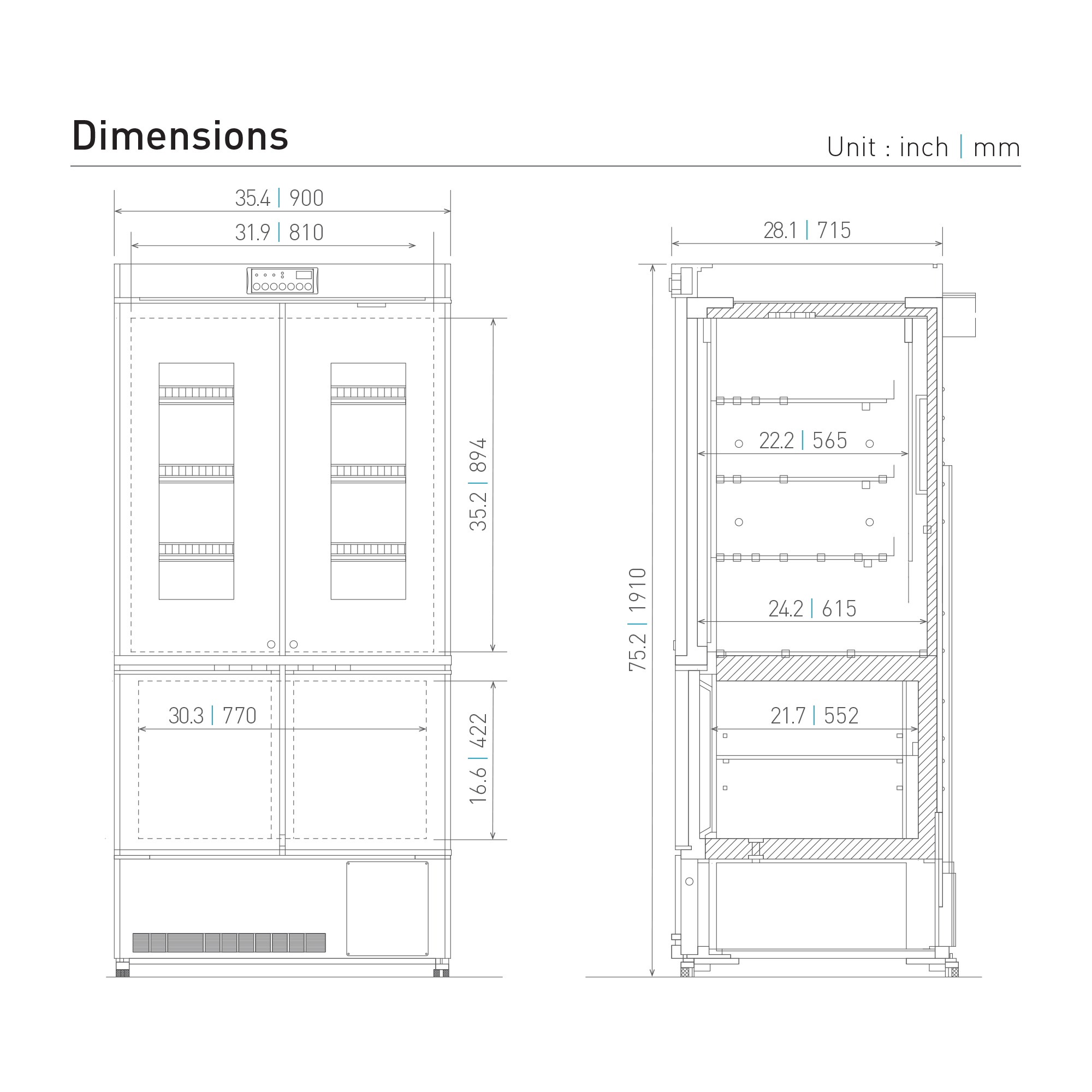

Dimensions

Catalog Download

  • Pharmaceutical Refrigerators MPR-715F-PA

    Download
