PHC Corporation of North America, a Member of PHC Group Preservation Laboratory Refrigerator/Freezer Combo MPR-N650FH-PA

Pharmaceutical Refrigerator with Freezer, Natural Refrigerants

MPR-N650FH-PA

Effective capacity
Refrigerator: 16.5 cu.ft. (466 L) | Freezer 6.7 cu.ft. (189L)
Temperature range
Refrigerator: +2ºC to +14ºC | Freezer -20ºC to -30ºC

Model MPR-N650FH-PA Features


Why Professionals Choose This Unit


Built specifically for pharmaceutical environments

Single cabinet with two independent temperature controlled chambers

Maintains the uniformity, stability, and recovery speed essential for today's evolving protocols

Cost effective storage of refrigerated and frozen vaccines and biologics


Purpose-Built Cold Chain Storage

Engineered for the demands of modern vaccine and pharmaceutical protection

When product integrity is non‑negotiable, you need equipment designed for precision from the inside out. This PHCbi refrigerator/freezer combo delivers validated temperature performance, independent cooling control, and the reliability required to safeguard sensitive vaccines and biologicals.


Superior Temperature Uniformity
Even, predictable cooling — every time.
Forced‑air circulation delivers uniform temperature and fast recovery, while the freezer's cold‑wall system cools efficiently through its chilled interior walls.

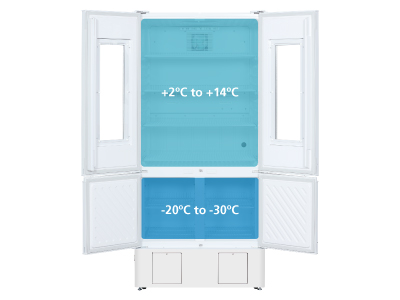

Independent Cooling Systems
Two systems. Total control.
Separate compressors deliver independent temperature control, with freezer performance down to –30°C for vaccine and biological storage needs.

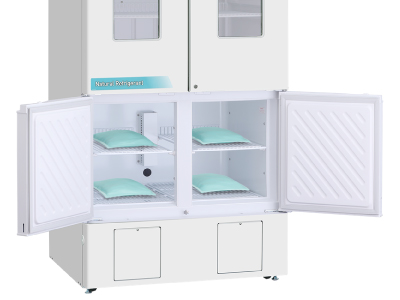

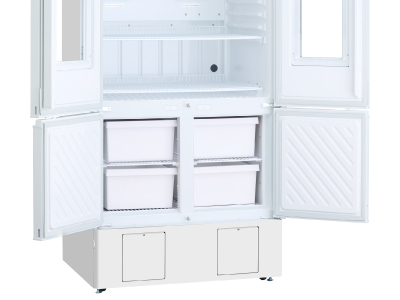

Access, Storage & Security
Designed for visibility, organization, and protection.
Triple pane glass doors, solid freezer doors, adjustable shelving, and keyed locks support visibility, organization, and protection.
Validated Storage Performance
Confidence built into every degree.
This unit is engineered to meet regulatory guidelines for vaccine and biological storage, helping ensure product safety and compliance.
Smart Defrosting
Protection without interruption.
Automatic refrigerator defrost keeps the evaporator above freezing to protect materials, while the freezer's manual defrost maintains stable temperatures.
Natural Refrigerants
Performance with a lower environmental footprint.
Hydrocarbon refrigerants deliver strong cooling performance, fast recovery, and broad ambient tolerance while supporting sustainability goals.

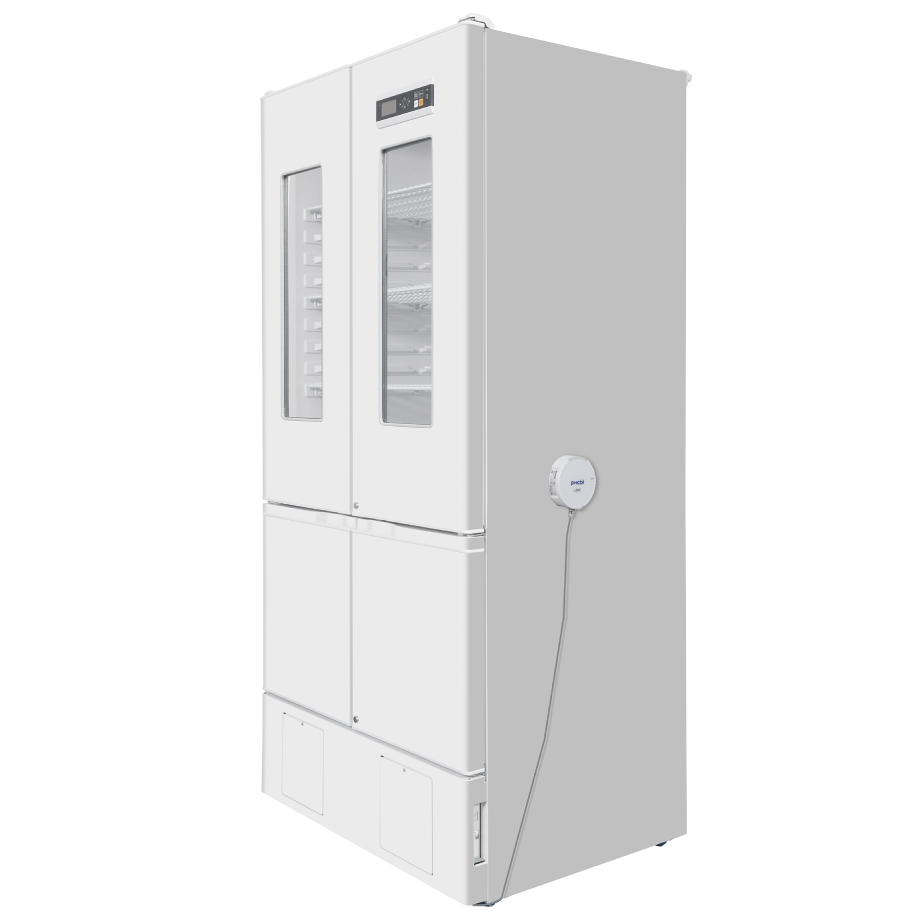

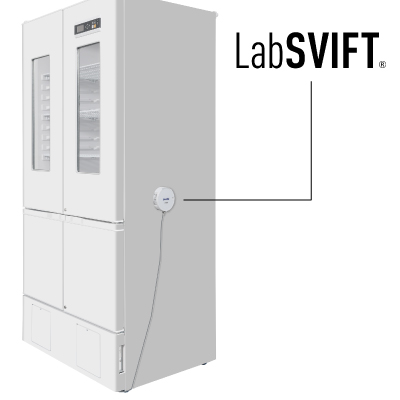

Integrated Lab Monitoring with LabSVIFT®

LabSVIFT is a cloud-based service built to simplify monitoring and performance tracking. LabSVIFT provides 24/7 monitoring*, real-time alerts, and centralized records compliant with FDA 21 CFR Part 11**. LabSVIFT features health check for PHCbi's MDF-DU703VXHA model, which evaluates equipment performance health to ensure optimal operation. Health check provides notifications with suggested corrective actions if any irregularities or abnormal conditions are detected. From routine performance checks to remote monitoring on your smartphone or PC, LabSVIFT helps ensure that your refrigerator and freezer are secure and operating at peak performance.


* 24/7 real time monitoring applies only under optimal network and server conditions
** Audit trail feature meets requirements for 21 CFR Part 11 compliance

Overview

Pharmaceutical Refrigerator with Freezer

This high-capacity cabinet combines pharmaceutical refrigeration and a -30°C freezer within a single footprint. Offering 16.5 cu. ft. of refrigerated space and 6.7 cu. ft. of freezer capacity, it provides expanded storage for vaccines and biologicals. Natural refrigerants reduce environmental impact, delivering a sustainable, energy-efficient solution.

Request a Quote

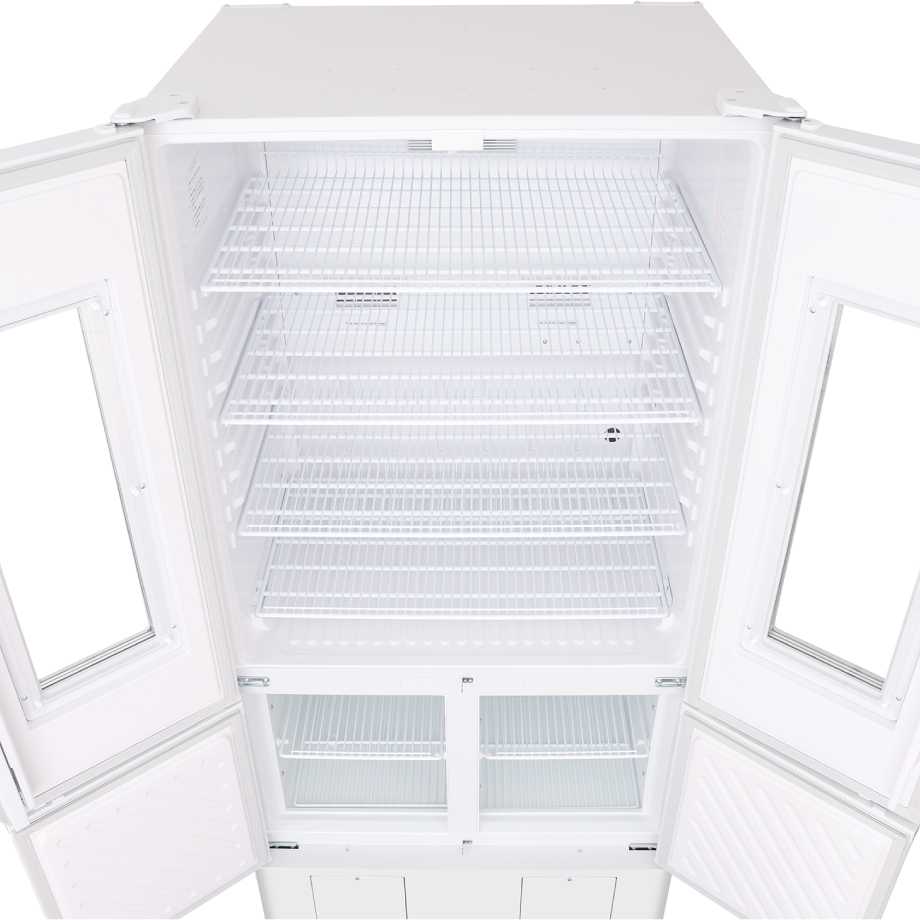

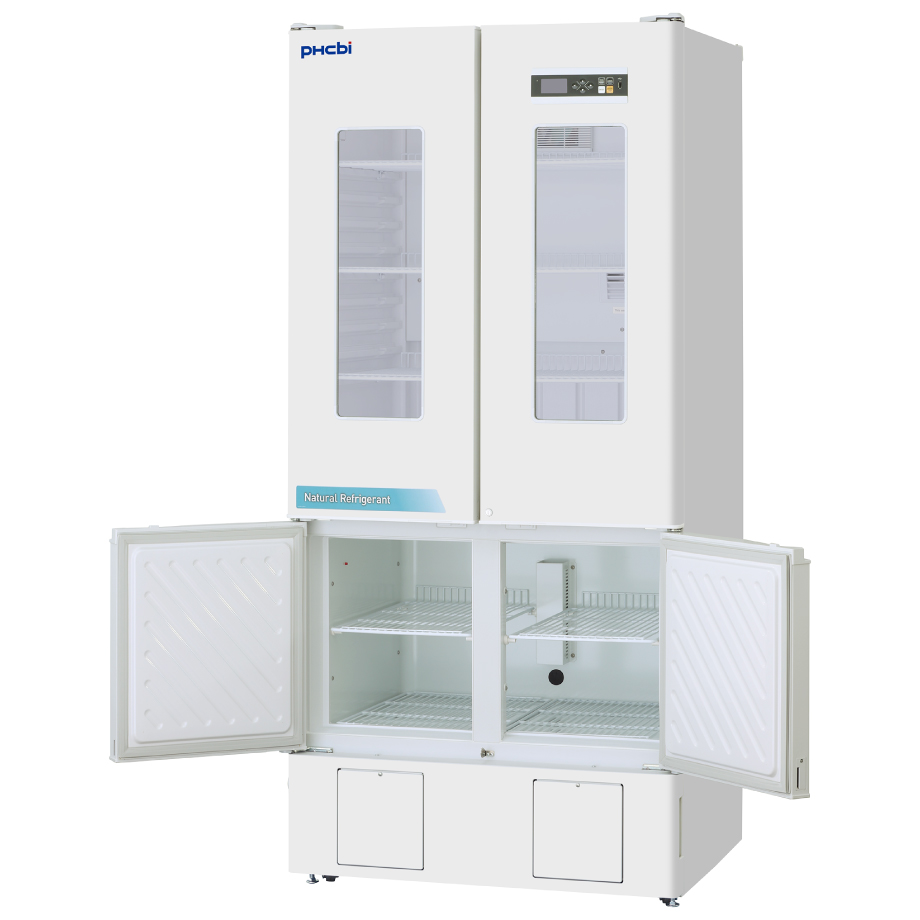

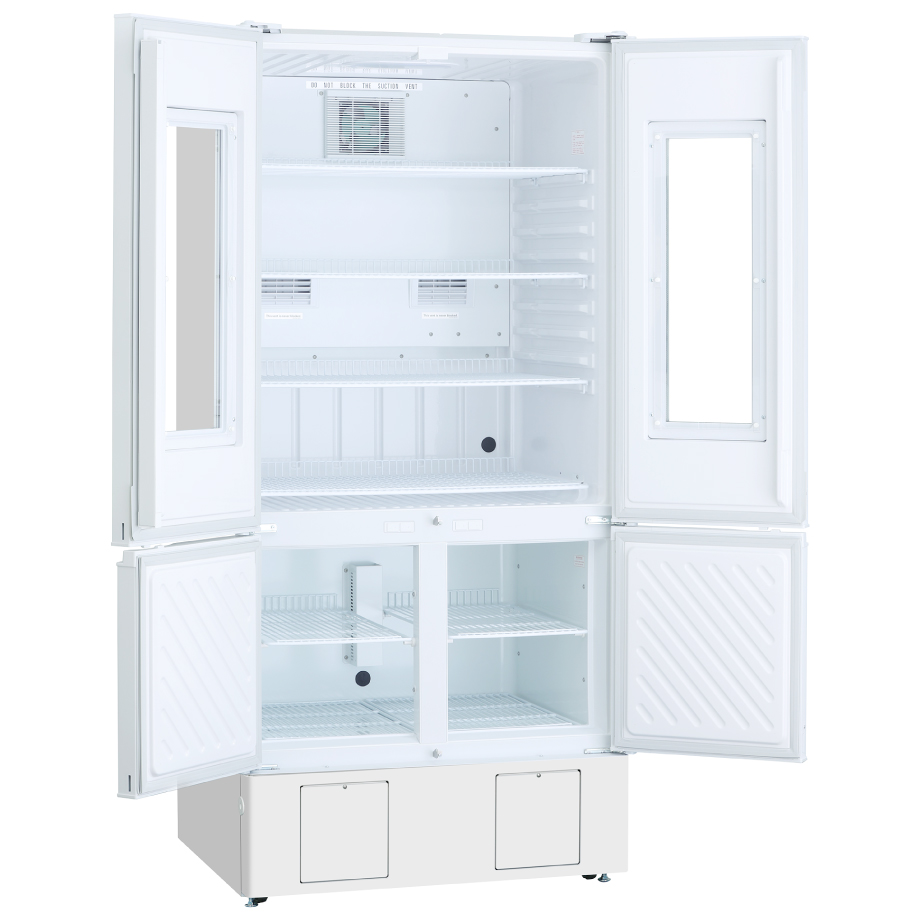

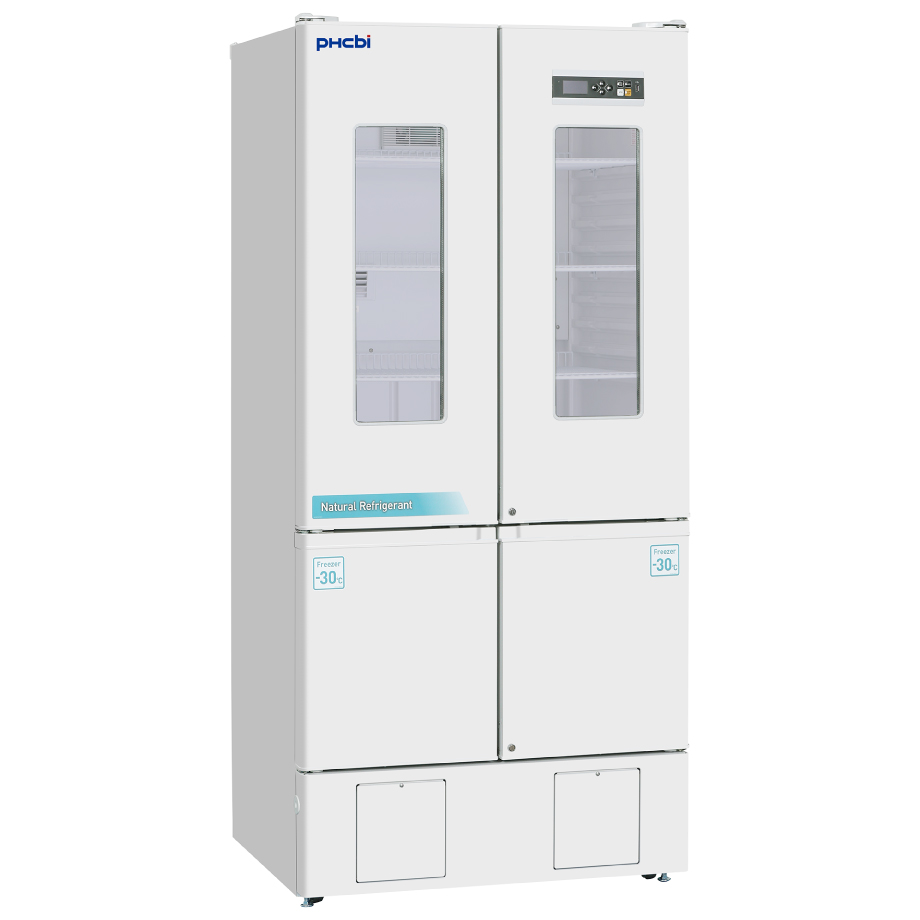

Product Photos

Specifications

EXTERNAL DIMENSIONS 31.5" W x 28.1" D x 75.2" H (890 x 715 x 1910 mm)
INTERNAL DIMENSIONS Refrigerator 31.88" W x 24.05" D x 39.52" H (810 x 611 x 1004 mm) | Freezer 32.31" W x 22.66" D x 16.46" H (770 x 575.5 x 418 mm)
EFFECTIVE CAPACITY Refrigerator 16.5 cu.ft. (466 L) | Freezer 6.7 cu.ft. (189 L) | Total Capacity 23.2 cu.ft. (655 L)
INSULATION Rigid polyurethane foamed-in-place
SHELVES (3) Adjustable, Wire (Ref) | (2) Wire (Frz)
ACCESS PORT 2: Rear of Refrigerator and Freezer (1.1" (30 mm) diameter)
COMPRESSOR Hermetic type (output: 160W x 2)
EVAPORATOR Fin and tube type (Refrigerator), tube on sheet type (Freezer)
REFRIGERANT SNAP Approved HC R-600A (Refrigerator) HC R-290 (Freezer)
TEMPERATURE CONTROL RANGE 2ºC~+14ºC (Refrigerator); -30ºC~-20ºC (Freezer)
ALARMS High temperature, low temperature, 0°C (refrigerator only), door, power failure, over-heat protector (refrigerator), over-cool protector (refrigerator), key lock, thermal sensor abnormality, circuit breaker (acts as power switch)
NET WEIGHT 370 lbs (168 kg)
TEMPERATURE CONTROL SYSTEM Microprocessor Control System
AREA FOOTPRINT 7.93 sq.ft. (0.74 m2)
DATA MANAGEMENT Optional with LabAlert Monitoring System, Optional with LabSVIFT (GEN 2 Compatible)
SOUND LEVEL 42 dB(A)
USB LOGGING FUNCTION Logs 3 months of data at 12 minute intervals
DISPLAY OLED alphanumeric | Select refrigerator, freezer or concurrent
NATURAL REFRIGERANT HC R-600a (Ref) | HC R-290 (Frz)
EXTERIOR MATERIAL Painted steel
INTERIOR MATERIAL ABS resin
CASTERS (4) plus 2 leveling feet on front base

Price

MPR-N650FH-PA Price Upon Inquiry. Please contact us

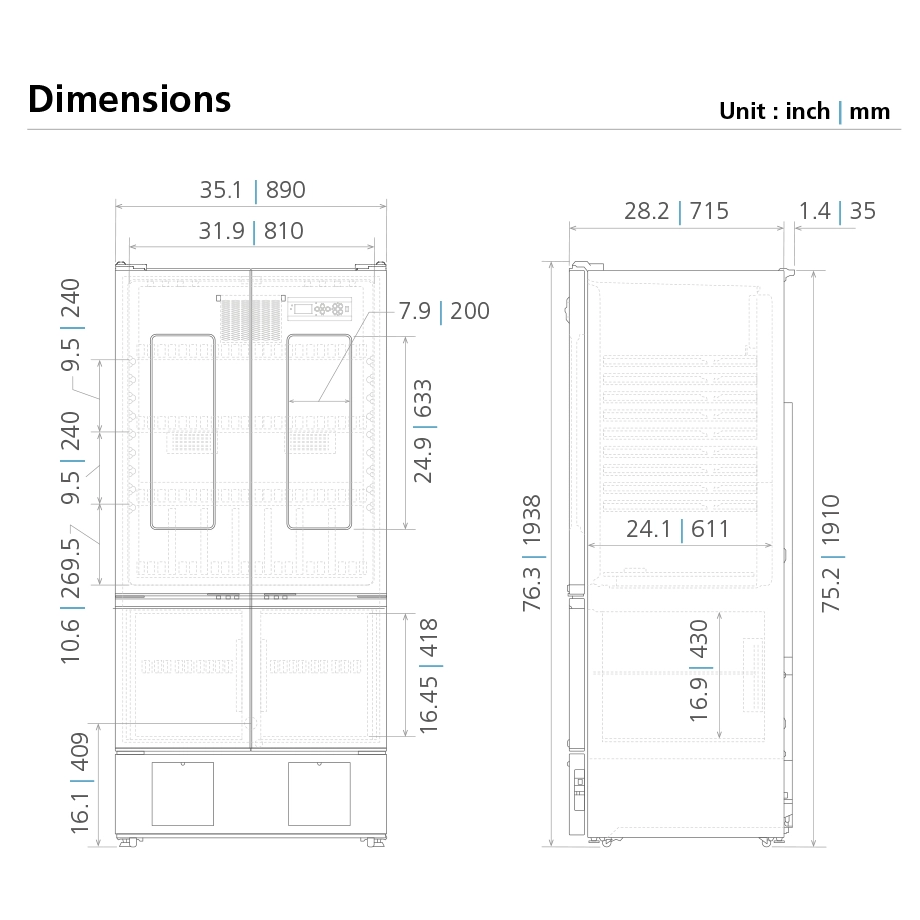

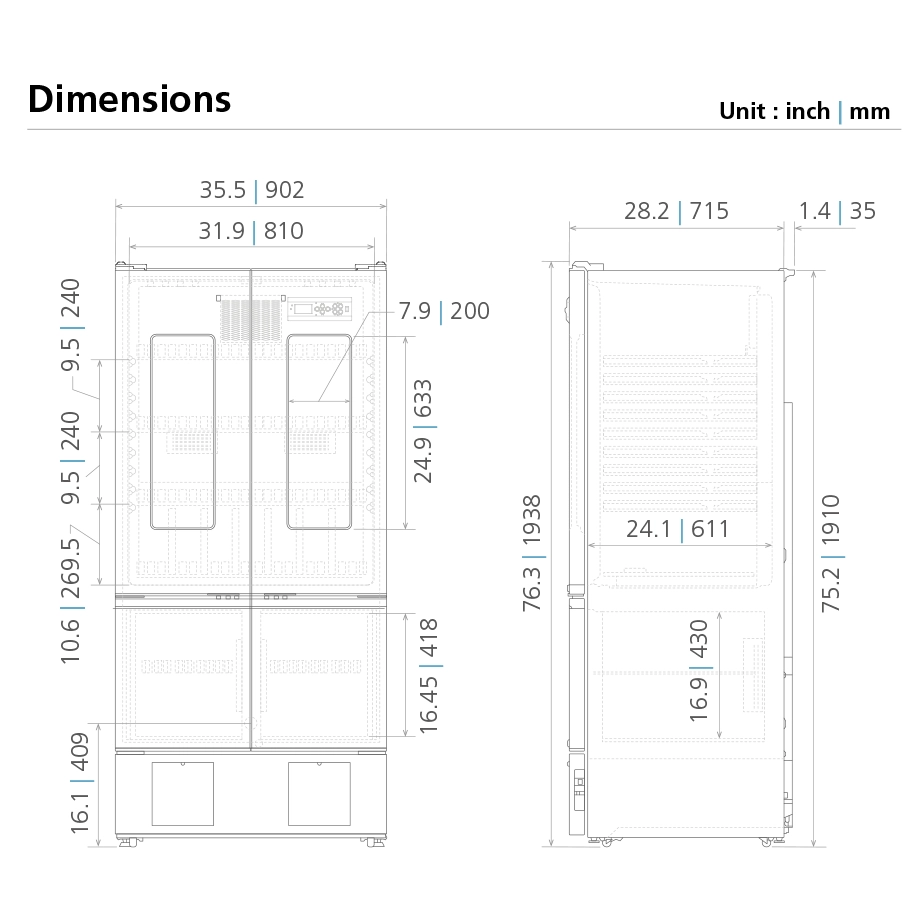

Dimensions

Catalog Download

  • Pharmaceutical Refrigerator/Freezer MPR-N650FH-PA
