24.2 cu. ft. Upright Pharmacy Refrigerator


Effective capacity
24.2 cu.ft. (684 L)
Temperature range
2℃ to 23℃

Model MPR-722-PA Features

Purpose-Built Cold Chain Storage

PHCbi brand pharmaceutical refrigerators are engineered from the inside out to create, maintain and restore precise temperatures necessary for vaccine storage. Our purpose-built vaccine storage refrigerators are designed for temperature uniformity and stability that is not commonly found with household or commercial cabinets. PHCbi brand vaccine refrigerators satisfy current and evolving storage protocols essential for vaccine cold chain storage.

Adjustable Design

This eco-friendly pharmacy refrigerator offers a practical solution for storage with adjustable shelves and a wide setpoint range for varying laboratory applications, including biomedical storage and processing. The interior layout makes it ideal for running experiments that require changeable shelf configurations. The shelves can be arranged to accommodate all heights, and deep and strong enough to hold processing equipment and most devices.

Cycle Defrost System

Defrosting is performed automatically and only when required, protecting contents against unnecessary temperature rise. The defrosting heater provides protection from freezing in extremely low ambient temperature conditions.

Microprocessor Controller and Alarms

The temperature control system, with a microprocessor, maintains true temperature at the set level and is unaffected by outside ambient temperature. Audible and flashing LED visual alarms alert the user to the unlikely event of either a high or low temperature status.

Uniform Temperature with Forced Air Circulation

The fan-forced air circulation and efficient temperature recovery properties allow for precise temperature conditions.

Efficient and Superior Upright Pharmacy Refrigerator

High performance compressors and components deliver fast temperature pull-down, recovery and tolerance for high ambient temperature conditions. This energy efficient system improves LEED scores and contributes to global sustainability.


Energy Saving Pharmaceutical Refrigerator

The MPR-722-PA is an upright pharmacy refrigerator offering a stable and reliable environment for managing clinical, pharmaceutical and industrial research at uniform temperatures. Easy to use features and design and precise temperature control provides the ideal climate for various laboratory procedures including biomedical storage and processing.

SNAP Refrigerants and PHC Compliance with EPA Recommendations

Model MPR-722-PA operates on new generation SNAP compliant, low flammability HFO refrigerants to assure low environmental impact. The use of SNAP compliant refrigerants (Significant New Alternatives Policy) established by the United States Environmental Protection Agency underscores our recognition of social responsibility and environmental sustainability by integrating the latest refrigeration technology. For information on SNAP refrigerants visit https://www.epa.gov/snap.

Request a Quote

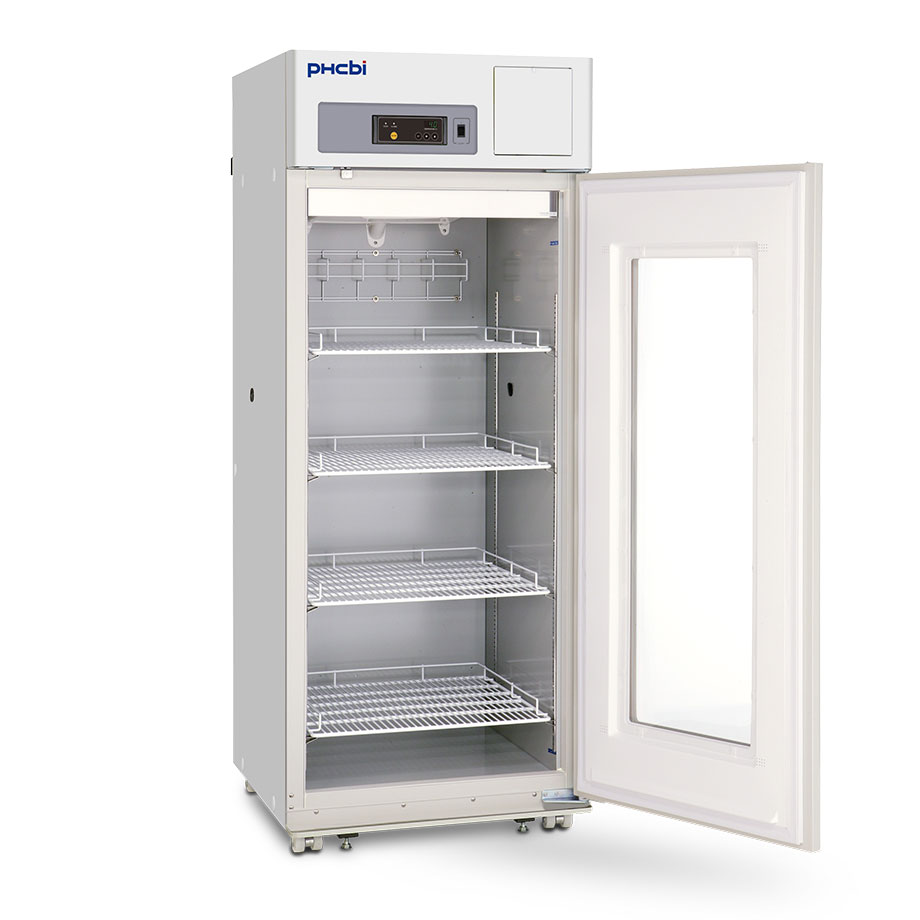

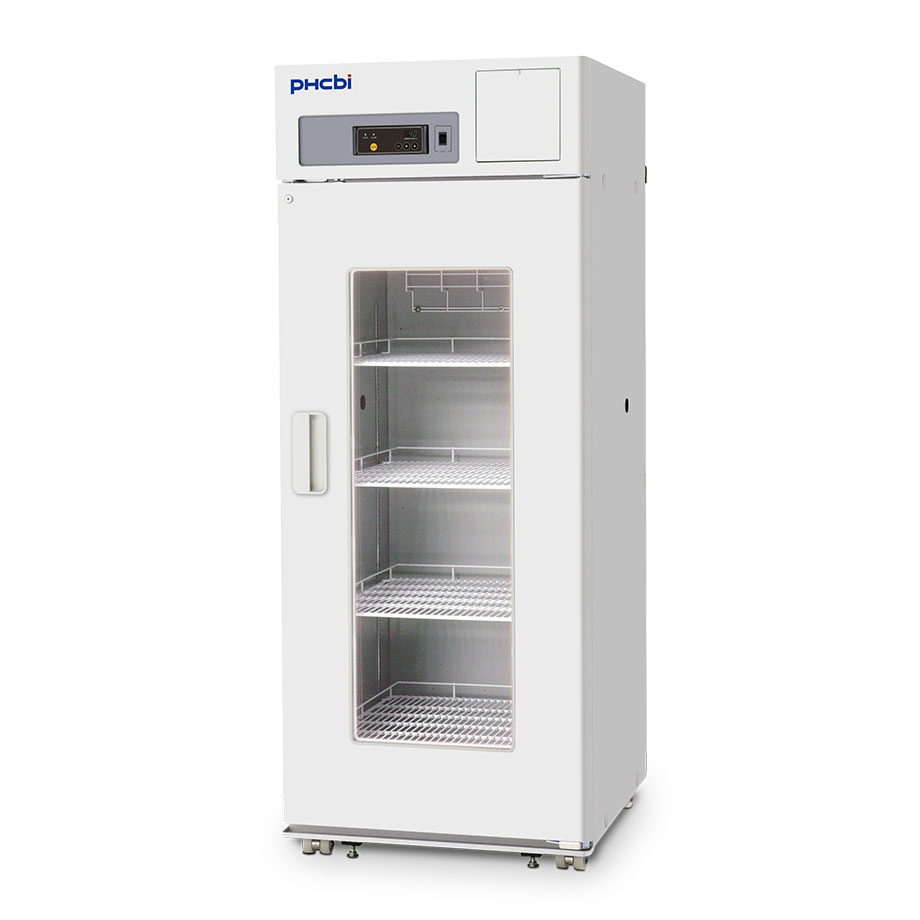

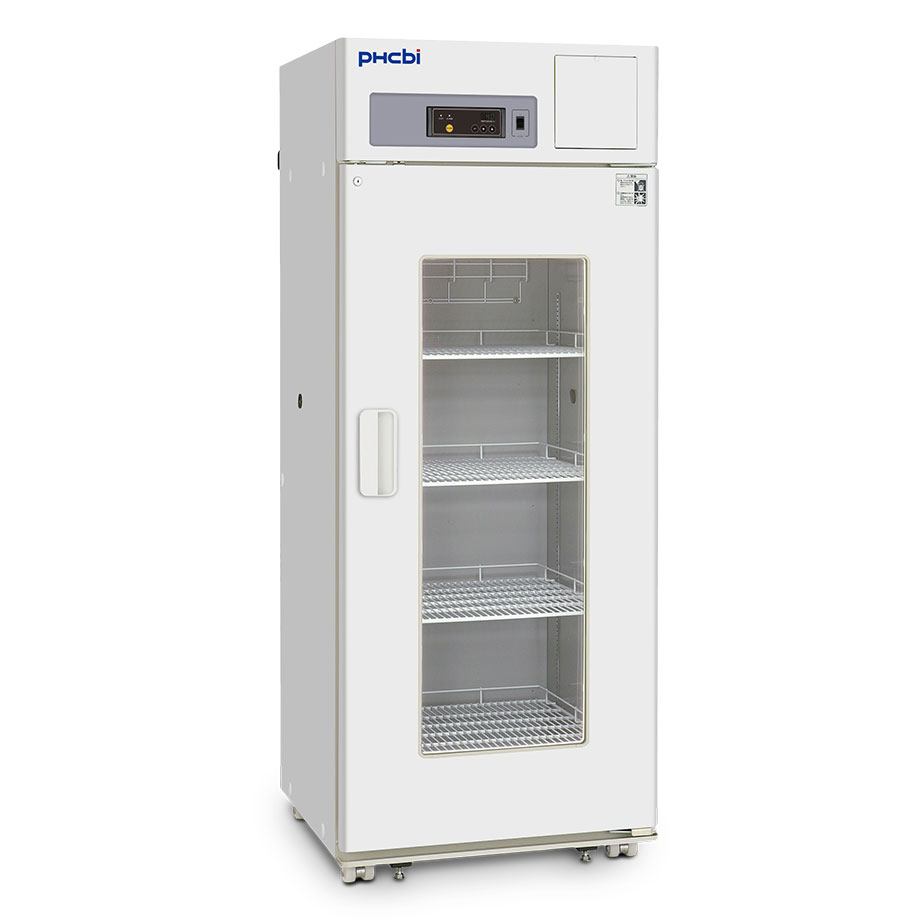

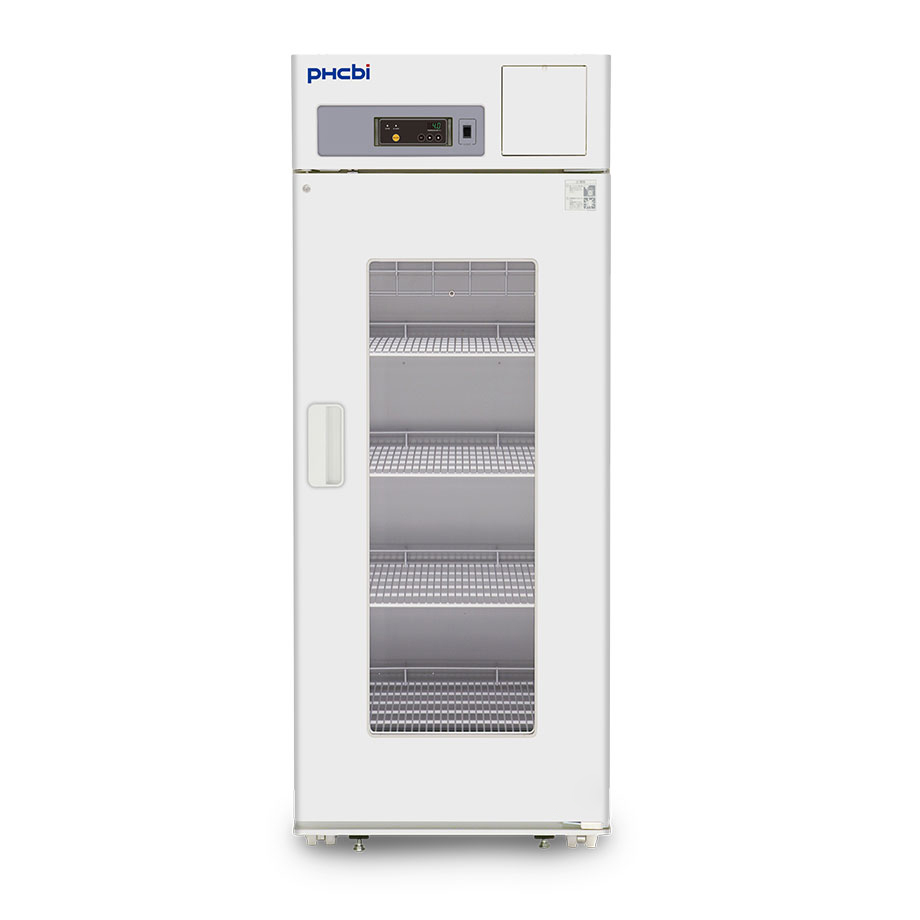

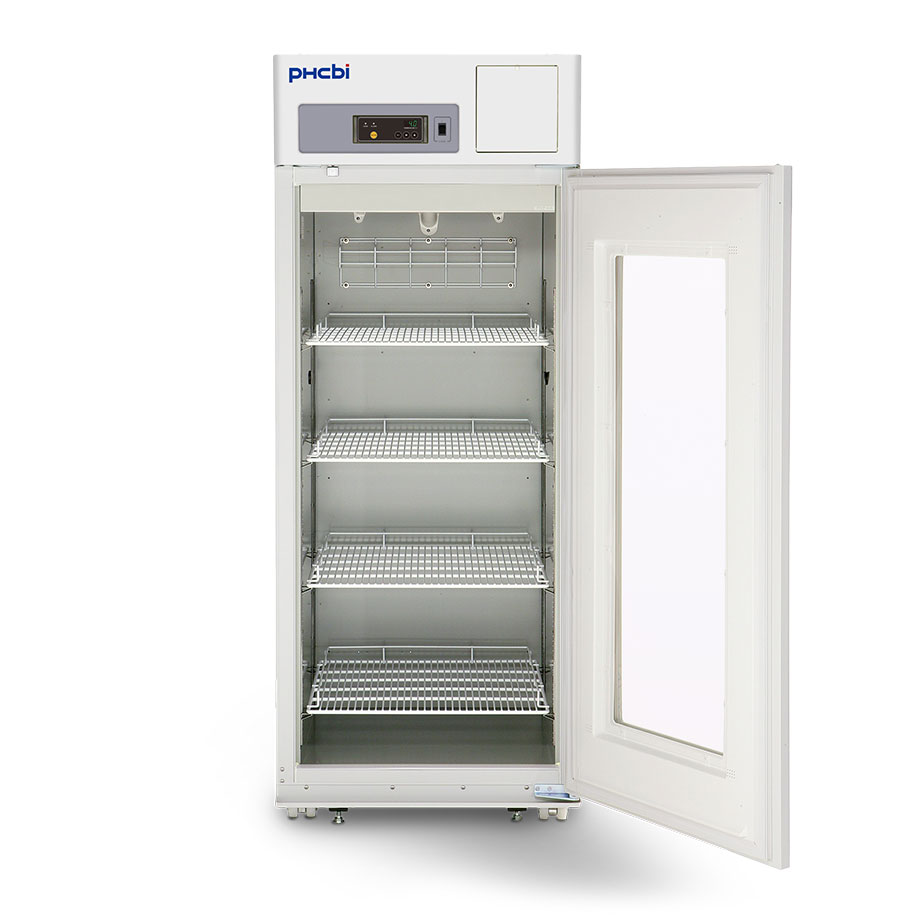

Product Photos

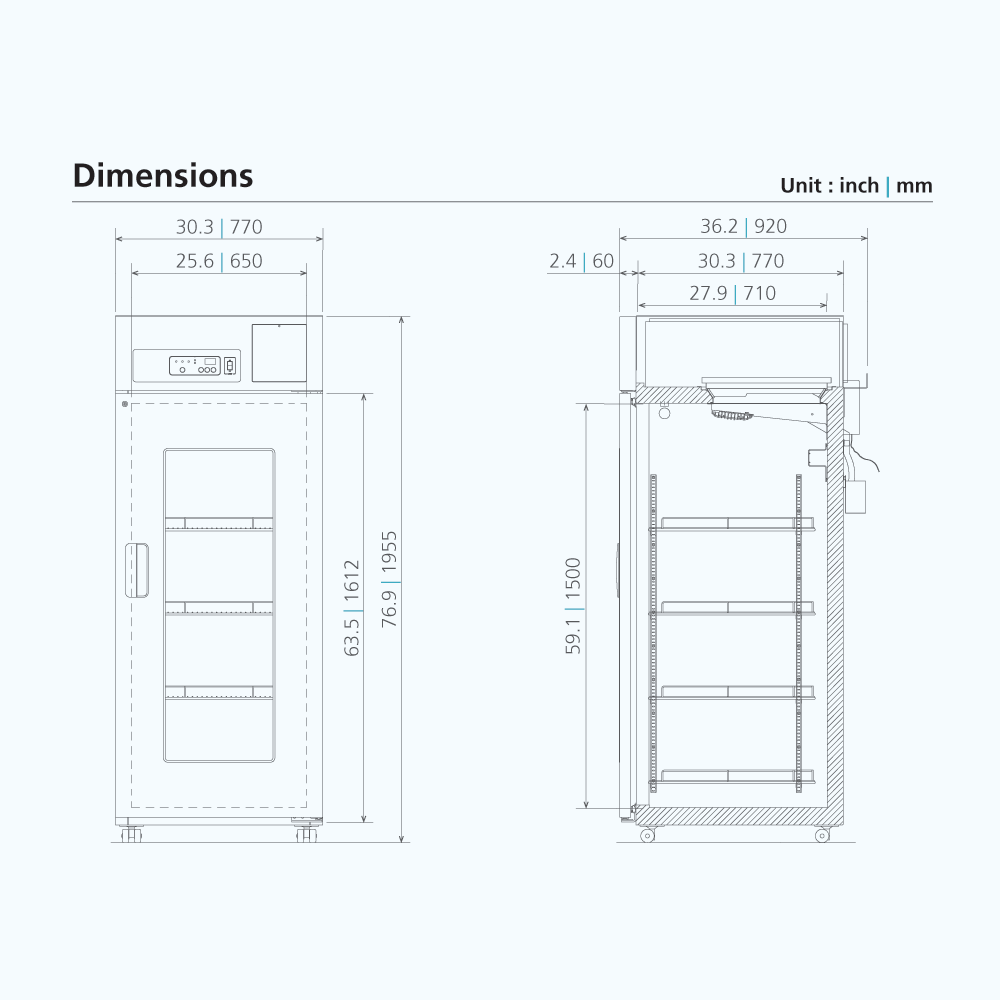

EXTERNAL DIMENSIONS 30.3" W x 36.2" D x 76.9" H (770 x 920 x 1955 mm)*
INTERNAL DIMENSIONS 25.6" W x 27.9" D x 59.0" H (650 x 710 x 1500 mm)
EFFECTIVE CAPACITY 24.2 cu.ft. (684 L)
INSULATION CFC free urethane
SHELVES 4 shelves (adjustable)
ACCESS PORT 3: Left/right sides, ceiling (1.1" (30 mm) diameter)
COOLING METHOD Uniformity forced air
COMPRESSOR Hermetic type, Output; 200 W
DEFROSTING Electronically monitored evaporator
ALARMS High temperature, low temperature, door ajar, power failure
NET WEIGHT 334 lbs (174 kg)
TEMPERATURE CONTROL SYSTEM Microprocessor Control System
AREA FOOTPRINT 9.08 sq.ft. (0.84 m2)
DATA MANAGEMENT Optional with LabAlert Monitoring System
SOUND LEVEL 48 dB(A) (background noise 20 dB(A))


MPR-722-PA Price Upon Inquiry. Please contact your local dealers.
