PHC Corporation of North America, a Member of PHC Group Incubators CO2 Incubators MCO-233AICUV-PA

Cell-IQ™ Series CO2 Incubator with UV-LED

MCO-233AICUV-PA

Effective Capacity
8.1 cu.ft. (230 L)
Temperature Range
Ambient temperature +5ºC to 50ºC

H2O2

*Optional MCO-HK-PW installation required.

MCO-233AICUV-PA Features

Ultimate Sample Protection

Precision incubation requires both the proper balance of CO2 and temperature inside the incubator. This incubator combines active and passive contamination controls including UV-LED, a proprietary antimicrobial copper-stainless steel alloy (inCu-saFe) interior, and integrated shelving with rounded corners to support critical applications. This next-generation incubator goes beyond traditional incubation by enhancing both data capture and troubleshooting capabilities. Its advanced onboard display and user interface do more than log basic readings — they track alarms and their resolution, overlay multiple data parameters simultaneously, and monitor the duration of incubator activities for deeper operational insight.


Minimize Contamination with Cell-IQ Features
A multi‑layered contamination‑control system protects your cultures from environmental and biological risks.

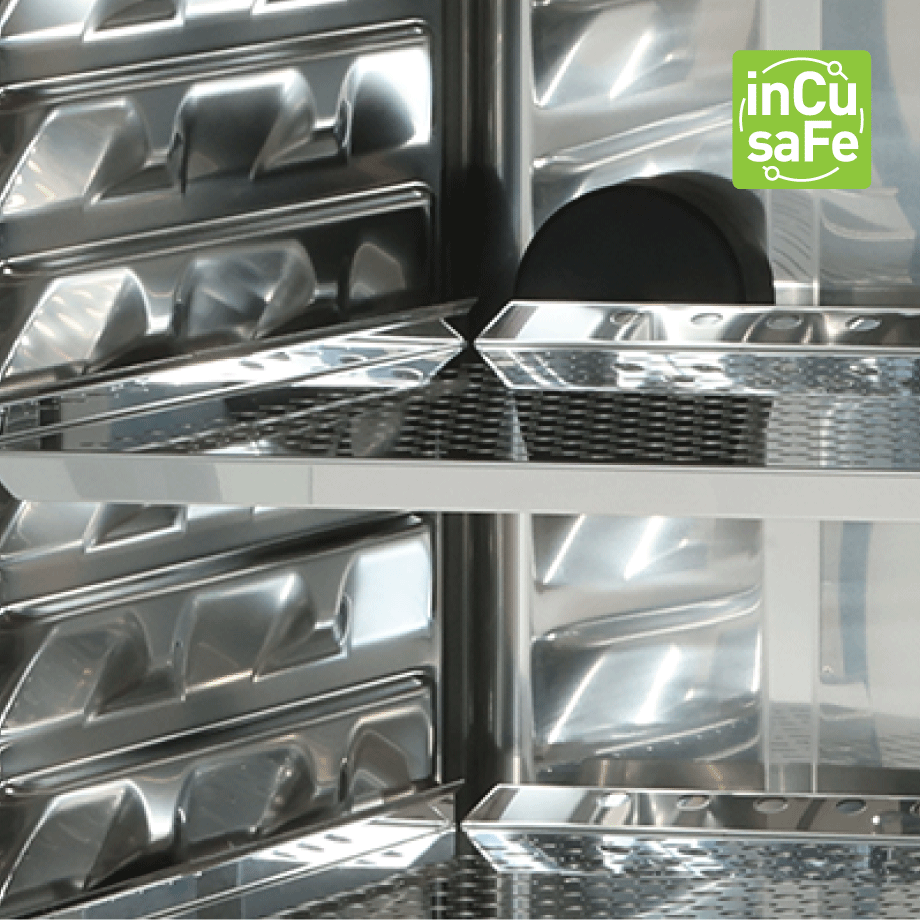

InCuSafe Interior
Copper‑enriched stainless steel inhibits microbial growth on interior surfaces, supports a cleaner chamber environment.
SafeCell UV-LED
Ozone‑free UV‑LED irradiation reduces airborne contaminants without affecting cell viability.
Integrated Shelving
Integrated, molded shelf channels with curved corners allow for easy cleaning and help reduce sources of contamination.

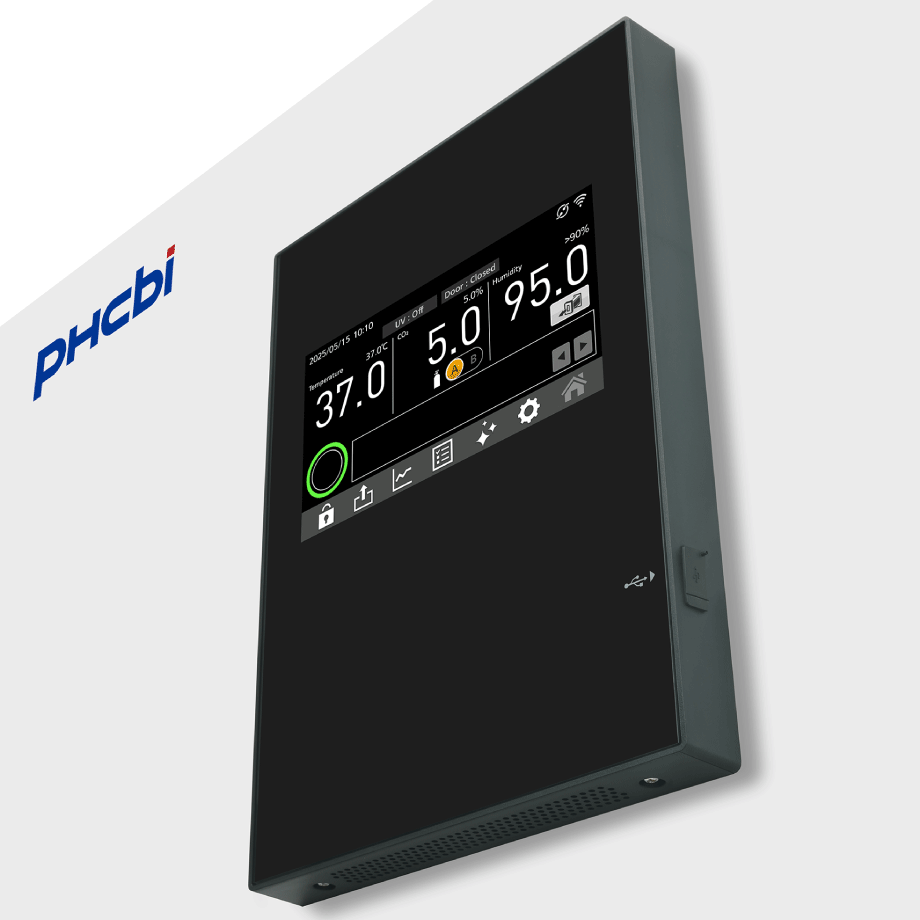

Intelligent Interface

A modern interface designed for clarity and confidence. The MCO-233AICUV-PA incubator makes monitoring and control simple with a clean design and intuitive tools.

Large 7-inch touchscreen
Sleek black panel, 44% larger for improved visibility and ease of use.

Door activity overlay
Temperature graph shows door openings, helping users quickly spot the cause of fluctuations.

Instant support
Built-in, easy-to-scan QR codes provide immediate access to alarm responses and manuals.

Guided self-service tools
Designed to enable quick issue resolution with service support available when needed.


Integrated Lab Monitoring with LabSVIFT®

LabSVIFT is a cloud-based service built to simplify equipment monitoring and performance tracking. It provides 24/7 monitoring*, real‑time alerts, and centralized records compliant with FDA 21 CFR Part 11**. The built‑in health check feature evaluates equipment performance and flags irregularities with recommended corrective actions. Whether you’re reviewing routine performance data or checking its status from your phone, LabSVIFT helps ensure your incubator is secure and operating at peak performance.


* 24/7 real time monitoring applies only under optimal network and server conditions
** Audit trail feature meets requirements for 21 CFR Part 11 compliance


Overview

Next Generation CO2 Incubator

The MCO‑233AICUV‑PA delivers a tightly controlled, contamination‑resistant environment designed to support today’s most sensitive and demanding cell culture workflows. With multi‑layer contamination control, and an intuitive interface, it brings consistency and confidence to every experiment.


Videos

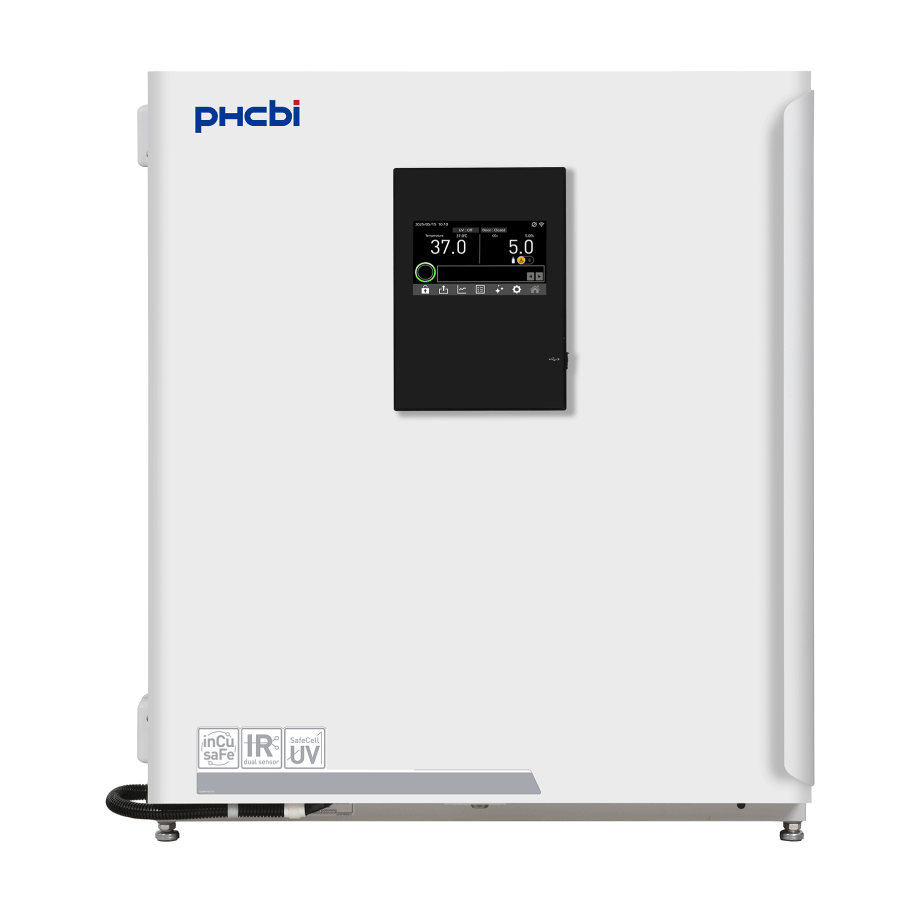

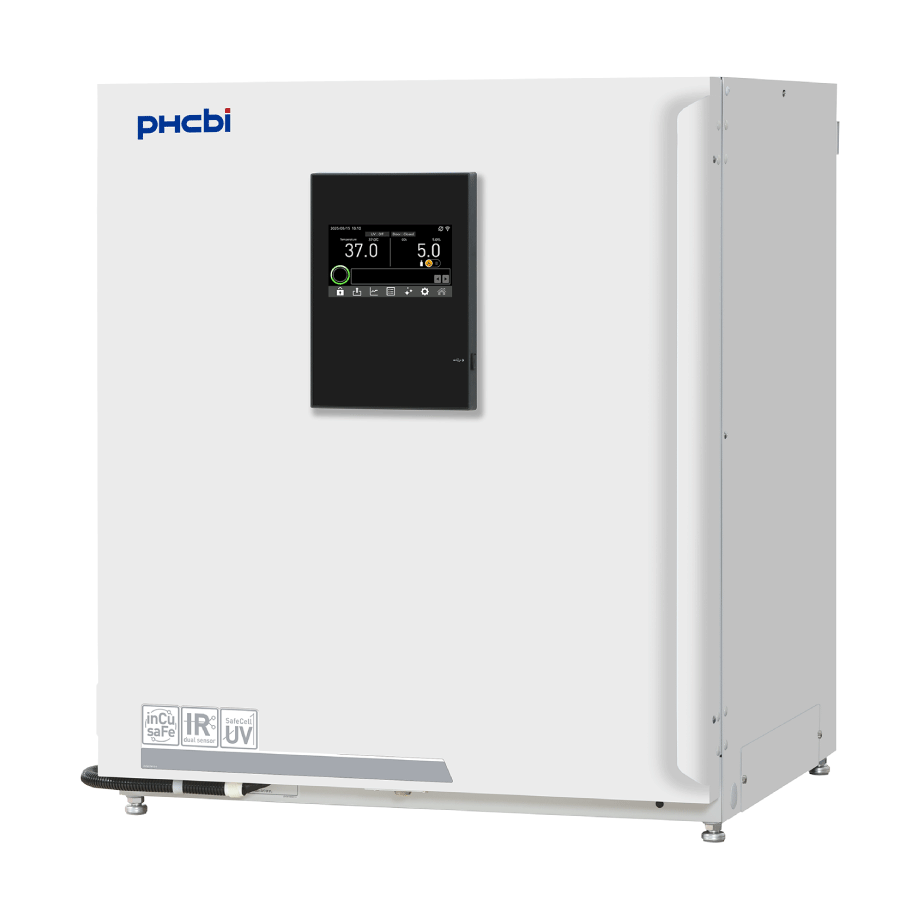

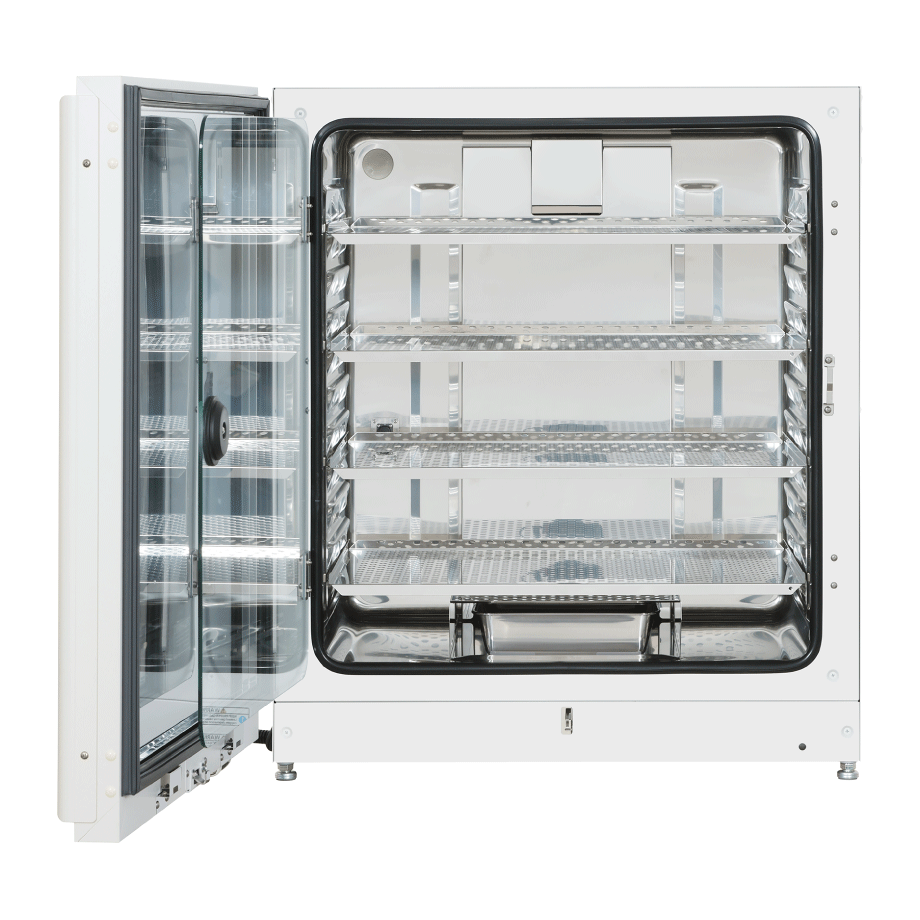

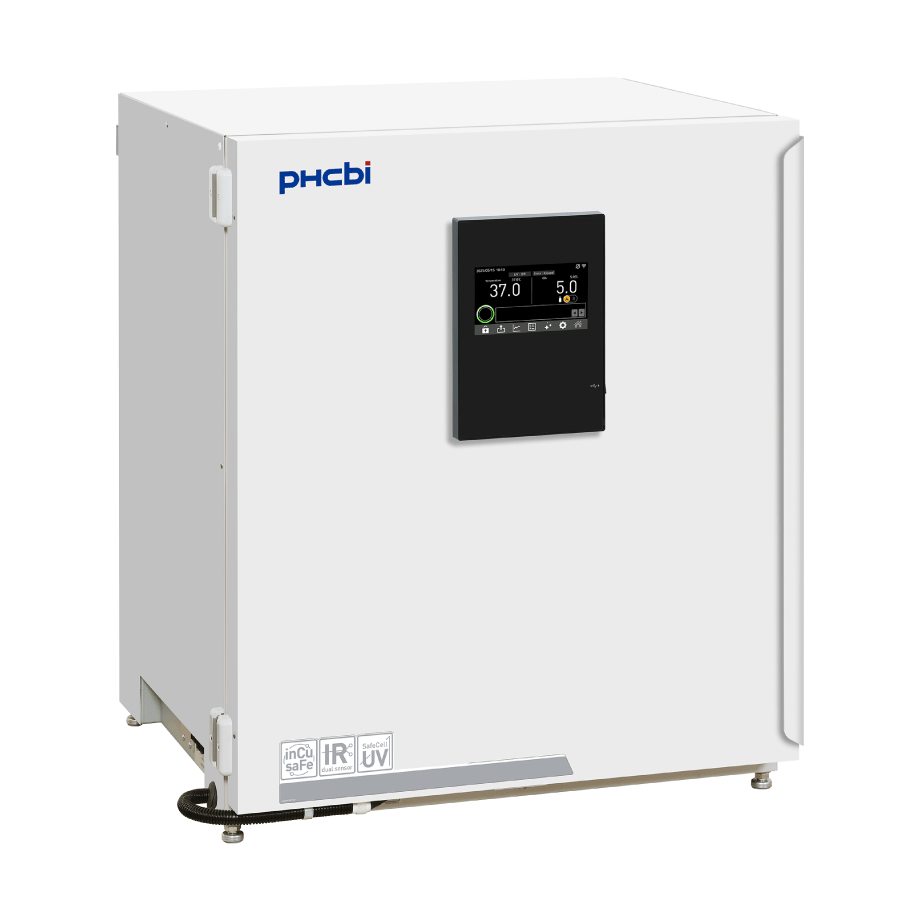

Product Photos

Mammalian cell culture incubator MCO-170M

Specifications

EXTERIOR DIMENSIONS 30.3" W x 28.7" D x 35.6" H (770 x 730 x 905 mm)
INTERIOR DIMENSIONS 25.3" W x 20.6" D x 27.6" H (643 x 523 x 700 mm)
INTERIOR VOLUME 8.1 cu.ft. (230 L)
INTERIOR SURFACES InCu-saFe stainless steel with copper enriched alloy
OUTER DOOR Painted steel
SHELVES 24.4" W × 17.7" D × 0.5" H | 620 × 450 × 12 mm | Maximum load: 15 lbs (7 kg)/tray
ACCESS PORT 1: Rear Upper (1.2" [30 mm] diameter)
HEATING METHOD Direct Heat and Air Jacket System
UV LAMP LED-based; Included (MCO-LUVS-PA)
NET WEIGHT 174 lbs (80 kg)
TEMPERATURE CONTROL RANGE Ambient temperature +5ºC to 50ºC
TEMPERATURE UNIFORMITY ±0.25ºC
CO2 CONTROL RANGE 0% to 20%
CO2 CONTROLLER Microprocessor
CO2 SENSOR TYPE Dual Beam Infrared Sensor
TEMPERATURE SENSOR Thermistor
DATA OUTPUT USB 4-20 mA Analog Output (CO2 & Temperature)
DATA ACQUISITION Standard 4-20 mA Module; Data Export via USB
CONTAMINATION CONTROLS InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light
DISPLAY Color LCD touchscreen
HUMIDIFYING SYSTEM Passive humidification with a water pan

Price

MCO-233AICUV-PA Price Upon Inquiry. Please contact your local dealers.

Dimensions

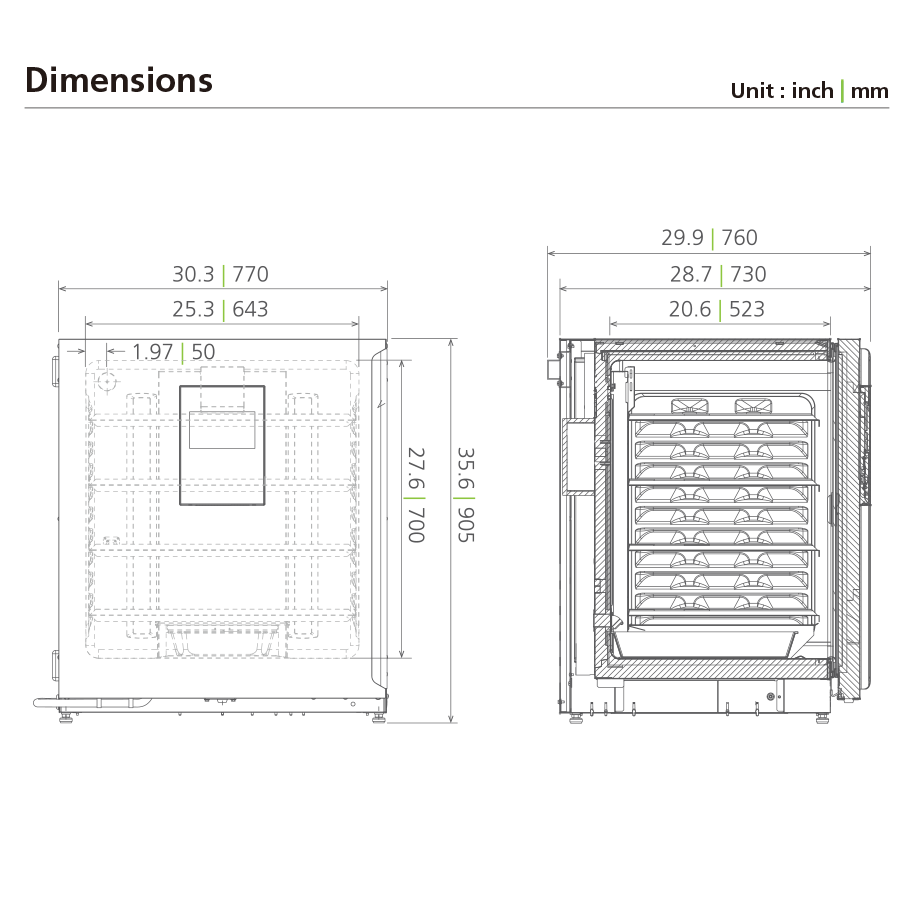

Mammalian cell culture incubator MCO-170MP Dimensional Drawing

Product Sheet Download
