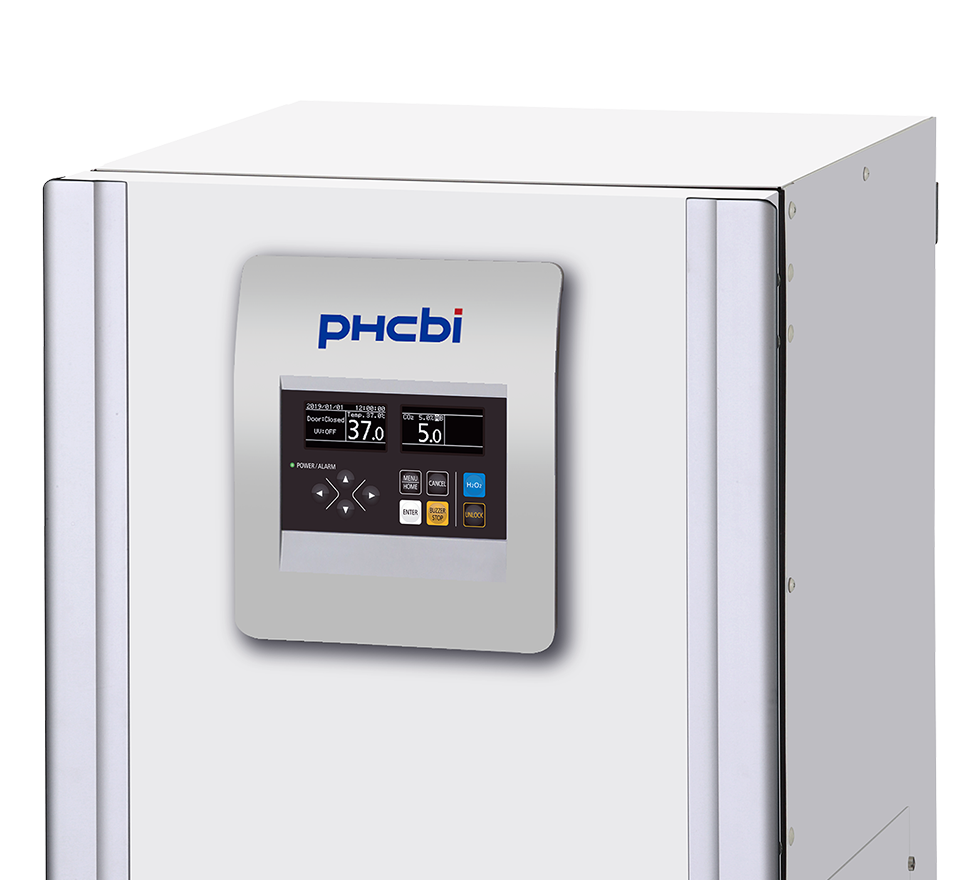

Cell-IQ Stackable CO2 Incubator 1.8 cu.ft.


Effective capacity
1.8 cu.ft. (50 L)
Temperature range
+5℃ above ambient to +50℃

MCO-50AICL-PA Features

Cell Culture Incubators Capabilities

As a crucial piece of laboratory equipment, PHCbi brand cell culture incubators are designed to ensure highly accurate, reproducible chamber conditions. Our cell culture incubators provide a contamination-free environment while allowing precise CO2 or CO2/O2 control - essential for in vivo environment replication.

Responsive Performance

A stable, uniform temperature is maintained by the microprocessor controlled Direct Heat and Air Jacket system. CO2 is quickly restored to setpoints after door openings, while relative humidity returns to an elevated state to prevent media desiccation and achieve optimal cell culturing.

Precision Gas Sensor

Unaffected by temperature or humidity changes, the dual infrared CO2 sensor continuously calibrates for control and accuracy. Dual sensors deliver real-time chamber CO2 density readings for optimal recovery after door openings, maintaining setpoint to within 0.15% or better.

Compact and Stackable

The versatile design of the Cell-IQ MCO-50AICL-PA compact CO2 incubator permits the units to be double or triple stacked for a maximized footprint. A streamlined interior optimizes space and reduces contamination risk while improving ease of maintenance.

Superior Contamination Control

Exclusive inCu-saFe® alloy interior provides the germicidal properties of copper with the corrosion resistance of stainless steel. Optional SafeCell™ UV light provides an added layer of contamination control, safely destroying contaminants at the humidification source from behind a plenum wall. A high-speed H2O2 vapor decontamination option utilizes a combination of vaporized hydrogen peroxide and UV light to permeate and safely clean the chamber in less than 3 hours.

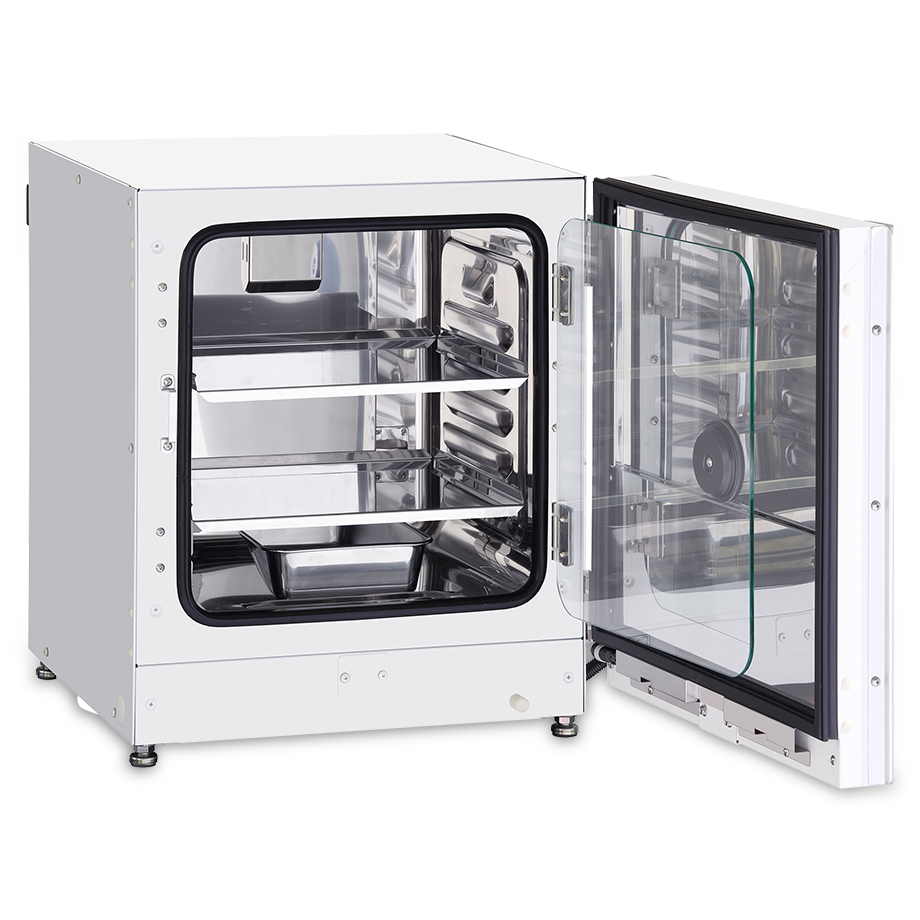

Easy to Clean

The integrated inCu-saFe shelf design incorporates a seamless interior chamber that mitigates contamination while remaining easy to clean and free of corrosion. Shelf channels are molded into the sidewalls, minimizing moving parts and eliminating the need for brackets and clips.

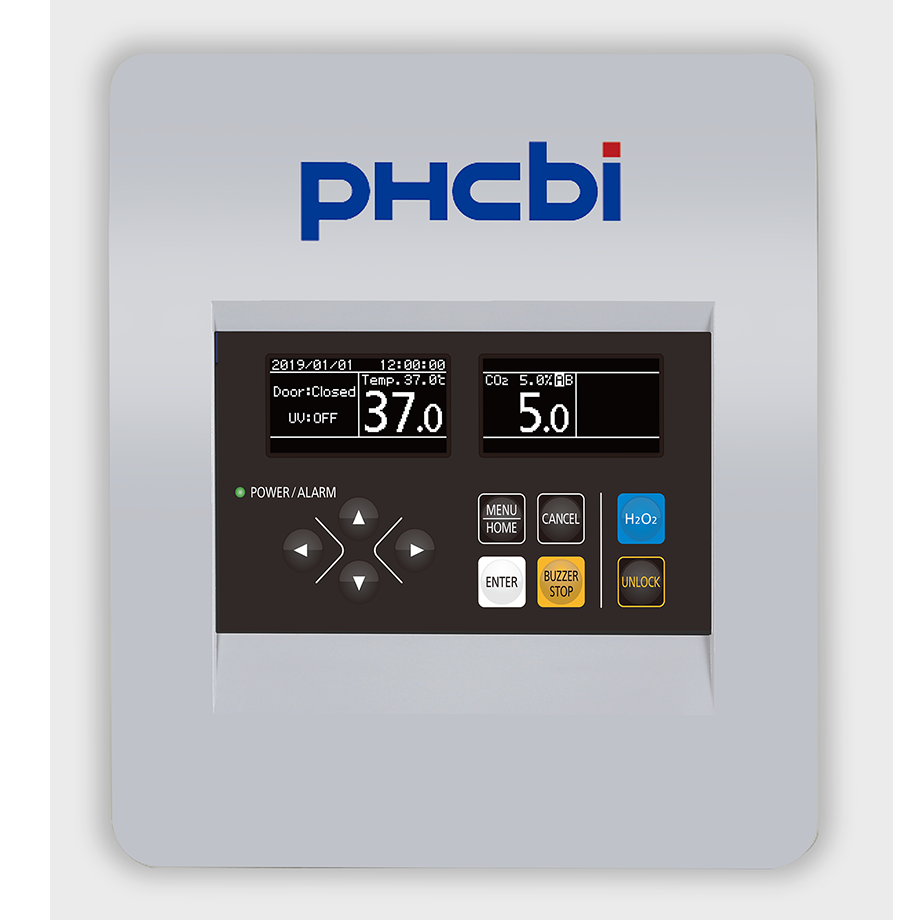

Advanced Touchpanel Controller

An intuitive controller provides comprehensive management over interior incubator chamber parameters. Temperature, CO2 and humidity setpoints and alarm deviations are controlled on an LCD screen for ease of use, even with gloved hands. Standard USB data port permits convenient transfer of logged performance.

Event Management

The digital microprocessor controller manages and records lab incubator functions and user inputs, delivering full control over the inner chamber environment and alarms through an arrow prompted touchscreen menu. Events and parameters include temperature, CO2, humidity, door status and timing, UV status and parameter deviation alarms.




Cell-IQ Stackable CO2 incubator

The PHCbi brand Cell-IQ MCO-50AICL-PA incubator offers precise and accurate control of CO2, humidity and temperature for optimal culturing conditions. This laboratory incubator features standard and optional passive and active contamination mitigation systems with a three-hour H2O2 vapor option for thorough and complete resolution of bacteria and viruses in a compact, space saving design that can be double or triple stacked.

Featuring the patented Direct Heat and Air Jacket conditioning system, digital microprocessor control and monitoring, and optional patented SafeCell UV technology, the Cell-IQ MCO-50AICL-PA stackable incubator is an ideal selection for cell culture applications.

Request a Quote

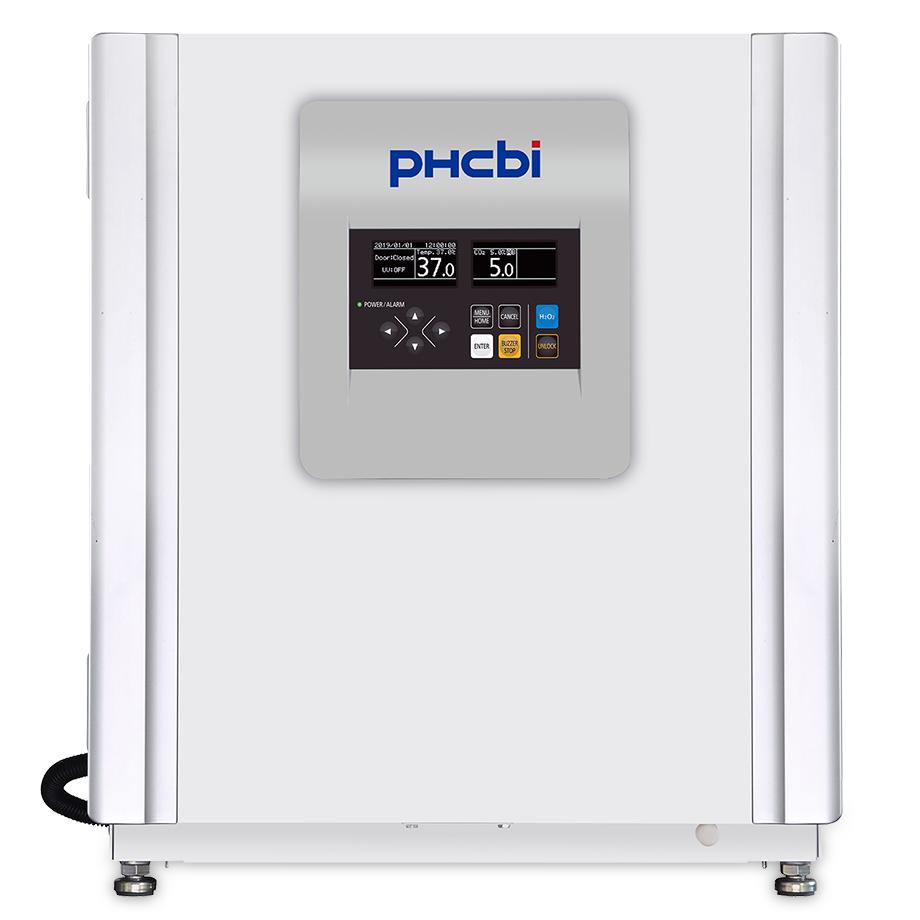

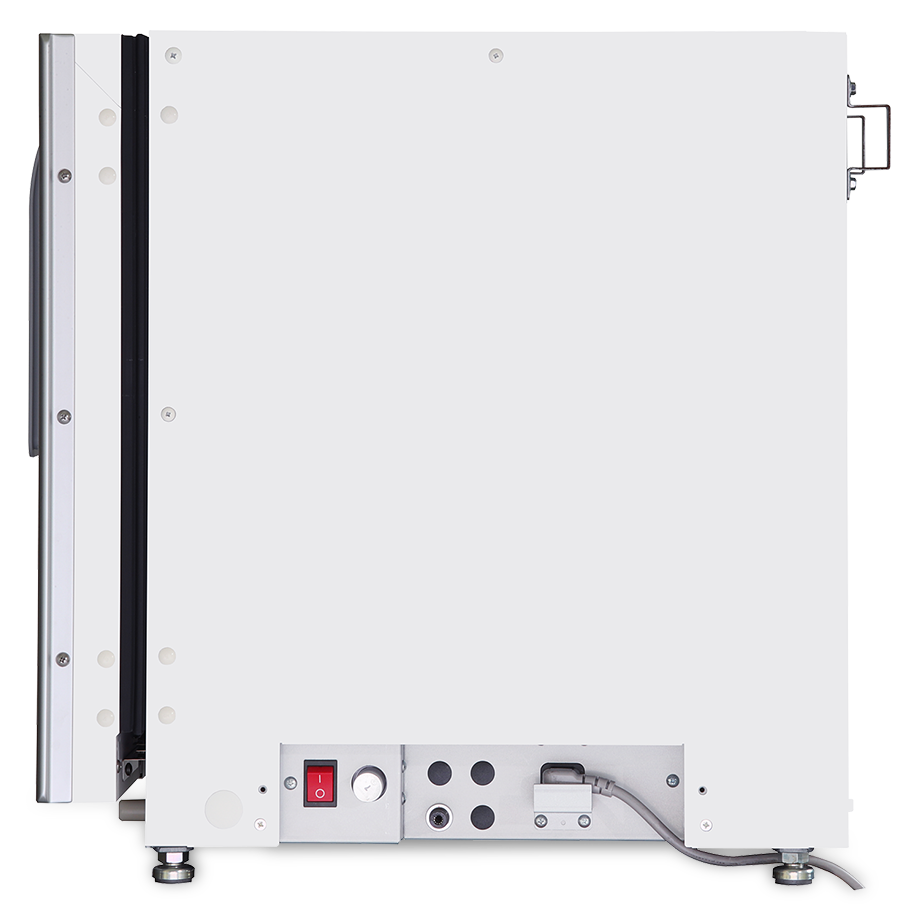

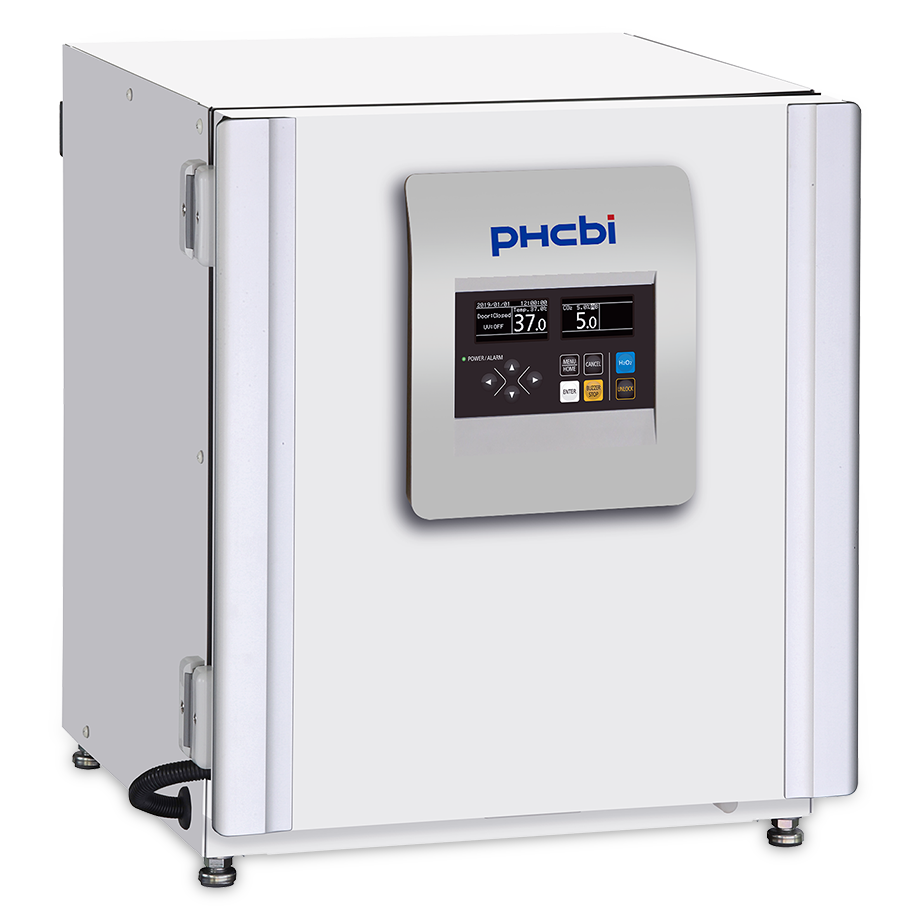

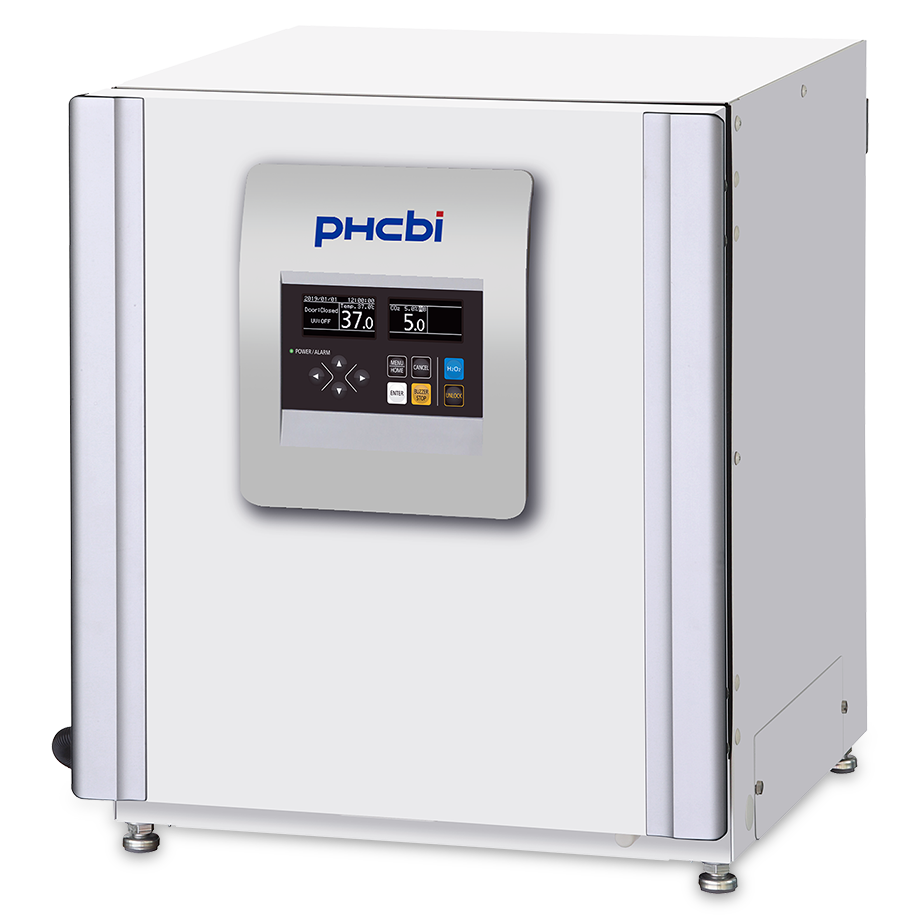

Product Photos

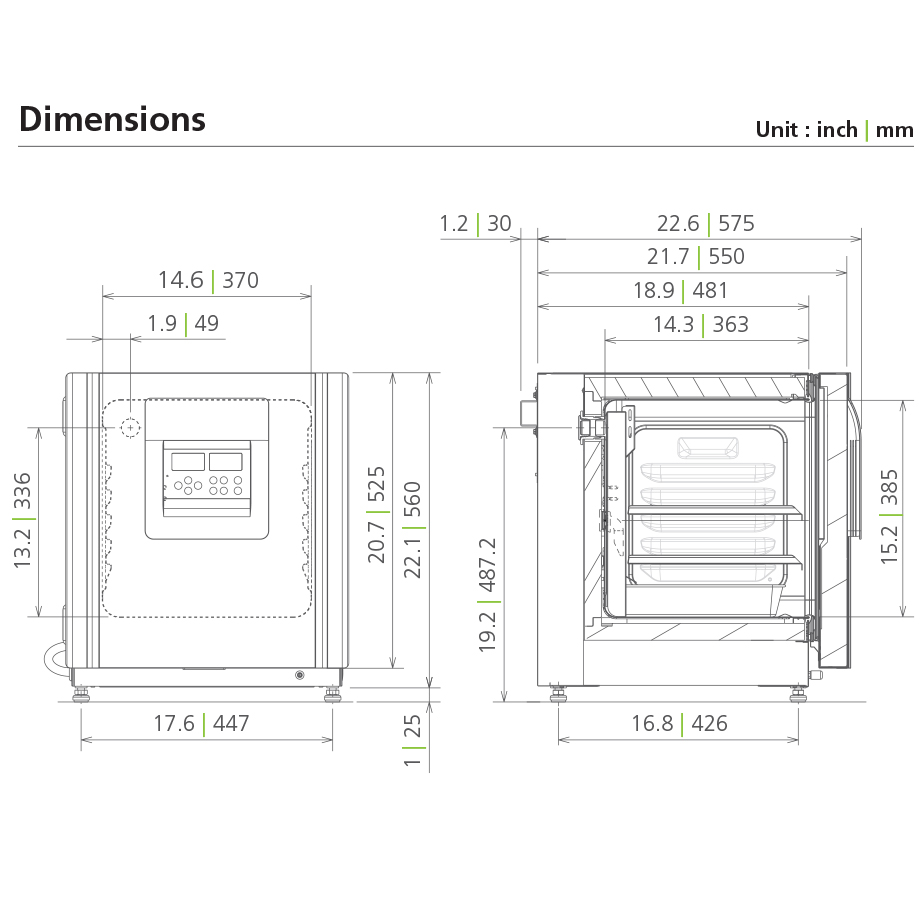

INTERIOR DIMENSIONS 14.6" W x 14.3" D x 15.2" H (370 x 363 x385 mm)
INTERIOR VOLUME 1.8 cu.ft. (50 L)
OUTER DOOR 1; Field reversible

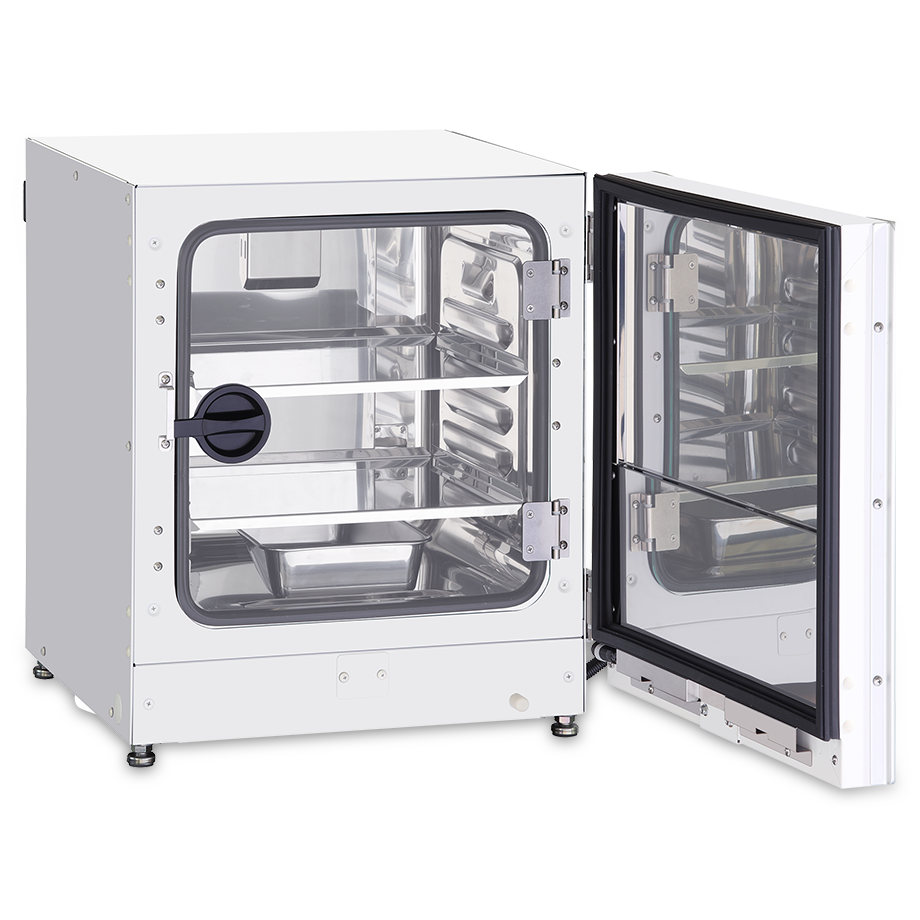

INNER DOOR 1; Sealing tempered glass with positive latch
SHELVES 2 (stainless steel copper enriched alloy); 13.9" W × 12.1" D × 0.5" H (353 × 308 × 12 mm); Max Load Per Shelf 15.4 lbs (7 kg);
ACCESS PORT 1: Back wall, upper left side (1.2" [30 mm] diameter) with silicone (non-VOC) stopper
NET WEIGHT 99 lbs (45 kg)
TEMPERATURE CONTROL RANGE Ambient temperature +º5C to +50ºC
CO2 CONTROL RANGE 0ºC to 20ºC, ± 0.15ºC
CO2 CONTROLLER Microcomputer, Input by keypad
DISPLAY White graphic OLED readable to 0.1 increments
INTERIOR SURFACES Stainless steel copper enriched alloy
WARRANTY INFORMATION 3 years parts and labor
ALARMS Power Failure (R); Temperature Deviation (V-B-R); Gas Deviation (V-B-R); Supply Empty (V-B-R); Door Open (V-B-R)
HUMIDITY PAN 1; Stainless Steel
POWER SUPPLY 115V, 1Ø, 60Hz, NEMA 5-15P requires NEMA 5-15R receptacle
CONTROLLER Microprocessor – digital with soft keys


MCO-50AICL-PA Price Upon Inquiry. Please contact us.
